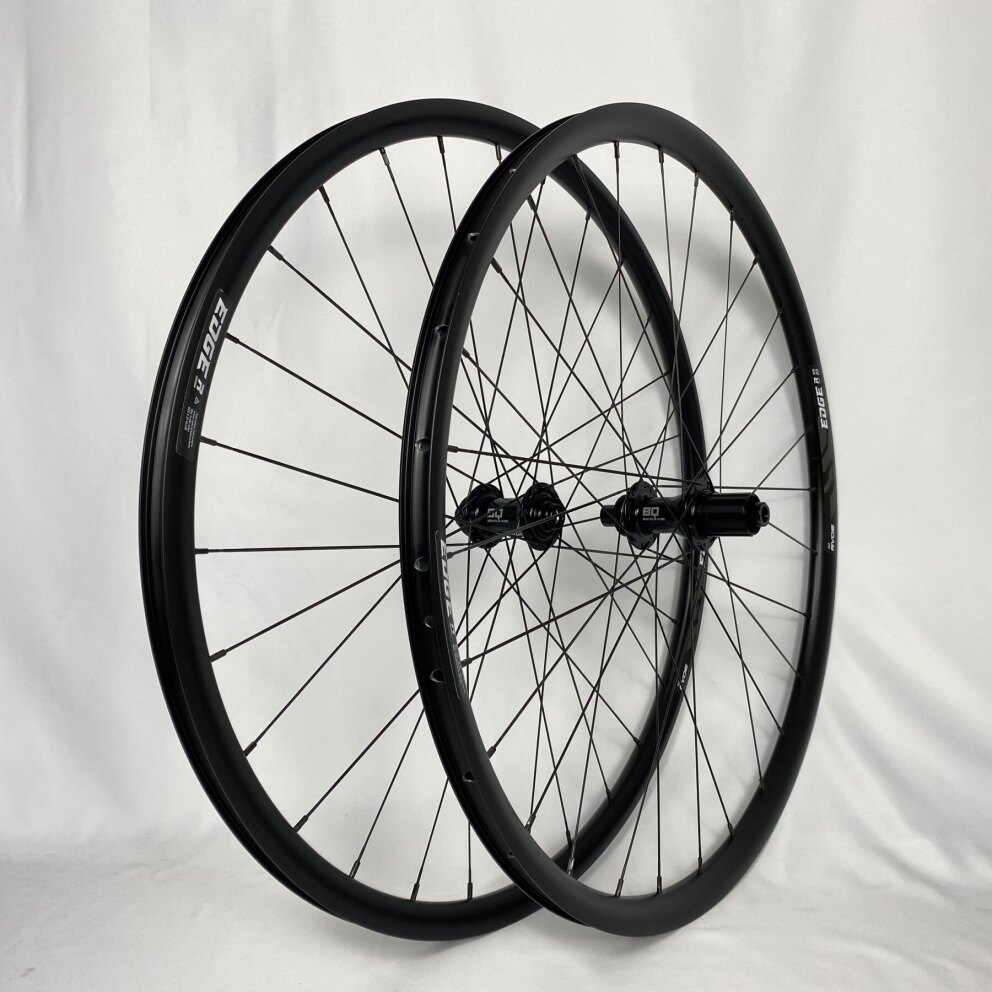

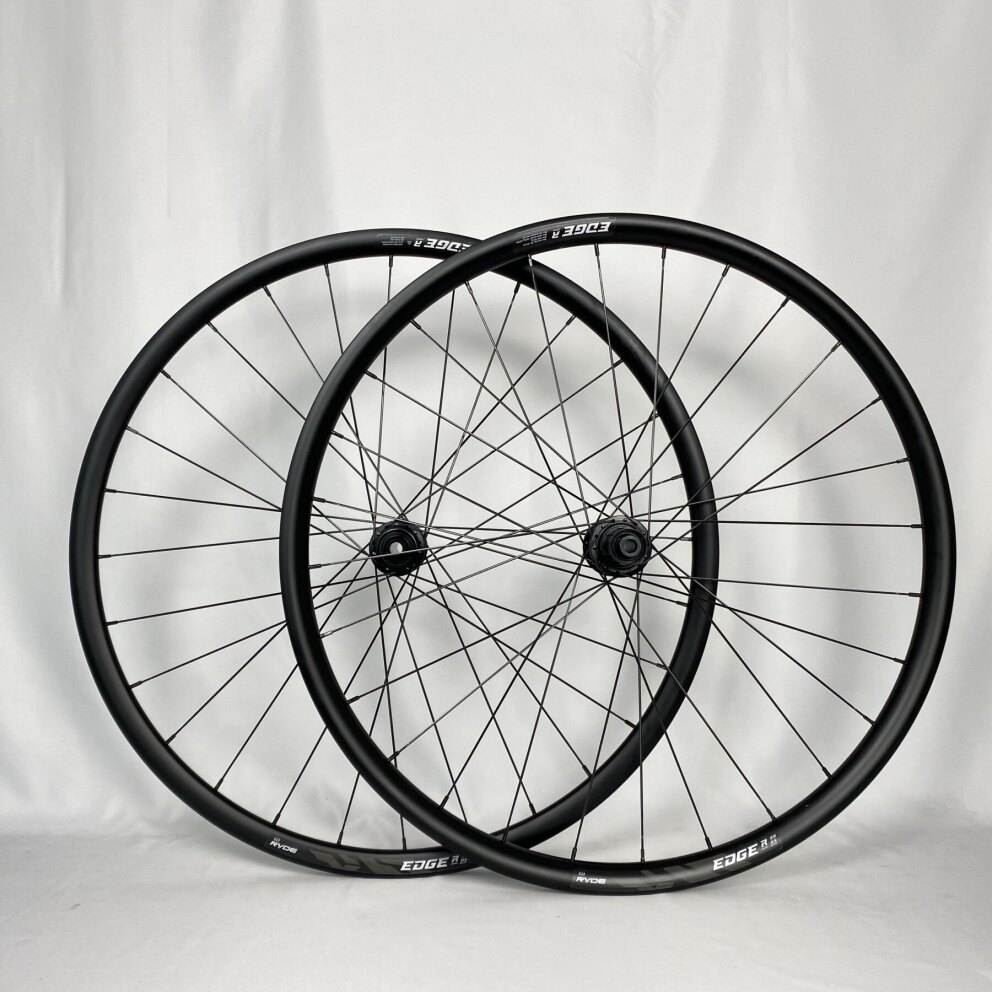

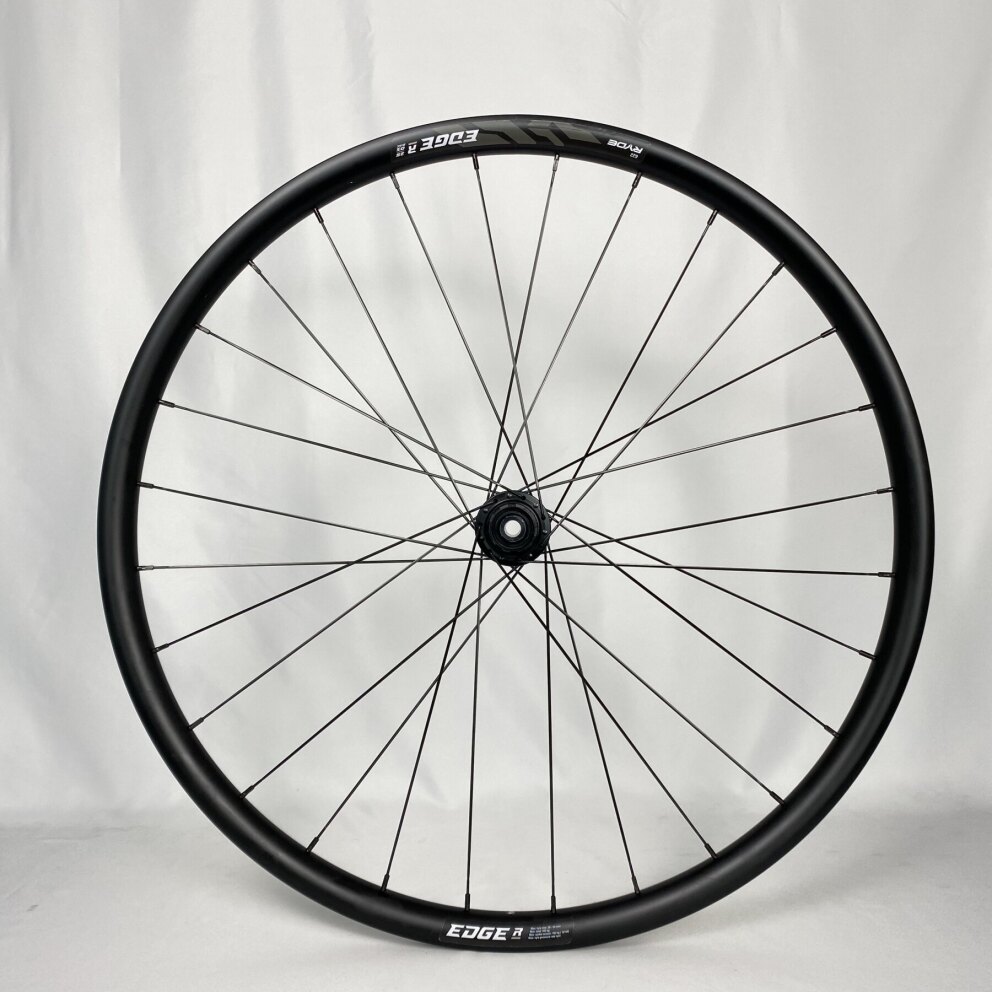

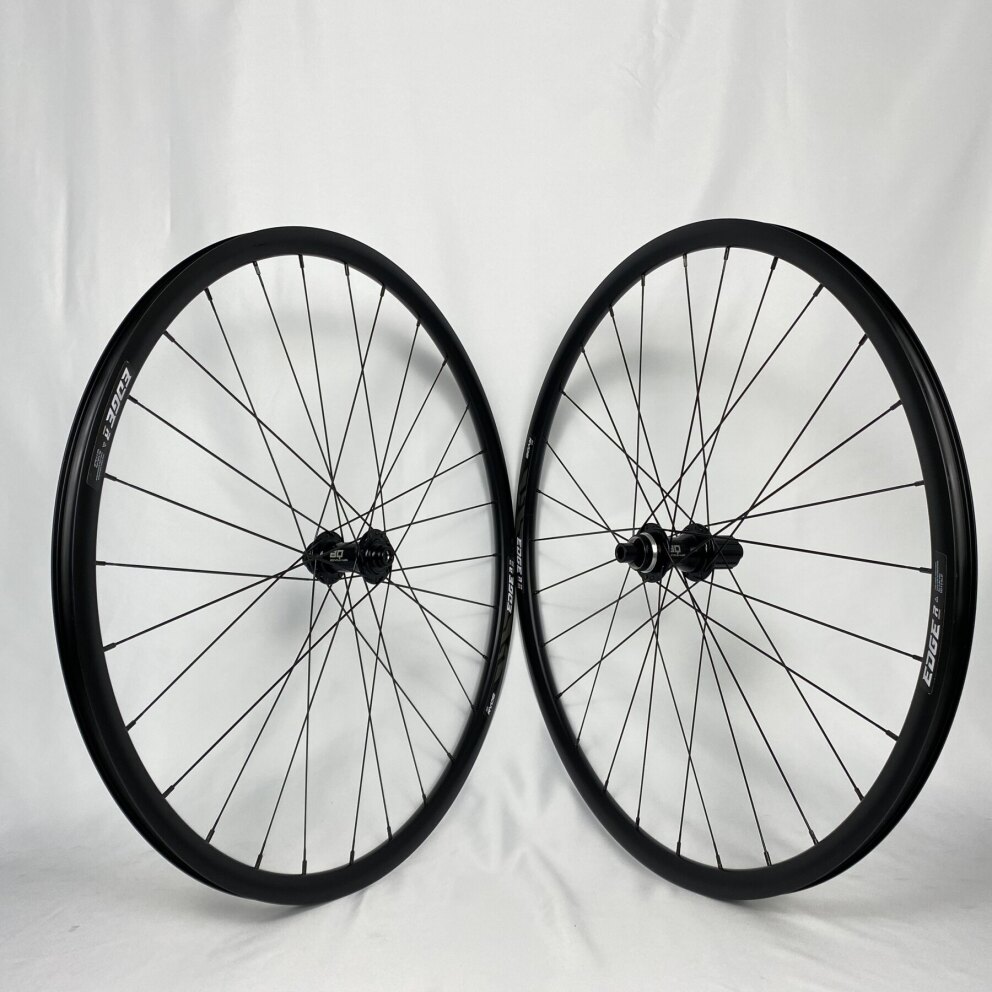

Wheelset / 622X20C / Rigida - Ryde / Edge R 25 os Disc / Black / BQ / BQ-RH30002 / HG Body 36.85 MM / 142 MM / Disc (Centerlock) / Race
Item number: WIELSET-223
€ 0,00
In stock : 0
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | Race |
|---|---|
| Voorwiel, achterwiel of wielset? | Wielset |
| BSD maat | 622 |
| FIETS Inch maat | 28 |
| Type rem | Disc (Centerlock) |
| Cassette / Freewheel body | HG Body 36,85 MM |
| Type as | Steekas 100 x 12 mm , Steekas 142 x 12 mm |
| Interne breedte van de velg | 20C |
| Kleur | Zwart |
| Inbouwbreedte | 100 mm , 142 mm |
| Naafdynamo | Nee |
| Merk naaf | BQ Bicycle Hubs |
| Type naaf | BQ-RH30002 , BQ-FH30521 |
| Merk velg | Ryde |
| Type velg | Edge R 25 os Disc |
| Materiaal van de velg | Aluminium |
| Nieuw of gebruikt | Nieuw |
Mounting widths:
Front (MM): 100
Rear (MM): 142
Construction:
Handmade or machined: Handmade
Spoke pattern: Cross 3
Total weight (GR): 1868

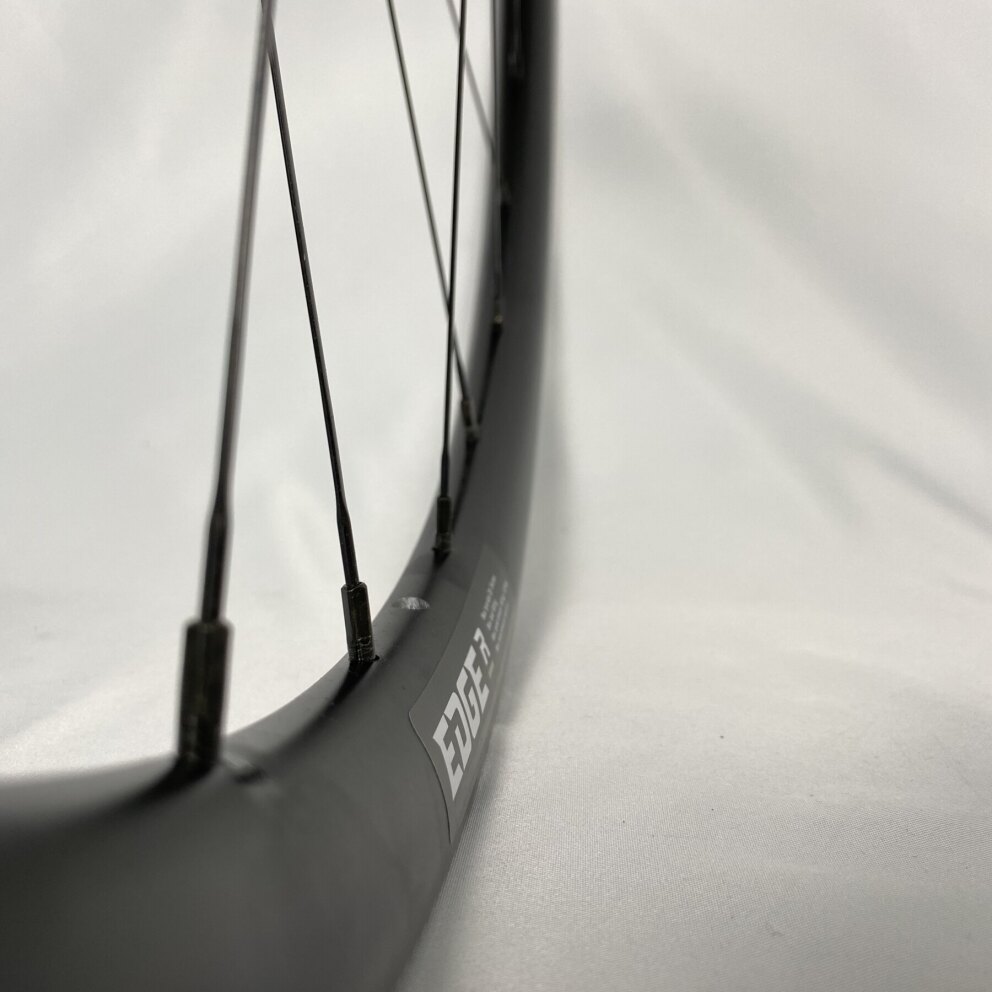

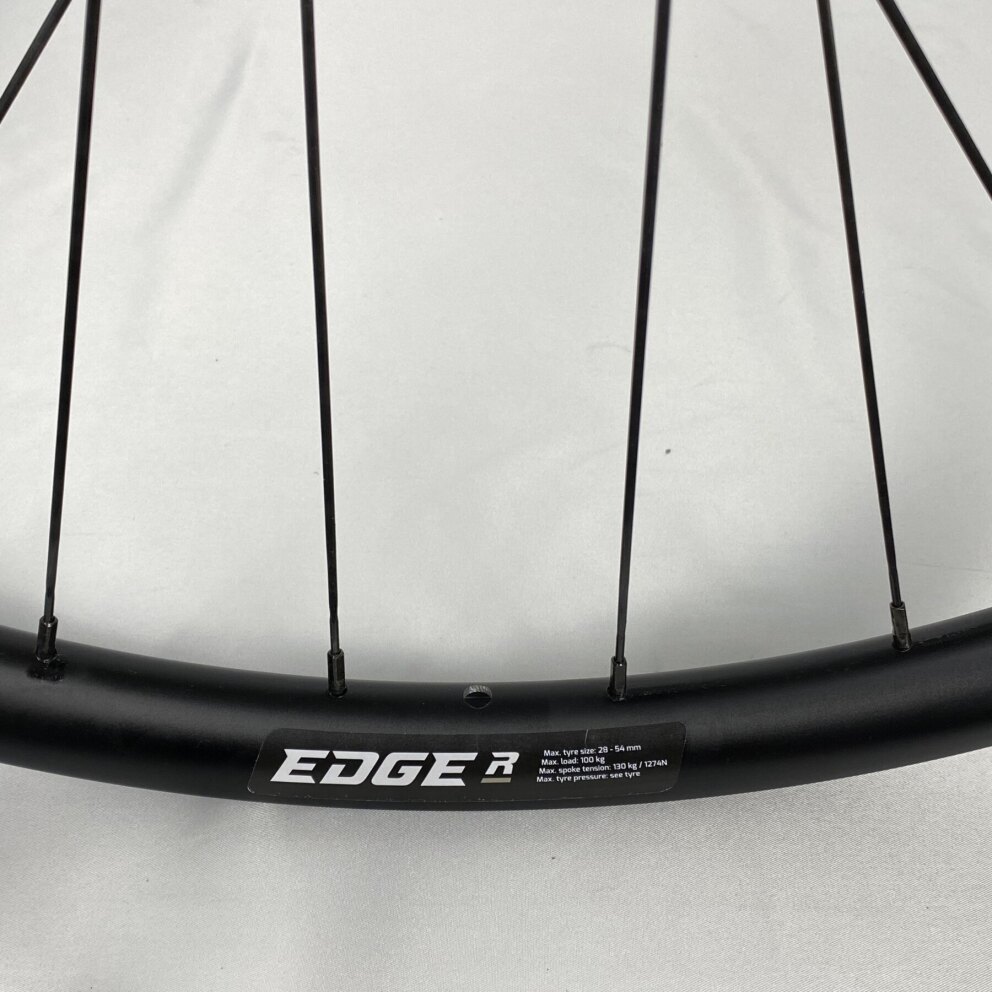

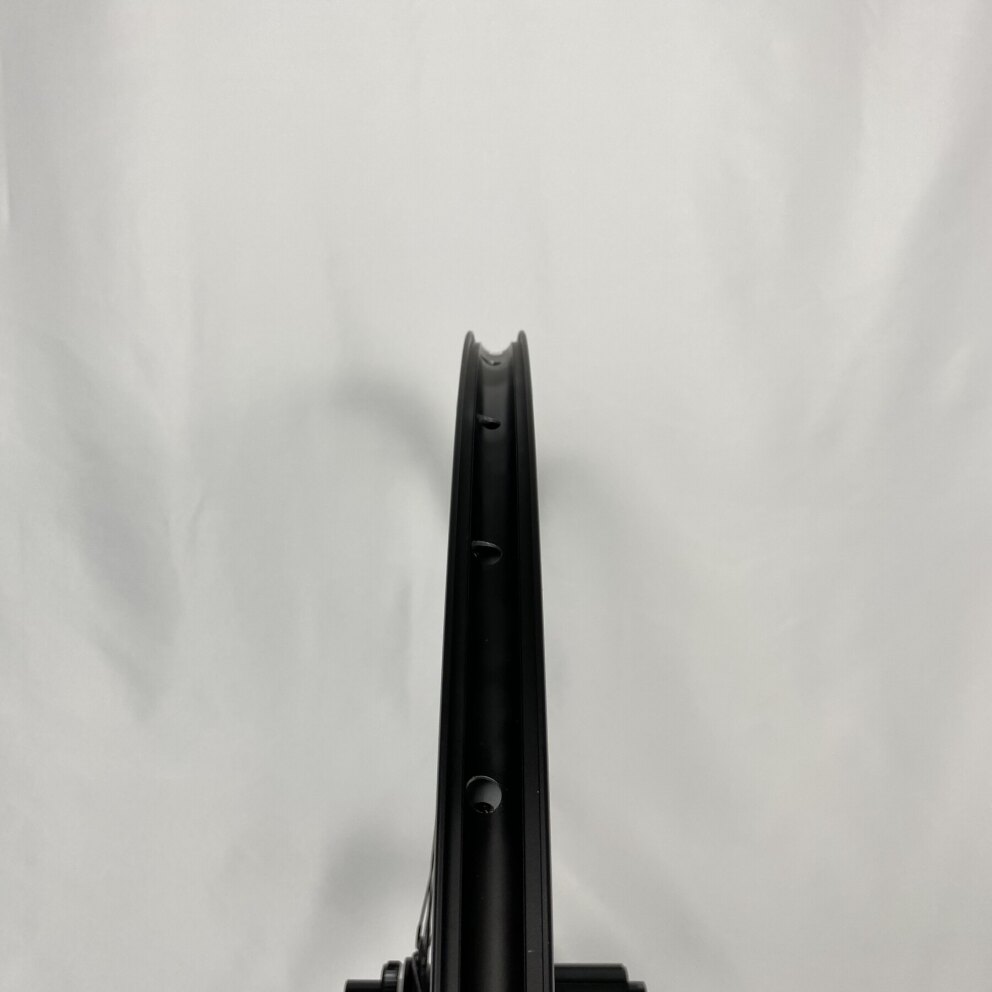

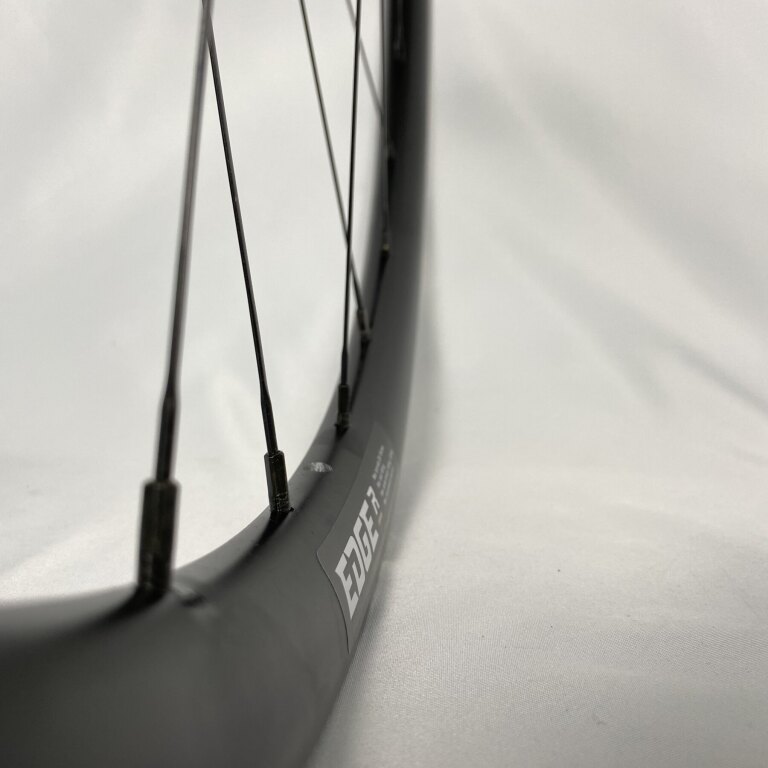

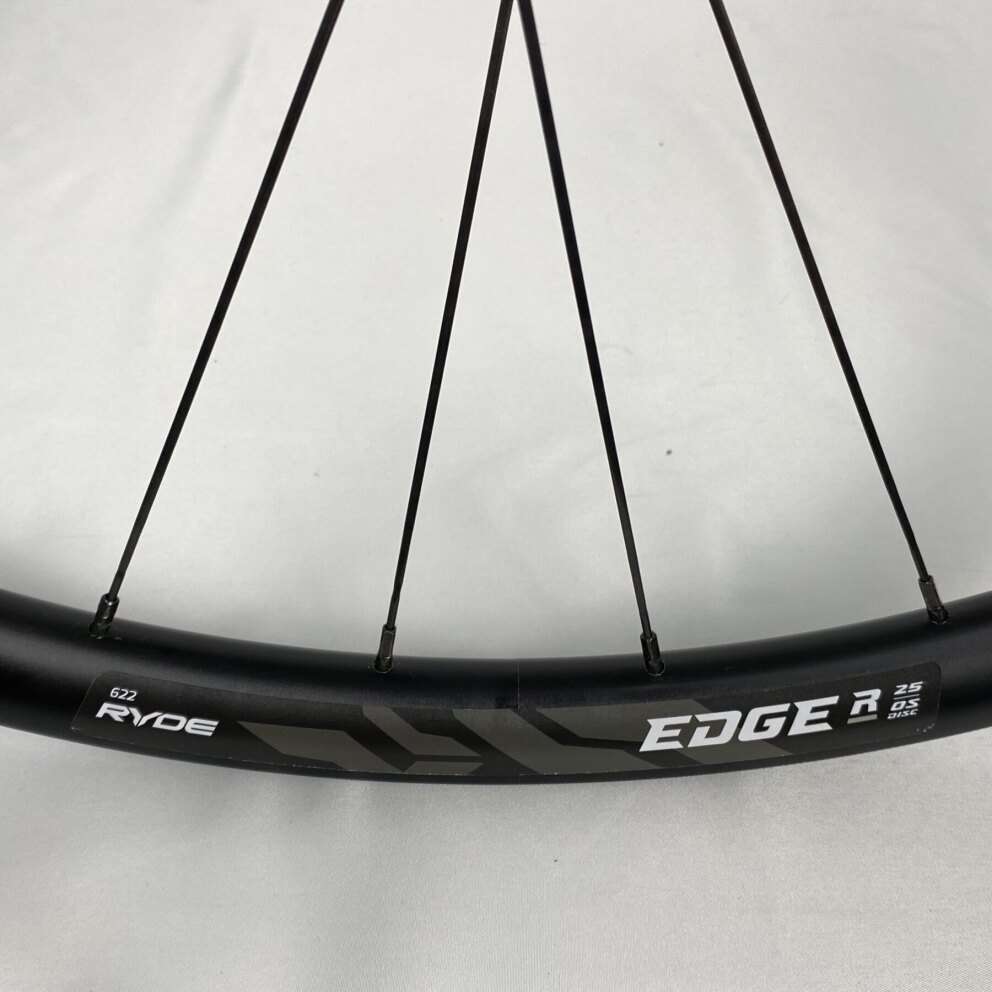

Rim specifications:
Brand: Rigida - Ryde
Type: Edge R 25 os Disc
Colour: Black
Size (Inch/MM): 622X20C
External width (MM): 25
Internal width (MM): 20
Average weight (GR): 555
Material: Aluminium
Single wall / Double wall: Double wall
Single eyelet / Double eyelet: Uneyelet
Number of spoke holes: 28GTS
Spoke nipple size: 14G
Braking surface present: No

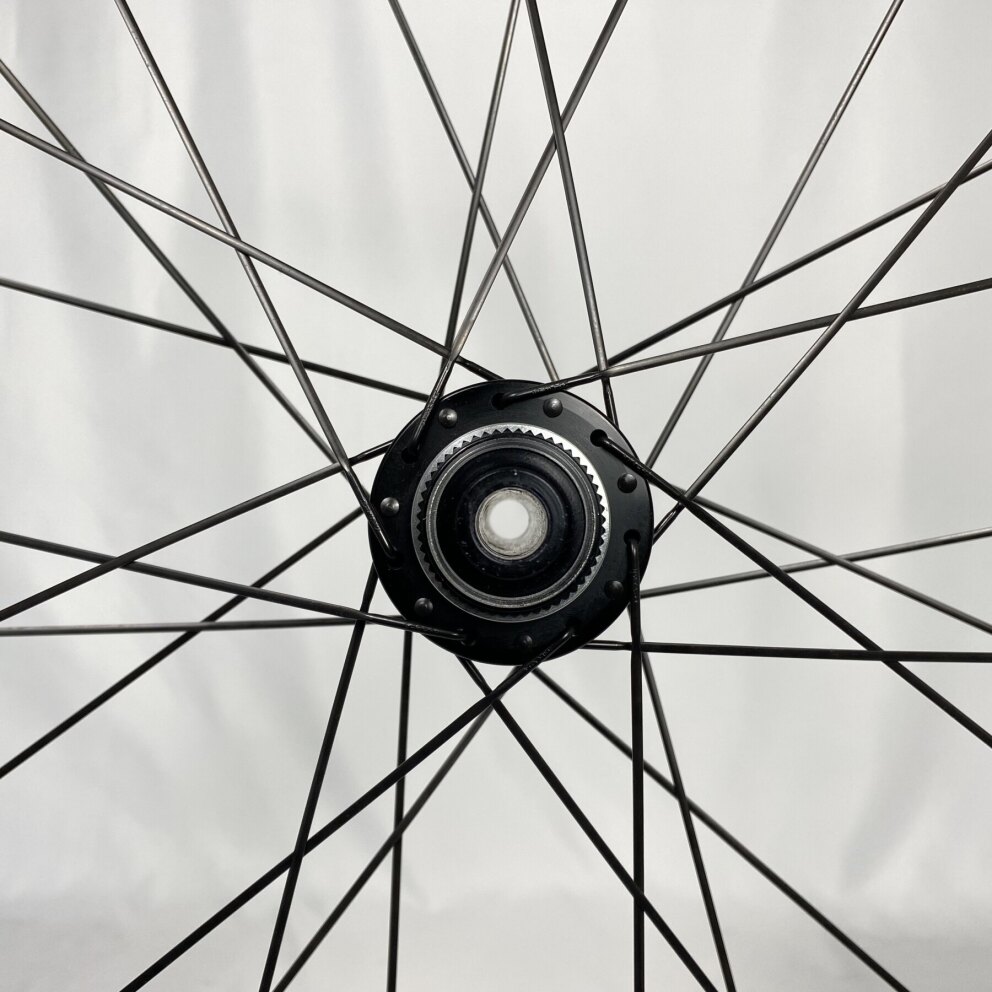

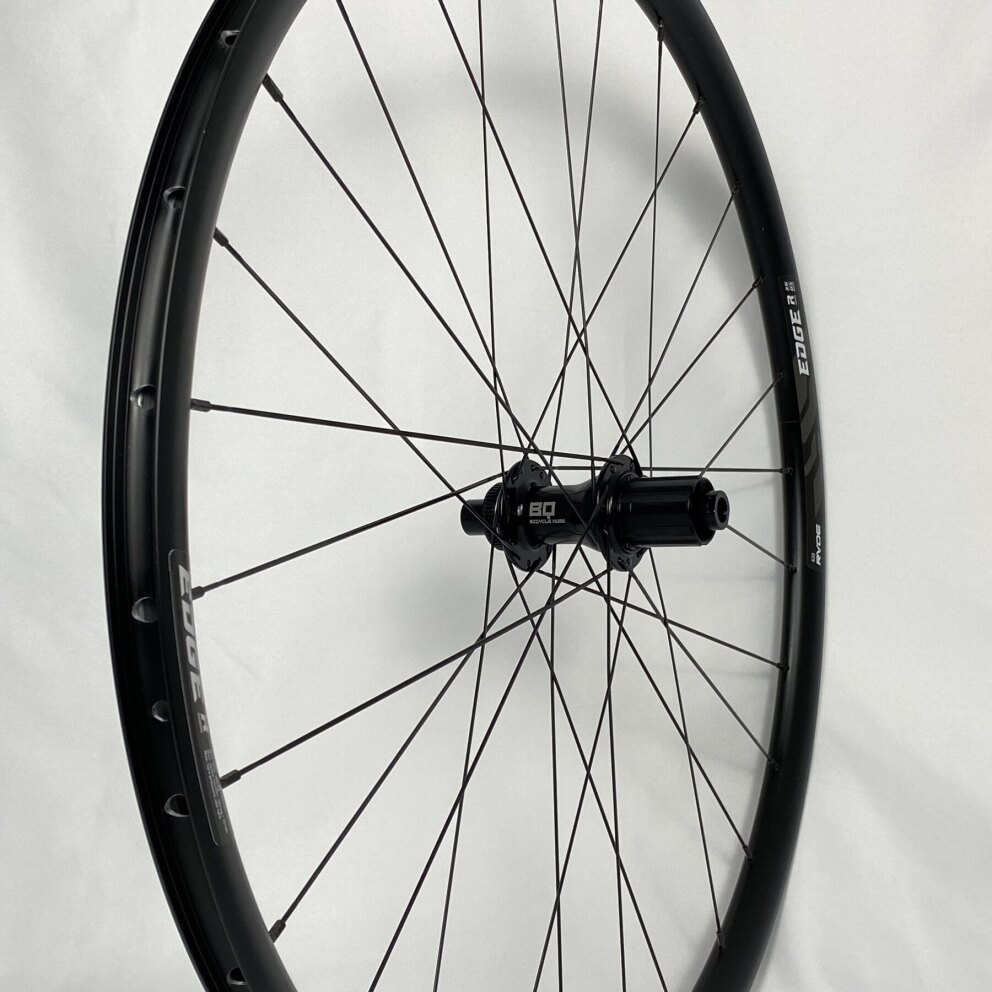

Rear hub specifications:
Brand: BQ
Type: BQ-RH30002
Colour: Black
Number of spoke holes: 28GTS
Brake type: Disc (Centerlock)
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Material of the freewheel body: Aluminum
Freewheel system: Ratchet (36T)
Number of engagement points: 36
Type of axle: Thru axle Ø 12 MM
Axle included: No
Type of bearings: Industrial bearings
Average weight (GR): 281
Intended use: Race

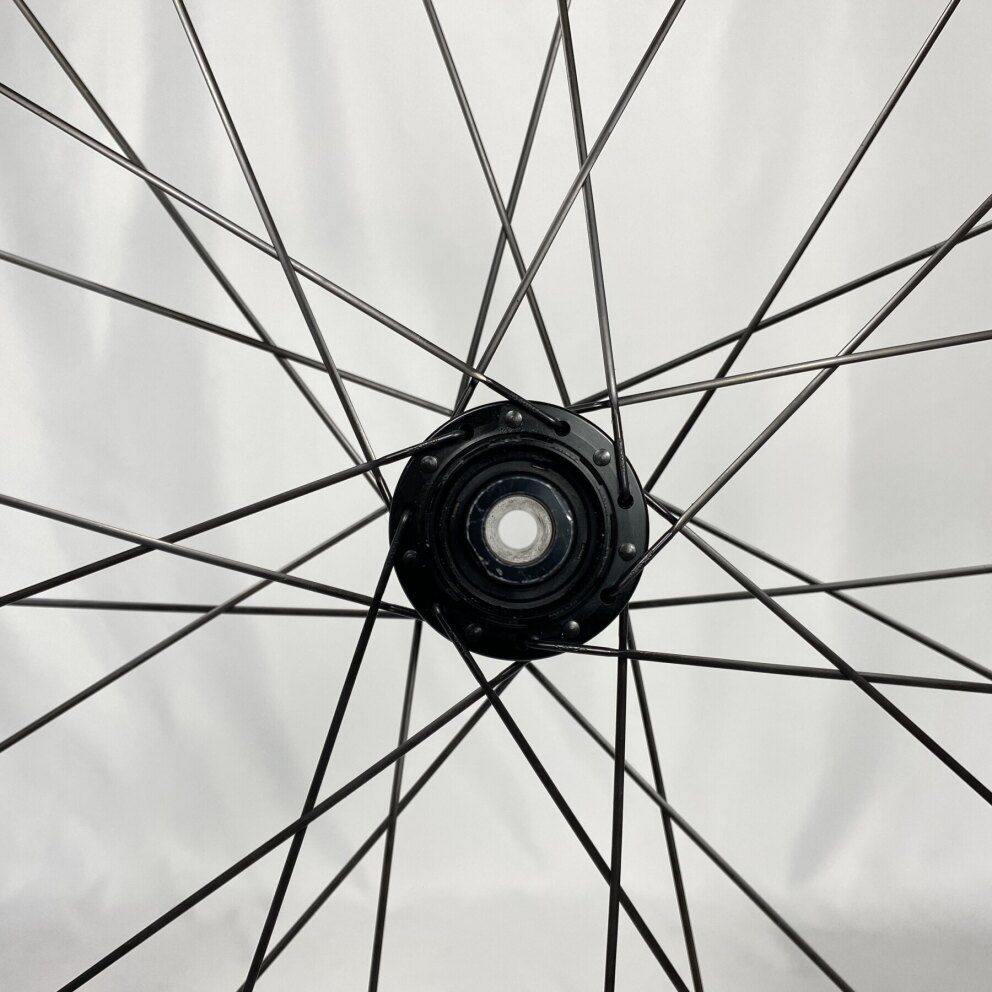

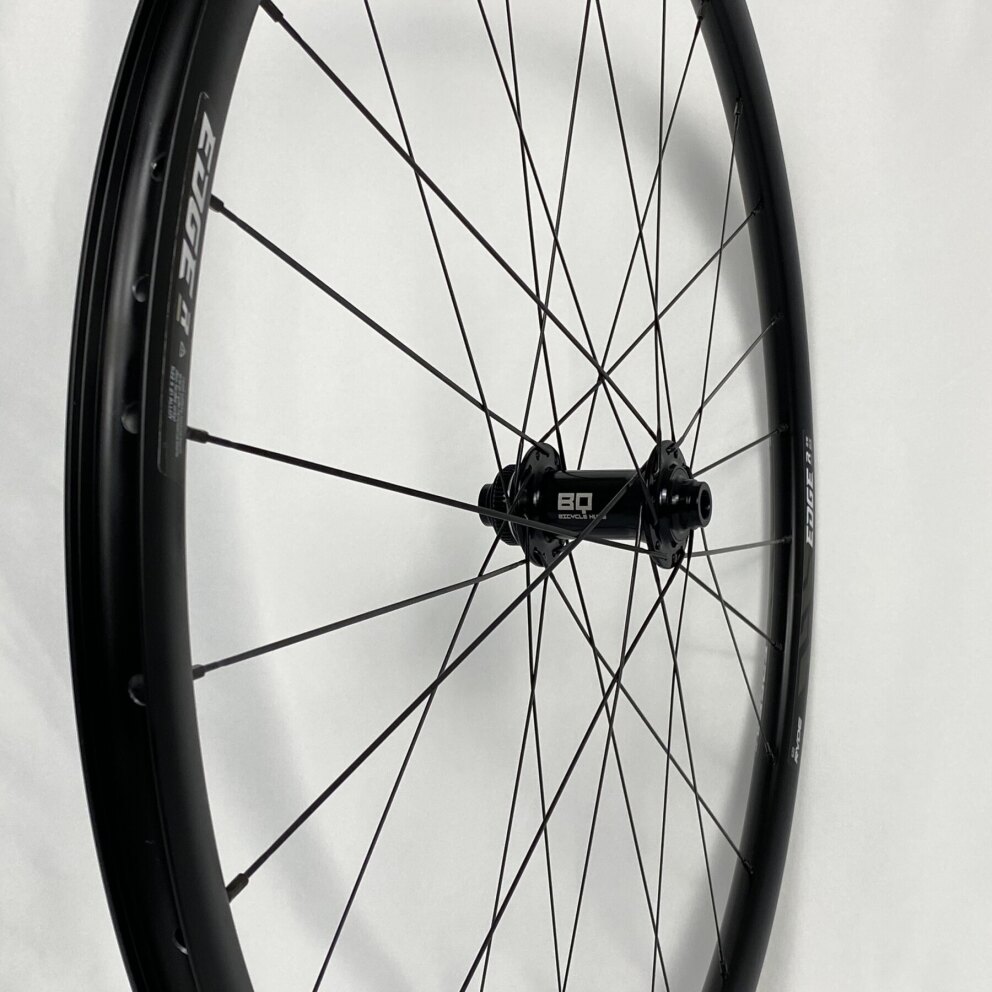

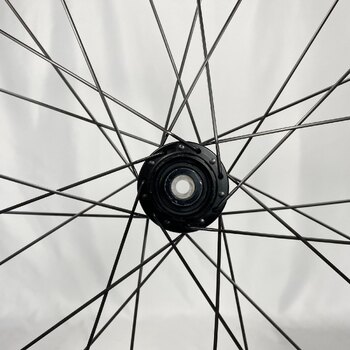

Specifications of the front hub:
Brand: BQ
Type: BQ-FH30521
Colour: Black
Number of spoke holes: 28GTS
Brake type: Disc (Centerlock)
Type of axle: Thru axle Ø 12 MM
Axle included: No
Bearing type: Industrial bearings
Average weight (GR): 138
Intended use: Race / Gravel
Spoke specifications:
Brand: Sapim
Type: CX-Ray Aero
Colour: Black
Material: Stainless steel
Spoke thickness: 14G
Spoke nipple specifications:
Brand: Sapim
Colour: Black
Material: Brass
