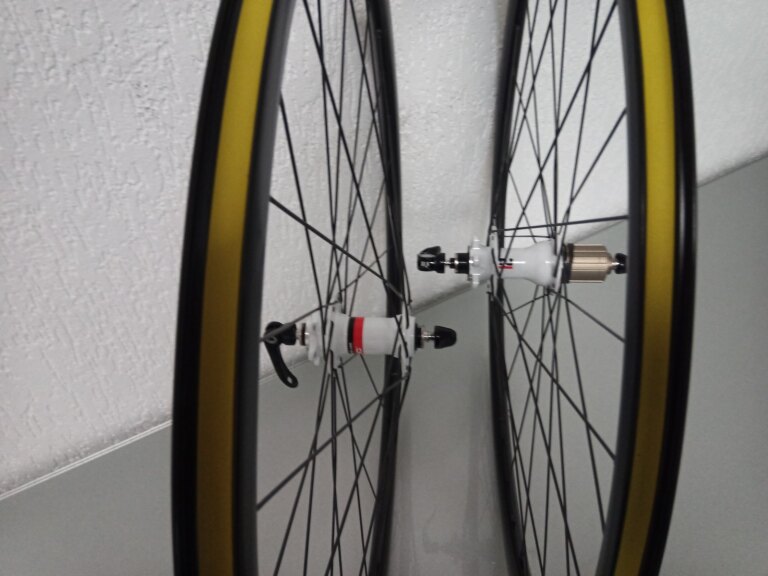

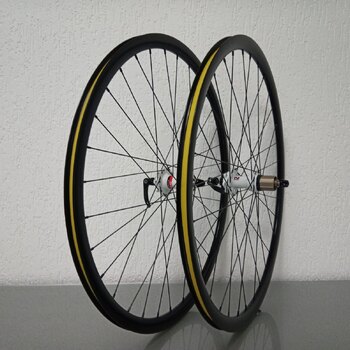

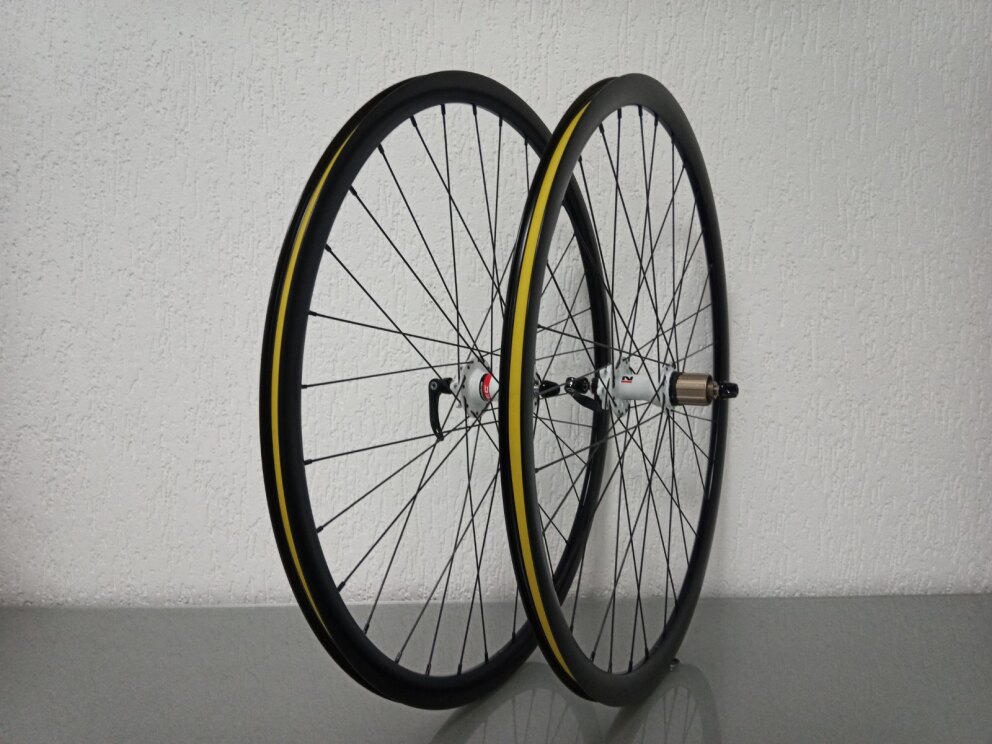

Wheelset / 622X16C / Rigida - Ryde / DP16 Disc / Black / Novatec / D792SB/A-AA-11S / HG Body 36,85 MM / 135 MM / Disc (6 bolts) / Race
Item number: WIELSET-109
€ 399,95
In stock : 1
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | Race |
|---|---|
| Voorwiel, achterwiel of wielset? | Wielset |
| BSD maat | 622 |
| FIETS Inch maat | 28 |
| Type rem | Disc (6 bout) |
| Cassette / Freewheel body | HG Body 36,85 MM |
| Type as | Uitvalas / Quick Release |
| Interne breedte van de velg | 16C |
| Kleur | Zwart |
| Inbouwbreedte | 100 mm , 135 mm |
| Naafdynamo | Nee |
| Merk naaf | Novatec |
| Type naaf | D792SB/A-AA-11S , D041SB |
| Merk velg | Ryde |
| Type velg | DP16 Disc |
| Materiaal van de velg | Aluminium |
| Nieuw of gebruikt | Nieuw |
There was a short period (a few years) in which road bikes were supplied with disc brakes and dropouts (instead of thru-axles).
If you have such a configuration, this is an ideal wheelset for you.

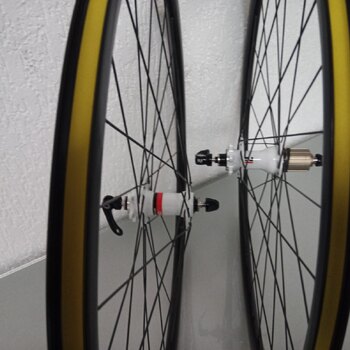

Strong with 32 Sapim Race spokes. The rims are 28mm high and super stiff. Beautiful low-maintenance and smooth-running Novatec hubs with industrial bearings.
Hub spacing:
Front (MM): 100
Rear (MM): 135
Construction:
Handmade or machine made: Handmade
Spoke pattern: 3 Cross
Total weight (GR): 2161

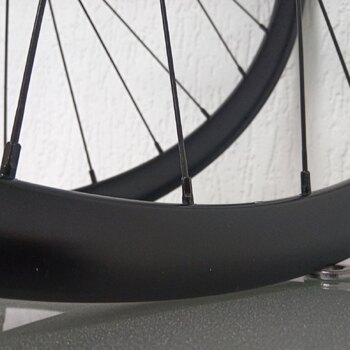

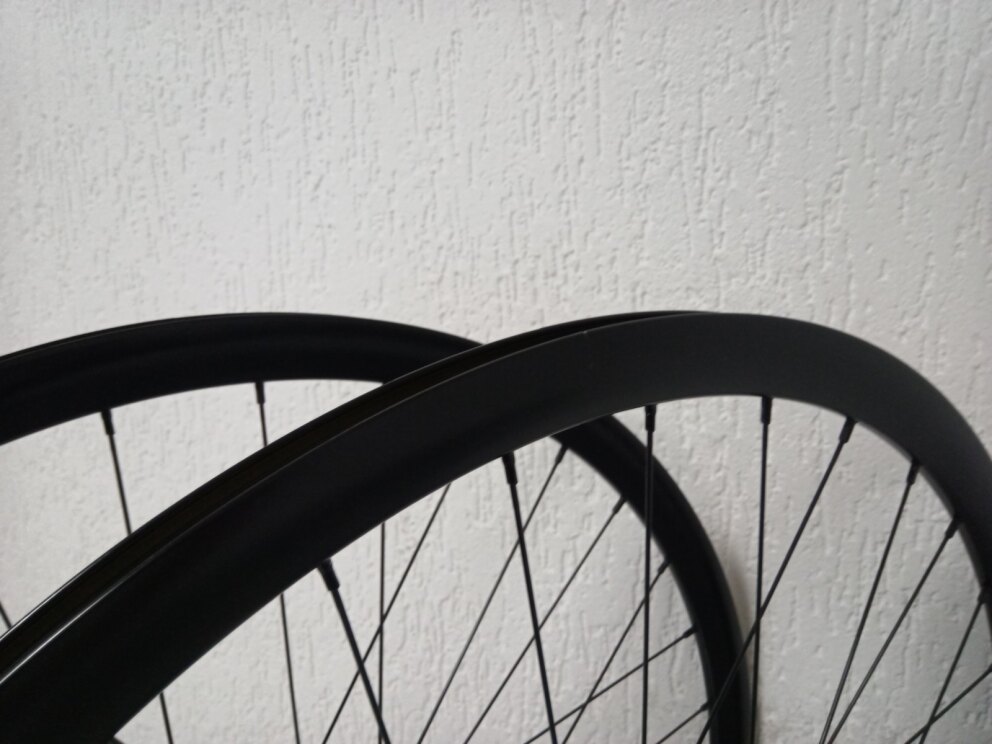

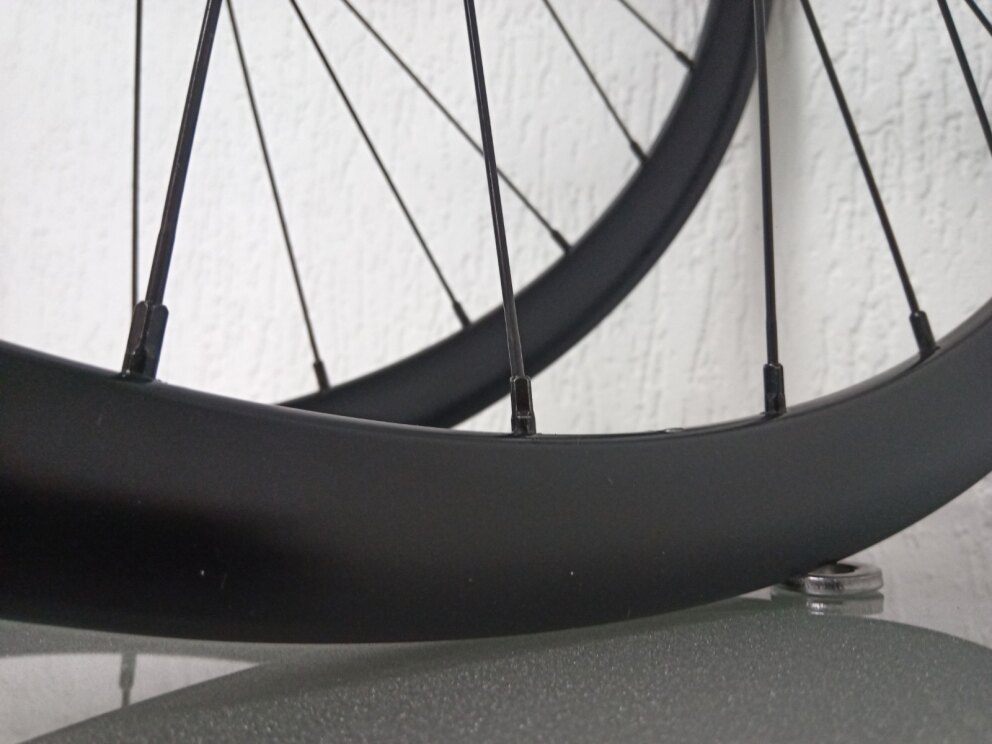

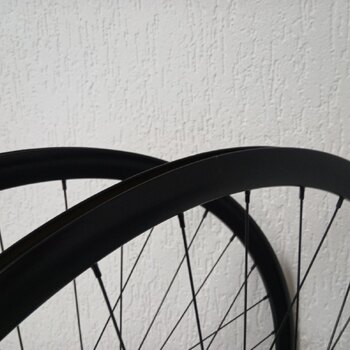

Rim Specifications:
Brand: Rigida - Ryde
Model: DP16 Disc
Color: Black
Size (Inch/MM): 622X16C
External width (MM): 21
Internal width (MM): 16
Average weight (GR): 591
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets
Number of spoke holes: 32GTS
Spoke nipple size: 14G
Brake surface present: No
Hub is suitable for both Shimano splined Road and MTB cassettes, a spacer is included for this

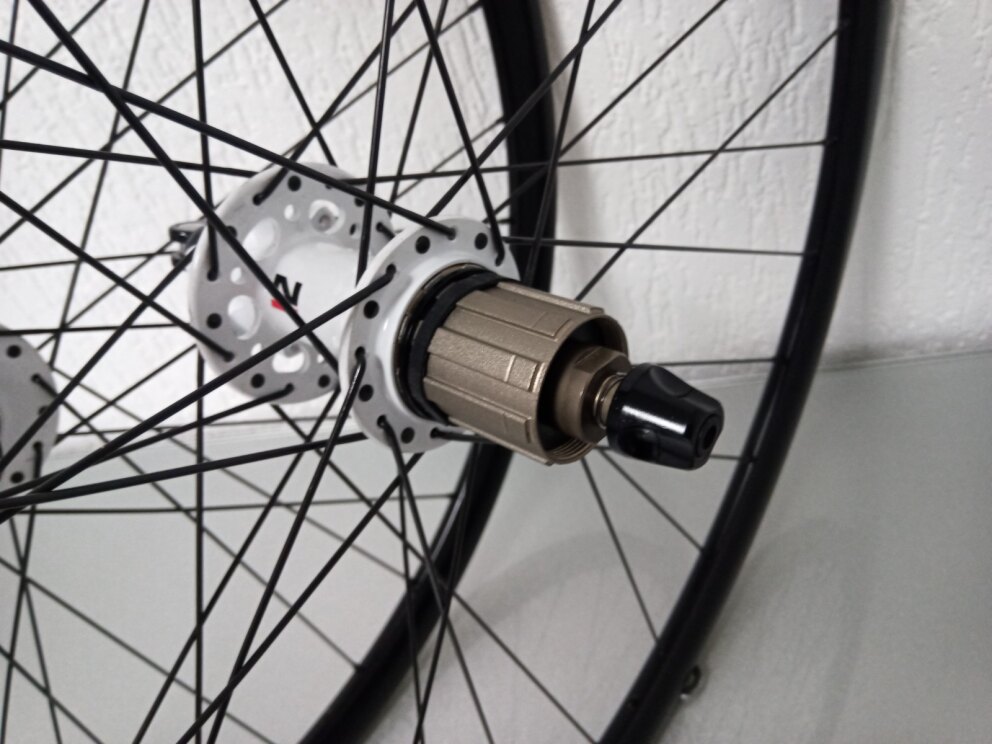

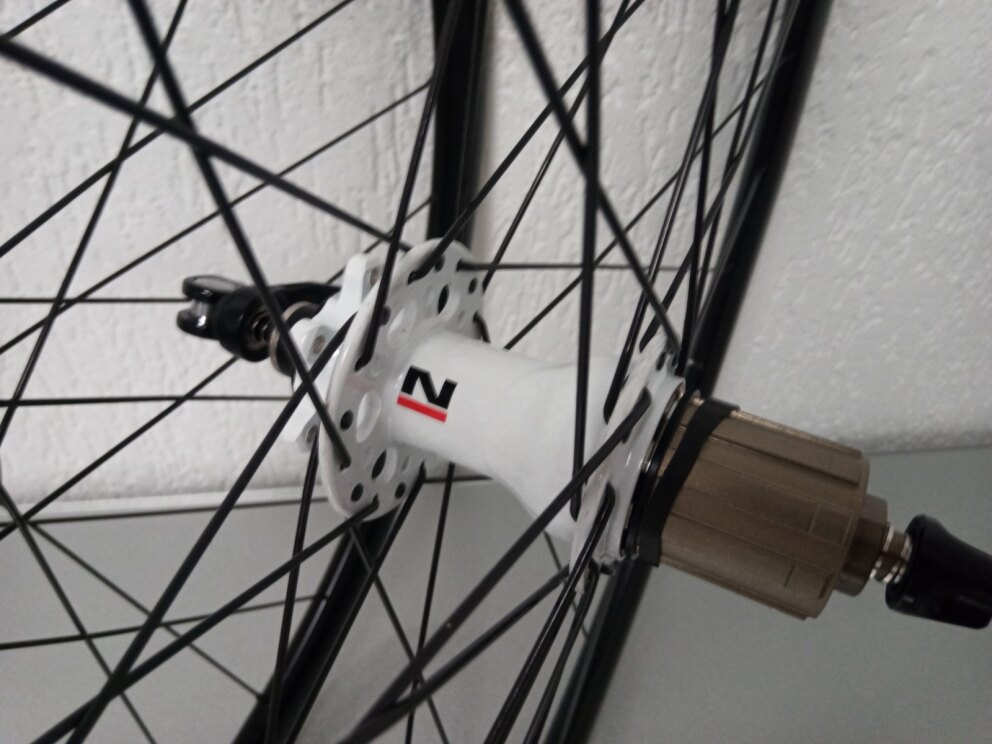

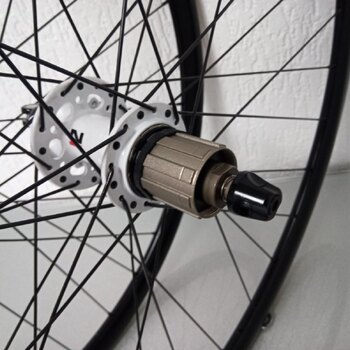

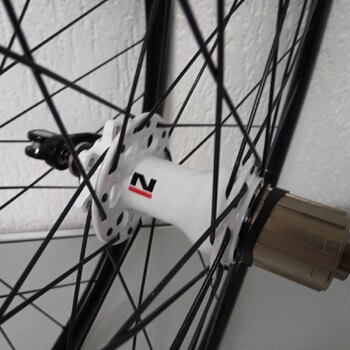

Specifications of the rear hub:
Brand: Novatec
Model: D792SB/A-AA-11S
Color: White
Number of spoke holes: 32GTS
Type of brake: Disc (6 bolts)
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Type of axle: Drop axle
Axle included: Yes, quick release
Type of bearings: Industrial bearings
Average weight (GR): 282
Intended use: MTB - Tour

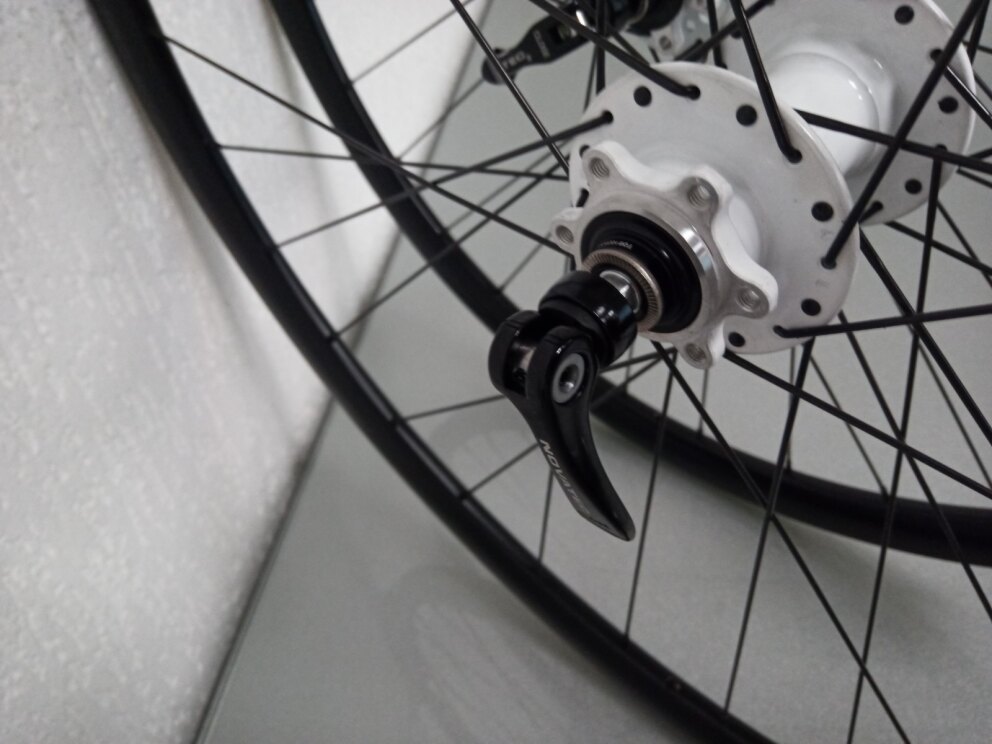

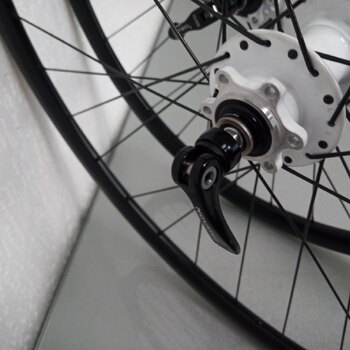

Specifications of the front hub:
Brand: Novatec
Model: D041SB
Color: White
Number of spoke holes: 32GTS
Type of brake: Disc (6 bolts)
Type of axle: Drop axle
Axle included: Yes, quick release
Type of bearings: Industrial bearings
Average weight (GR): 215
Intended use: MTB - Tour
Specifications of the spokes:
Brand: Sapim
Model: Race
Color: Black
Material: Stainless steel
Spoke thickness: 14G
Specifications of the spoke nipples:
Brand: Sapim
Color: Black
Material: Brass
