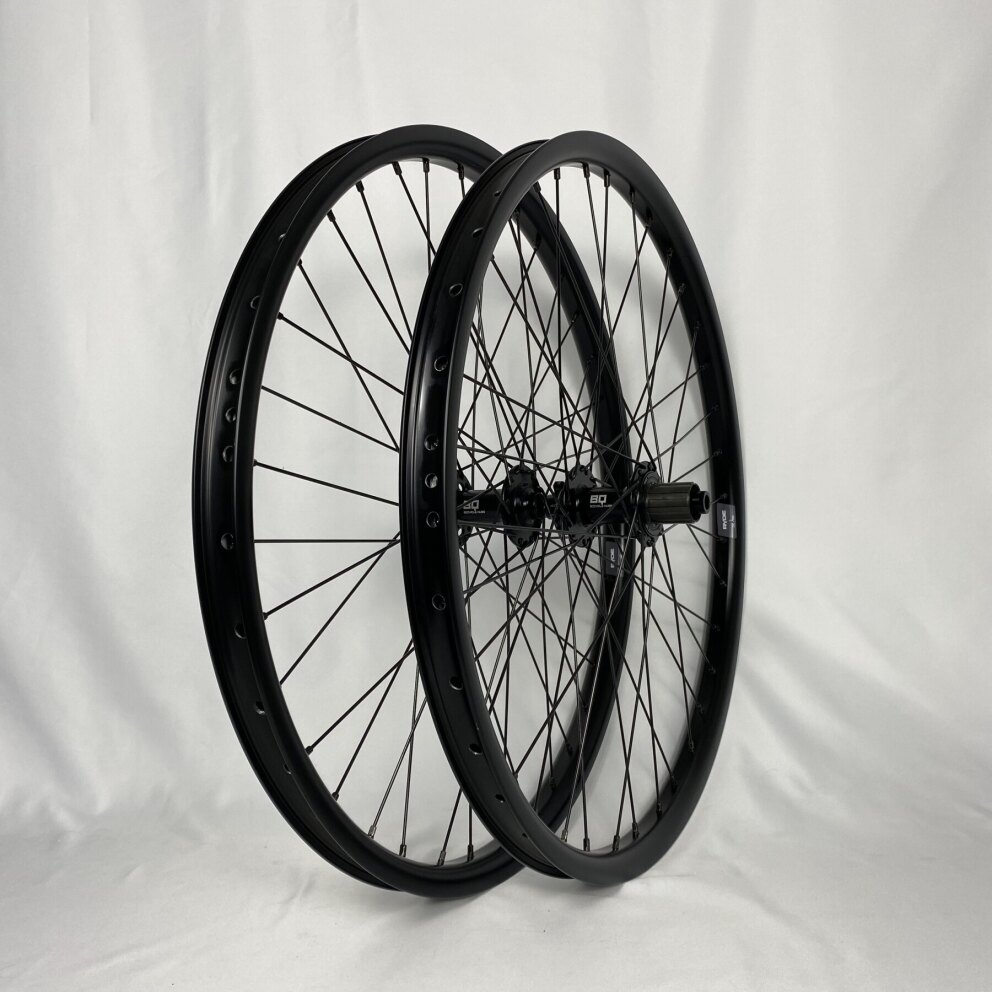

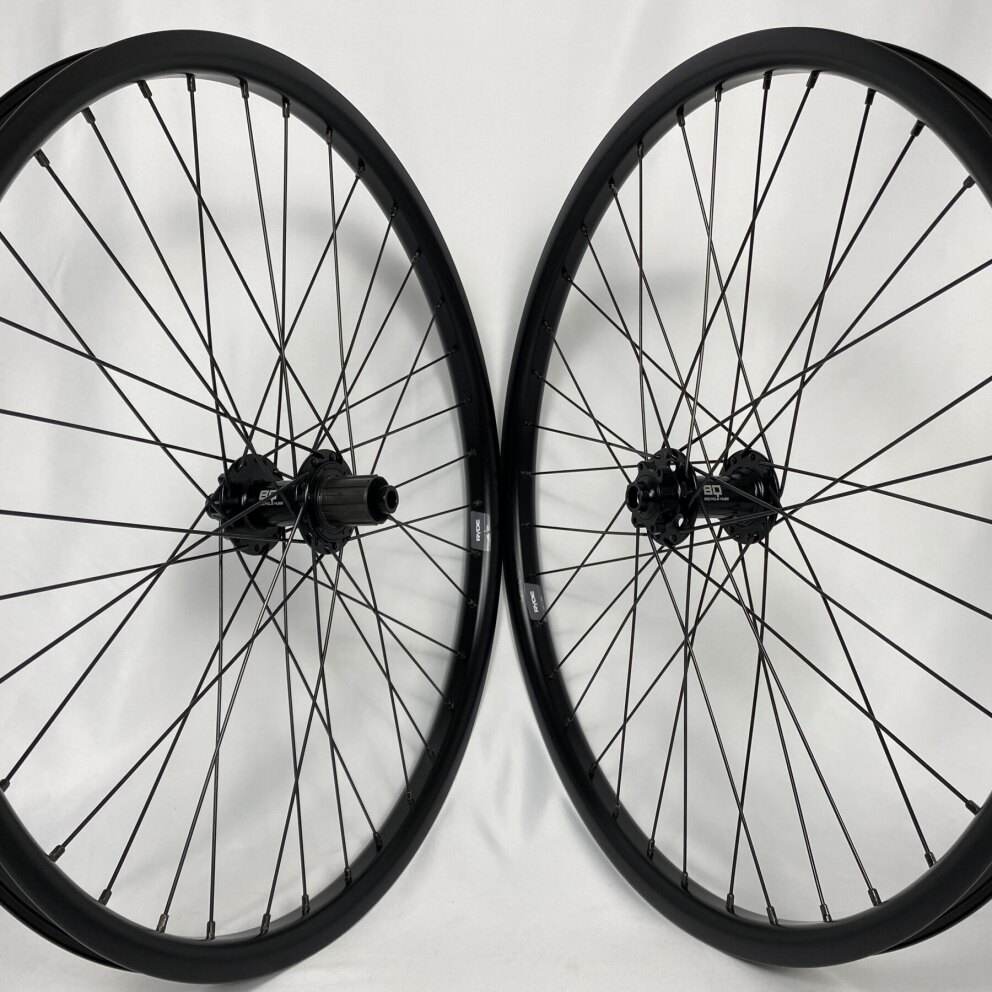

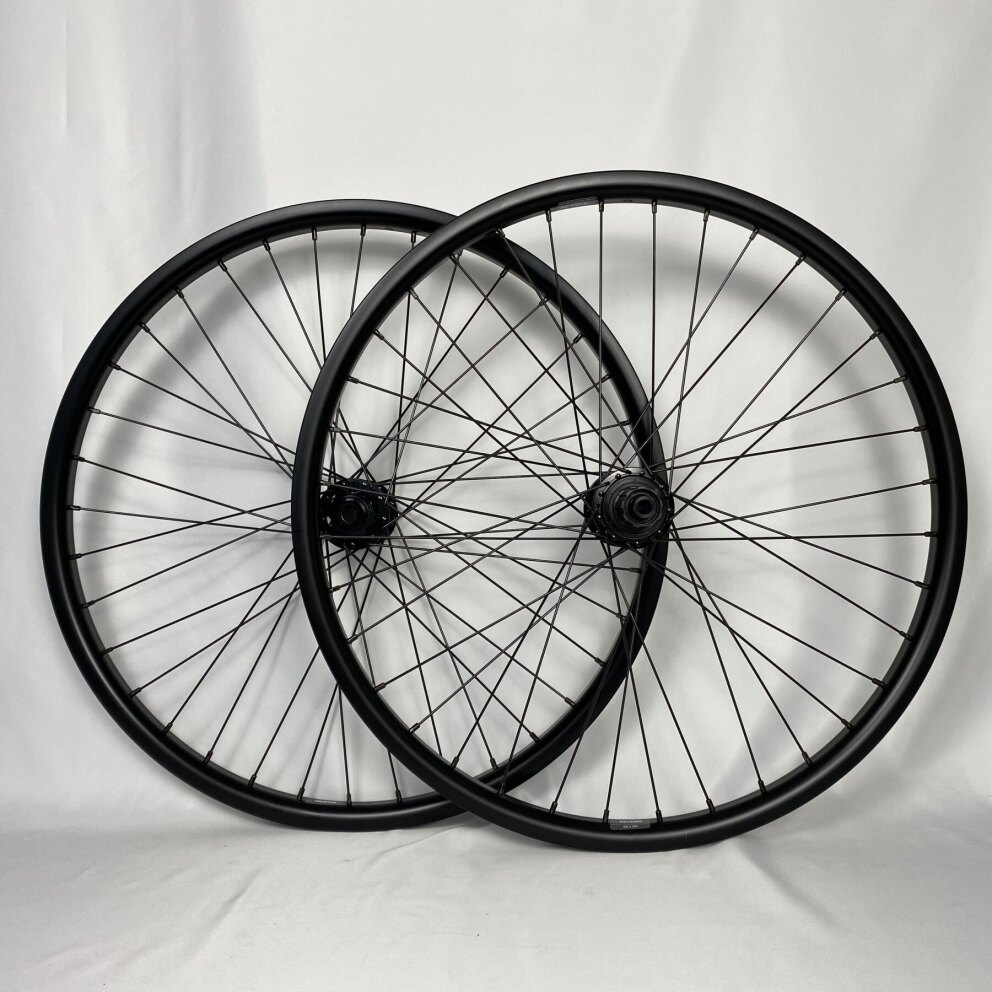

Wheelset / 584X29C / Rigida - Ryde / Andra 29 Disc / Black / BQ / BQ-RH30010 / HG Body 35 MM / 148 MM / Disc (6 bolt) / E-MTB
Item number: WIELSET-248
€ 549,95
In stock : 1
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | MTB , E-Bike , E-MTB |
|---|---|
| Voorwiel, achterwiel of wielset? | Wielset |
| BSD maat | 584 |
| FIETS Inch maat | 27,5 |
| Type rem | Disc (6 bout) |
| Cassette / Freewheel body | HG Body 35 MM |
| Type as | Steekas 148 x 12 mm , Steekas 110 x 15 mm |
| Interne breedte van de velg | 29C |
| Kleur | Zwart |
| Inbouwbreedte | 148 mm , 110 mm |
| Naafdynamo | Nee |
| Merk naaf | BQ Bicycle Hubs |
| Type naaf | BQ-RH30010 , BQ-FH30503 |
| Merk velg | Ryde |
| Type velg | Andra 29 Disc |
| Materiaal van de velg | Aluminium |
| Nieuw of gebruikt | Nieuw |
Wheelset as strong as possible for E-MTB. The rims may be loaded PER PIECE with 150kg!
With Sapim E-Strong spokes with extra thick head. Combined with thick 13G spoke nipples.
BQ hubs with strong industrial bearings, steel HG body on the rear hub.
Mounting widths:
Front (MM): 110
Rear (MM): 148
Construction:
Handmade or machined: Handmade
Spoke pattern: Cross 3
Total weight (GR): 3100

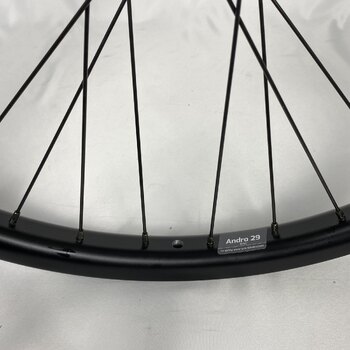

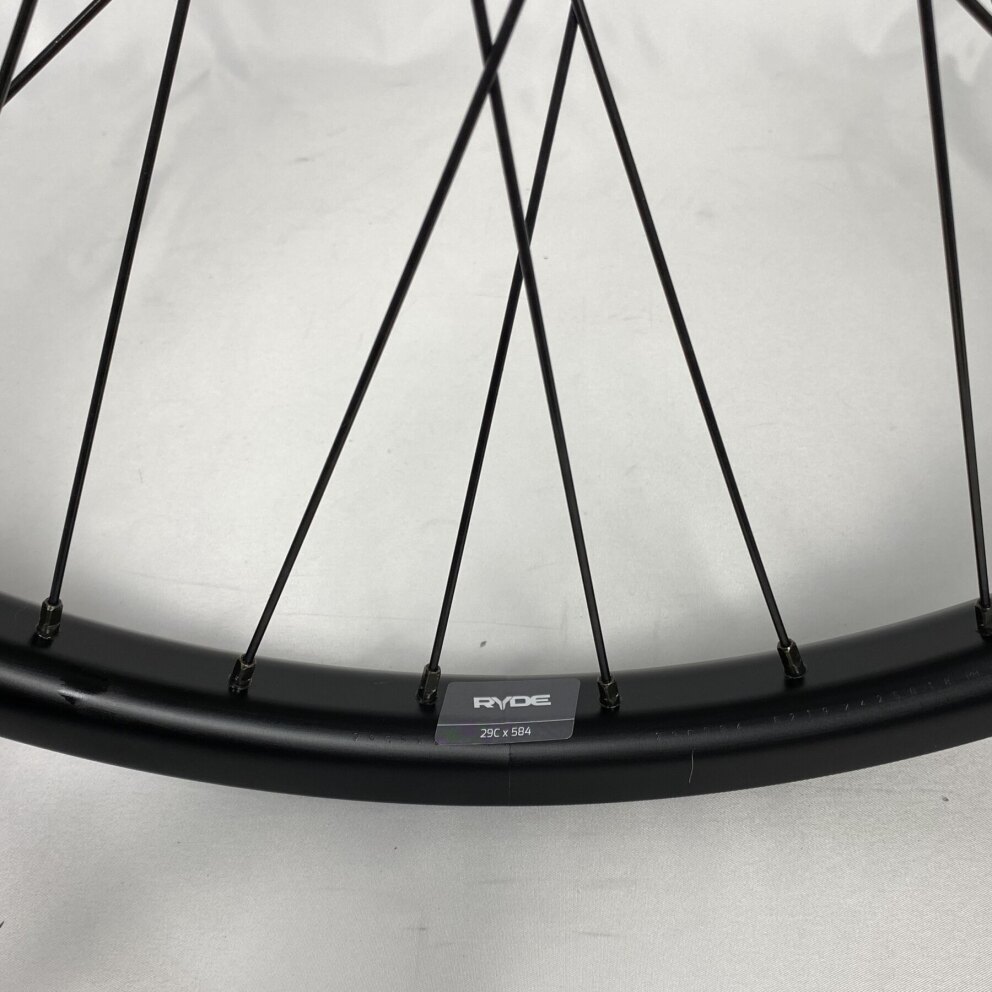

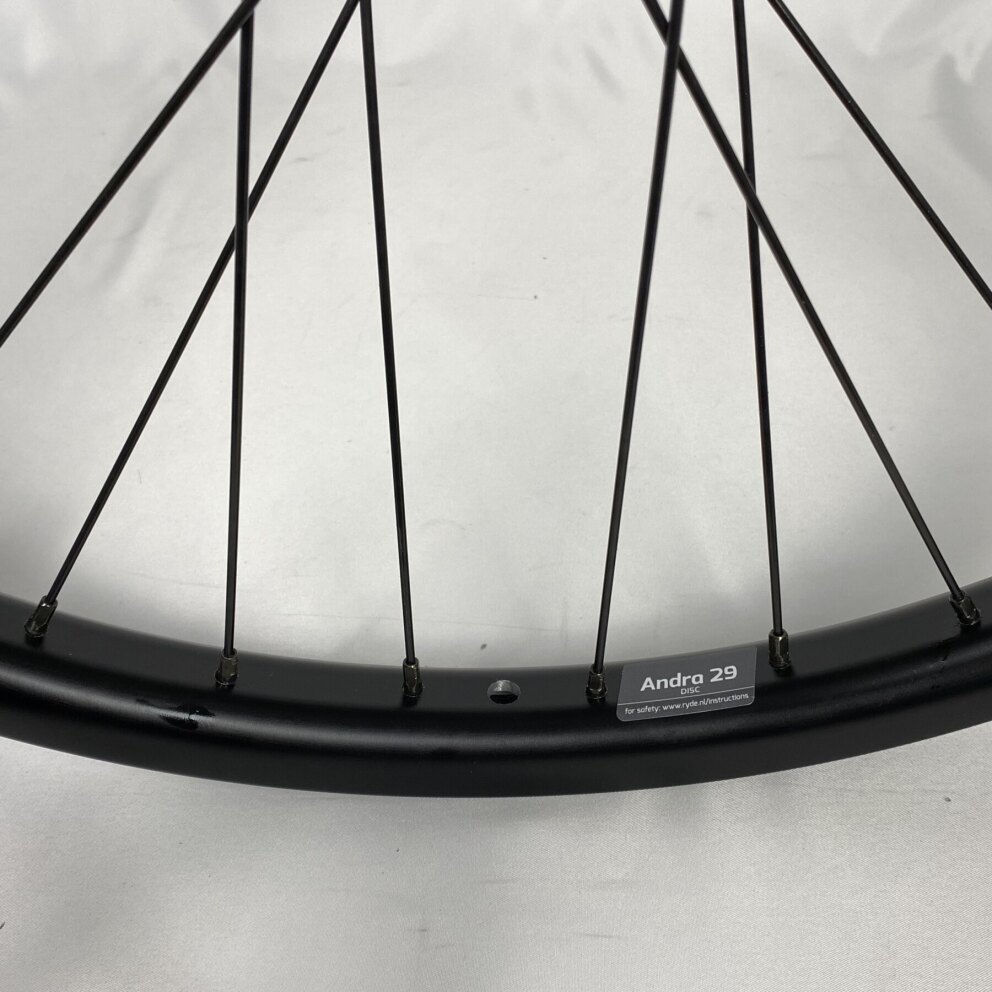

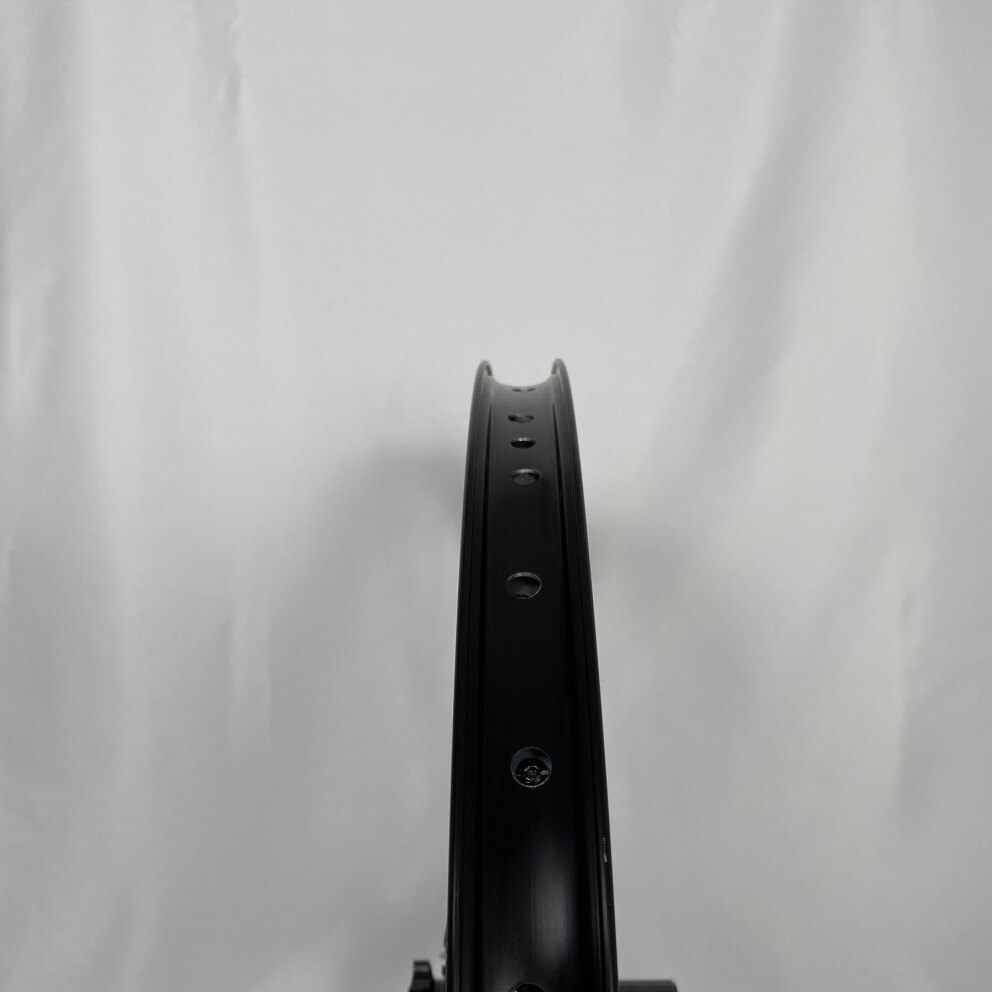

Rim specifications:
Brand: Rigida - Ryde
Type: Andra 29 Disc
Colour: Black
Size (Inch/MM): 584X29C
External width (MM): 34
Internal width (MM): 28
Average weight (GR): 849
Material: Aluminium
Single wall / Double wall: Double wall
Single eyelet / Double eyelet: Uneyelet
Number of spoke holes: 36GTS
Spoke nipple size: 13G
Braking surface present: No

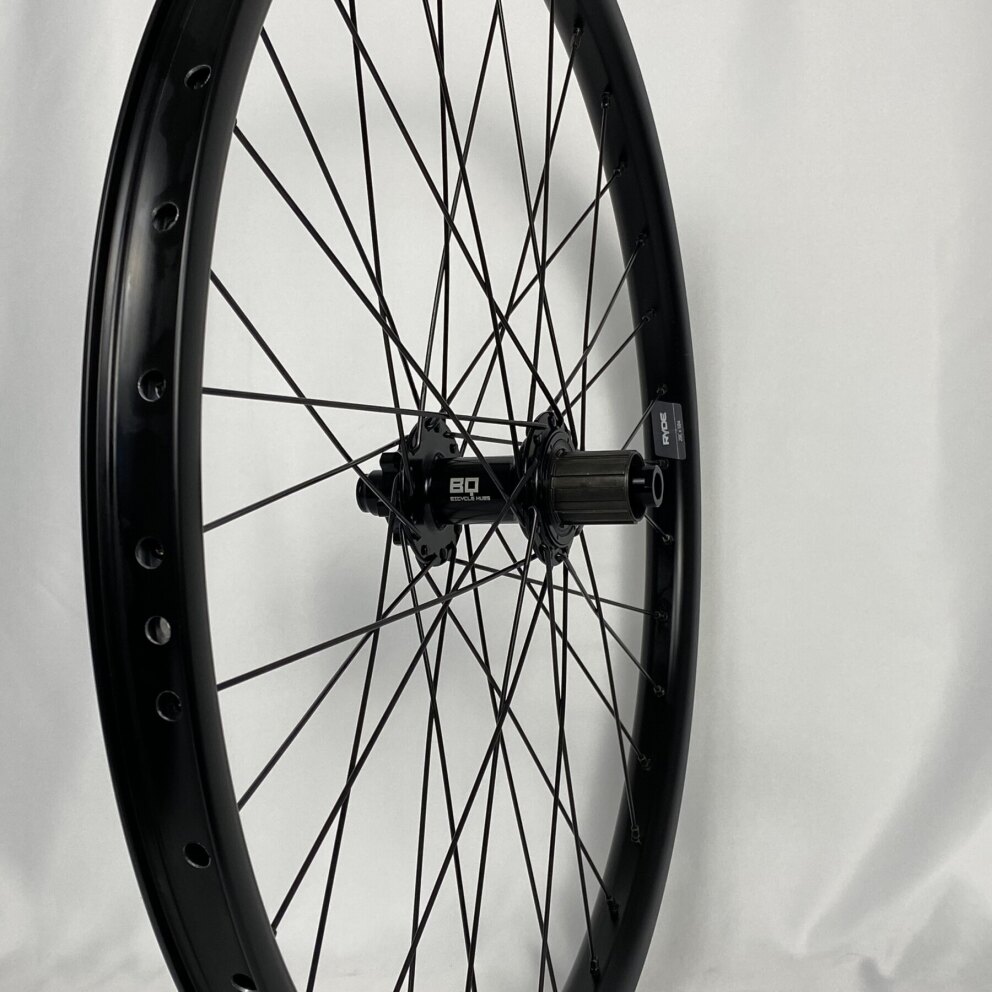

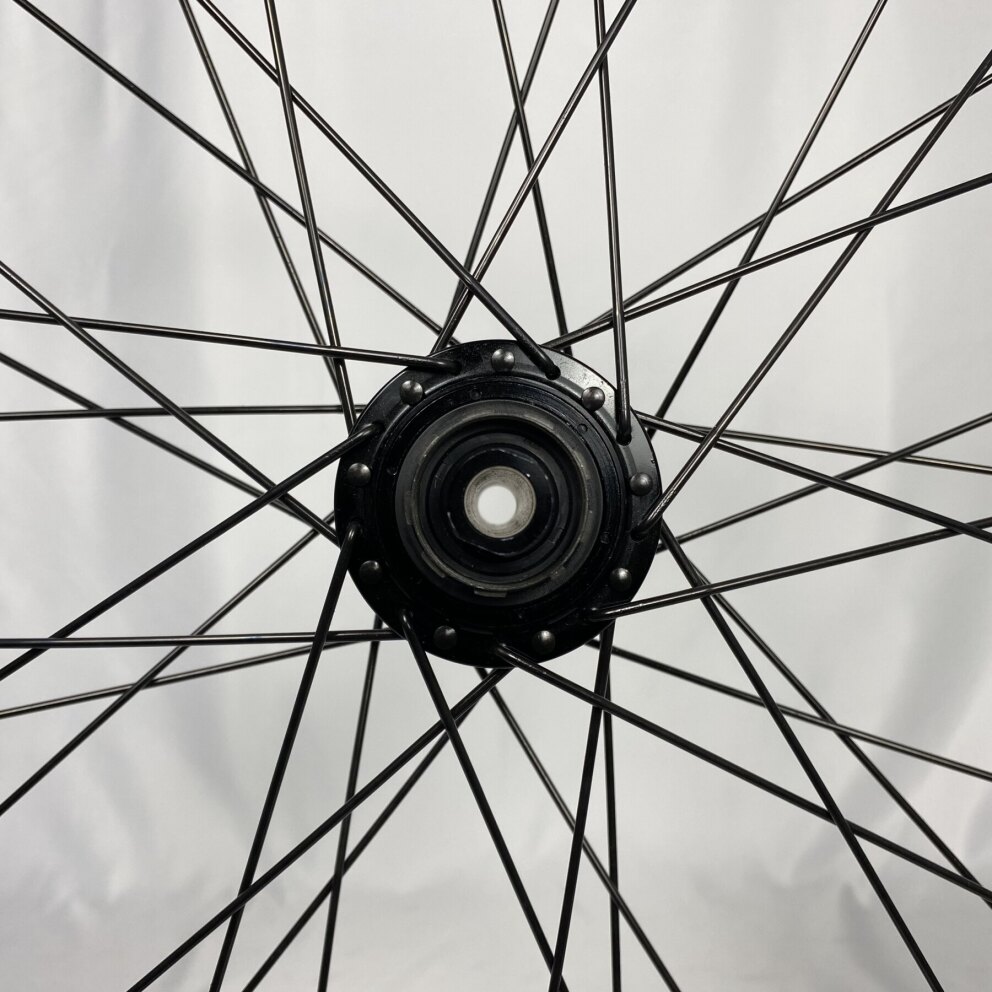

Rear hub specifications:
Brand: BQ
Type: BQ-RH30010
Colour: Black
Number of spoke holes: 36GTS
Brake type: Disc (6 bolts)
Number of gears: HG Body 35 MM = suitable for old type Race (max 10 speed) and all MTB cassettes.
Freewheel body material: Steel
Freewheel system: Pawls (6)
Number of engagement points: 72
Axle type: Thru axle Ø 12 MM
Axle included: No
Bearing type: Industrial bearings
Average weight (GR): 437
Intended use: E-Bike

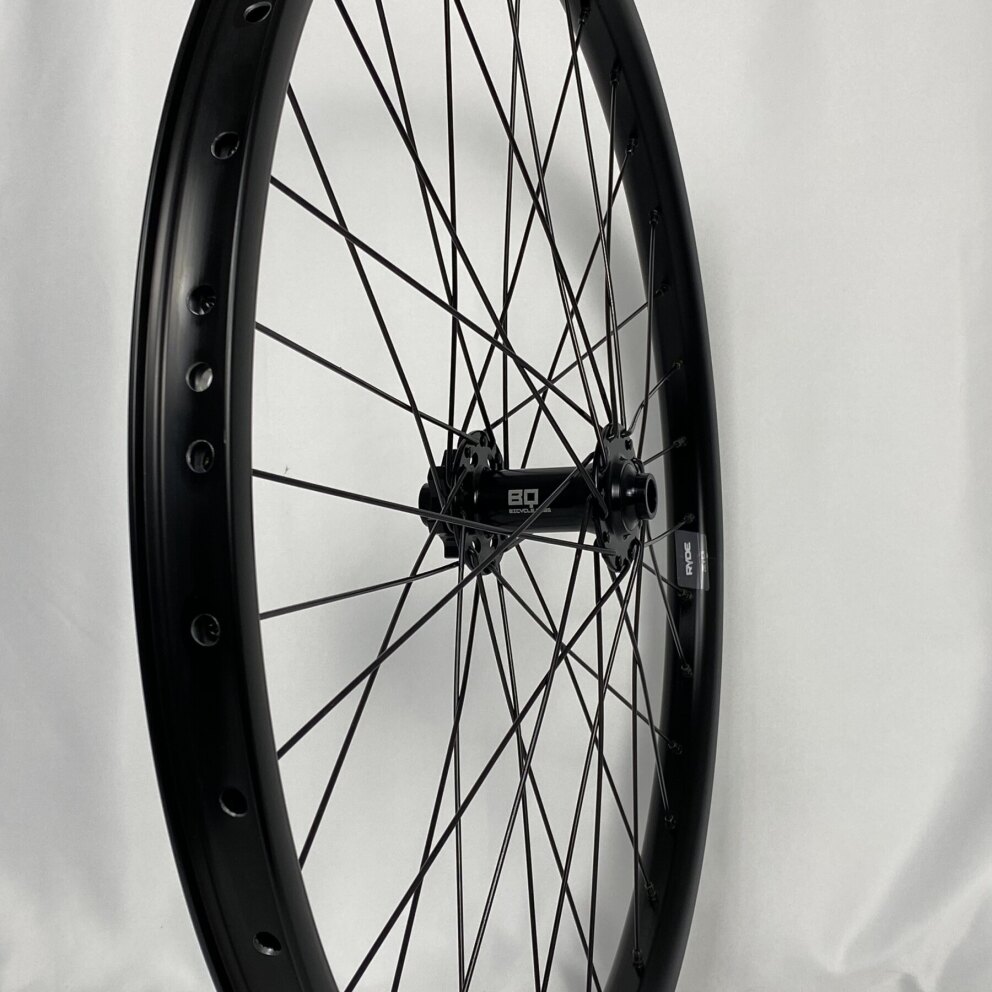

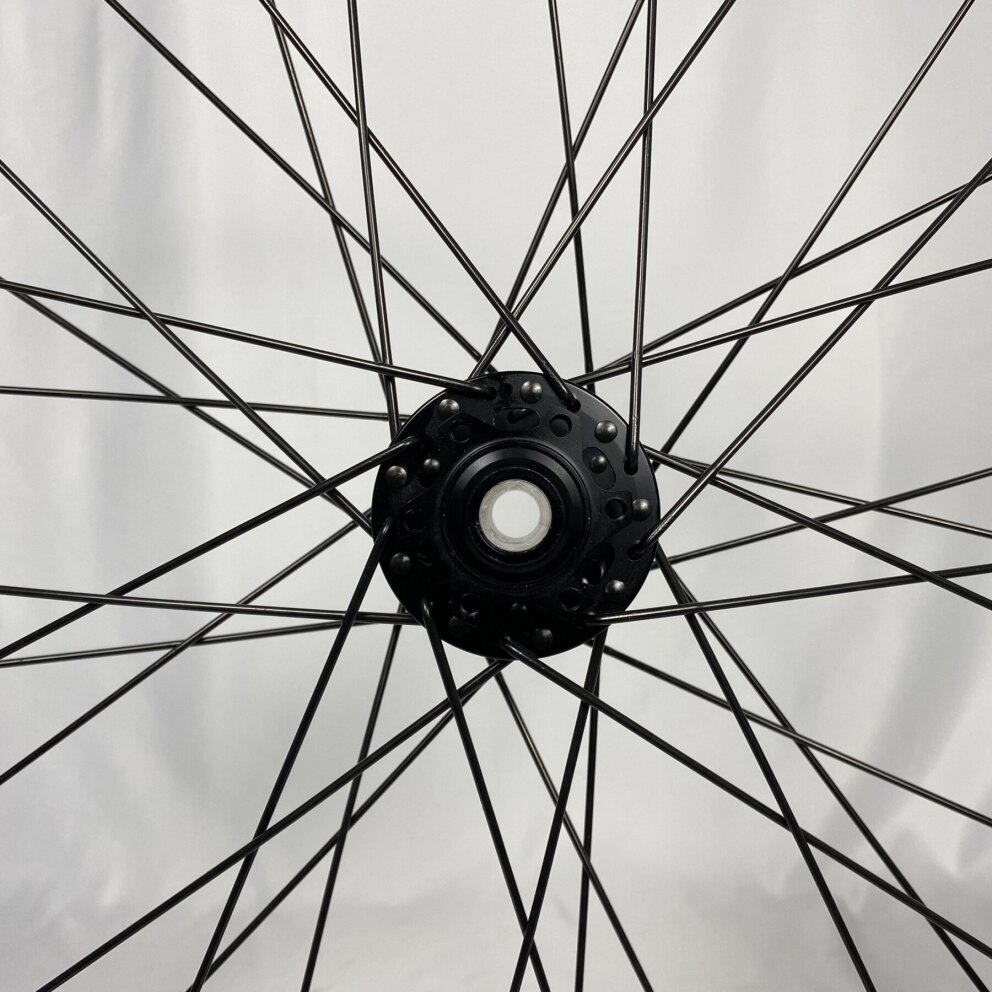

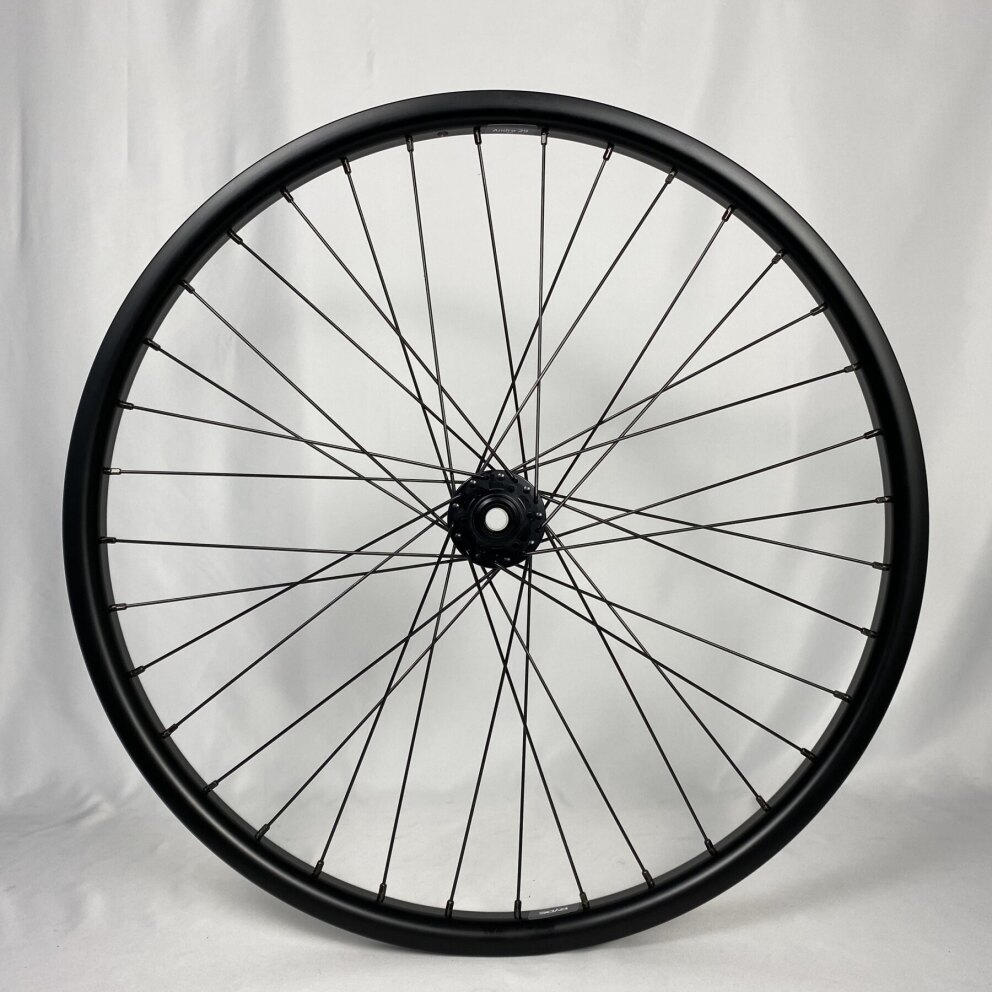

Front hub specifications:
Brand: BQ
Type: BQ-FH30503
Colour: Black
Number of spoke holes: 36GTS
Brake type: Disc (6 bolt)
Axle type: Thru axle Ø 15 MM
Axle included: No
Bearing type: Industrial bearings
Average weight (GR): 197
Intended use: E-Bike

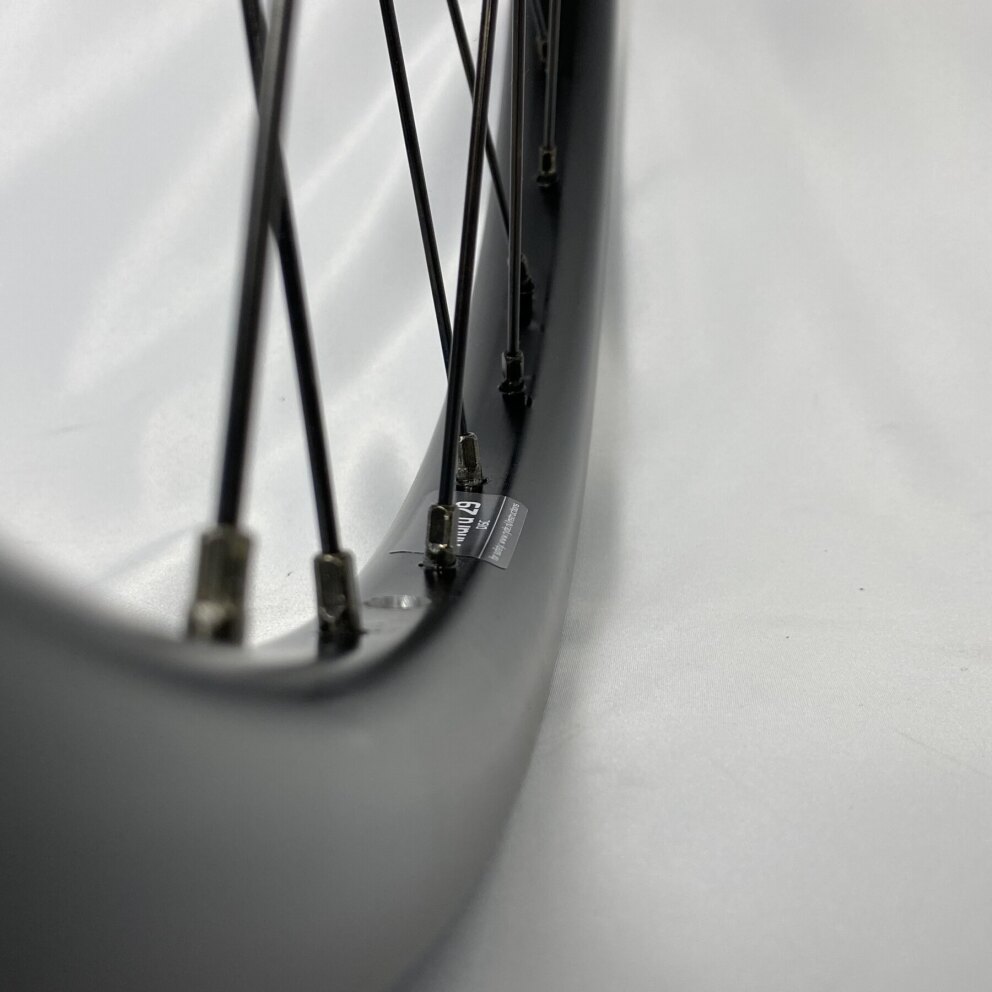

Spoke specifications:
Brand: Sapim
Type: E-Strong
Colour: Black
Material: Stainless steel
Spoke thickness: Head 12G / Wire 13G
Spoke nipple specifications:
Brand: Sapim
Colour: Black
Material: Brass
