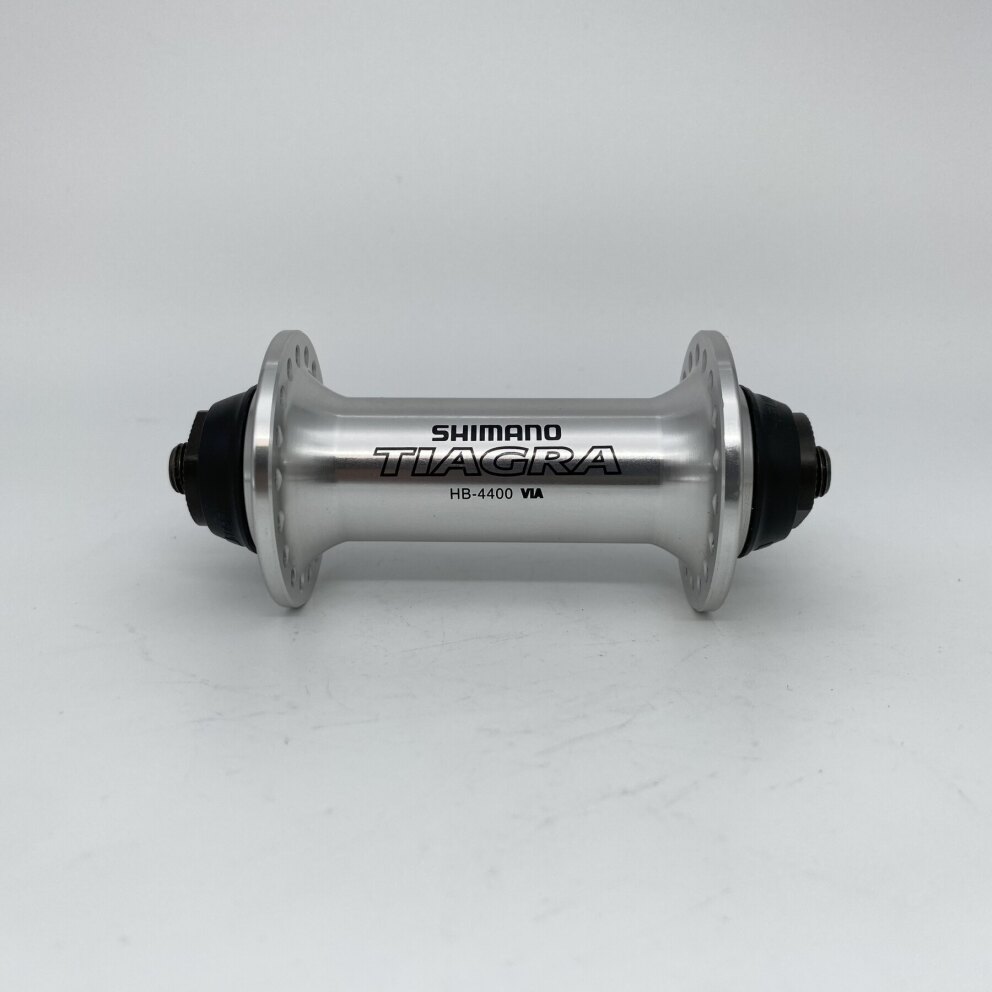

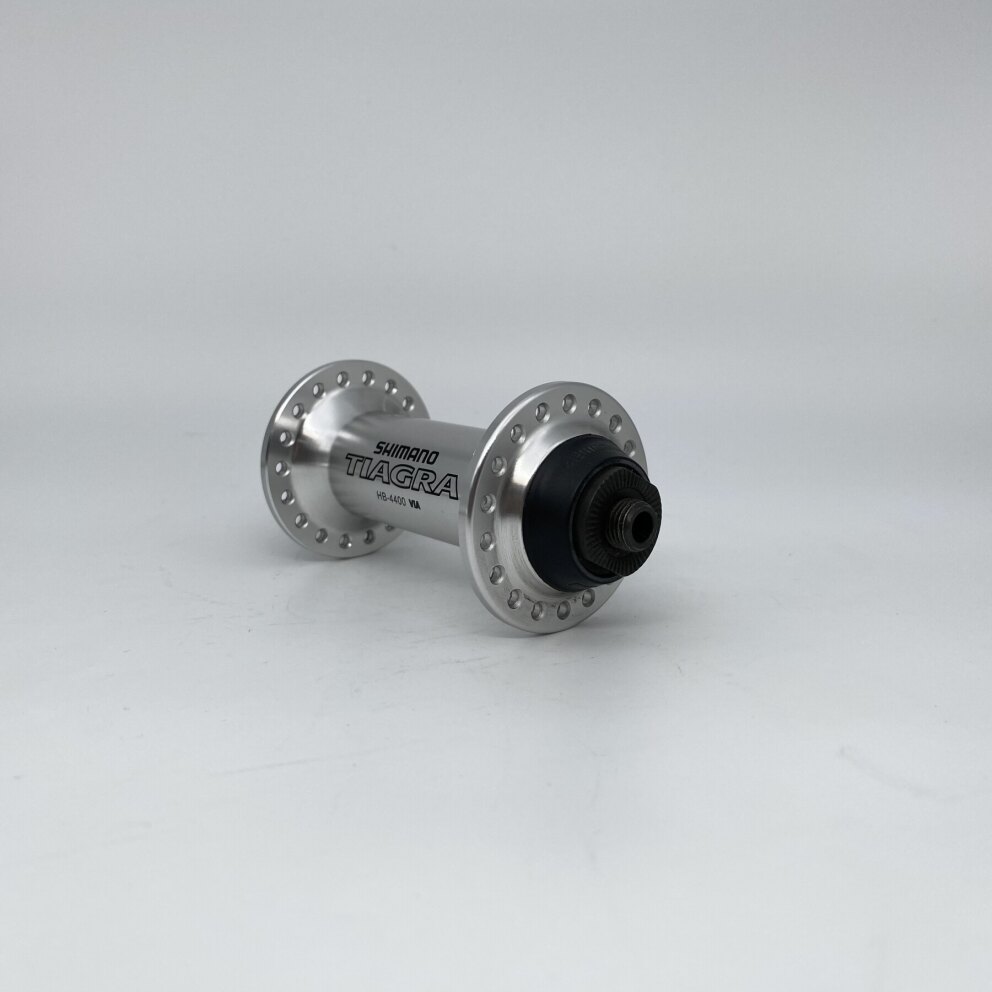

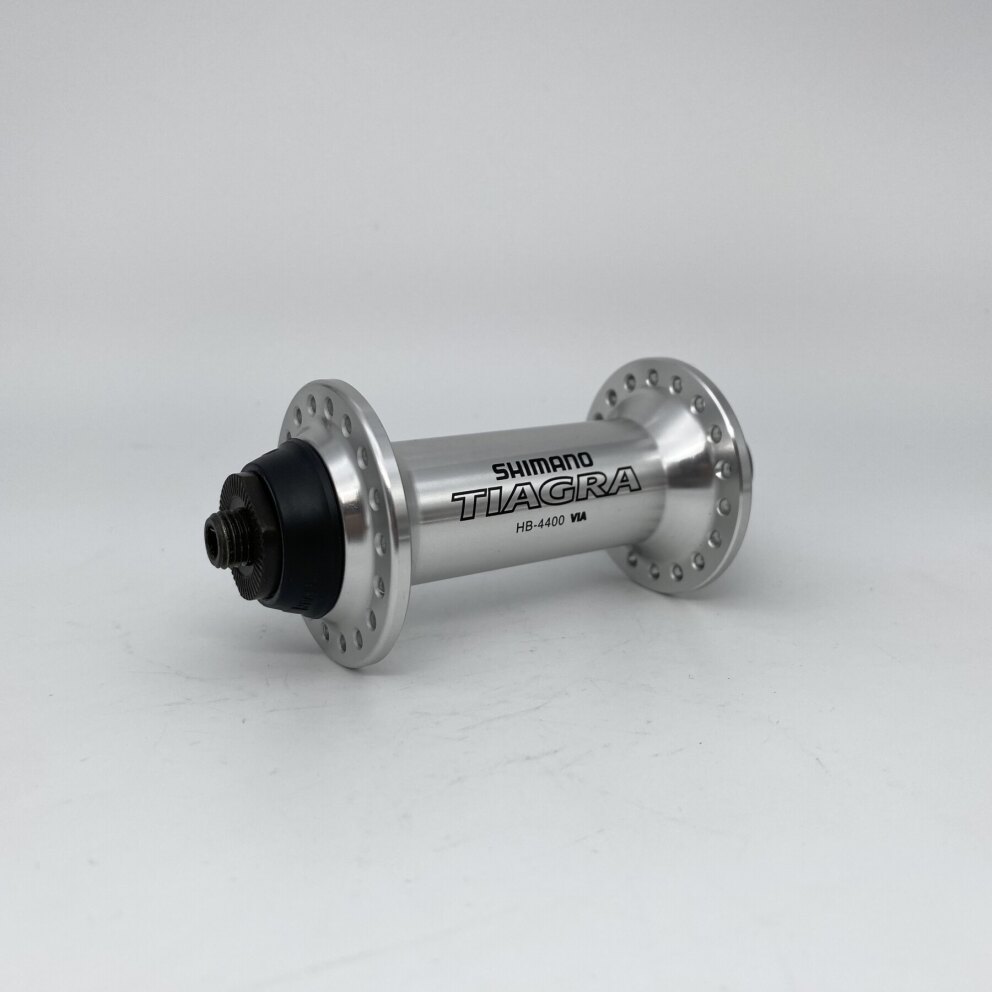

Front hub / 100 MM / Drop axle / Rim brake / 36GTS / Shimano / HB-4400 Tiagra / Silver / Race

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this hub, we can assemble a custom wheel. Do you have a rim lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	Race , Tour / Hybride
Voor of achter	Voor
Type rem	Velgrem
Aantal spaken/spaakgaten	36
Inbouwbreedte	100 mm
Type as	Uitvalas / Quick Release
Naafdynamo	Nee
Merk naaf	Shimano
Type naaf	HB-4400 Tiagra
Kleur	Zilver
Nieuw of gebruikt	Nieuw

Specifications of the front hub:

Brand: Union

Model: HB-4400 Tiagra

Color: Silver

Number of spoke holes: 36

Type of brake: Rim brake

Type of axle: Drop axle

Axle included: No

Type of bearings: Ball bearings

Weight (GR): 145

Intended use: Race

Data for spoke length calculations using the Sapim spoke size calculator:

Total length of the hub (MM): 100

Non-gear side (MM): 14

Gear side (MM): 14

Hub diameter non-gear side (MM): 38

Hub diameter gear side (MM): 38

Link to spoke calculator: www.sapim.be/spoke-calculator
