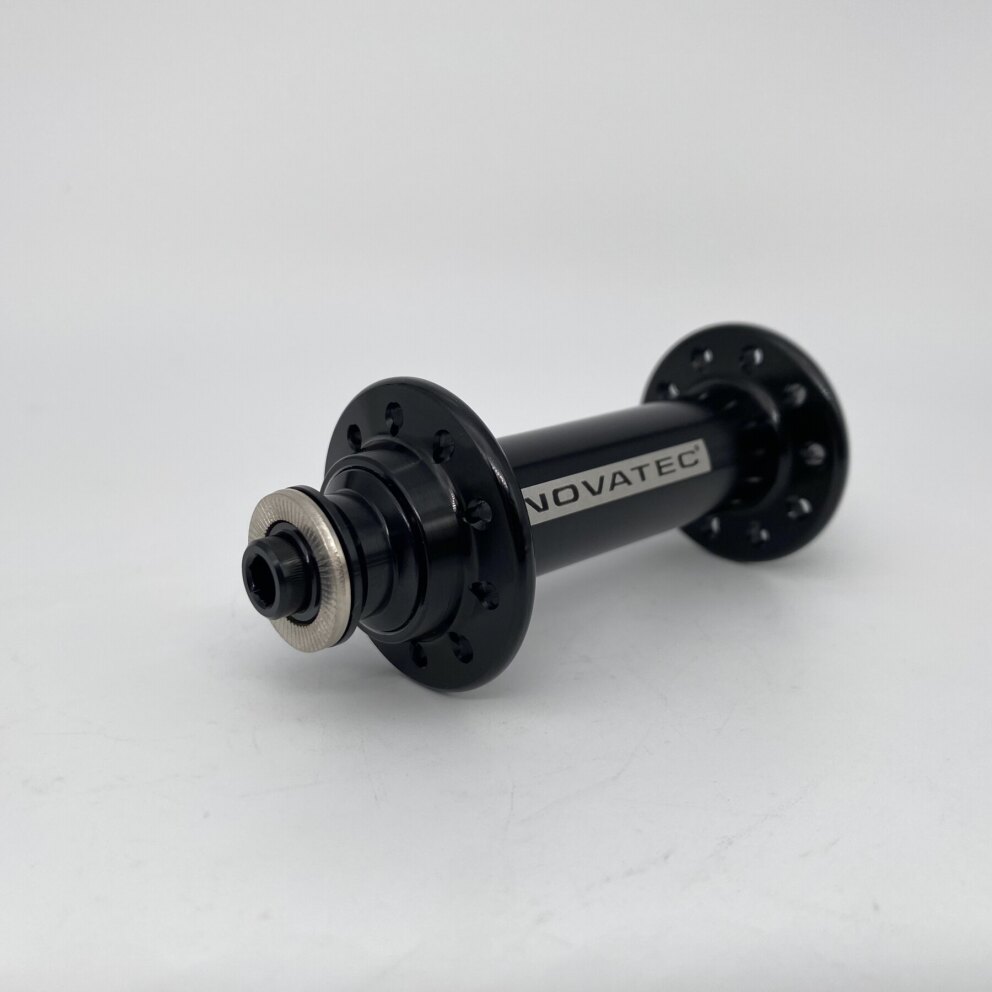

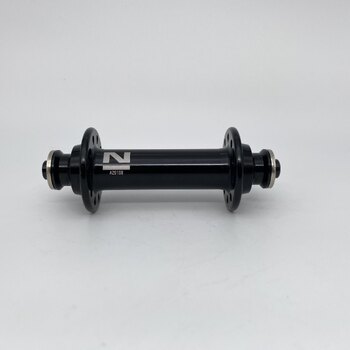

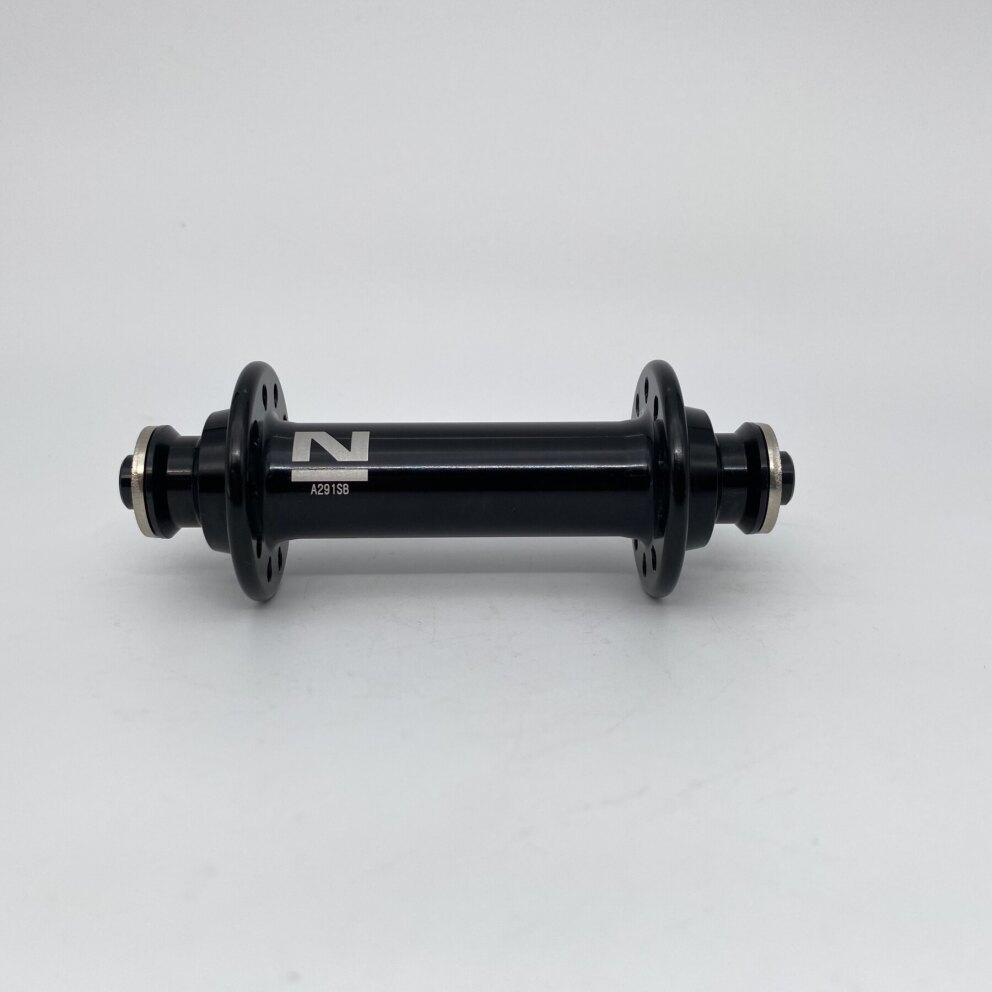

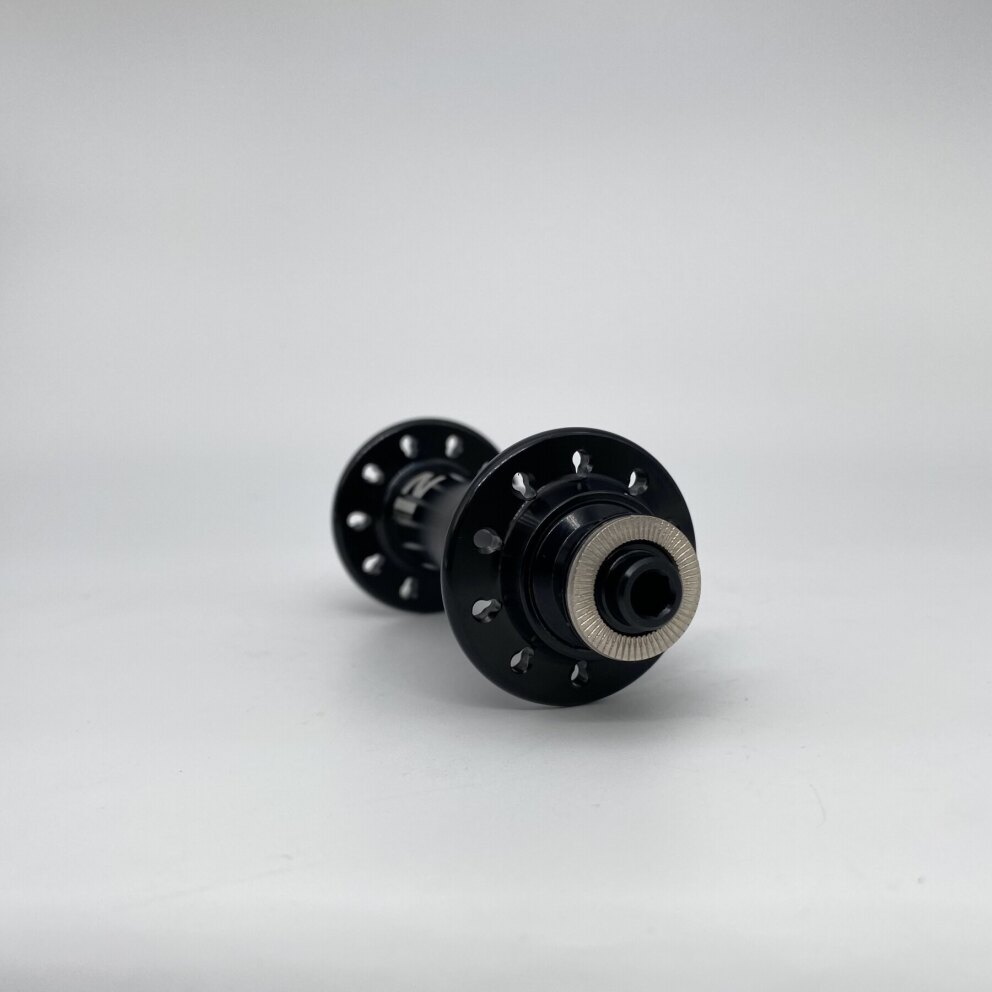

Front hub / 100 MM / Drop axle / Rim brake / 20GTS / Novatec / A291SB / Black / Race

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this hub, we can assemble a custom wheel. Do you have a rim lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	Race
Voor of achter	Voor
Type rem	Velgrem
Aantal spaken/spaakgaten	20
Inbouwbreedte	100 mm
Type as	Uitvalas / Quick Release
Naafdynamo	Nee
Merk naaf	Novatec
Type naaf	A291SB
Kleur	Zwart
Nieuw of gebruikt	Nieuw

The special bore makes it suitable for the extra wide (max. 3.0 mm wide) aero spokes.

Specifications of the front hub:
Brand: Novatec
Model: A291SB
Color: Black
Number of spoke holes: 20GTS
Type of brake: Rim brake
Type of axle: Drop axle

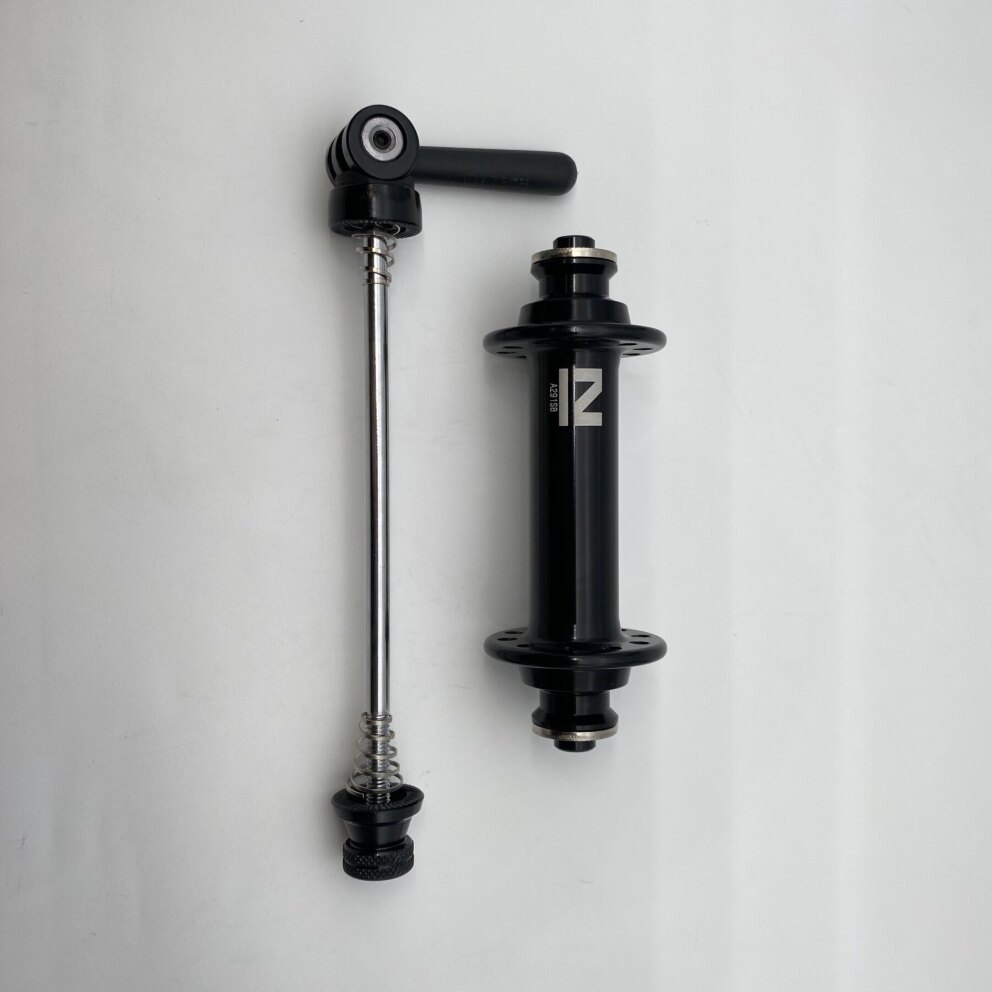

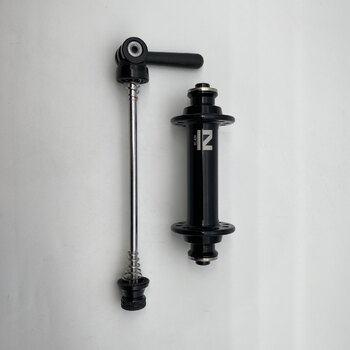

Axle included: Yes, quick release
Type of bearings: Industrial bearings
Average weight (GR): 77
Intended use: Race

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 100
Non-gear side (MM): 16
Gear side (MM): 16
Hub diameter non-gear side (MM): 30
Hub diameter gear side (MM): 30

Link to spoke calculator: www.sapim.be/spoke-calculator
