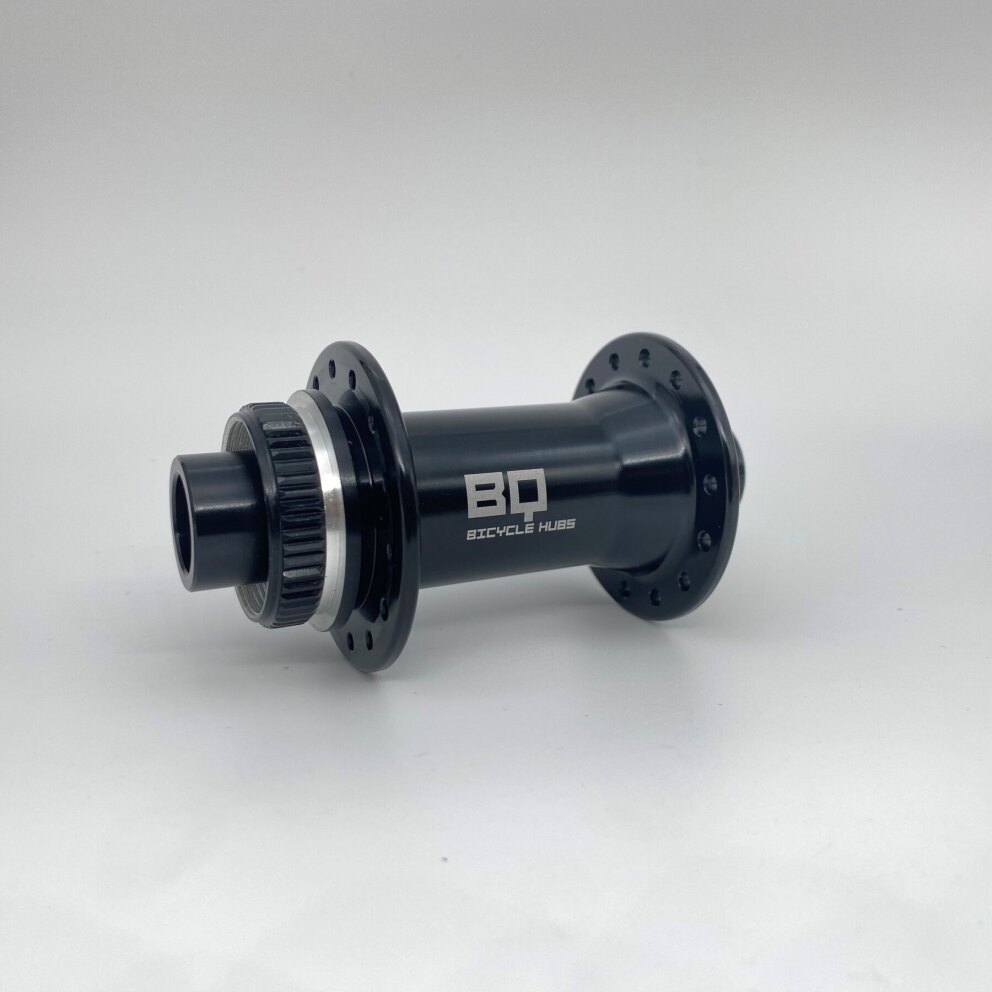

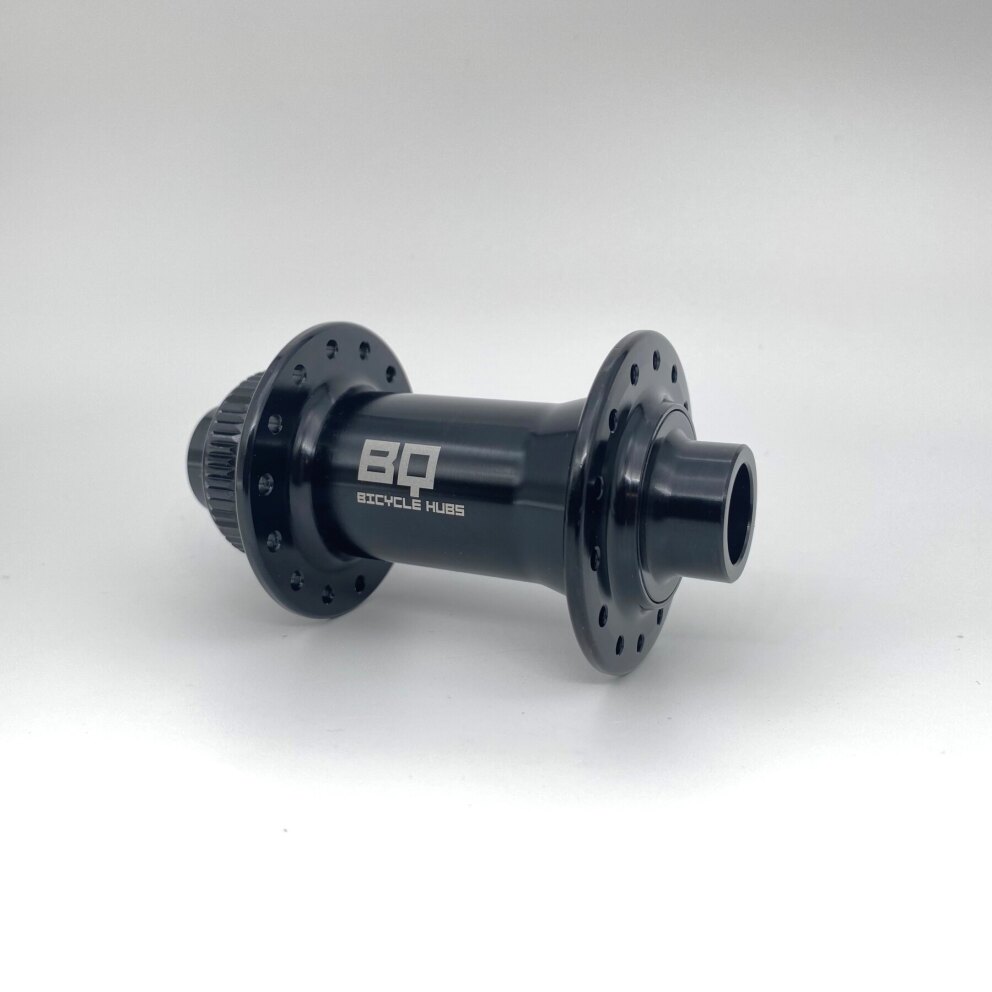

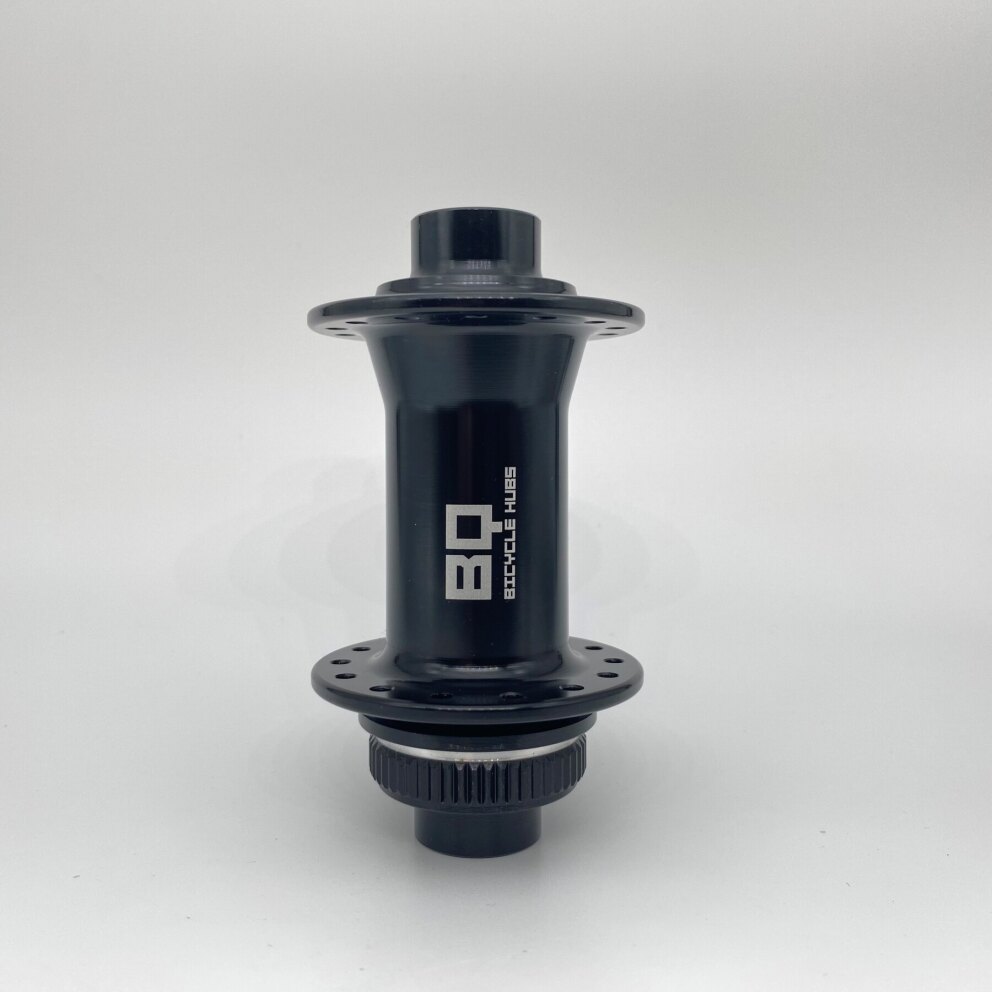

Front hub / 100 MM / Thru axle Ø 15 MM / Disc (Centerlock) / 36GTS / BQ / BQ-FH30514 / Black / Tour

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this hub, we can assemble a custom wheel. Do you have a rim lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	Tour / Hybride , E-Bike
Voor of achter	Voor
Type rem	Disc (Centerlock)
Aantal spaken/spaakgaten	36
Inbouwbreedte	100 mm
Type as	Steekas 100 x 15 mm
Naafdynamo	Nee
Merk naaf	BQ Bicycle Hubs
Type naaf	BQ-FH30514
Kleur	Zwart
Nieuw of gebruikt	Nieuw

Specifications of the front hub:
Brand: BQ
Model: BQ-FH30514
Color: Black
Number of spoke holes: 36GTS
Type of brake: Disc (Centerlock)
Type of axle: Thru axle Ø 15 MM
Axle included: No
Type of bearings: Sealed bearings
Average weight (GR): 129
Intended use: MTB - Tour

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 100
Non-gear side (MM): 25
Gear side (MM): 14
Hub diameter non-gear side (MM): 46
Hub diameter gear side (MM): 46

Link to spoke calculator: www.sapim.be/spoke-calculator
