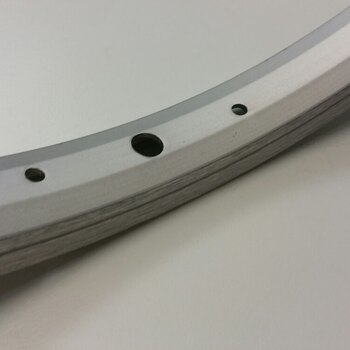

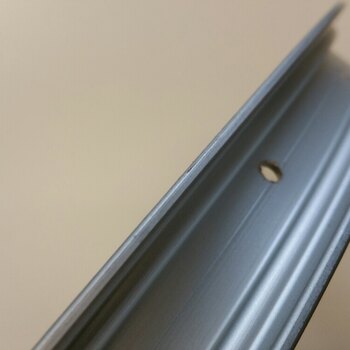

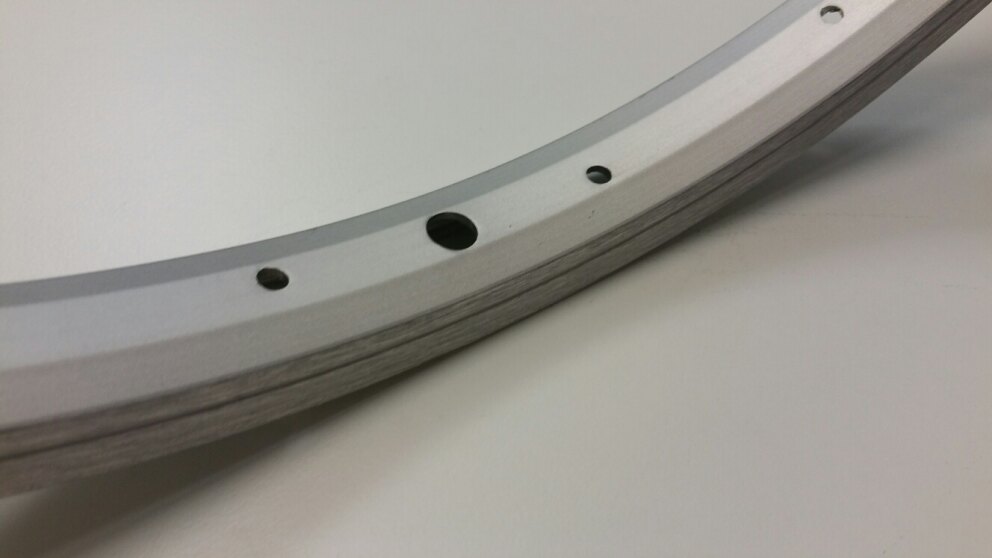

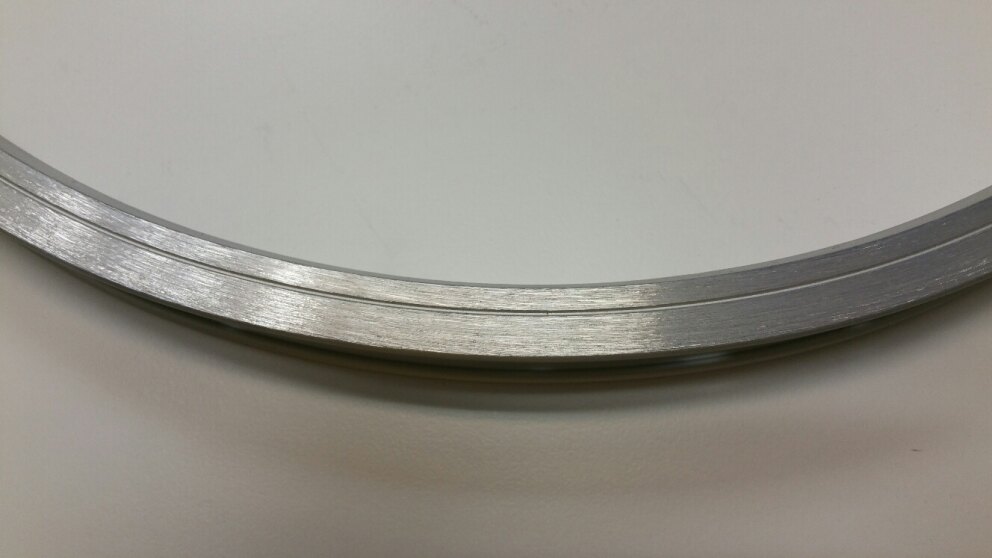

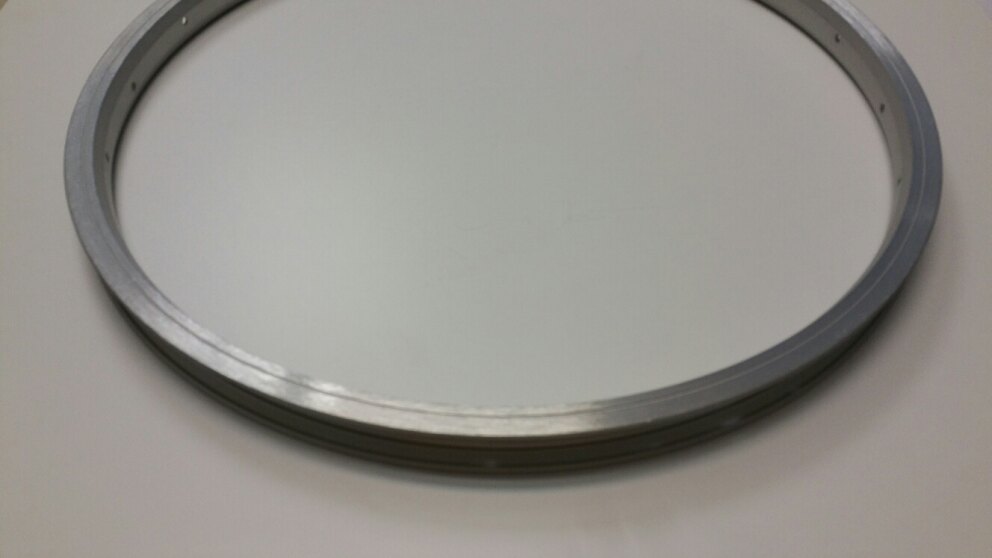

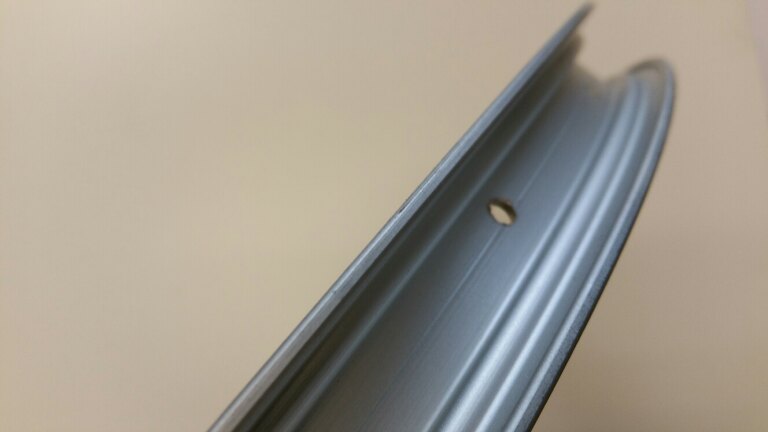

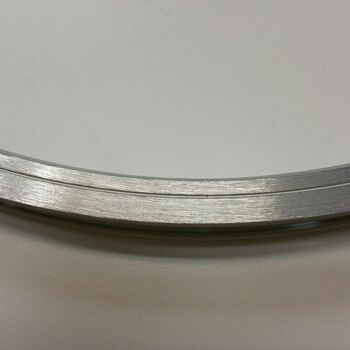

Rim / 406X20C / 20GTS / Single-walled / No eyelets / Dahon / Others / Silver / Brake surface

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this rim, we can assemble a custom wheel. Do you have a hub lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	Vouwfiets / Plooifiets
BSD maat	406
FIETS Inch maat	20
Aantal spaken/spaakgaten	20
Geschikt voor velgrem	Ja
Kleur	Zilver
Interne breedte van de velg	20C
Merk velg	Dahon
Type velg	Others
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Enkelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim Specifications:

Brand: Dahon

Model: Others

Color: Silver

Size (Inch/MM):  20" / 406

External width (MM): 25

Internal width (MM): 20

Weight (GR): 322

Material: Aluminium

Single-walled / Double-walled: Single-walled

Single eyelets / Double eyelets: No eyelets

Number of spoke holes: 20

Spoke nipple size: 14

Brake surface present: Yes

Data for spoke length calculations using the Sapim spoke size calculator:

Internal diameter of the rim (MM *Not ERD*): 386

Rim thickness (MM): 2

Number of spokes in the wheel: 20

Number of crossings gear side: of your choice

Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
