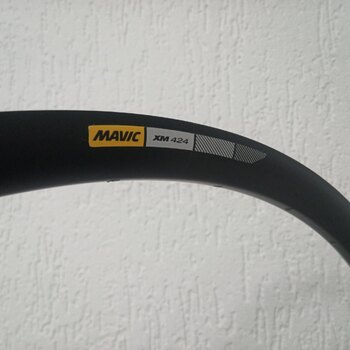

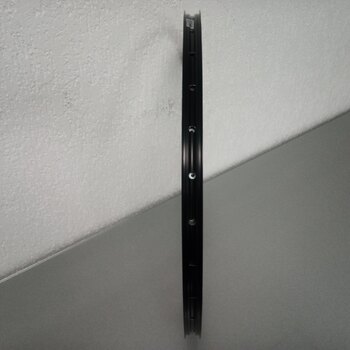

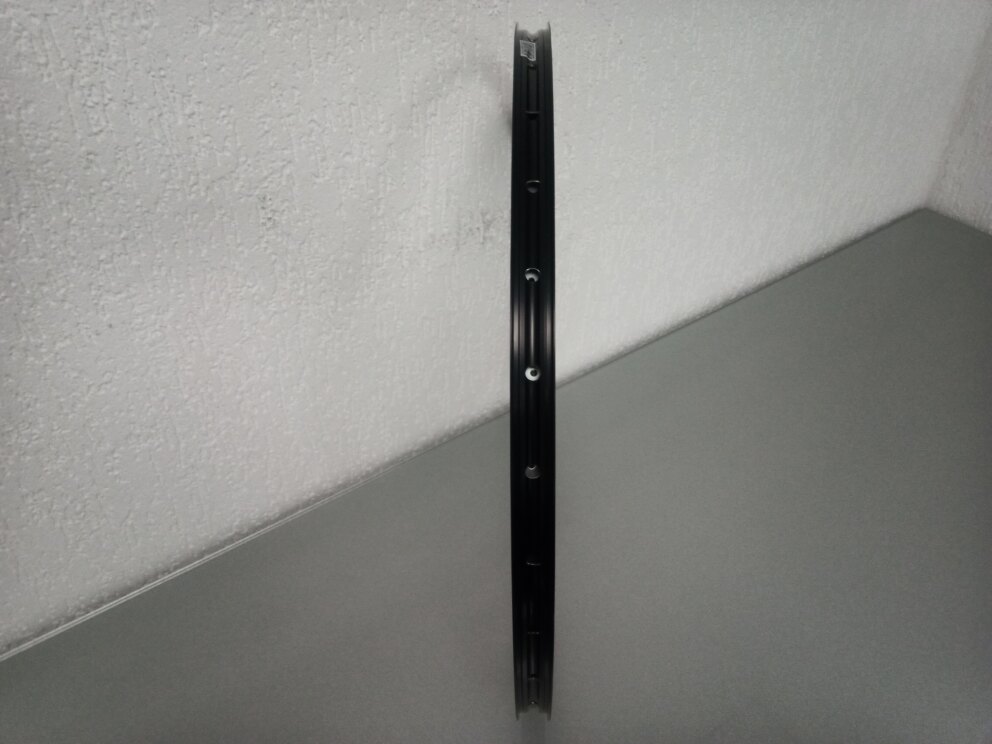

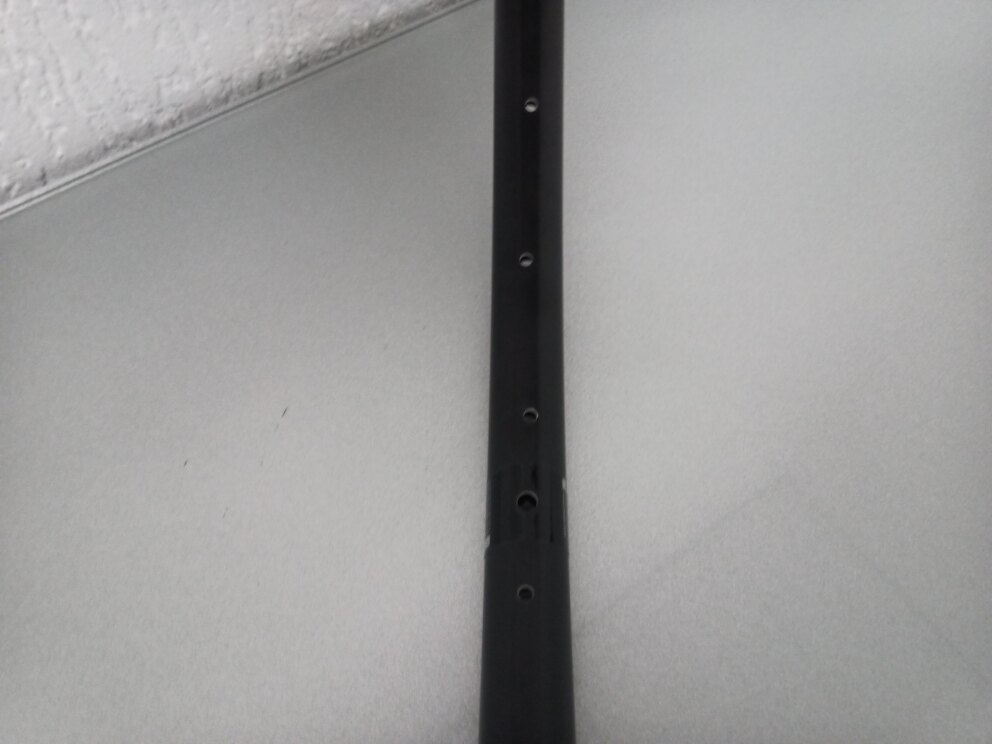

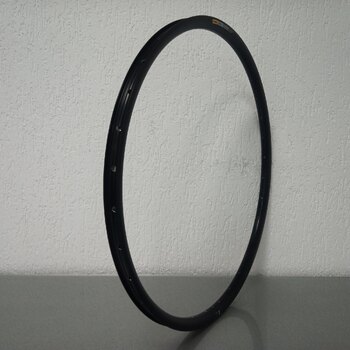

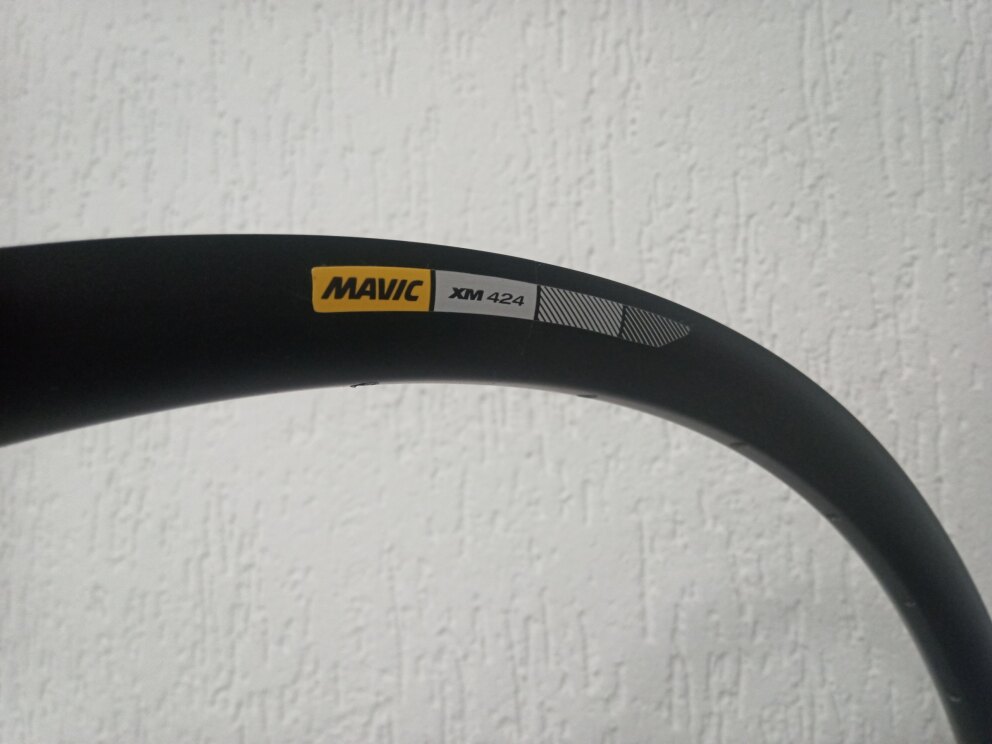

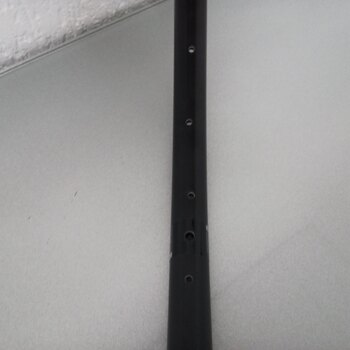

Rim / 622X24TSS / 32GTS / Double-walled / No eyelets / Mavic / XM 424 / Black / Disc

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this rim, we can assemble a custom wheel. Do you have a hub lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	Gravel , MTB
BSD maat	622
FIETS Inch maat	28 , 29er
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	24TSS
Merk velg	Mavic
Type velg	XM 424
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

NB:

TSS: Tubeless Straight Side (also called "Hookless"). Rim does not have a folded edge for the bead of the tire.

This rim may only be combined with a Tubeless suitable tire.

A tire that is not Tubeless suitable will jump off the rim and is therefore VERY UNSAFE.

You can use an inner tube if you wish. As long as the tire is Tubeless suitable.

Intended use: Mountain bike

Link to recommended tire and rim combinations from Mavic: 2_72.pdf (mavic.com)

Rim Specifications:
Brand: Mavic
Model: XM 424
Color: Black
Size (Inch/MM): 622X24TSS
External width (MM): 27
Internal width (MM): 24
Average weight (GR): 498
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets
Number of spoke holes: 32GTS
Spoke nipple size: 14G
Brake surface present: No

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*): 590
Rim thickness (MM): 2
Number of spokes in the wheel: 32
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
