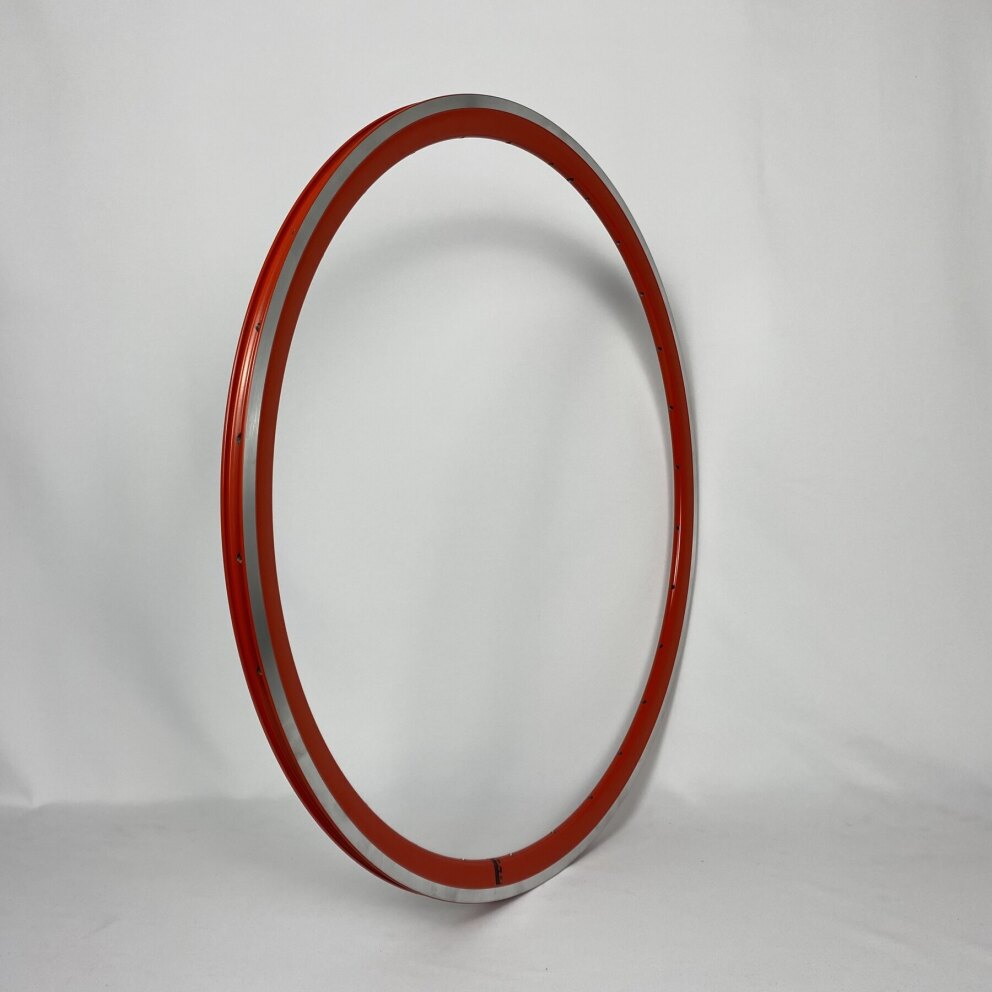

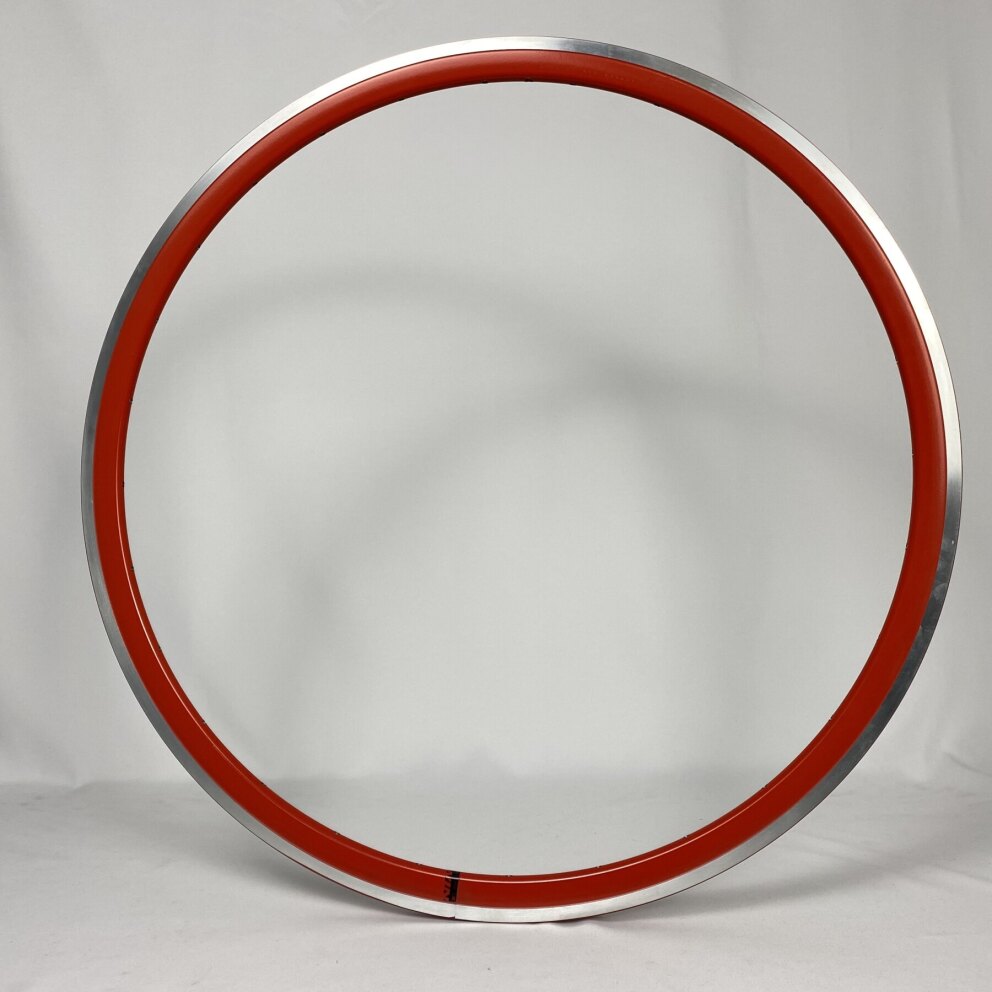

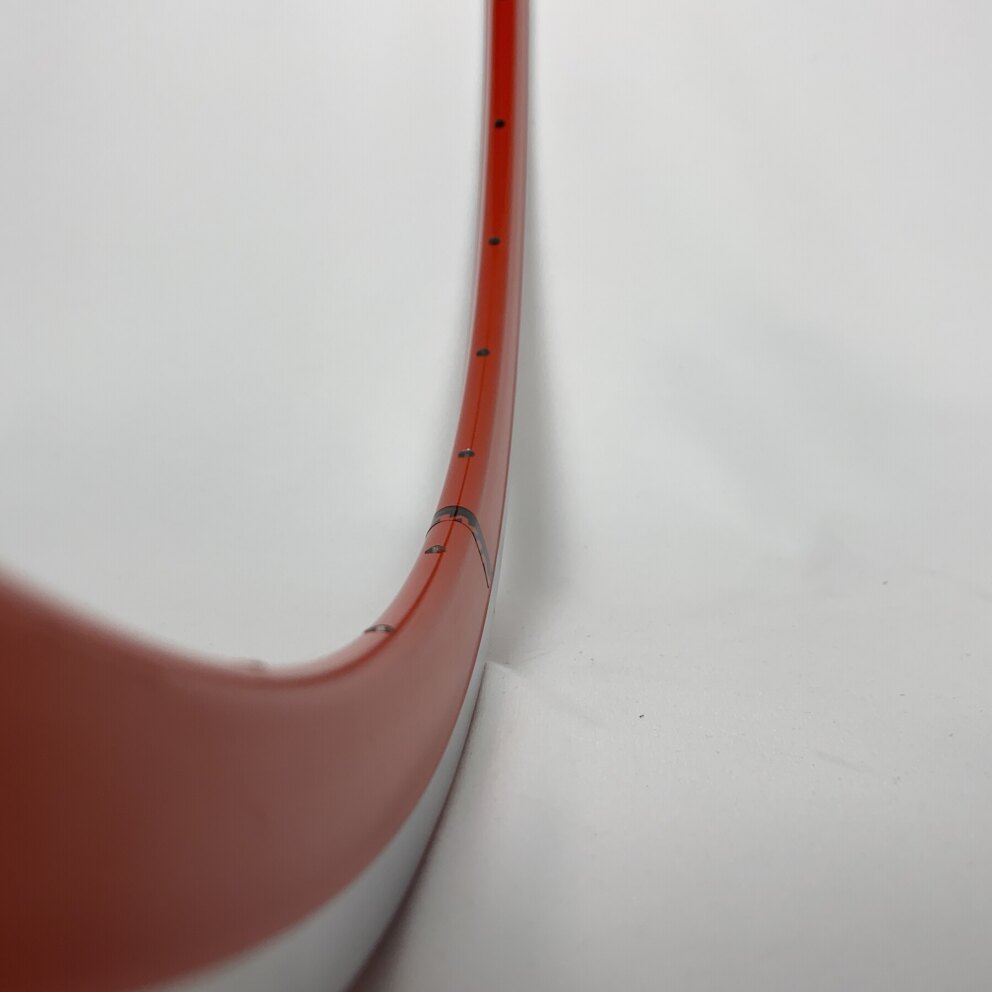

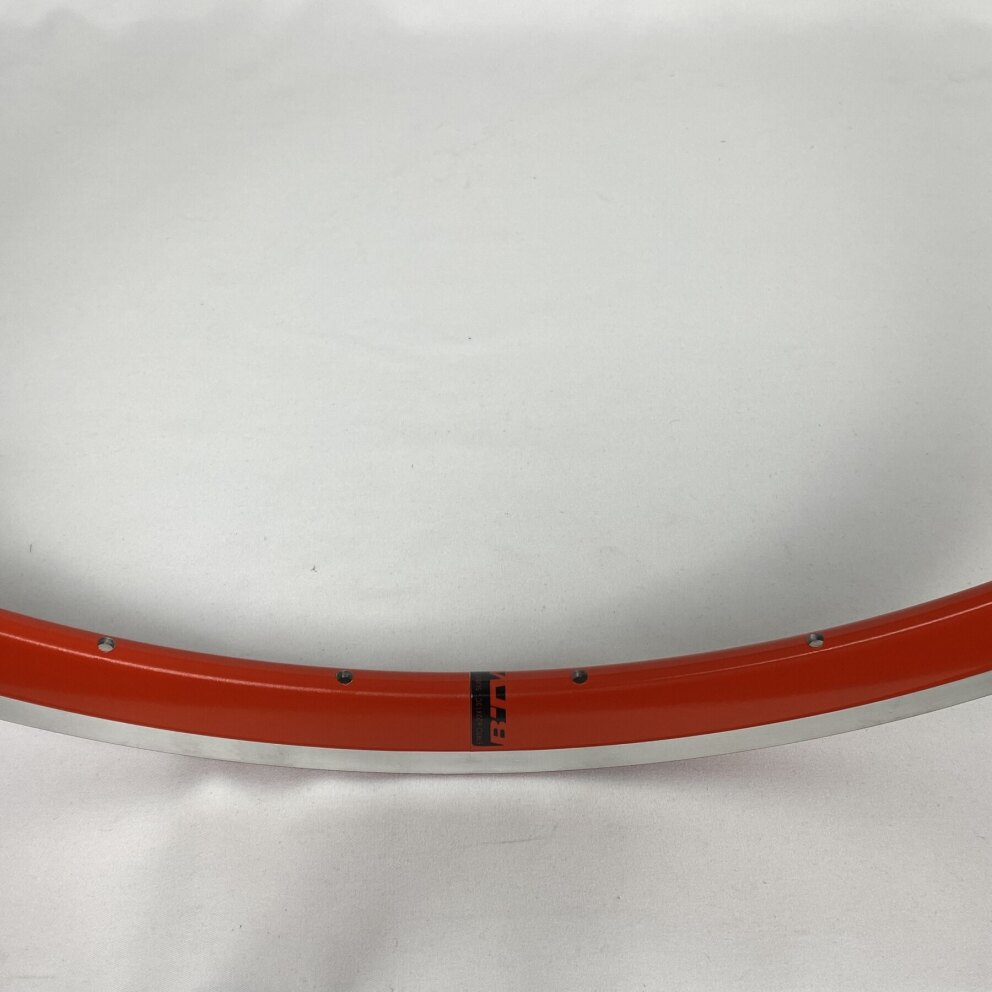

Rim / 622X13C / 28GTS / Double-walled / No eyelets / Rigida - Ryde / DP18 / Red / Brake surface
Item number: 42014
€ 32,95
In stock : 34
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | Race |
|---|---|
| BSD maat | 622 |
| FIETS Inch maat | 28 |
| Aantal spaken/spaakgaten | 28 |
| Geschikt voor velgrem | Ja |
| Kleur | Rood |

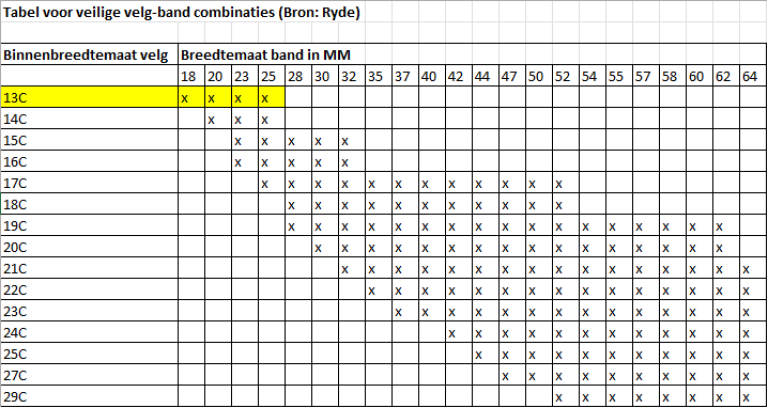

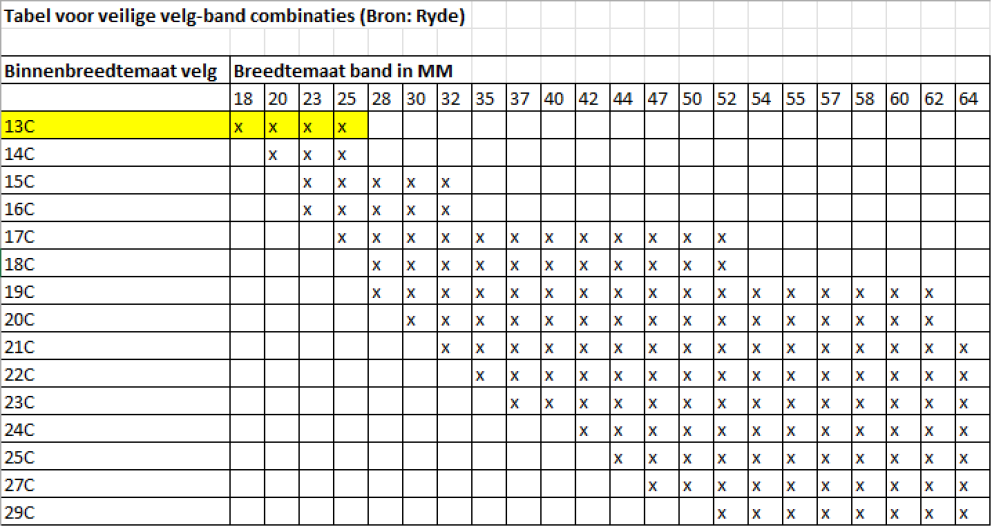

| Interne breedte van de velg | 13C |
| Merk velg | Ryde |
| Type velg | DP18 |
| Materiaal van de velg | Aluminium |
| Enkelwandig / Dubbelwandig | Dubbelwandig |
| Gebuste velg | Ongebust |
| Nieuw of gebruikt | Nieuw |
Rim Specifications:
Brand: Rigida - Ryde
Model: DP18
Color: Red
Size (Inch/MM): 28" / 622

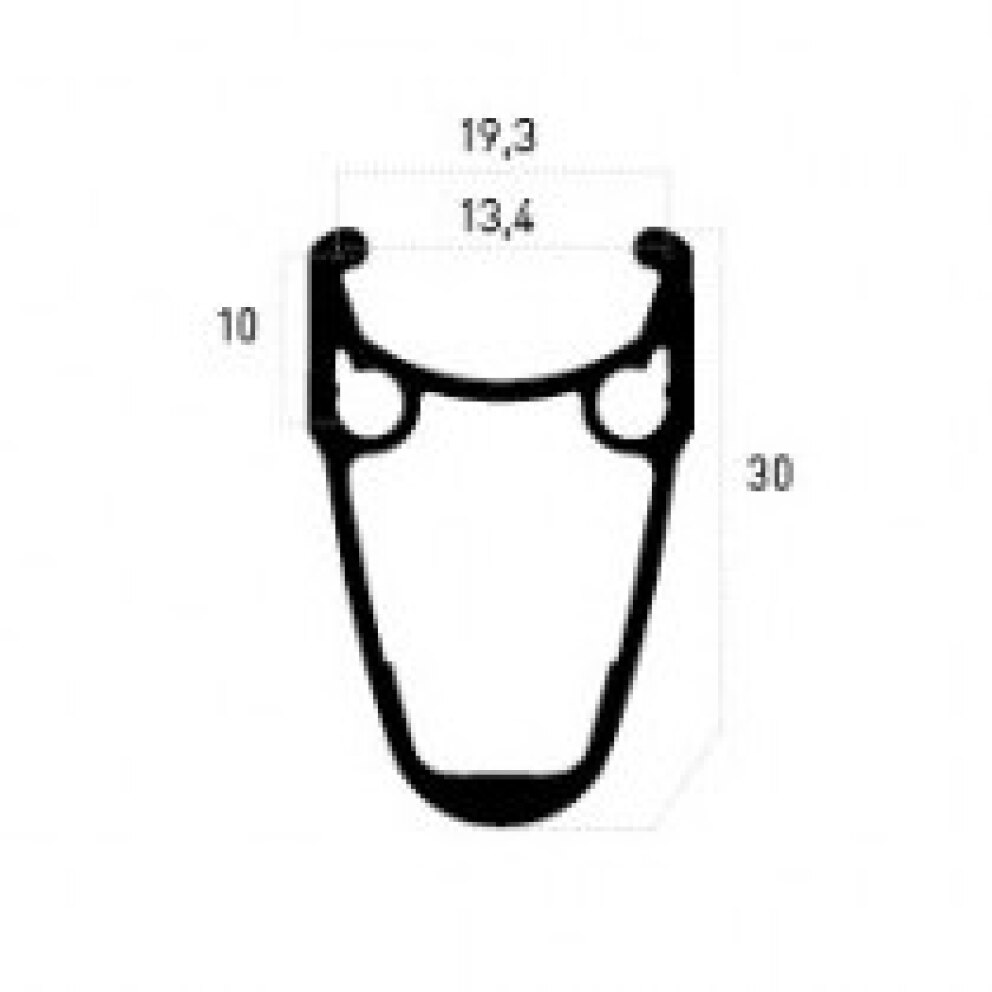

External width (MM): 19
Internal width (MM): 13
Weight (GR): 637
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets

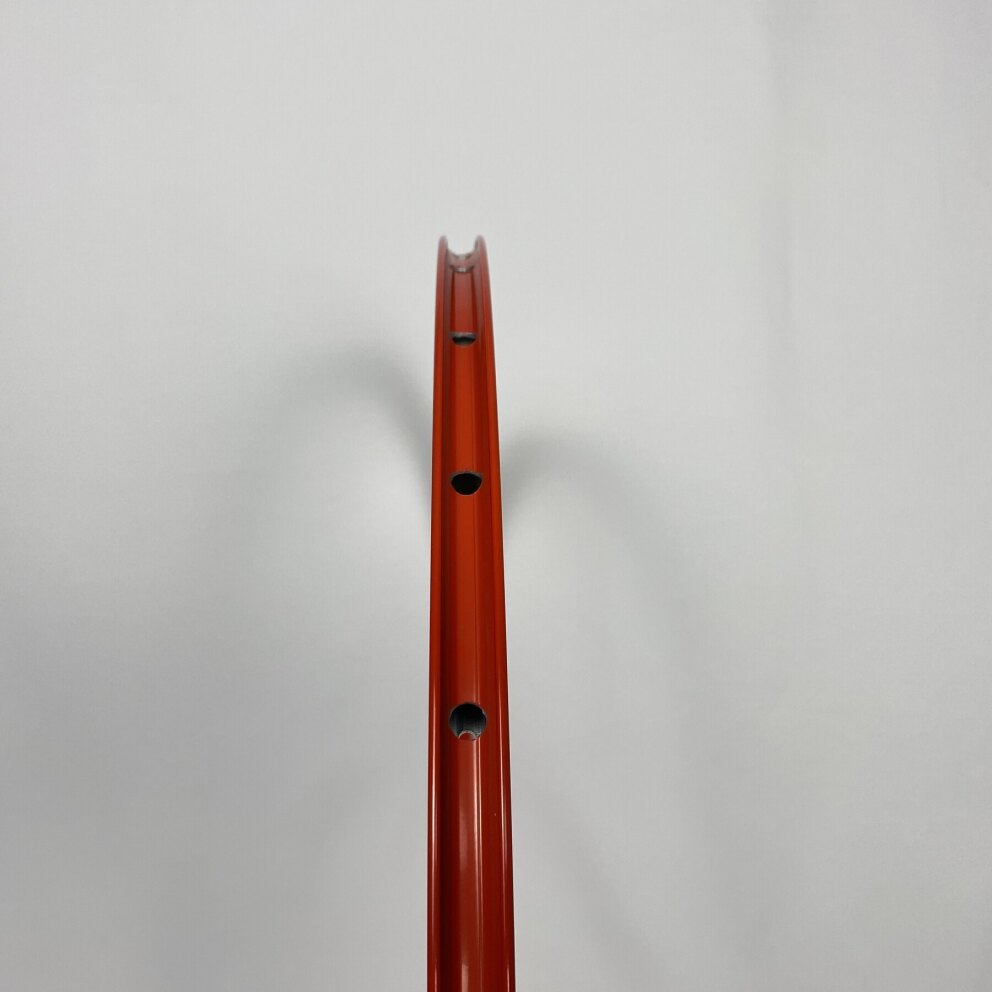

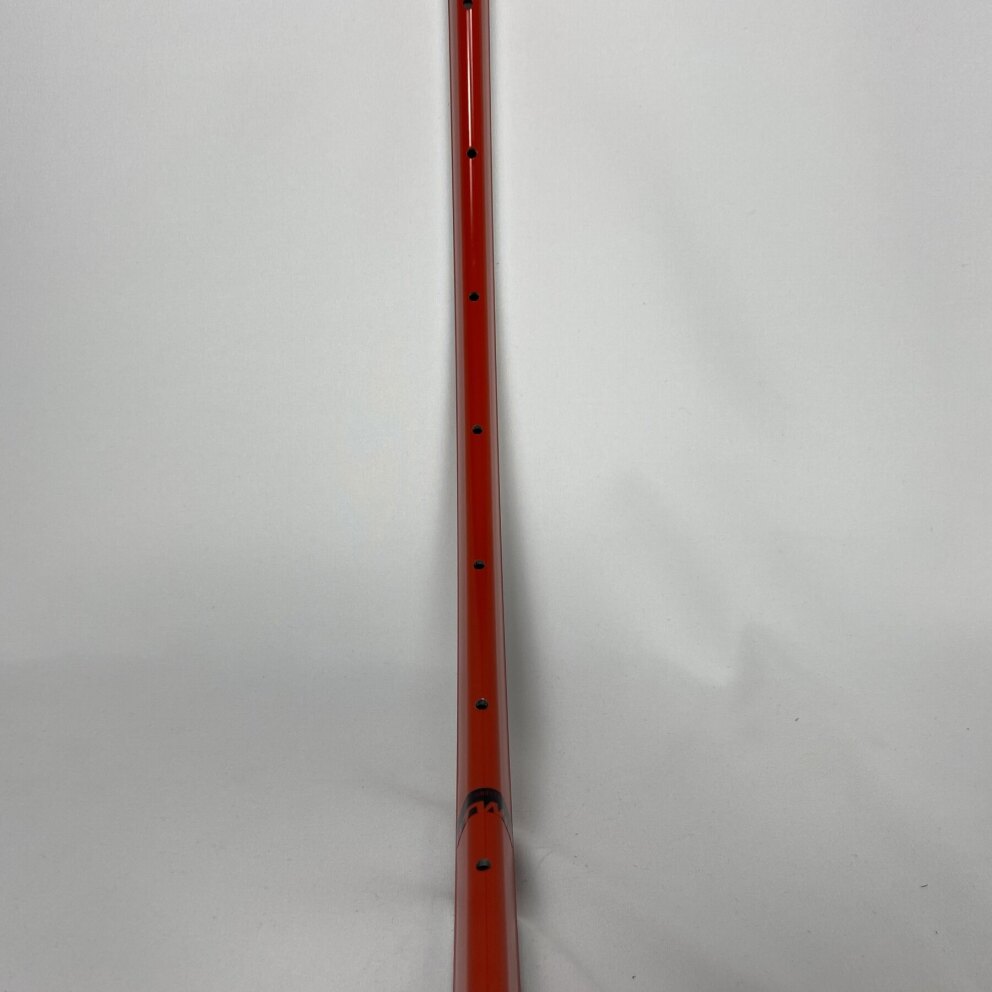

Number of spoke holes: 28
Spoke nipple size: 14
Brake surface present: Yes
Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*): 572
Rim thickness (MM): 2
Number of spokes in the wheel: 28
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice
Link to spoke calculator: www.sapim.be/spoke-calculator
