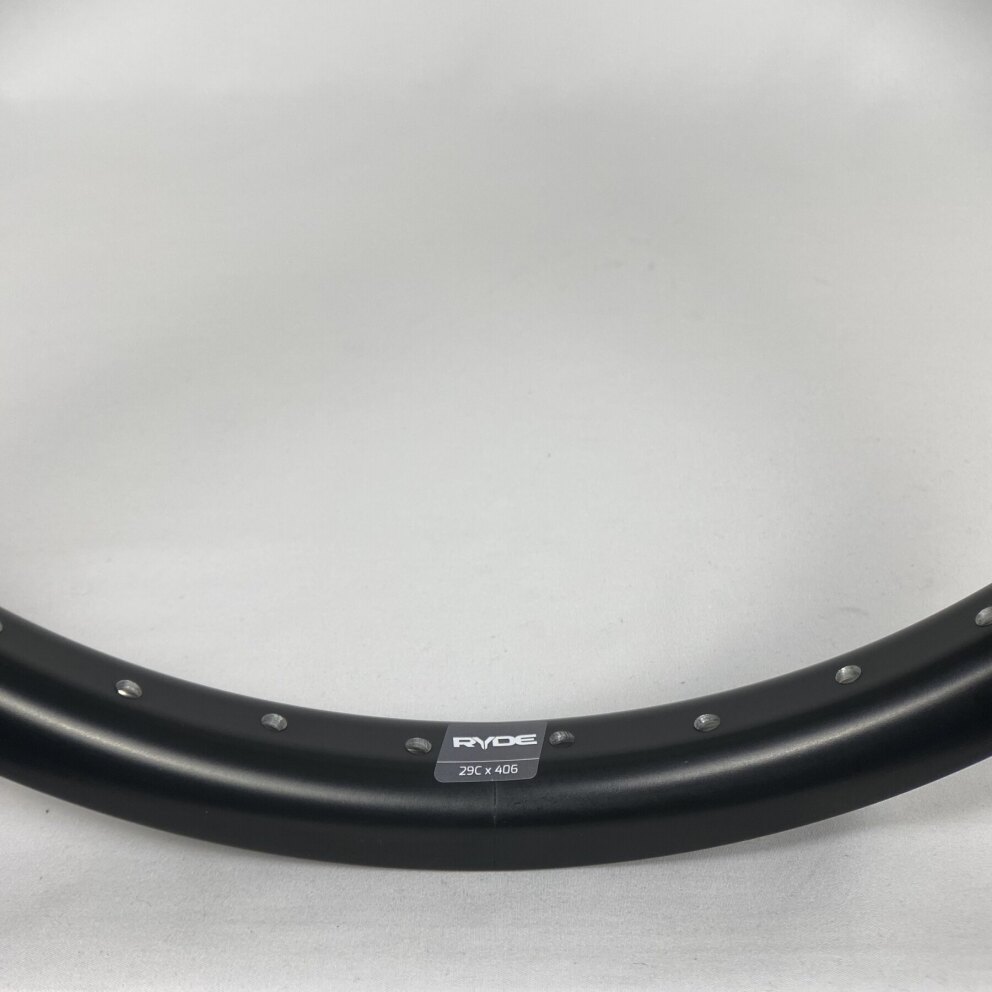

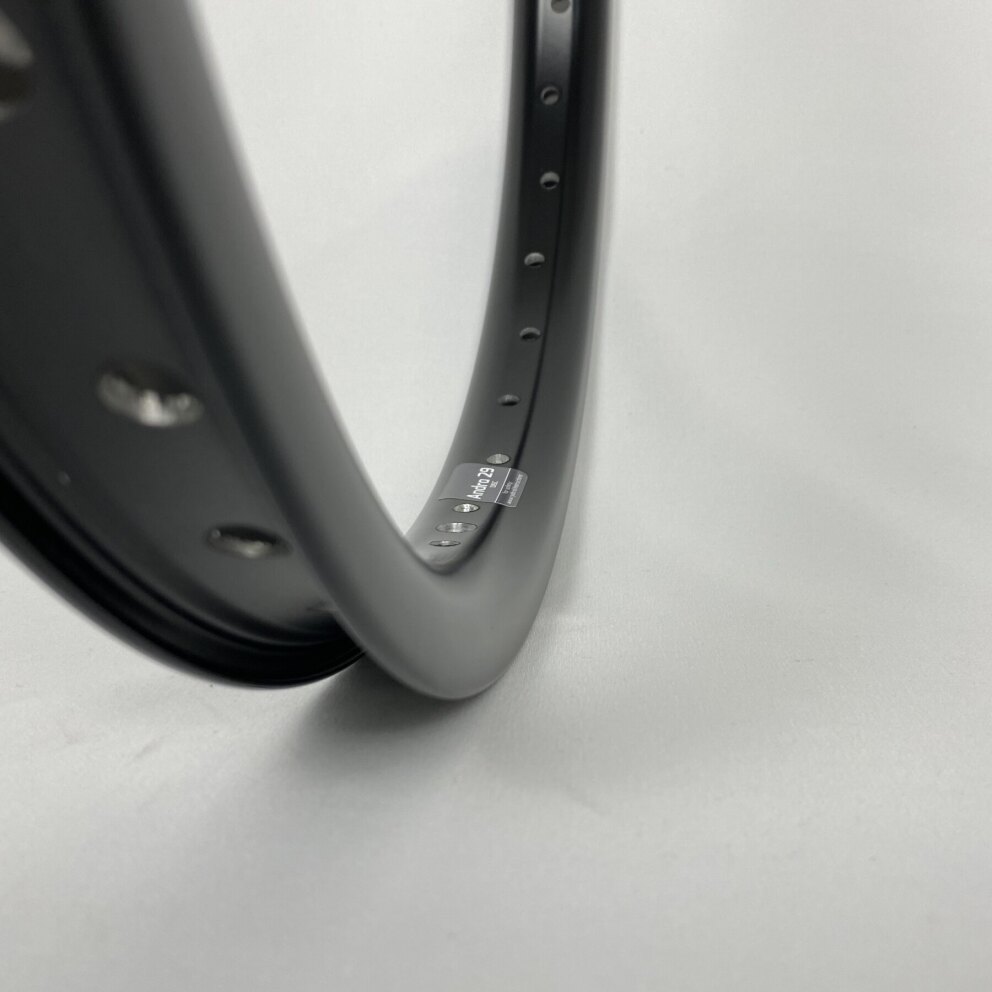

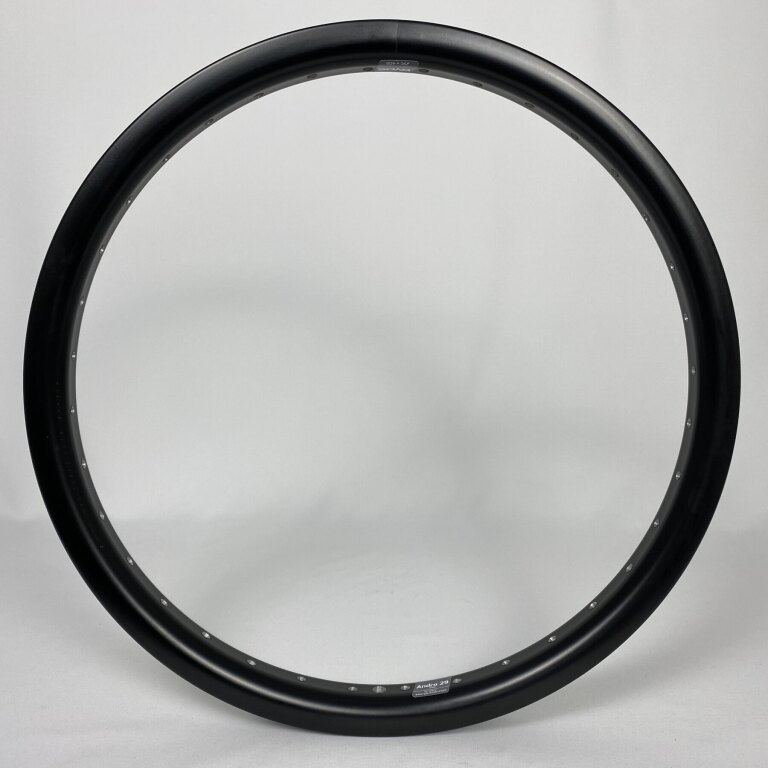

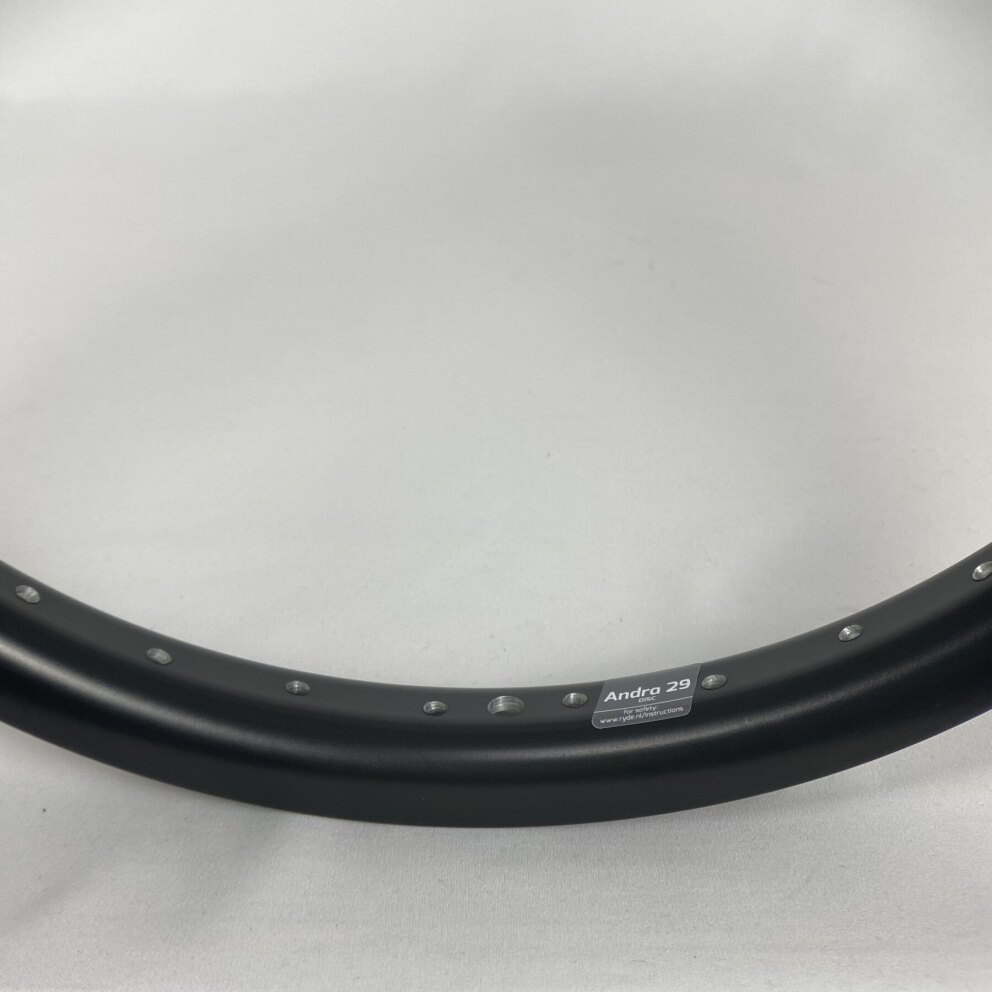

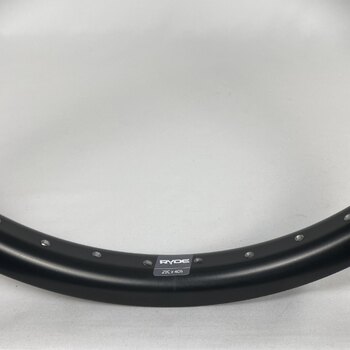

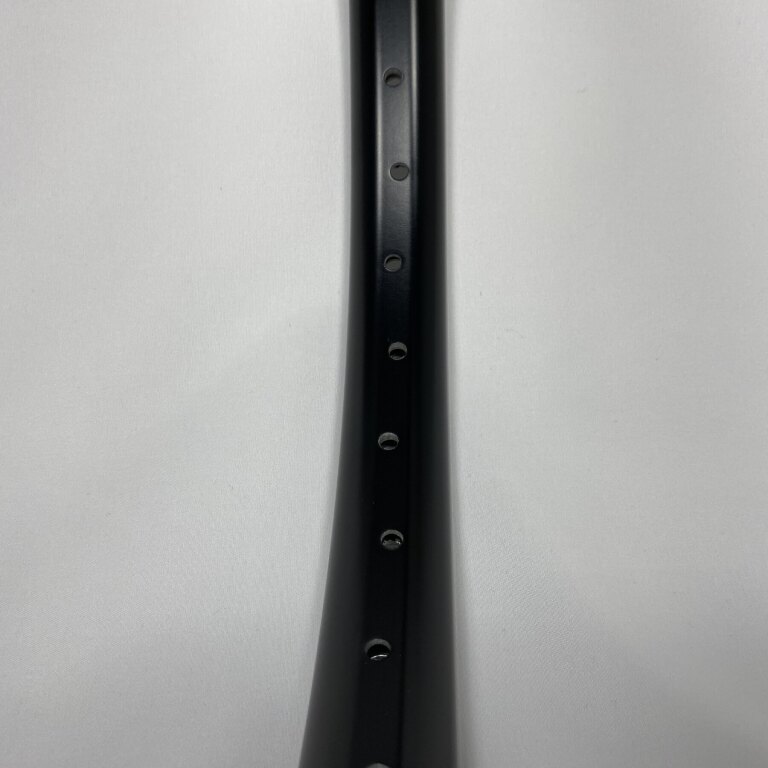

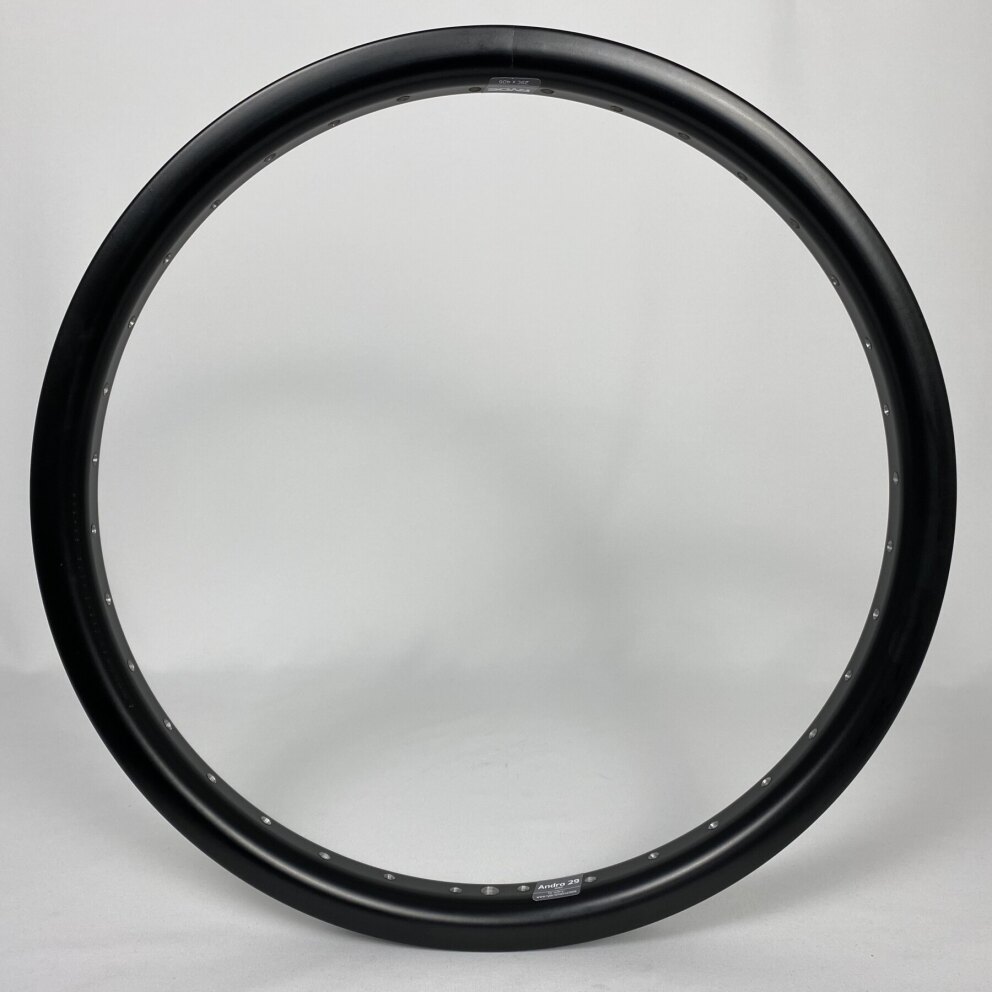

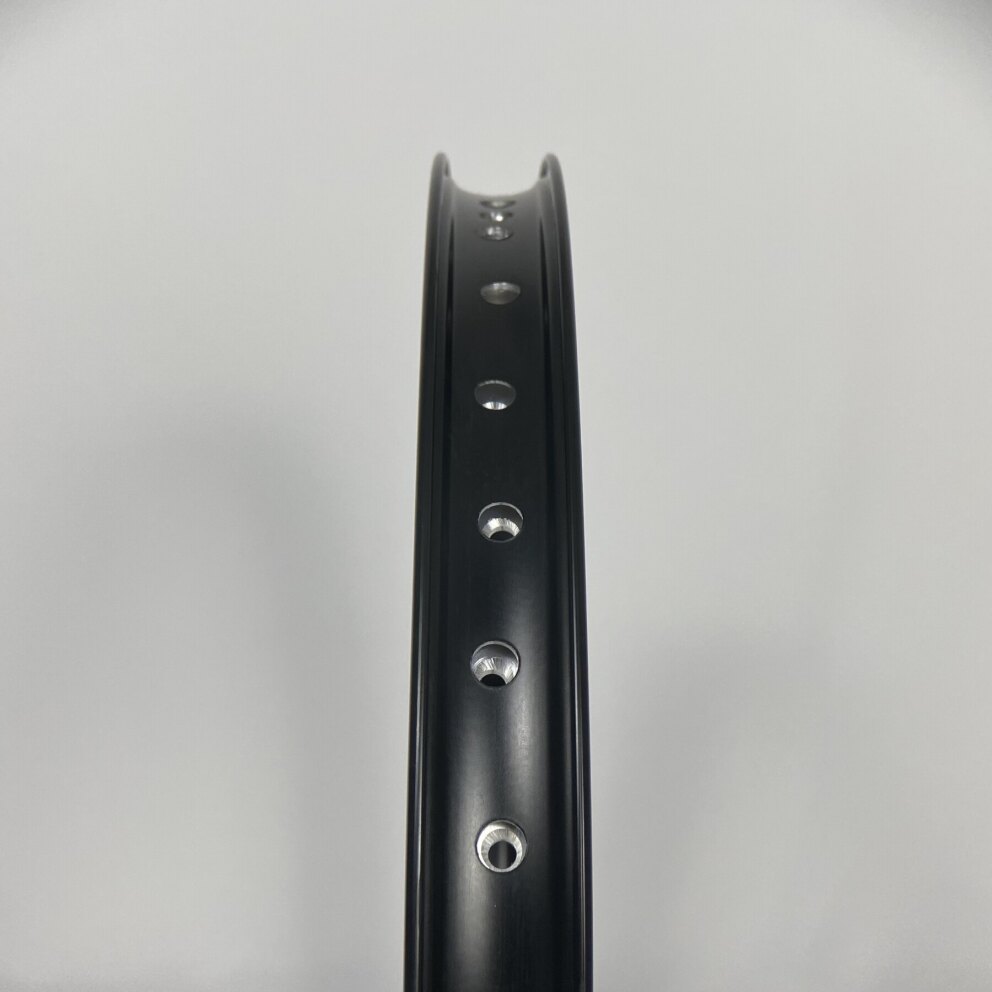

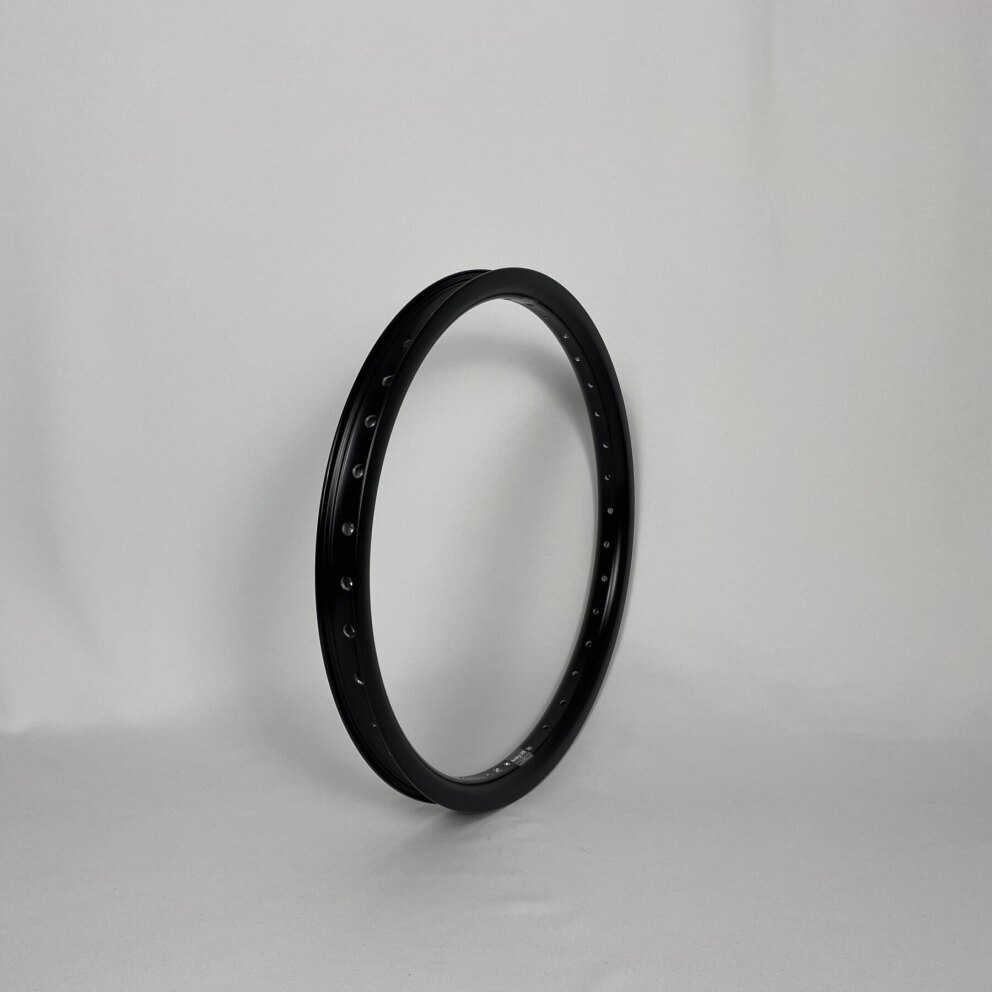

Rim / 406X29C / 36GTS / Double Wall / Unbushed / Rigida - Ryde / Andra 29 Disc / Black / Disc

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this rim, we can assemble a custom wheel. Do you have a hub lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	E-Bike , Cargo
BSD maat	406
FIETS Inch maat	20
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	29C
Merk velg	Ryde
Type velg	Andra 29 Disc
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim specifications:
Brand: Rigida - Ryde
Type: Andra 29 Disc
Colour: Black
Size (Inch/MM): 406X29C
External width (MM): 34
Internal width (MM): 29
Average weight (GR): 583
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single-butted / Double-butted: Unbutted
Number of spoke holes: 36GTS
Spoke nipple size: 13G
Braking surface present: No

Data for using the Sapim spoke length calculation tool:
Internal rim diameter (MM *Not ERD*): 372
Rim thickness (MM): 3
Number of spokes in the wheel: 36
Number of sprocket side crossings: Optional

Number of left side crossings: Optional

Link to spoke length calculation: www.sapim.be/spoke-calculator
