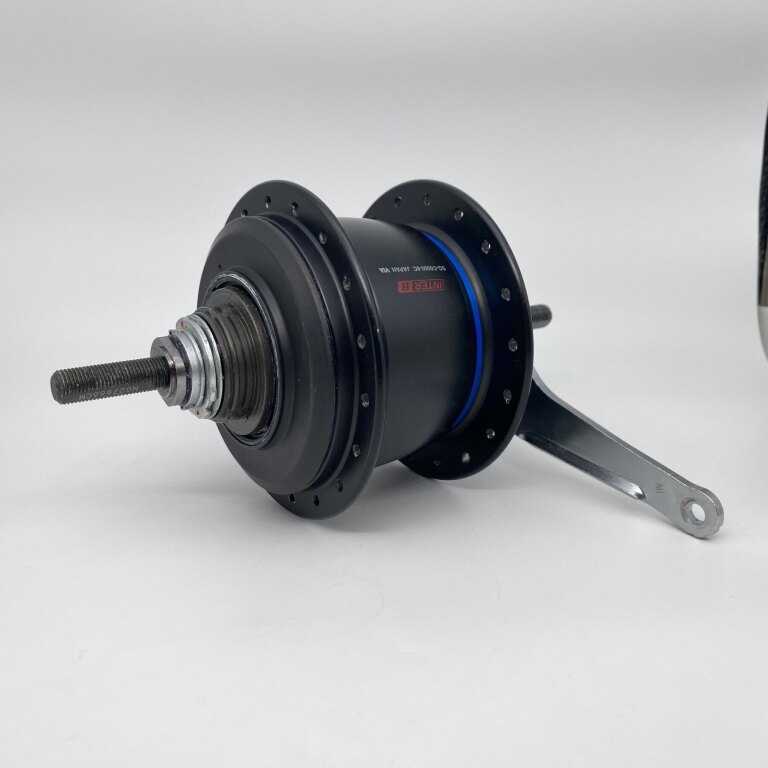

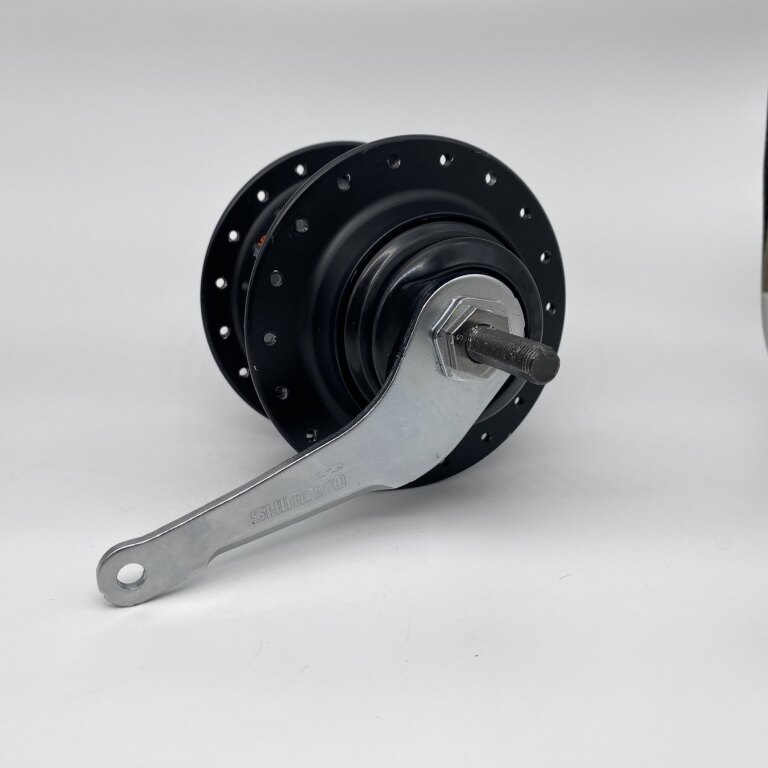

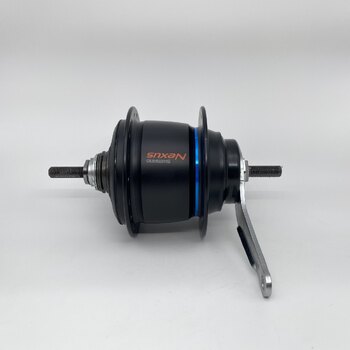

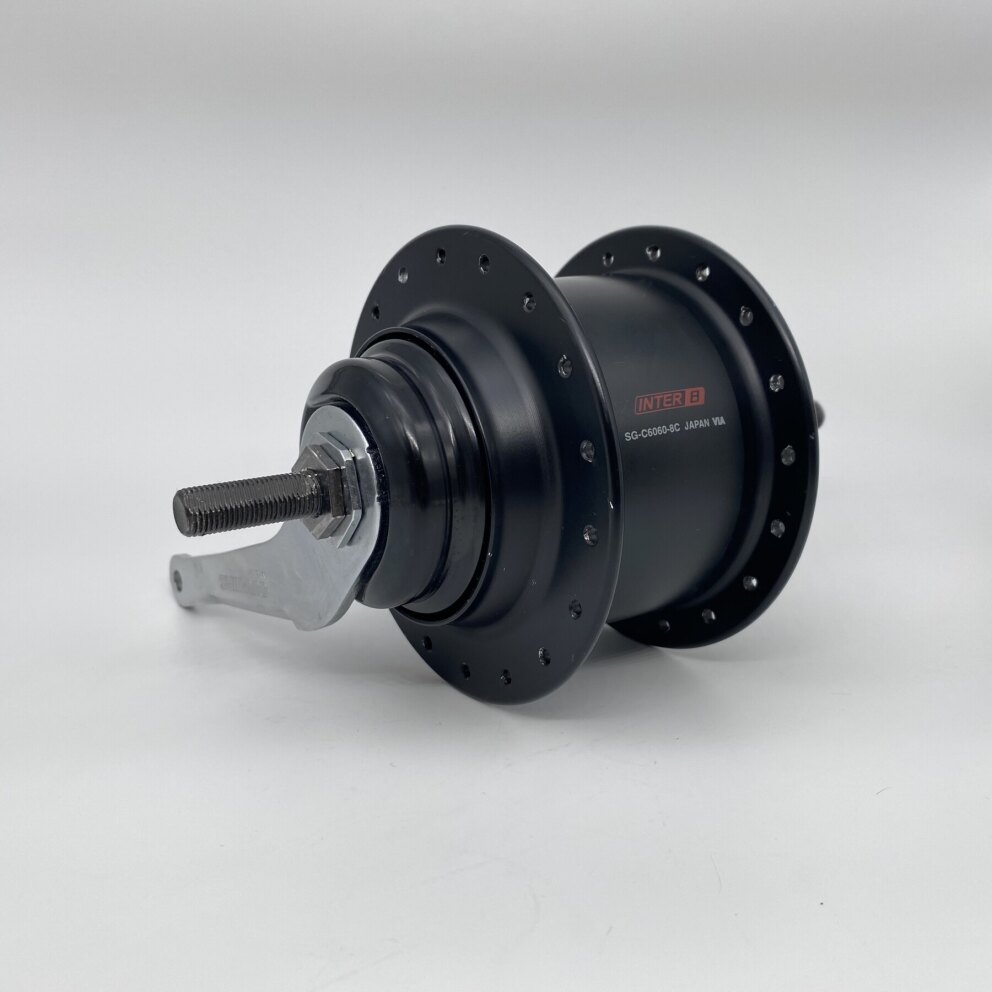

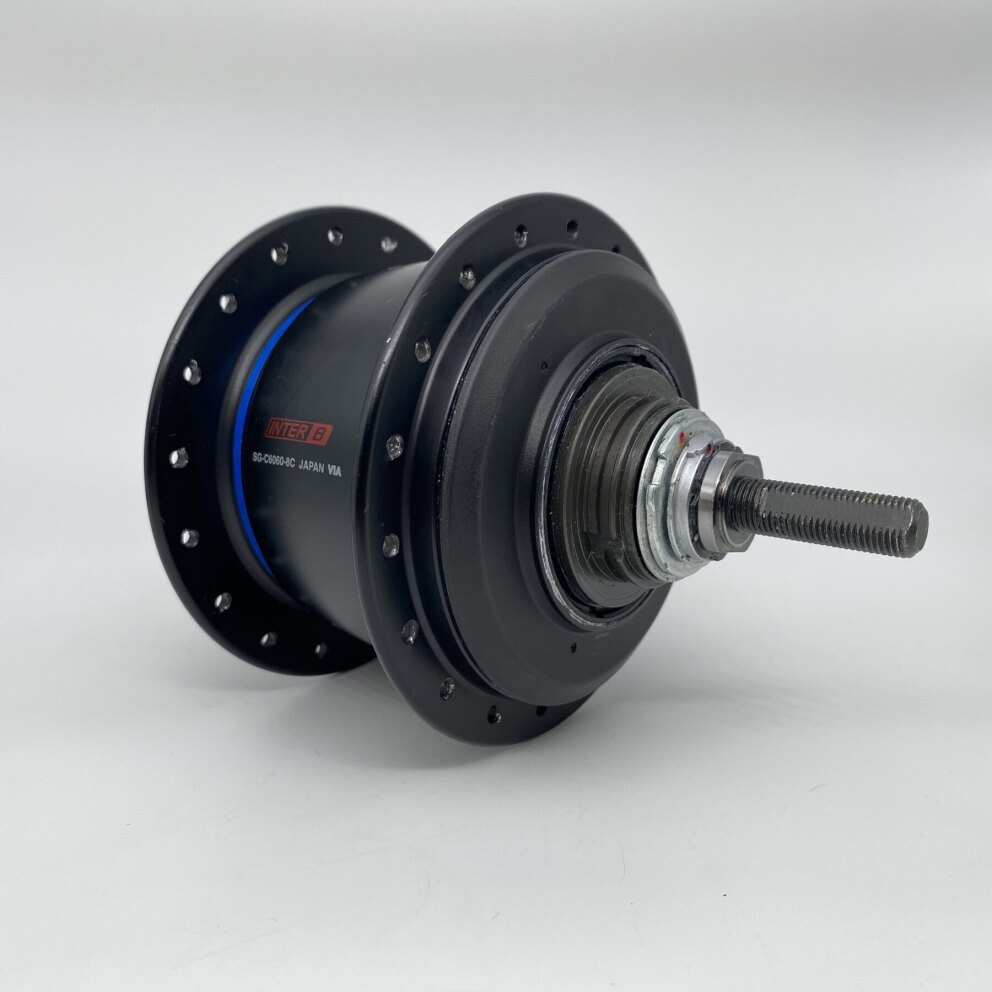

Rear hub / 131 MM / Fixed axle 187 MM / Coaster brake / 36GTS / Shimano / Nexus Inter 8 SG-C6060-8C / 8S DI2 / Black / E-Bike

Business customer? Request an account or log in and order on account with our competitive trading prices!

With this hub, we can assemble a custom wheel. Do you have a rim lying around? Then we can also use it for this.

Assemble now

Beoogd gebruik	E-Bike
Voor of achter	Achter
Type rem	Terugtraprem
Aantal INTERNE versnellingen	8S DI2
Aantal spaken/spaakgaten	36
Inbouwbreedte	131 mm
Type as	Vaste as (met schroefdraad)
Naafdynamo	Nee
Merk naaf	Shimano
Type naaf	Nexus Inter 8 SG-C6060-8C
Kleur	Zwart
Nieuw of gebruikt	Nieuw

NOTE: You need a Shimano DI2 shifter to use this hub!

Hubs come from sample wheels from a bicycle factory, so they have been braided in, but have not been ridden

Specifications of the rear hub:
Brand: Shimano
Model: Nexus Inter 8 SG-C6060-8C
Color: Black
Number of spoke holes: 36GTS
Type of brake: Coaster brake
Number of gears: 8S DI2
Type of axle: Fixed axle 187 MM
Axle included: Yes, without nuts
Type of bearings: Ball bearings
Weight (GR): 2072
Intended use: City

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 131
Non-gear side (MM): 33
Gear side (MM): 38
Hub diameter non-gear side (MM): 92
Hub diameter gear side (MM): 92

Link to spoke calculator: www.sapim.be/spoke-calculator
