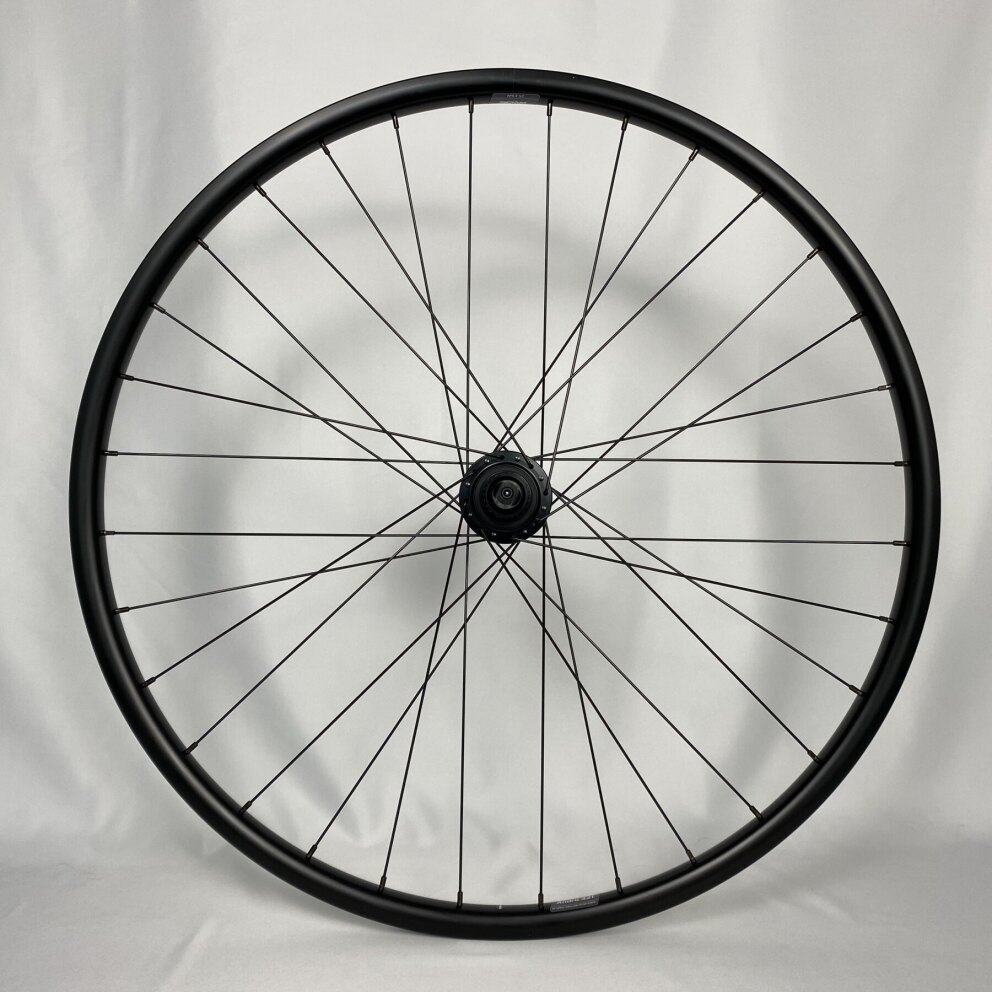

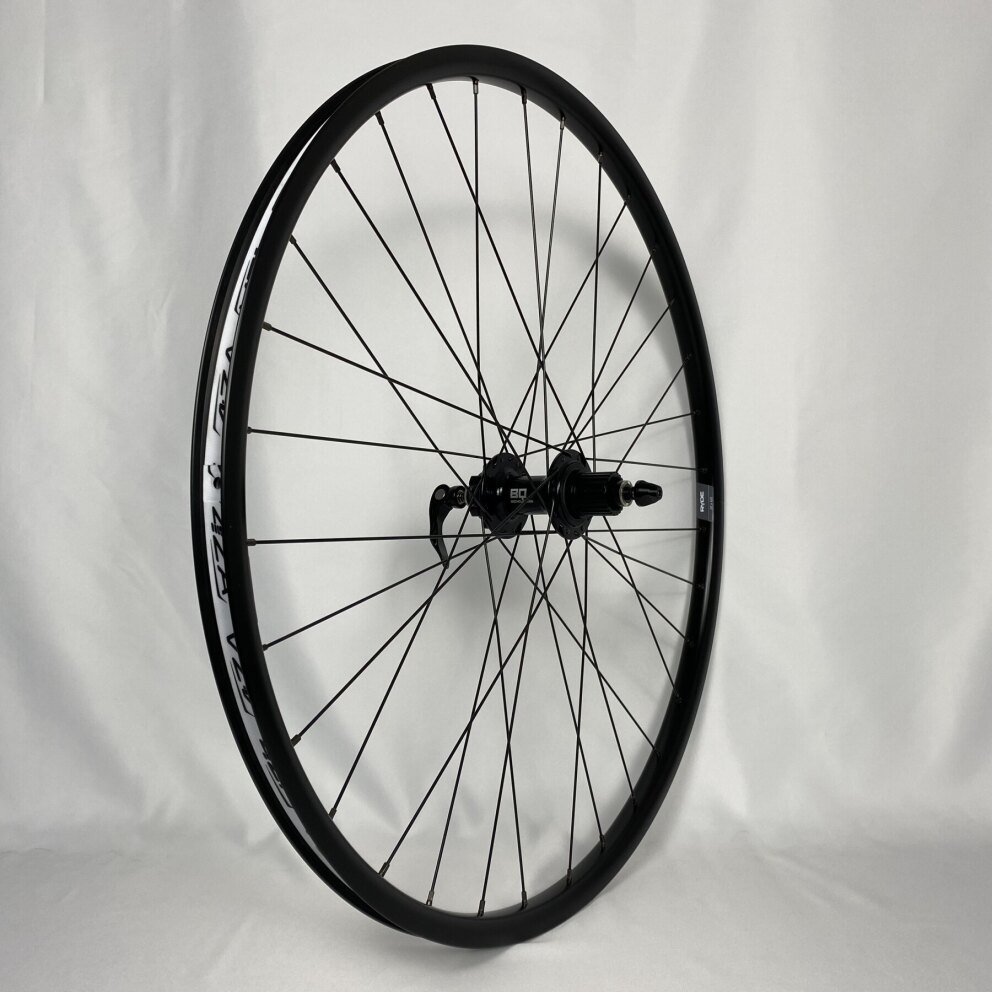

Trek has equipped its X-Caliber mountain bikes with a self-developed hub that is not available anywhere due to the special installation width of 141 mm combined with a dropout axle, but from now on it is available at Vlechtservice!

This hub is equipped with strong industrial bearings, so it guarantees long rides without worries.

This wheel is braided with the Andra 321 rim, which is recommended for heavier bikers from 90 kg.

We also have a variant with the Zac 421 rim, which looks very similar to the original Bontrager rim. See related articles below.

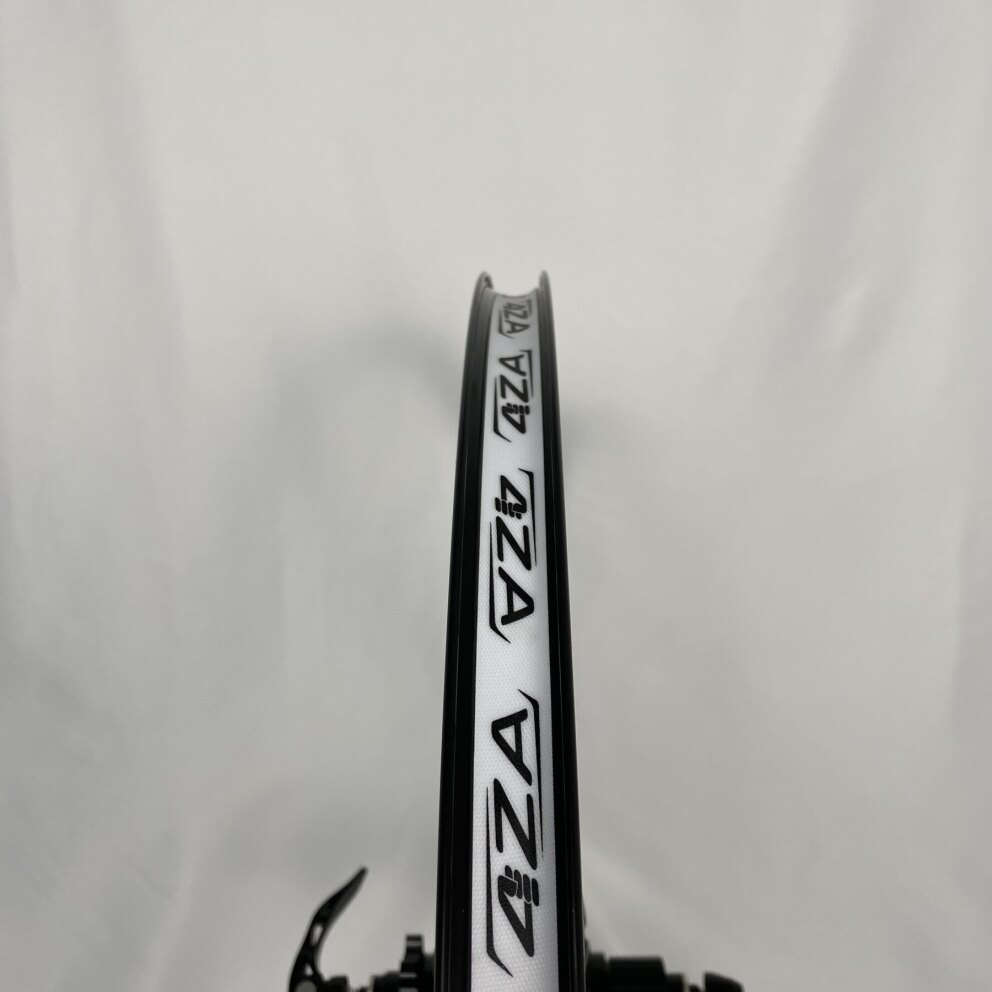

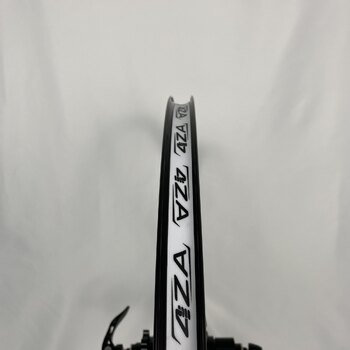

Rim tape included.

Mounting widths:
Rear (MM): 141

Construction:
Handmade or machined: Handmade
Spoke pattern: Cross 3
Total weight (GR): 1292

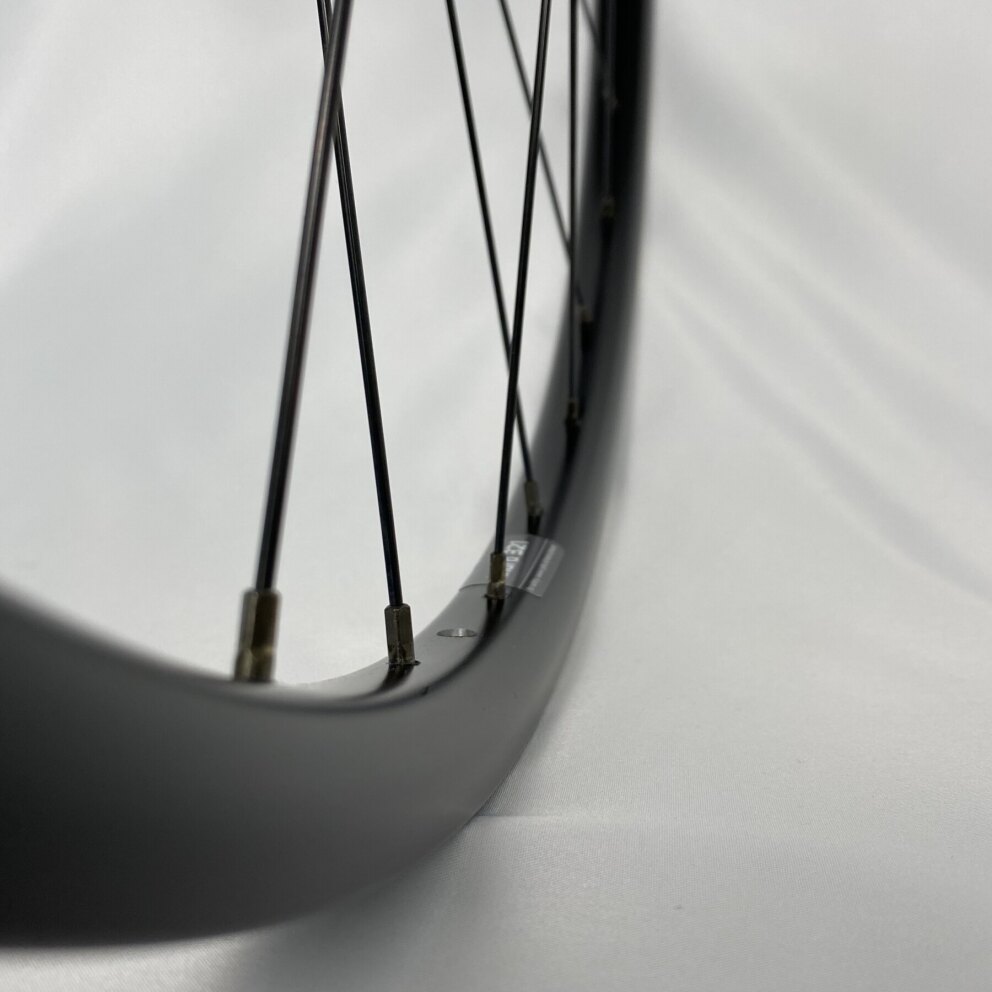

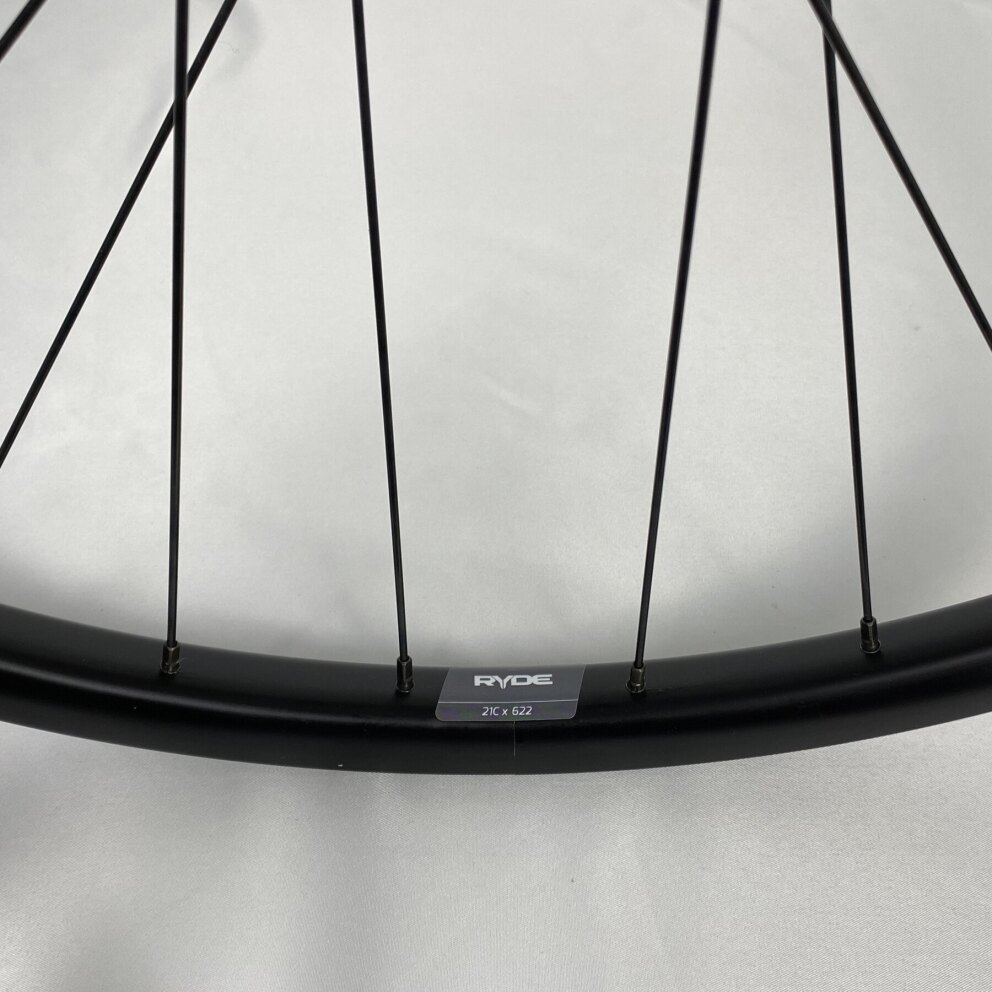

Rim specifications:
Brand: Rigida - Ryde

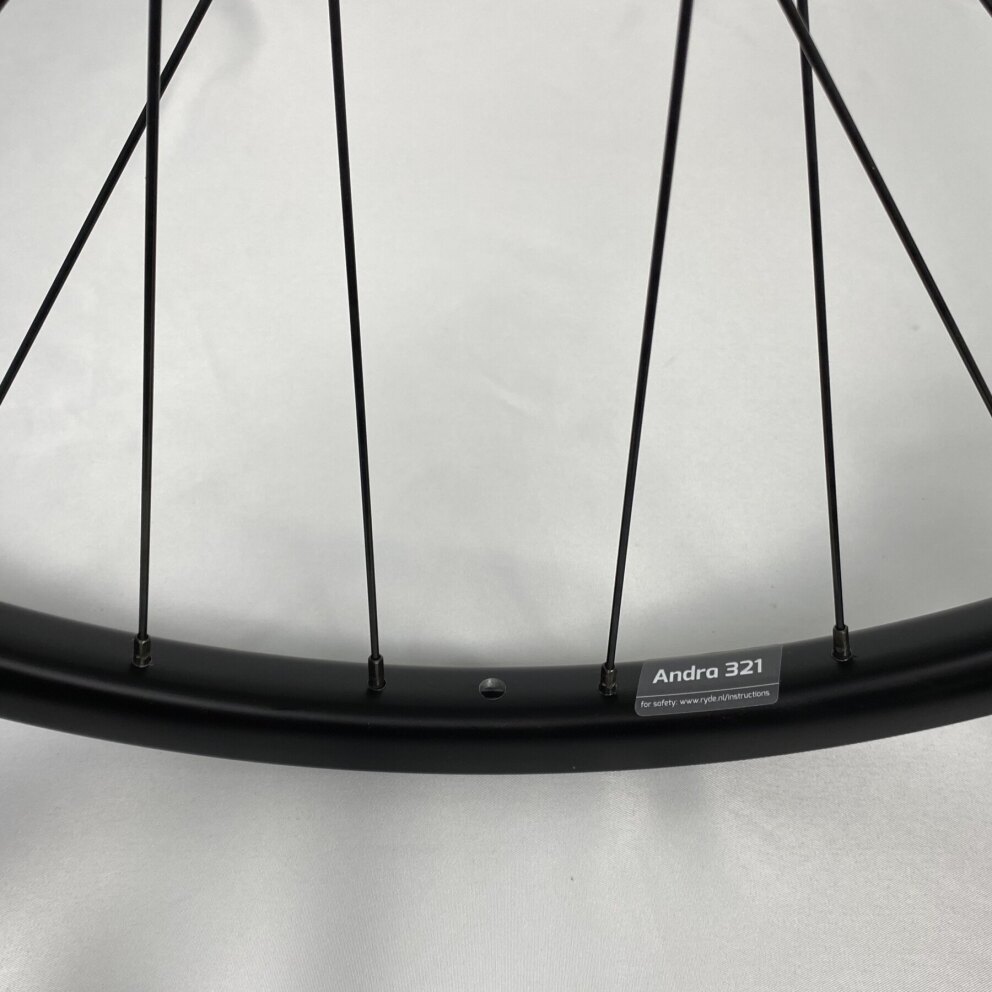

Type: Andra 321
Colour: Black
Size (Inch/MM): 622X21C
External width (MM): 26
Internal width (MM): 21
Average weight (GR): 657
Material: Aluminium
Single wall / Double wall: Double wall
Single eyelet / Double eyelet: Uneyelet
Number of spoke holes: 32GTS
Spoke nipple size: 14G
Braking surface present: No

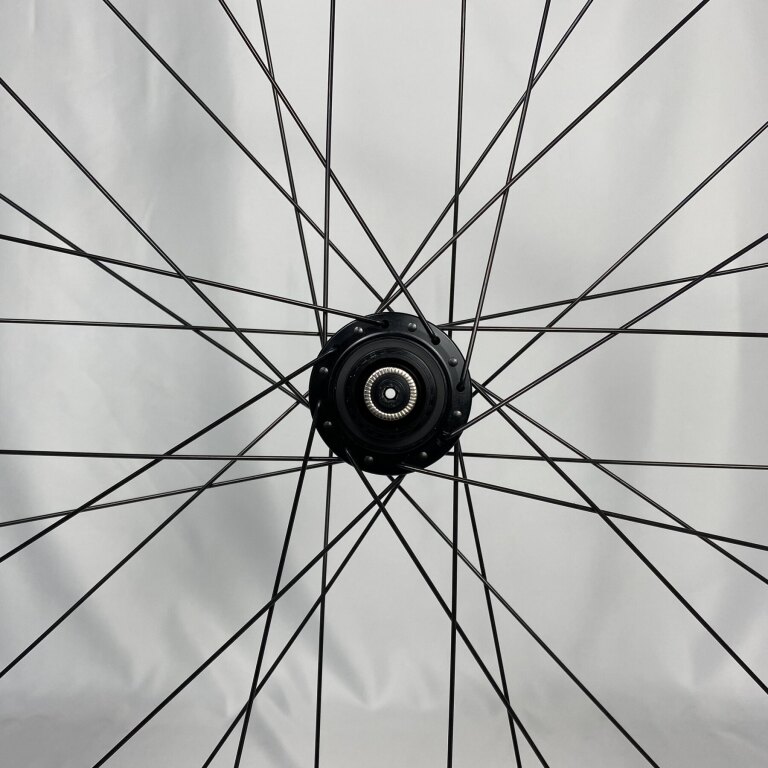

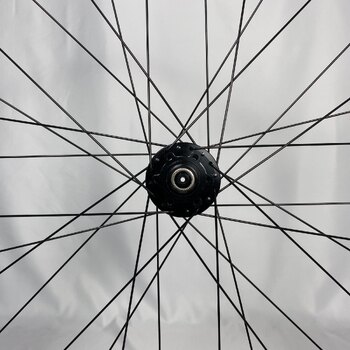

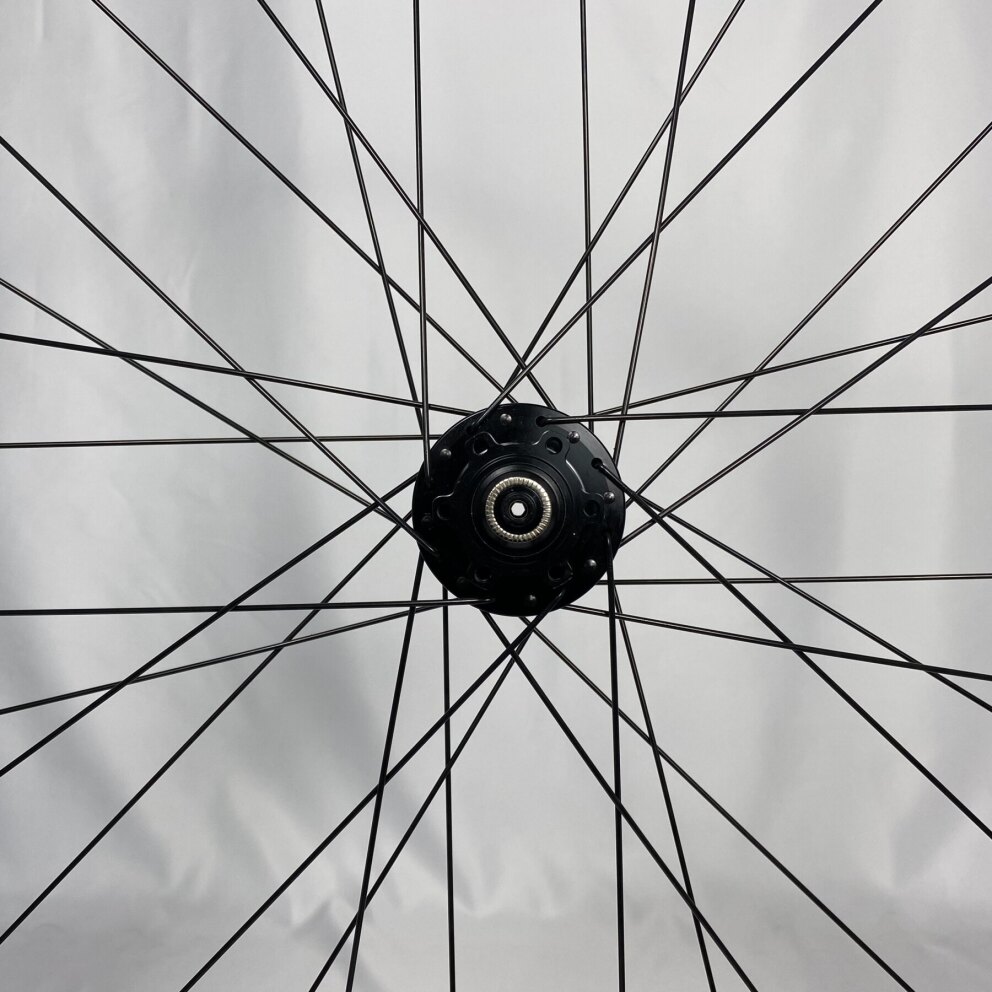

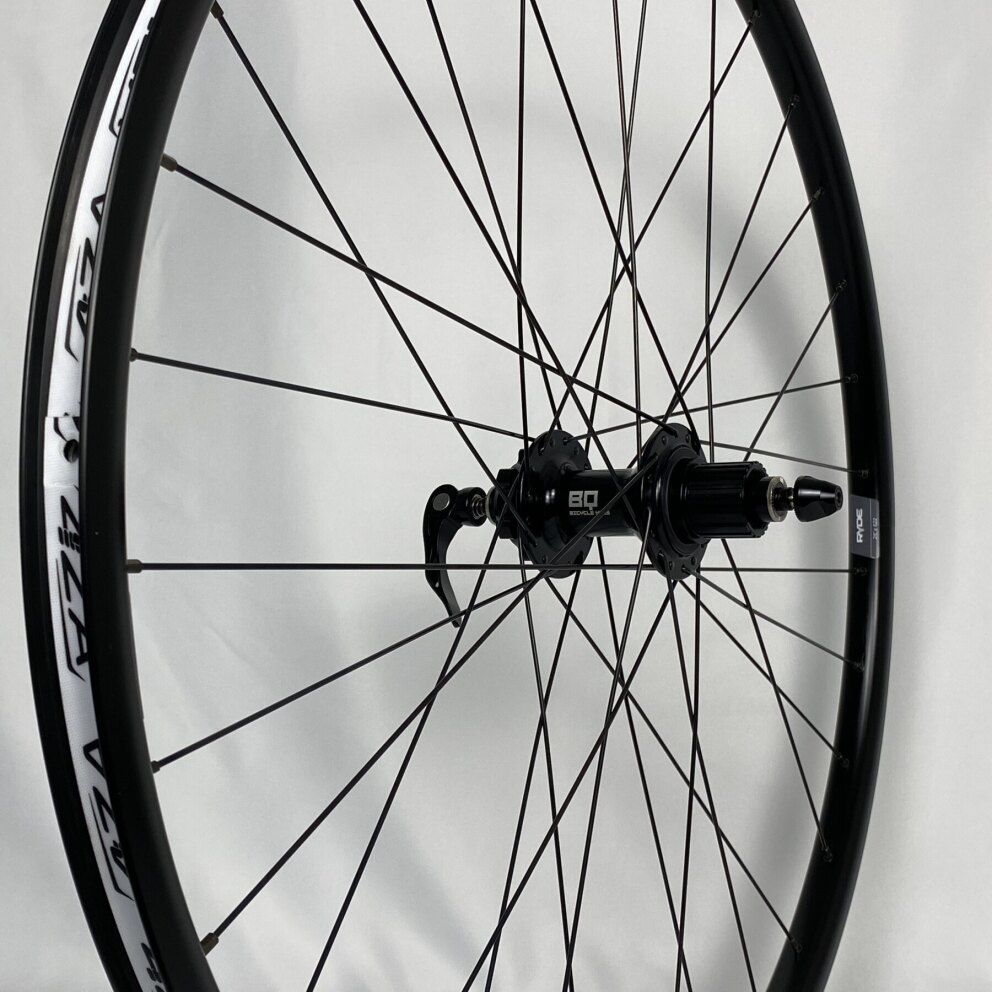

Rear hub specifications:
Brand: BQ
Type: BQ-RH30027
Colour: Black
Quantity Spoke holes: 32GTS
Brake type: Disc (6 bolt)
Number of gears: Micro Spline 12S
Freewheel body material: Aluminum
Freewheel system: Pawls (6)
Number of engagement points: 120
Axle type: Dropout
Axle included: Yes, dropout
Bearing type: Industrial bearing
Average weight (GR): 337
Intended use: Trek X-Caliber

Spoke specifications:
Brand: Sapim
Type: Leader
Color: Black
Material: Stainless steel
Spoke thickness: 14G

Spoke nipple specifications:
Brand: Sapim
Color: Black
Material: Brass
