Rear hub / 135 MM / Fixed axle 187 MM / Disc (Centerlock) / 36GTS / Shimano / Nexus Inter 8 SG-C6060-8D / HG Body 36,85 MM / Black / E-Bike
Alleen voor Shimano Di2 (draadloos schakelen)
Item number: AN20132
€ 137,45
In stock : 1
Business customer? Request an account or log in and order on account with our competitive trading prices!
| Beoogd gebruik | E-Bike |
|---|---|
| Voor of achter | Achter |
| Type rem | Disc (Centerlock) |
| Aantal INTERNE versnellingen | 8S DI2 |
| Aantal spaken/spaakgaten | 36 |
| Inbouwbreedte | 135 mm |
| Type as | Vaste as (met schroefdraad) |
| Naafdynamo | Nee |
| Merk naaf | Shimano |
| Type naaf | Nexus Inter 8 SG-C6060-8D |
| Kleur | Zwart |
| Nieuw of gebruikt | Nieuw |
NOTE: You need a Shimano DI2 shifter to use this hub!
Hubs come from sample wheels from a bicycle factory, so they have been braided in, but have not been ridden

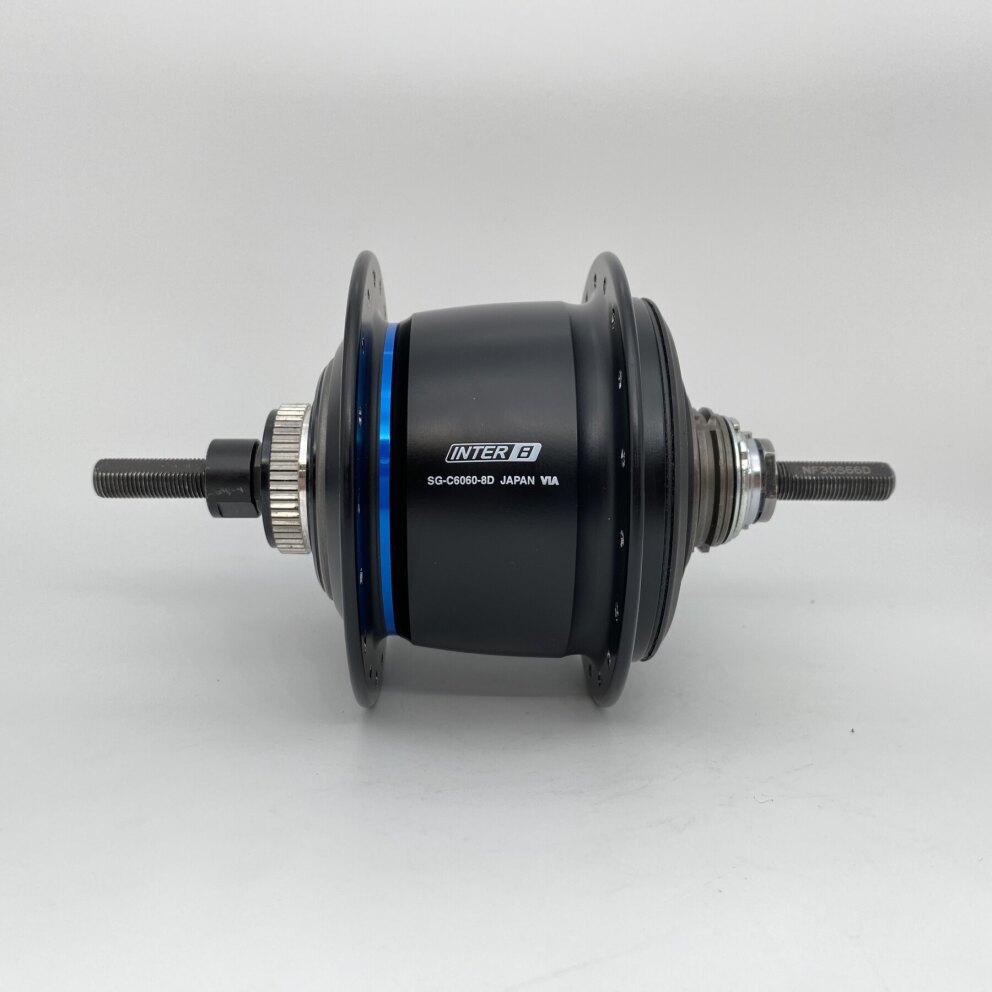

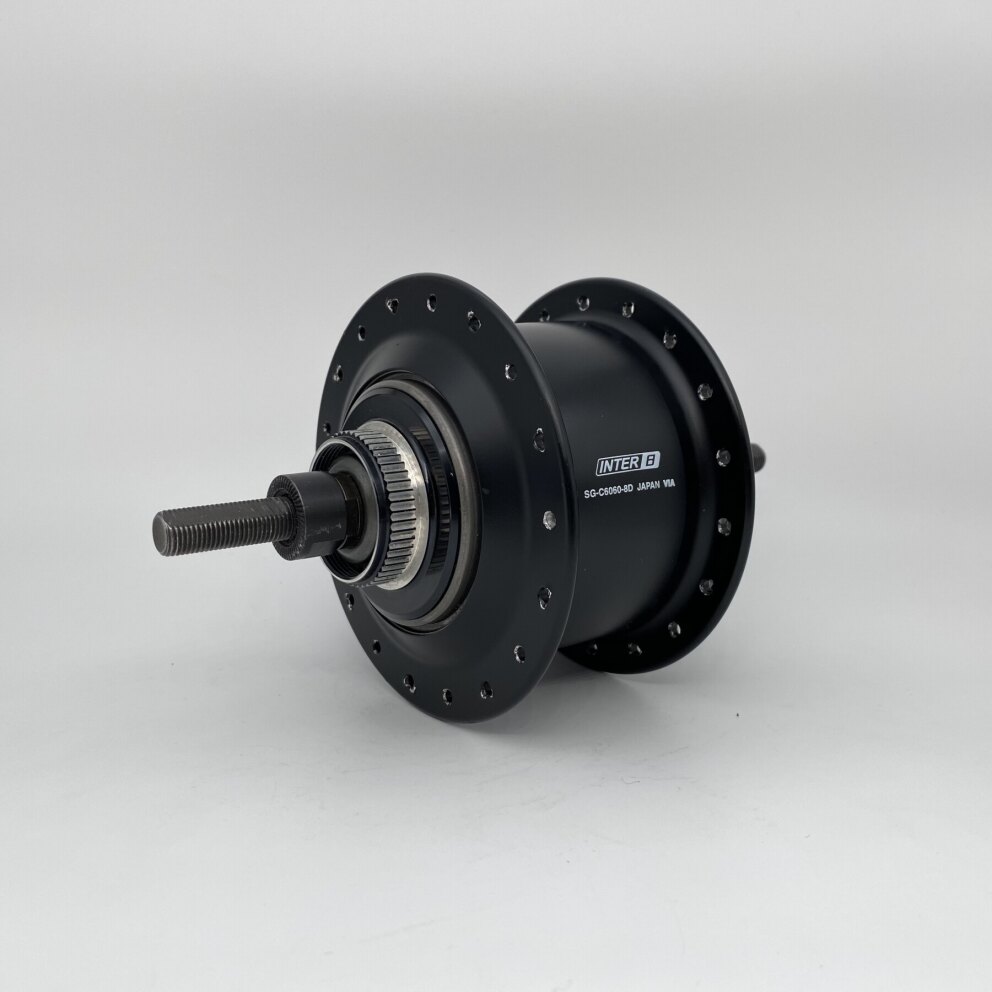

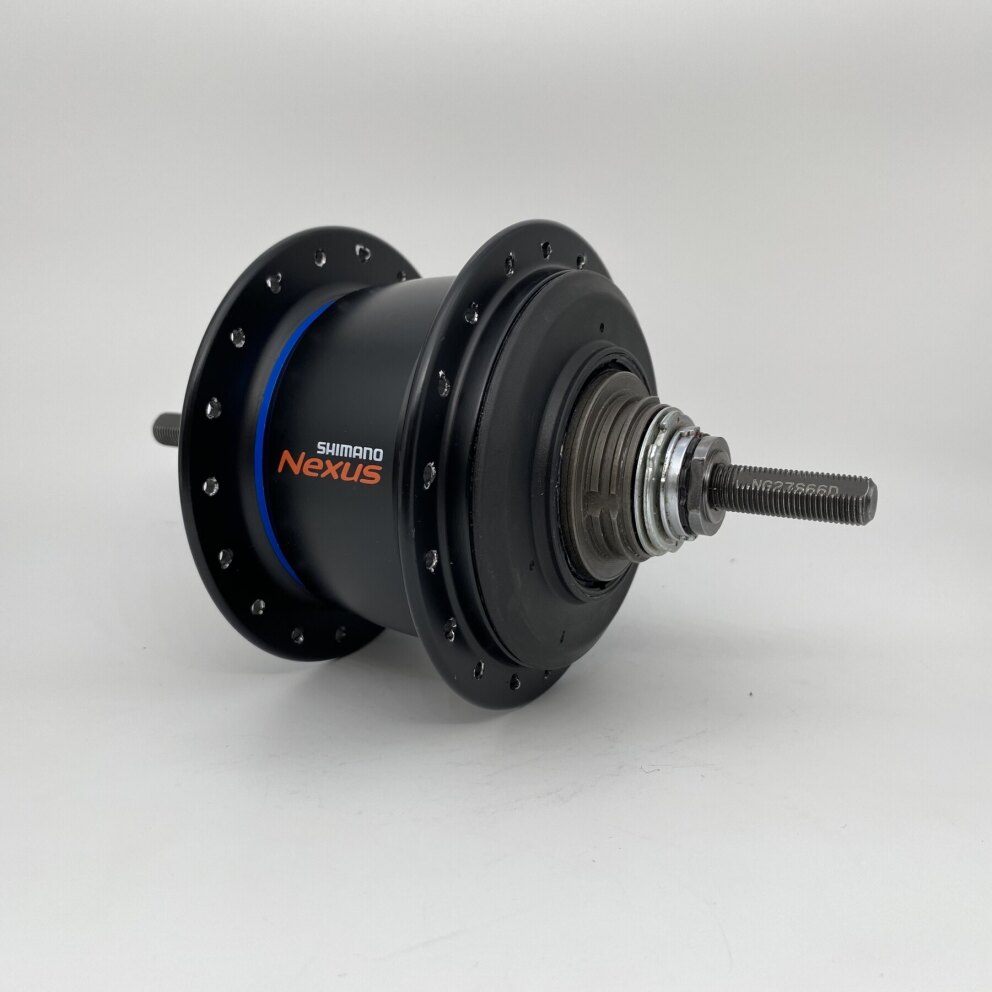

Specifications of the rear hub:
Brand: Shimano
Model: Nexus Inter 8 SG-C6060-8D
Color: Black
Number of spoke holes: 36GTS
Type of brake: Disc (Centerlock)
Number of gears: 8S DI2
Material of the freewheel body:
Freewheel system:
Points of engagement:
Type of axle: Fixed axle 187 MM
Axle included: Yes, without nuts
Type of bearings: Ball bearings
Average weight (GR): 1674
Intended use: E-Bike
Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 135
Non-gear side (MM): 35
Gear side (MM): 41
Hub diameter non-gear side (MM): 92
Hub diameter gear side (MM): 92
Link to spoke calculator: www.sapim.be/spoke-calculator
