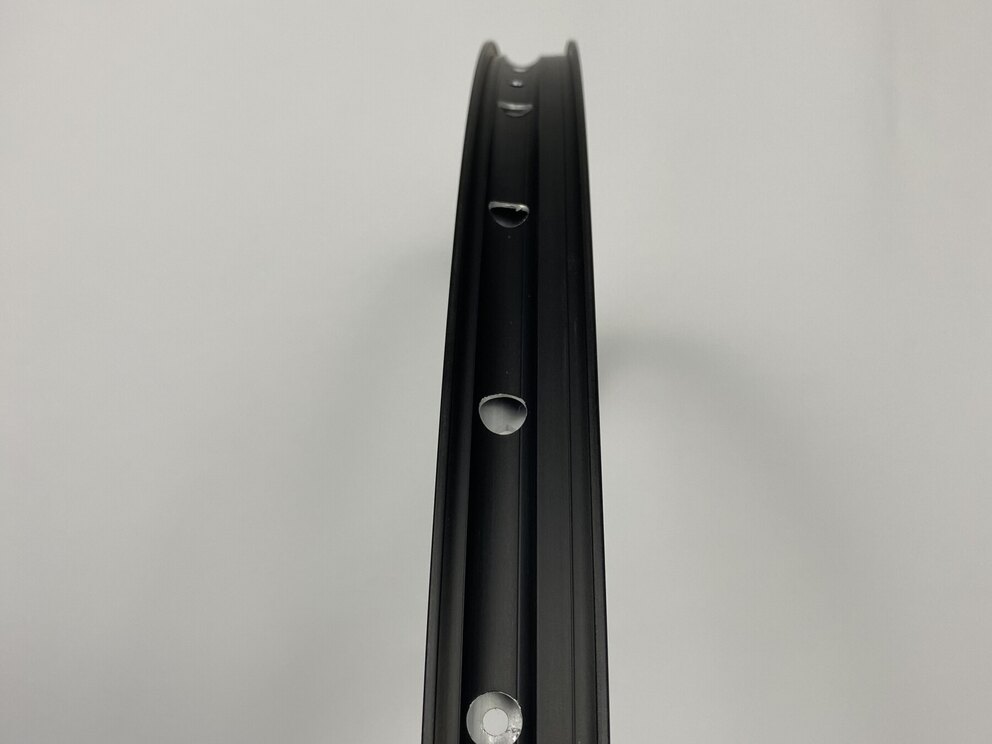

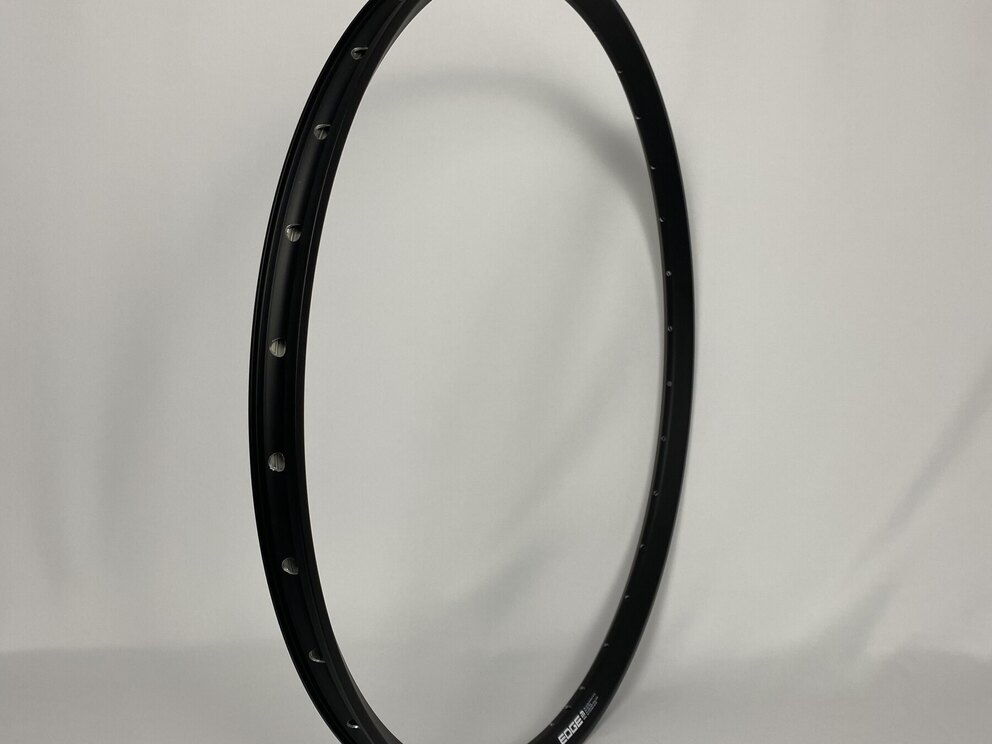

Rim / 622X26C / 28GTS / Double Wall / Unbushed / Rigida - Ryde / Edge M 26 os / Black / Disc

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Gravel , MTB
BSD maat	622
FIETS Inch maat	28 , 29er
Aantal spaken/spaakgaten	28
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	26C
Merk velg	Ryde
Type velg	Edge M 26 os
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

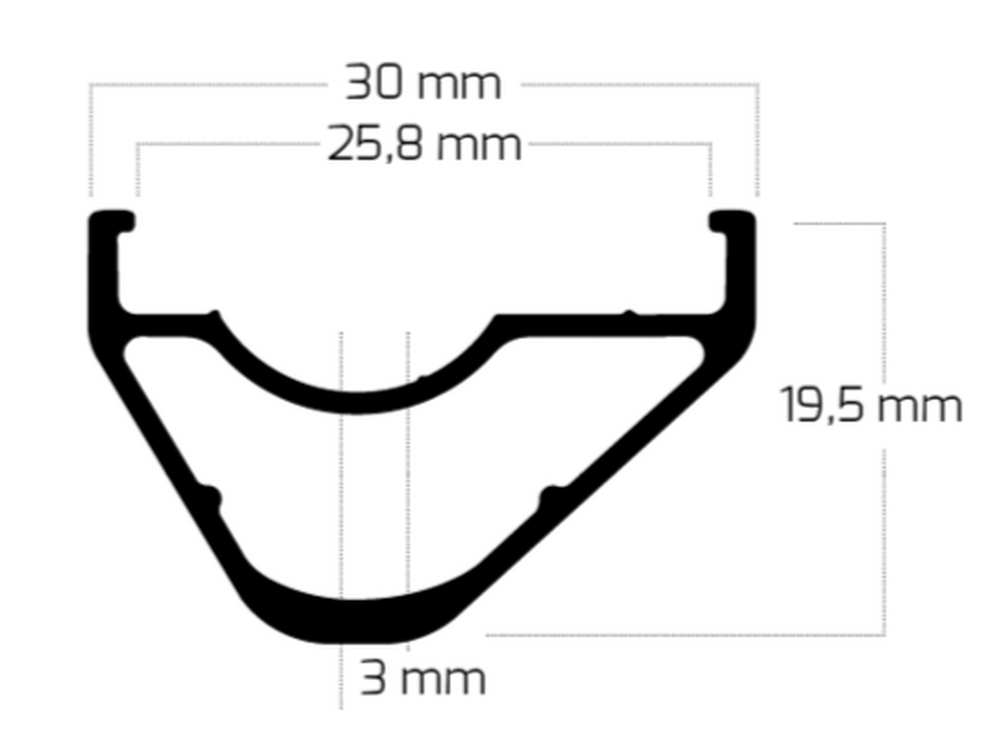

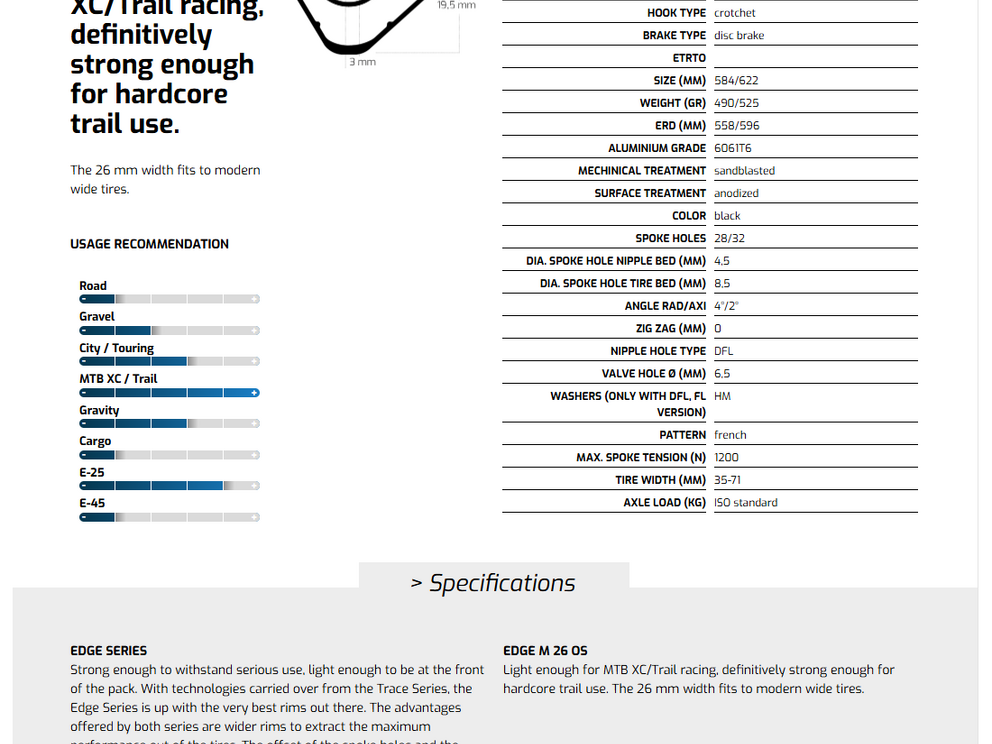

Rim specifications:
Brand: Rigida - Ryde
Type: Edge M 26 os
Colour: Black
Size (Inch/MM): 622X26C
External width (MM): 30
Internal width (MM): 26
Average weight (GR): 522
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single-butted / Double-butted: Unbutted
Number of spoke holes: 28GTS
Spoke nipple size: 14G
Braking surface present: No

Data for using the Sapim spoke length calculation tool:
Internal rim diameter (MM *Not ERD*): 592
Rim thickness (MM): 2
Number of spokes in the wheel: 28
Number of sprocket side crossings: Optional

Number of left-side crossings: Optional

Link to spoke length calculation: www.sapim.be/spoke-calculator
