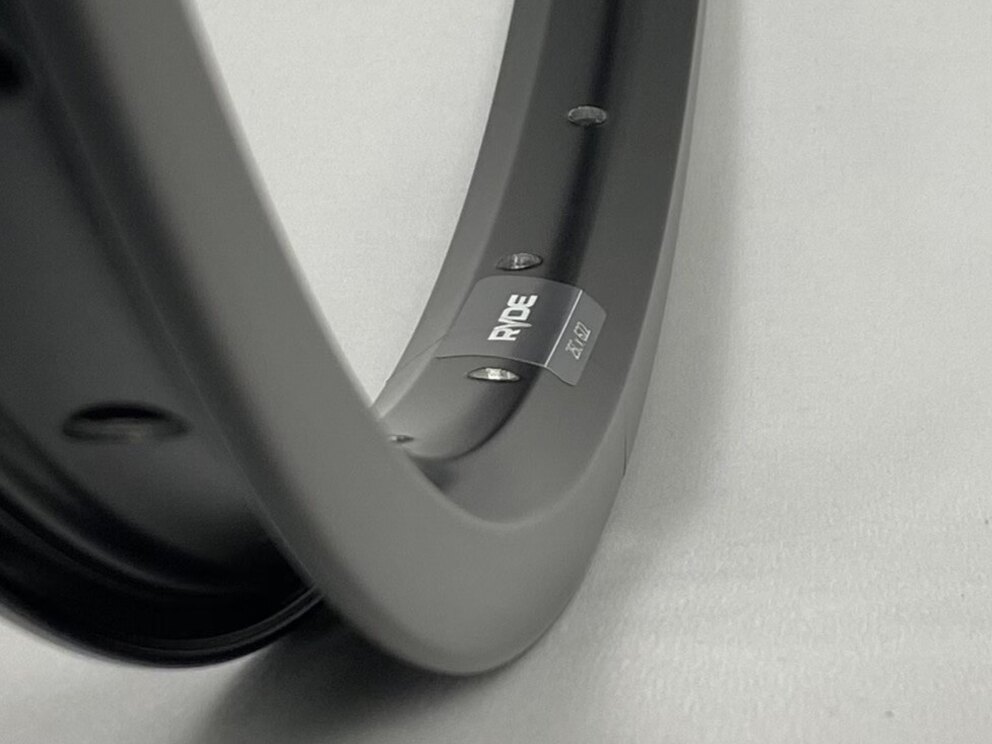

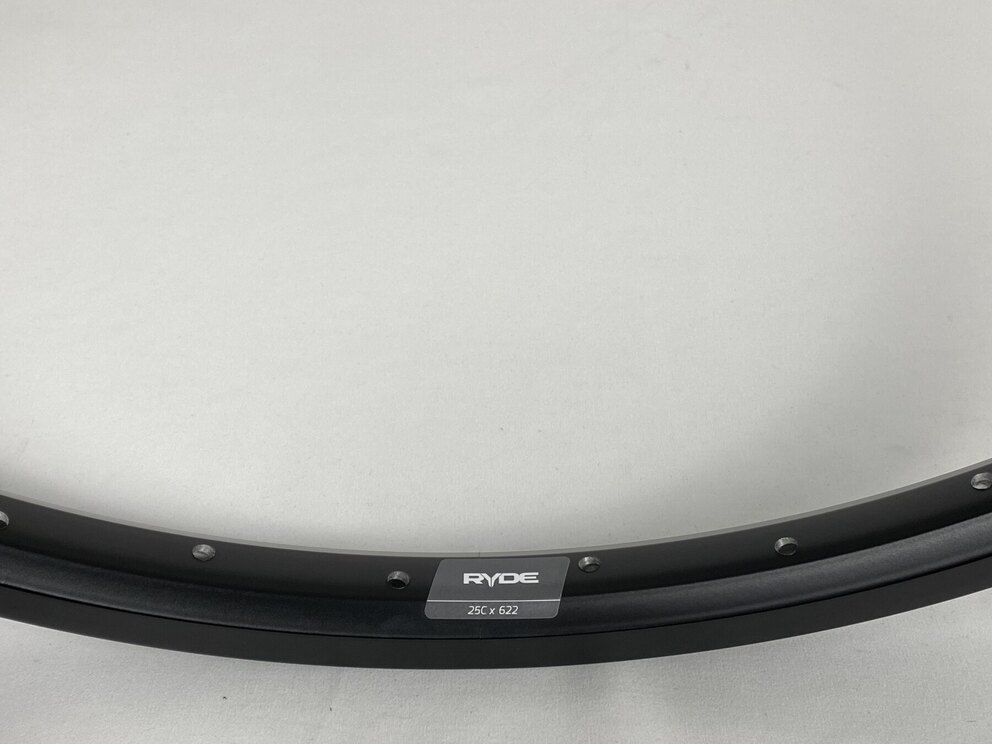

Rim / 622X25C / 36GTS / Double-walled / No eyelets / Rigida - Ryde / Andra 40 / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Tour / Hybride , E-Bike , City , Cargo
BSD maat	622
FIETS Inch maat	28
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	25C
Merk velg	Ryde
Type velg	Andra 40
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Best choice for: E-bike, Heavy loads

This rim is extra strong due to an extra thick wall of 3mm (instead of the standard 2mm)
The disadvantage of this is that the weld is not completely clean.

Specifications of the rim:
Brand: Rigida - Ryde
Model: Andra 40
Color: Black
Size (Inch/MM):  28" / 622
External width (MM): 31,5
Internal width (MM): 25
Weight (GR): 865
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets
Number of spoke holes: 36
Spoke nipple size: 13
Brake surface present: No

Data for spoke length calculations using the Sapim spoke size calculator:

Internal diameter of the rim (MM *Not ERD*): 592

Rim thickness (MM): 3

Number of spokes in the wheel: 36

Number of crossings gear side: of your choice

Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
