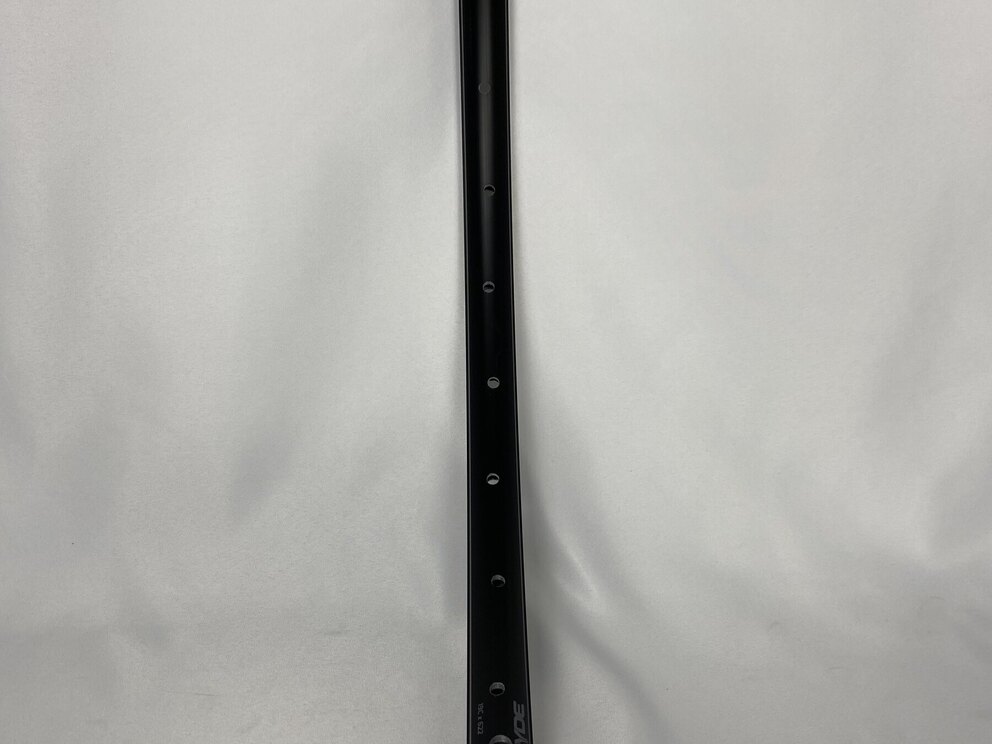

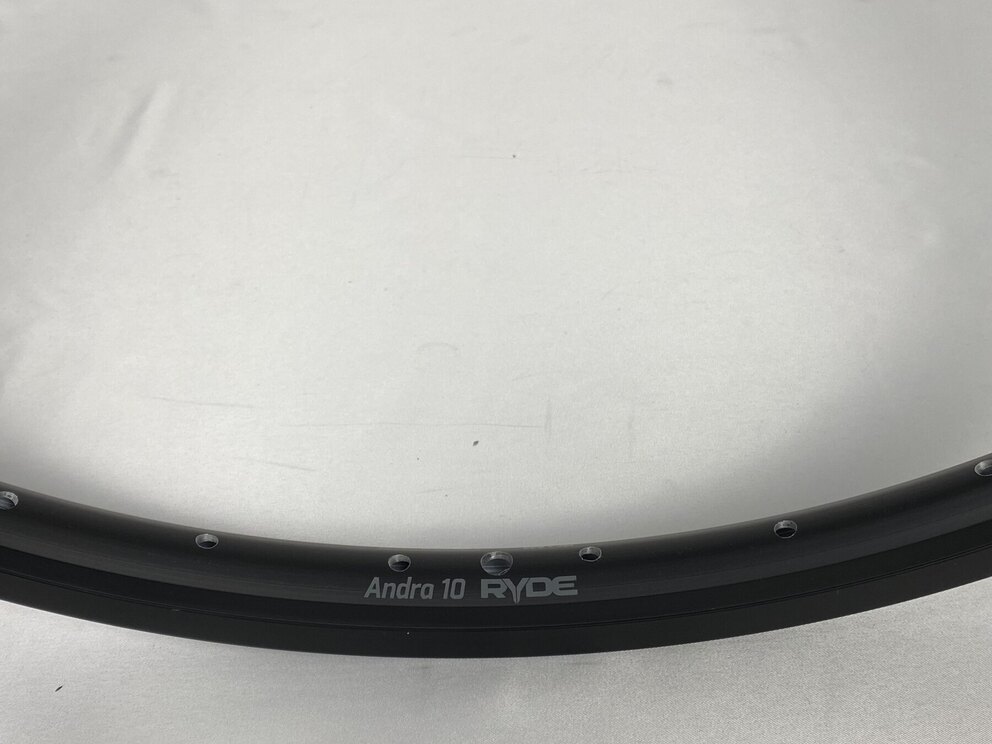

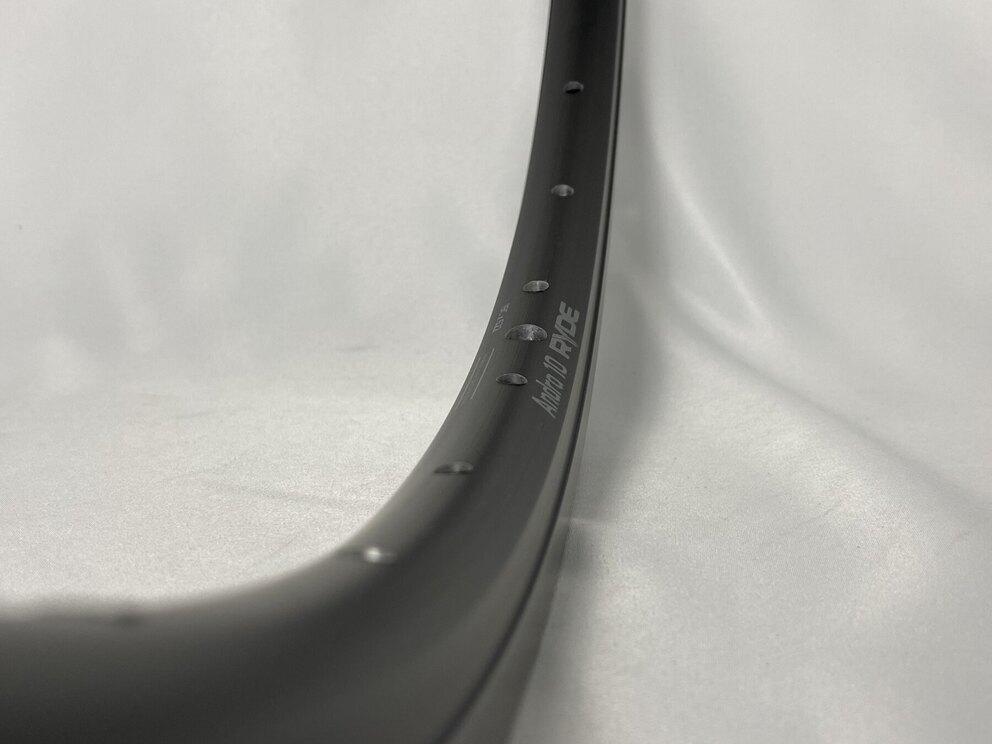

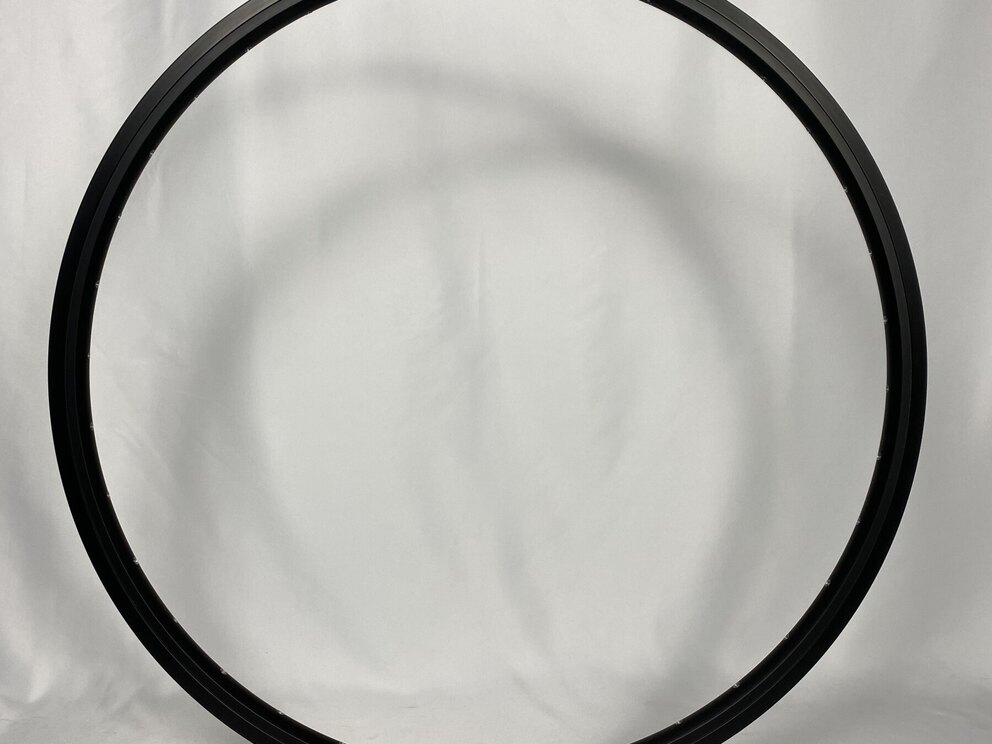

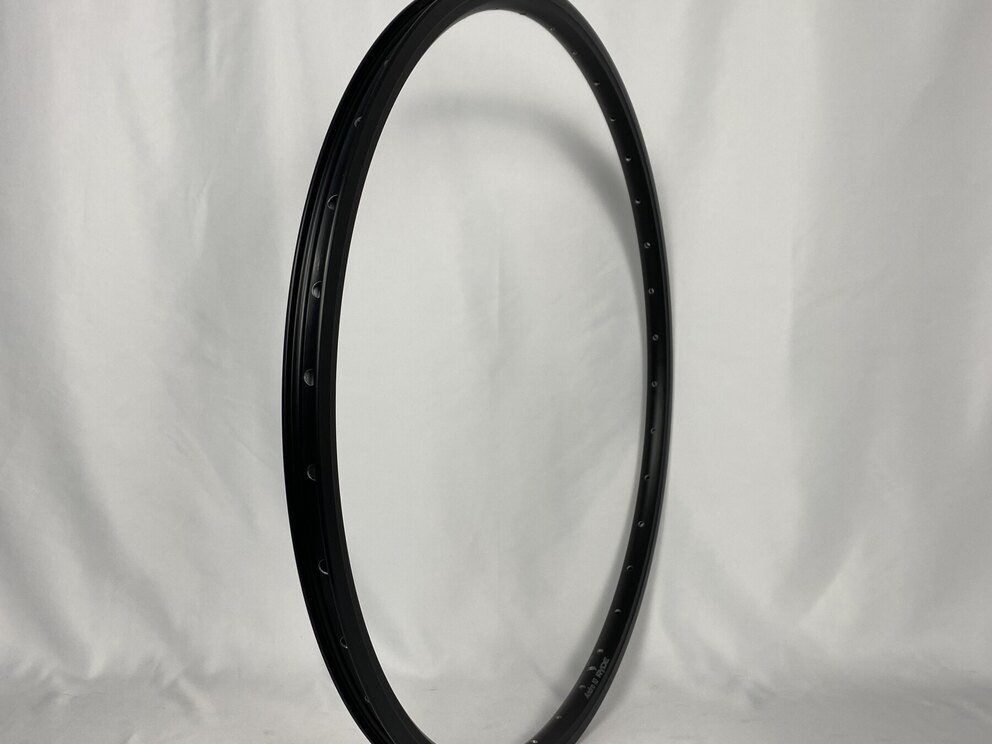

Rim / 622X19C / 36GTS / Double-walled / No eyelets / Rigida - Ryde / Andra 10 / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Tour / Hybride , E-Bike , City , Cargo
BSD maat	622
FIETS Inch maat	28
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	19C
Merk velg	Ryde
Type velg	Andra 10
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

The strongest rims are the Ryde Andra rims. See: Andra series - Ryde

For spoke nipple 13

Rim Specifications:
Brand: Rigida - Ryde
Model: Andra 10
Color: Black
Size (Inch/MM):  28" / 622
External width (MM): 25,5
Internal width (MM): 19
Weight (GR): 769
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets
Number of spoke holes: 36
Spoke nipple size: 13
Brake surface present: No

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*): 583
Rim thickness (MM): 3
Number of spokes in the wheel: 36
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
