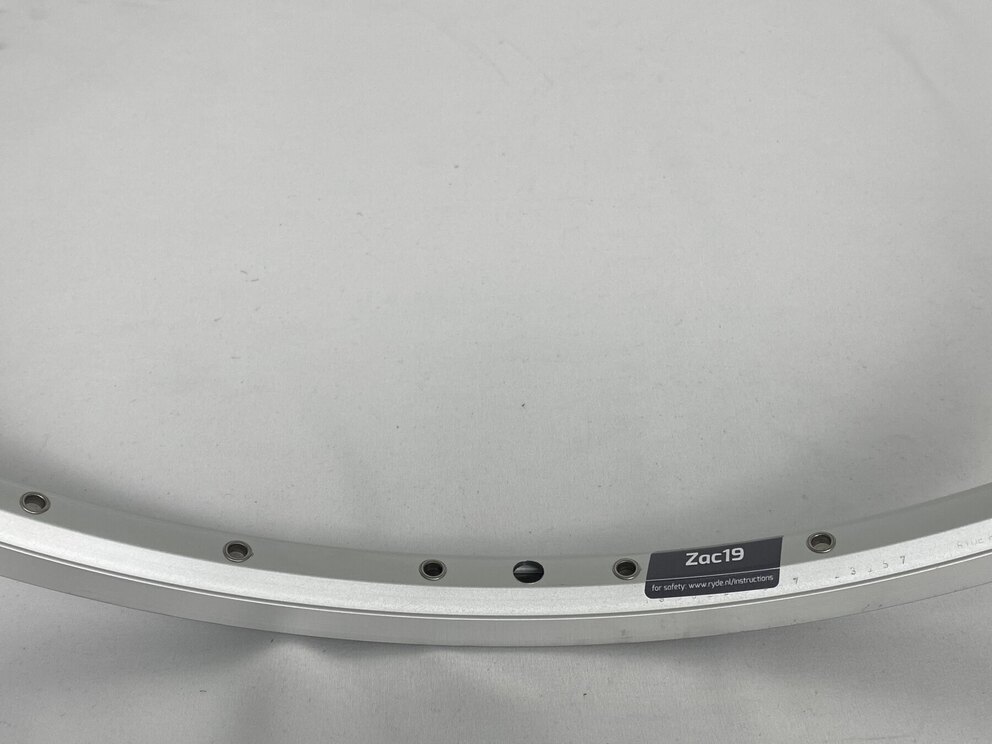

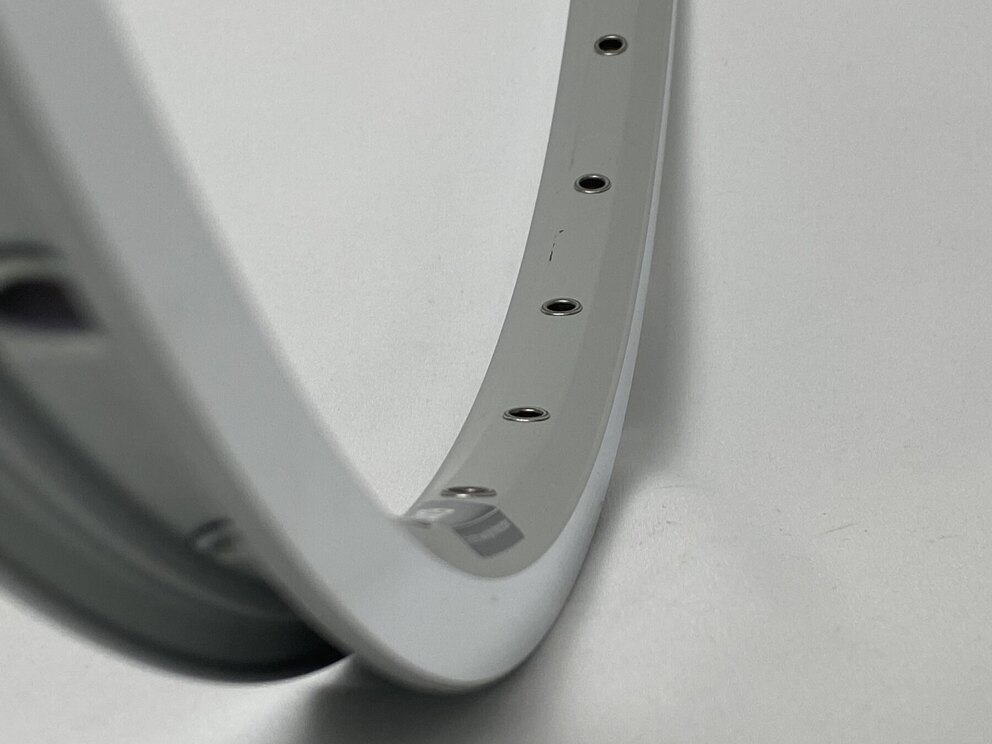

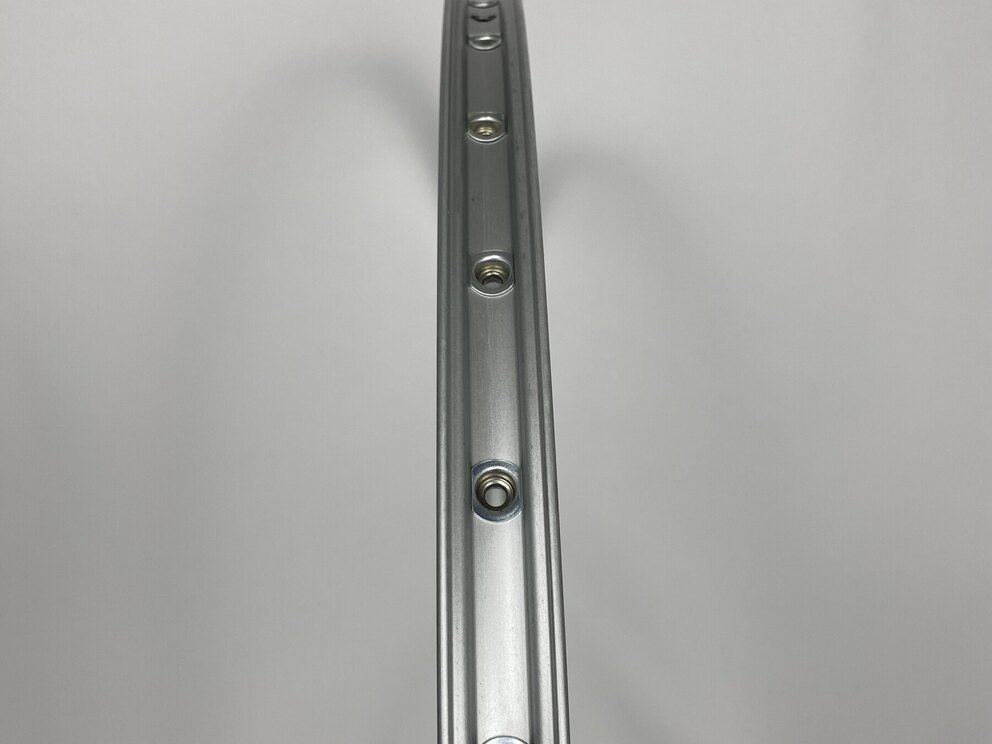

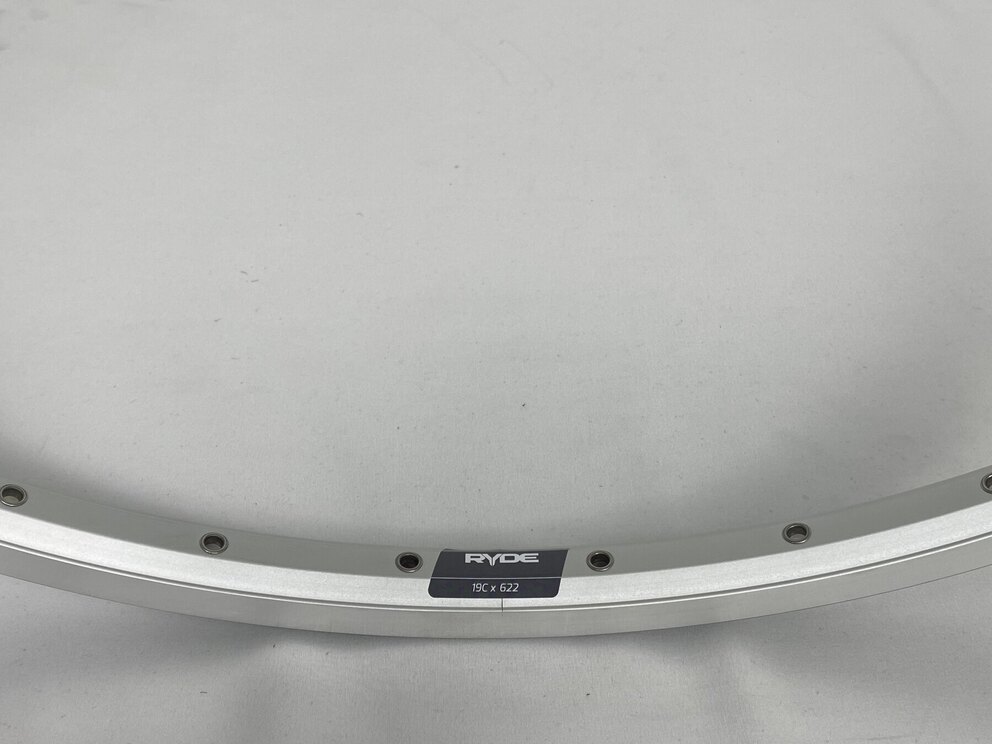

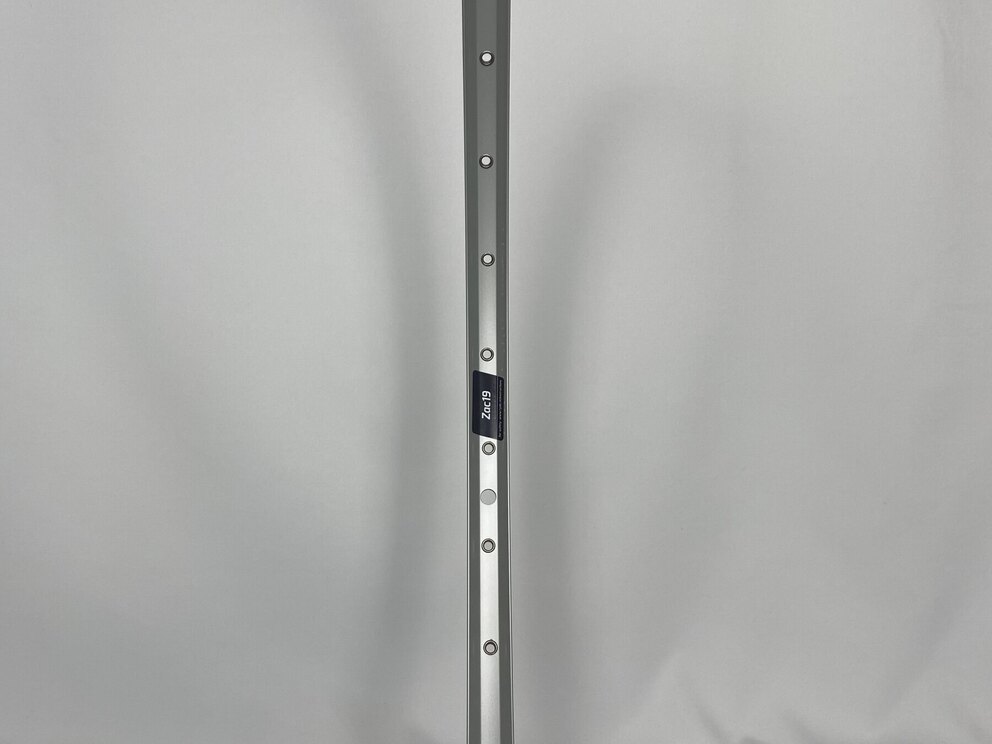

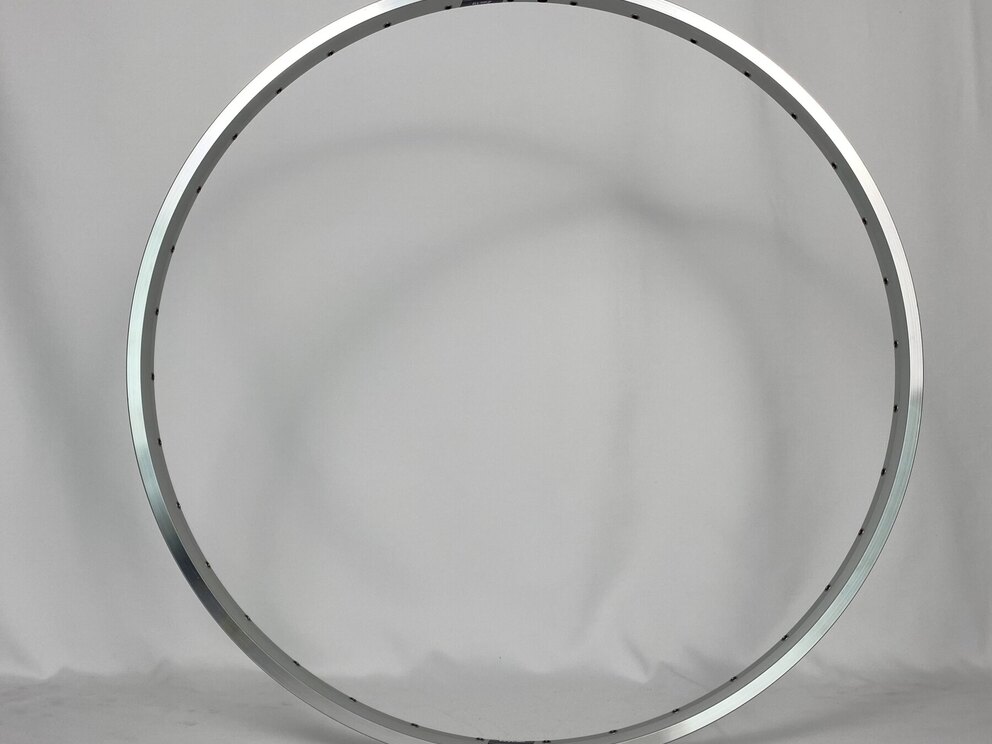

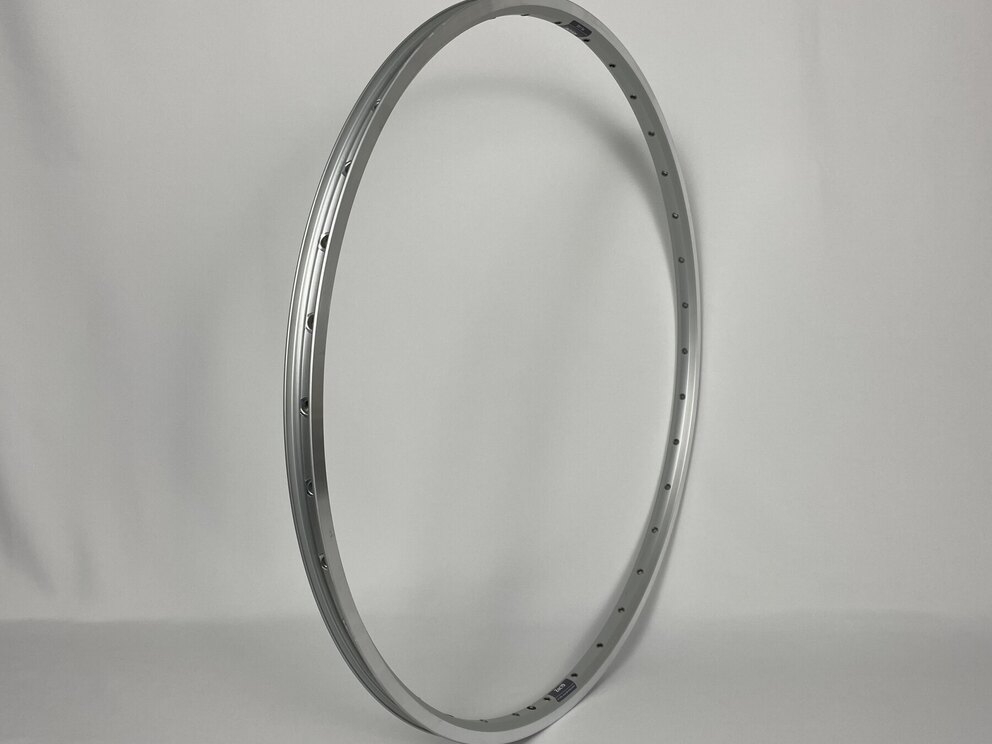

Rim / 622X19C / 36GTS / Double-walled / Double eyelets / Rigida - Ryde / ZAC 19 / Silver / Brake surface

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Tour / Hybride , City
BSD maat	622
FIETS Inch maat	28
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Ja
Kleur	Zilver
Interne breedte van de velg	19C
Merk velg	Ryde
Type velg	ZAC 19
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Dubbel gebust
Nieuw of gebruikt	Nieuw

Rim Specifications:
Brand:    Rigida - Ryde
Model:    ZAC 19
Color:    Silver
Size (Inch/MM):    622X19C
External width (MM):    24
Internal width (MM):    19
Average weight (GR):    586
Material:    Aluminium
Single-walled / Double-walled:    Double-walled
Single eyelets / Double eyelets:    Double eyelets
Number of spoke holes:    36GTS
Spoke nipple size:    14G
Brake surface present:    Yes

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*):    598
Rim thickness (MM):    3
Number of spokes in the wheel:    36
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
