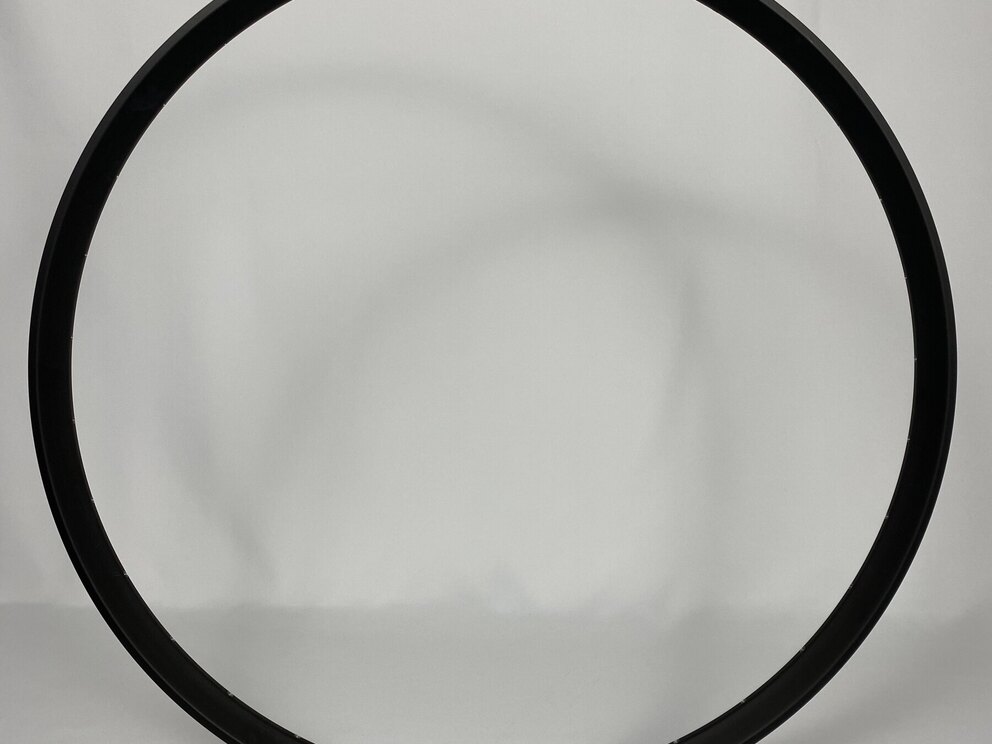

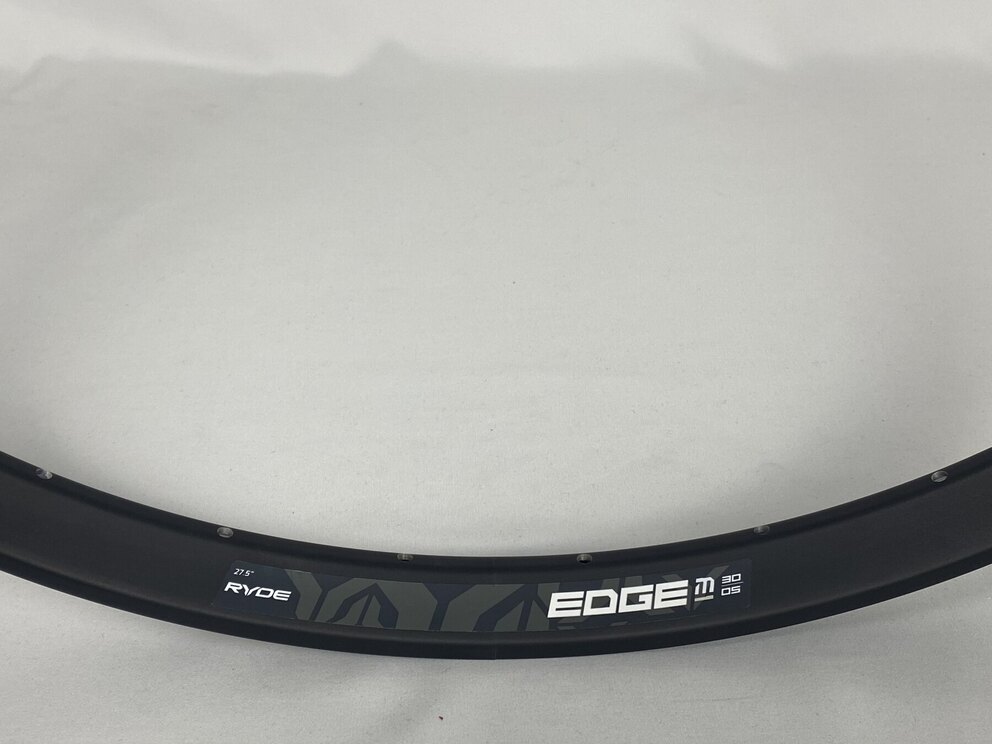

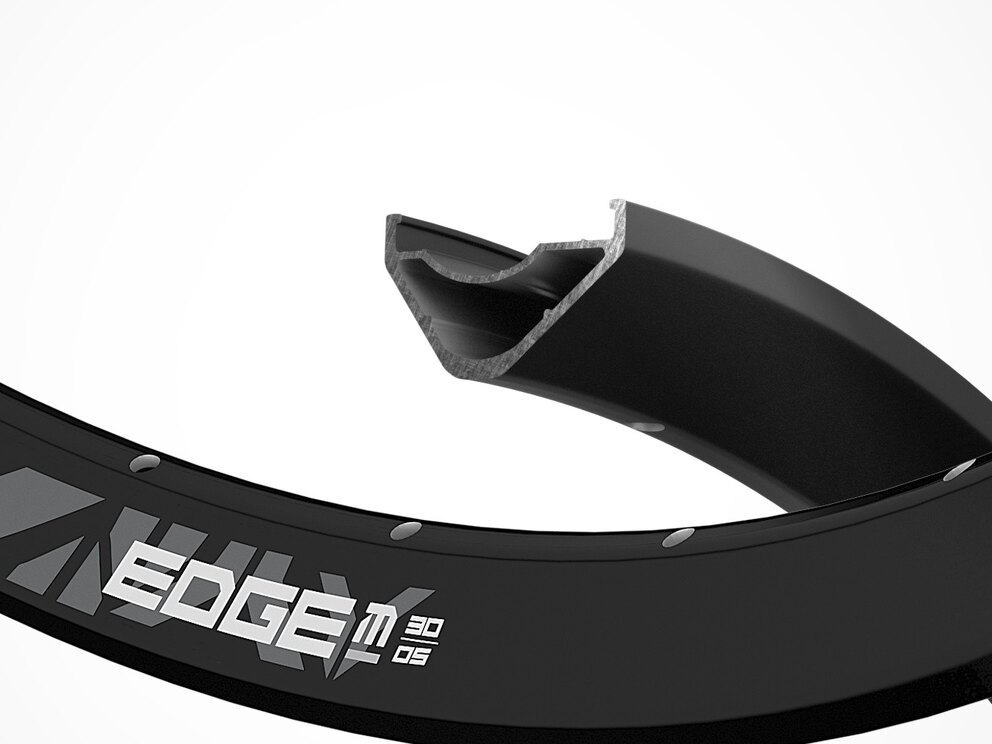

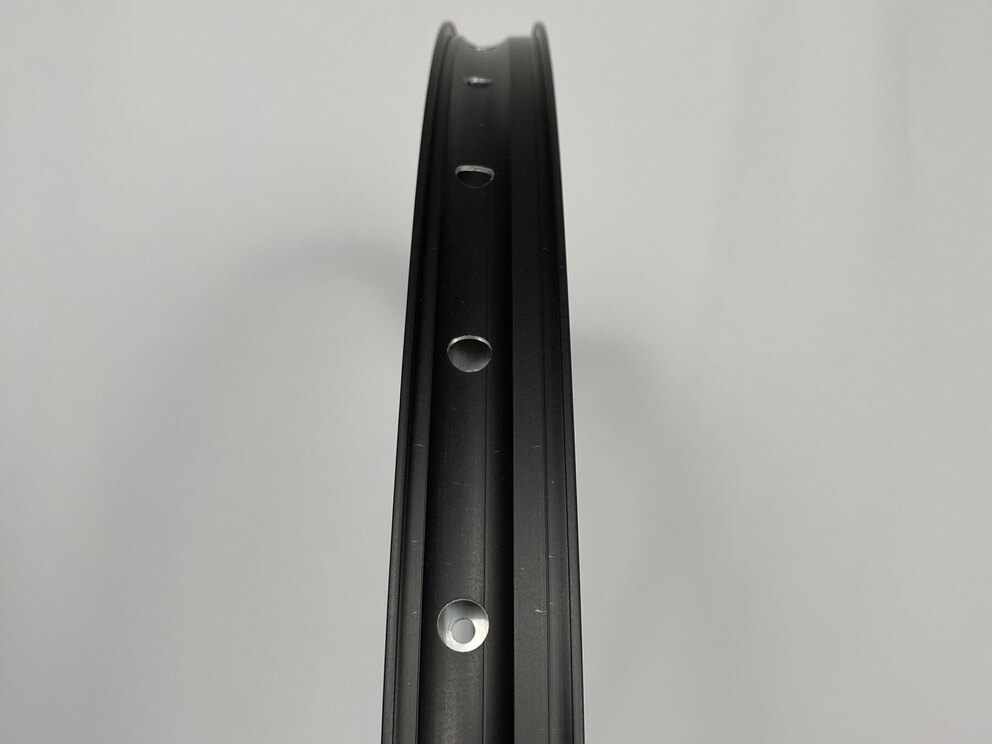

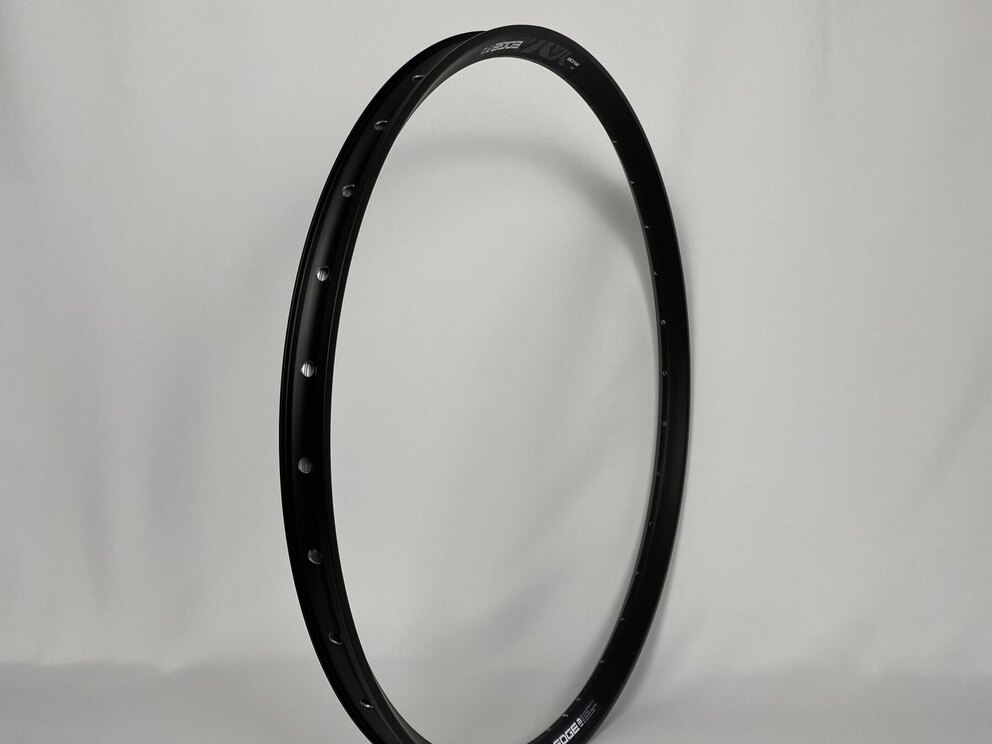

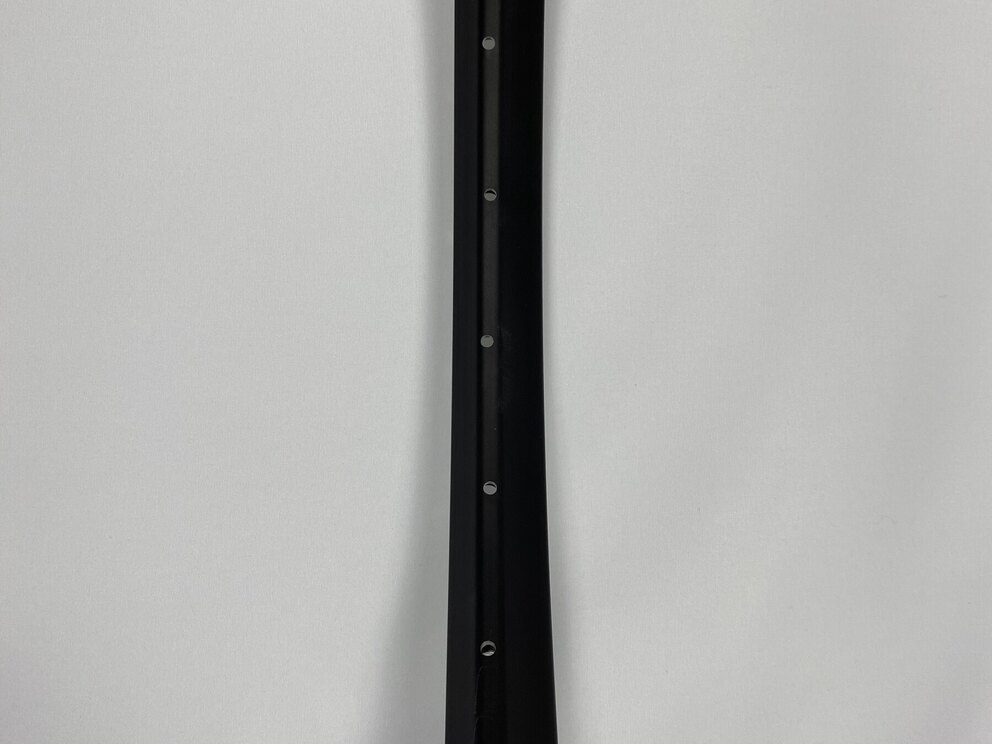

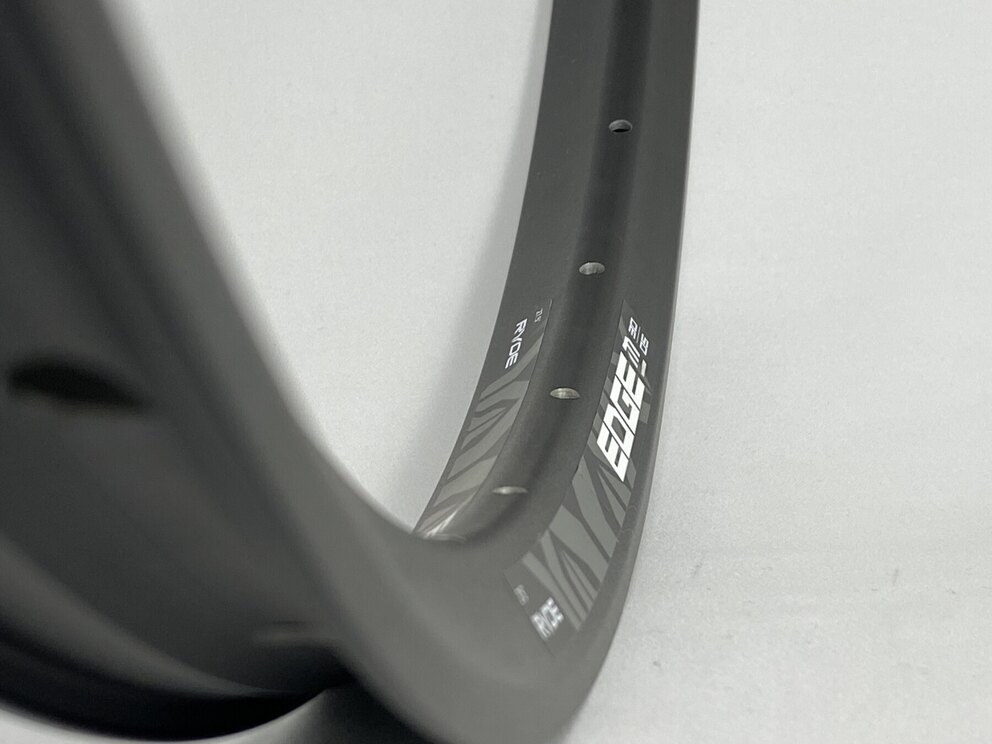

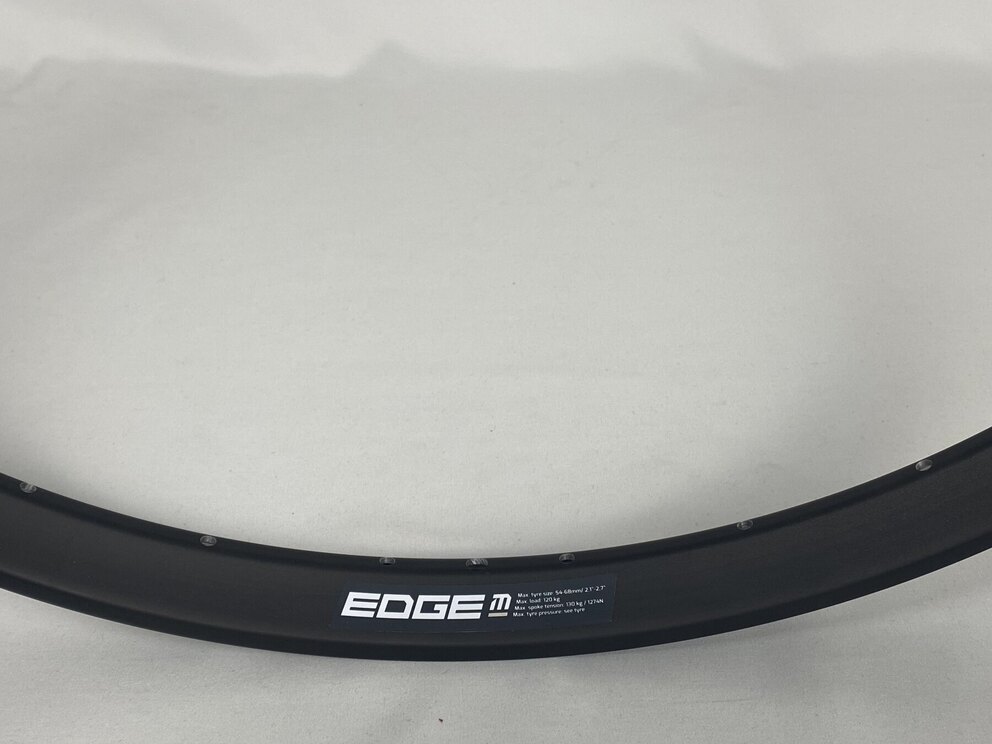

Rim / 584X30C / 32GTS / Double-walled / No eyelets / Rigida - Ryde / Edge M 30 os / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Gravel , MTB , E-MTB
BSD maat	584
FIETS Inch maat	27,5
Aantal spaken/spaakgaten	32
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	30C
Merk velg	Ryde
Type velg	Edge M 30 os
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

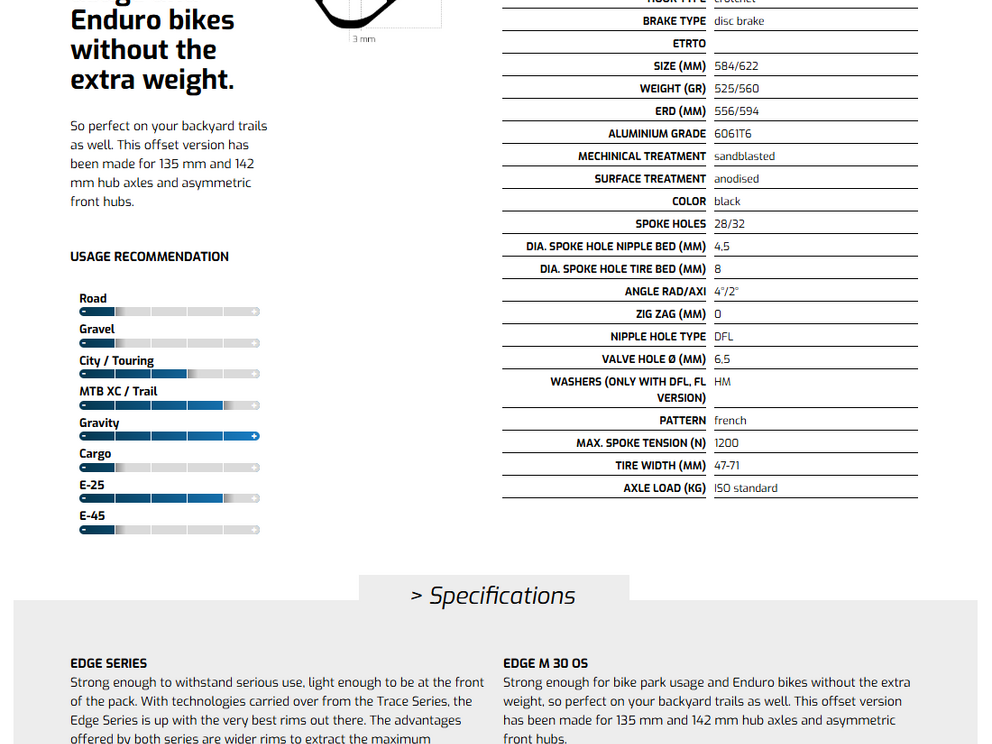

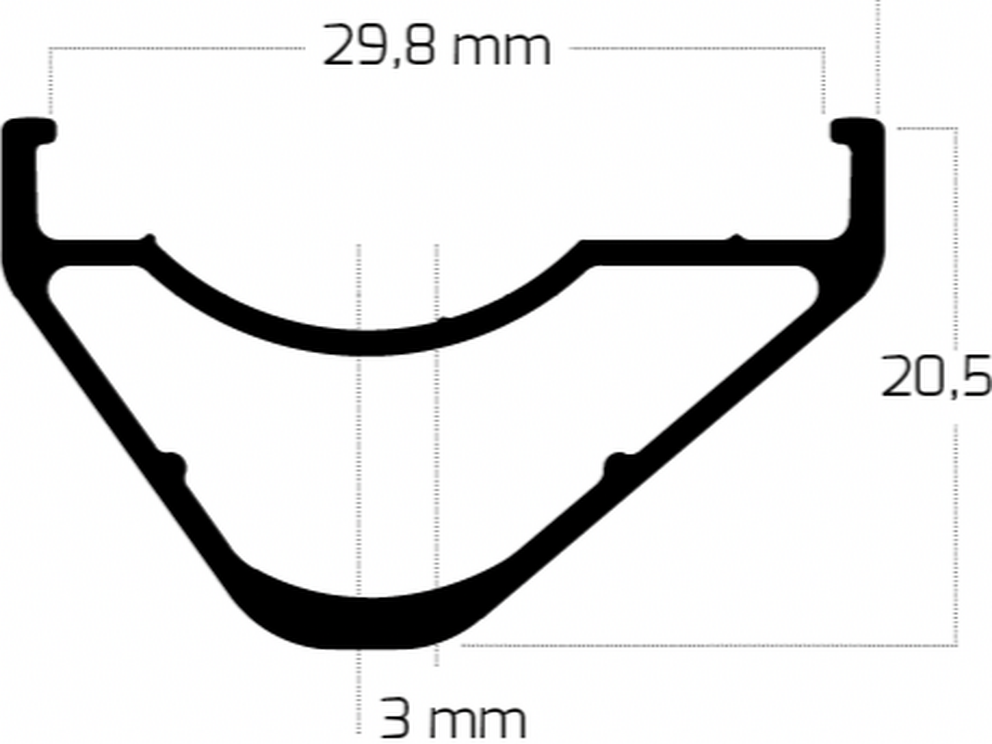

Rim Specifications:
Brand:    Rigida - Ryde
Model:    Edge M 30 os disc
Color:    Black
Size (Inch/MM):    584X30C  27,5"
External width (MM):    34
Internal width (MM):    30
Average weight (GR):    552
Material:    Aluminium
Single-walled / Double-walled:    Double-walled
Single eyelets / Double eyelets:    No eyelets
Number of spoke holes:    32GTS
Spoke nipple size:    14G
Brake surface present:    No

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*):    550
Rim thickness (MM):    2
Number of spokes in the wheel:    32
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
