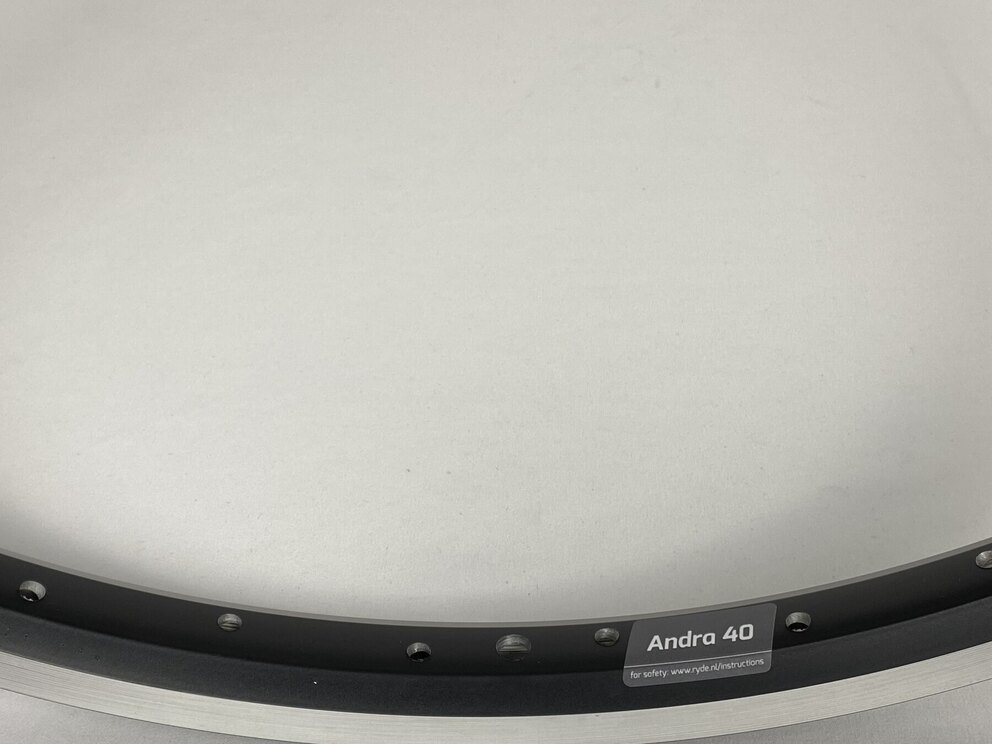

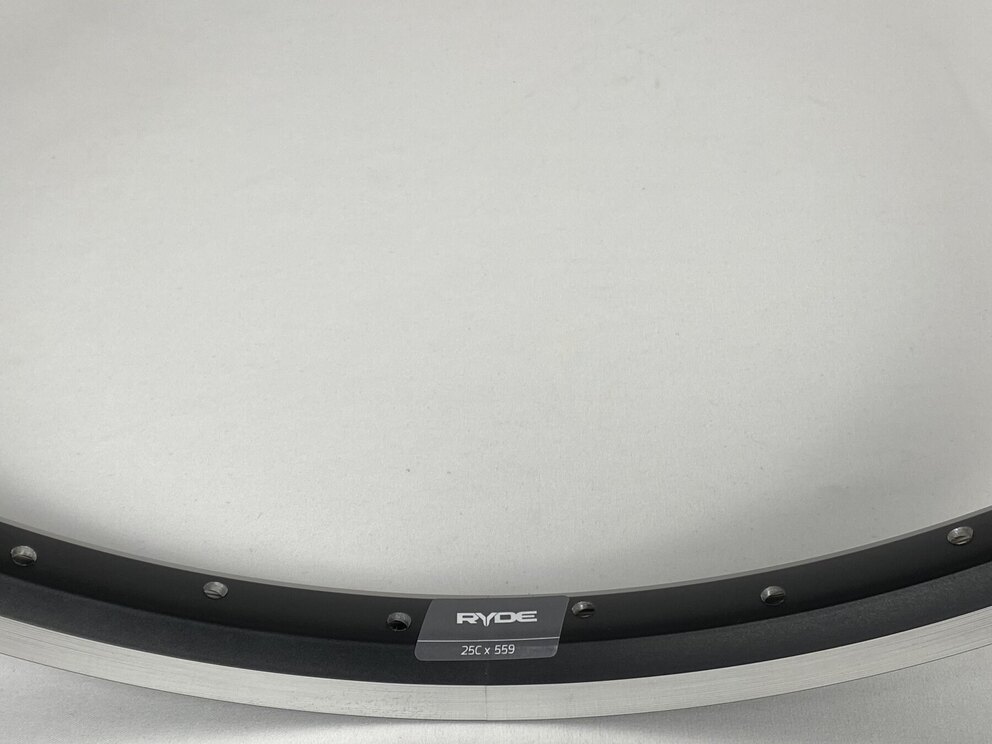

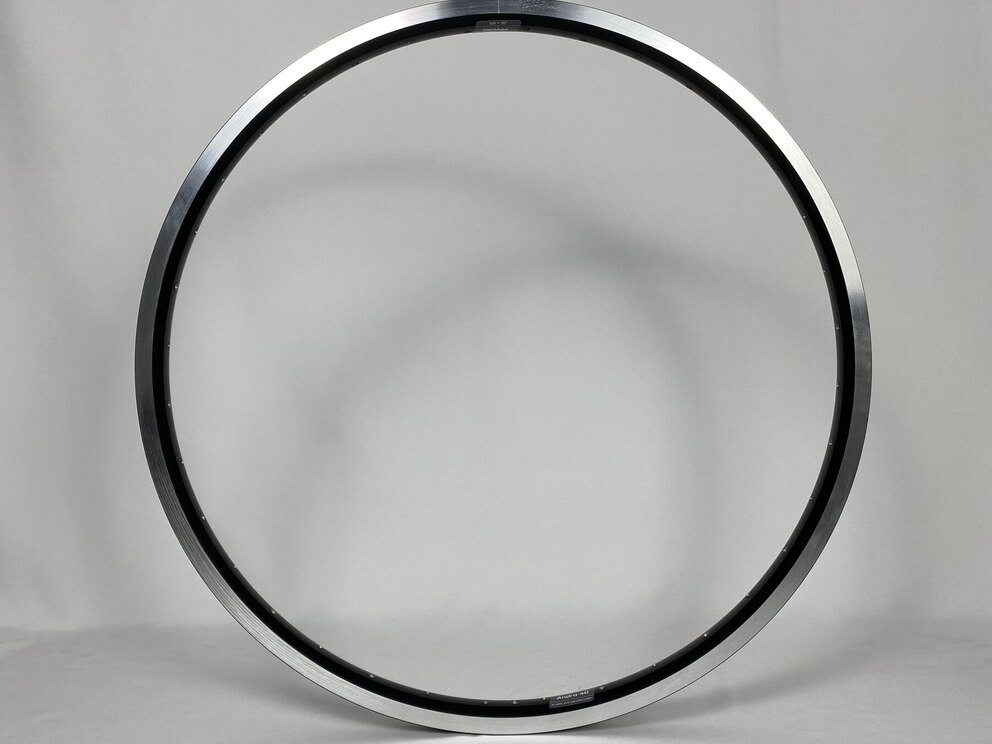

Rim / 559X25C / 36GTS / Double-walled / No eyelets / Rigida - Ryde / Andra 40 / Black / Brake surface

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Tour / Hybride , E-Bike , City , Cargo
BSD maat	559
FIETS Inch maat	26
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Ja
Kleur	Zwart
Interne breedte van de velg	25C
Merk velg	Ryde
Type velg	Andra 40
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim Specifications:
Brand:    Rigida - Ryde
Model:    Andra 40
Color:    Black
Size (Inch/MM):    559X25C
External width (MM):    31
Internal width (MM):    25
Average weight (GR):    706
Material:    Aluminium
Single-walled / Double-walled:    Double-walled
Single eyelets / Double eyelets:    No eyelets
Number of spoke holes:    36GTS
Spoke nipple size:    13G
Brake surface present:    Yes

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*):    529
Rim thickness (MM):    3
Number of spokes in the wheel:    36
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

https://www.sapim.be/spoke-calculator
