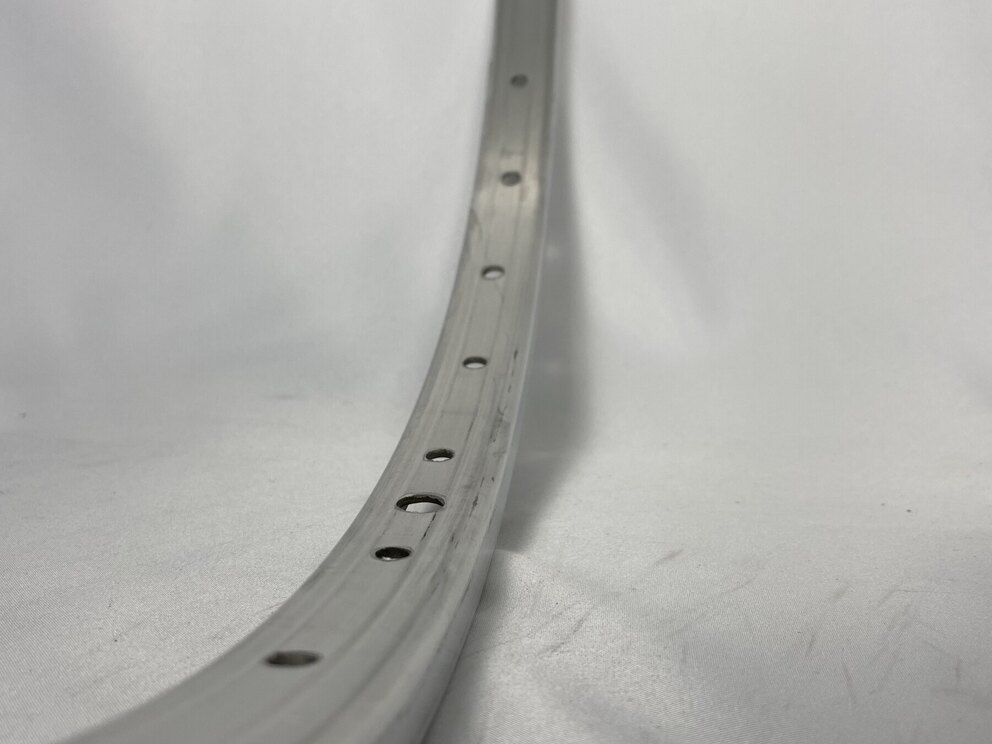

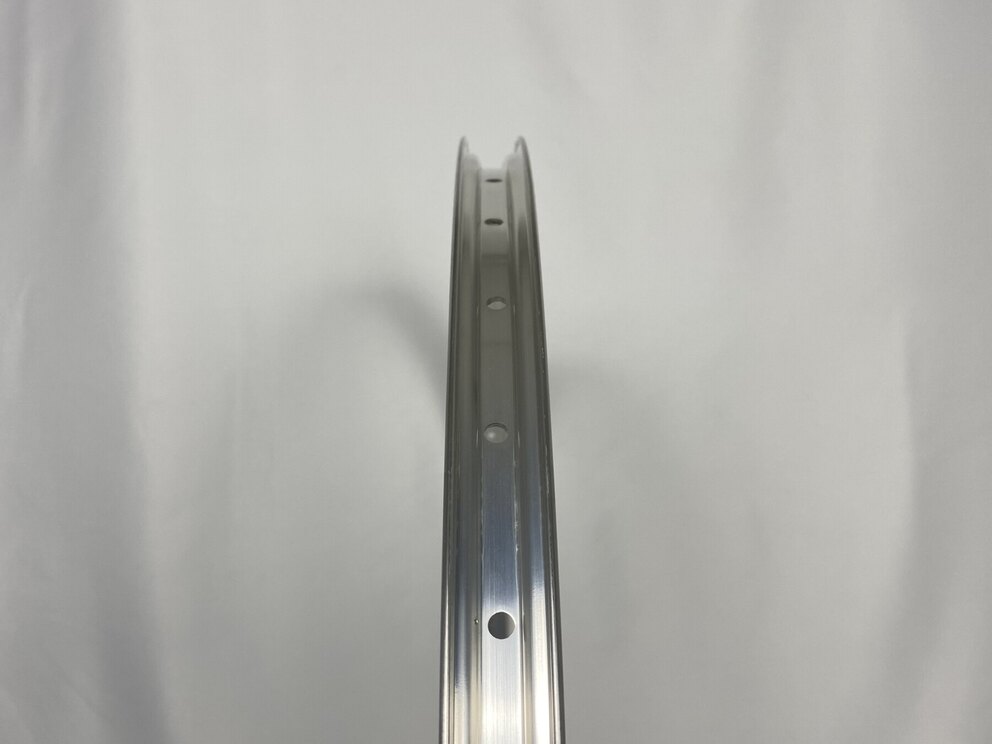

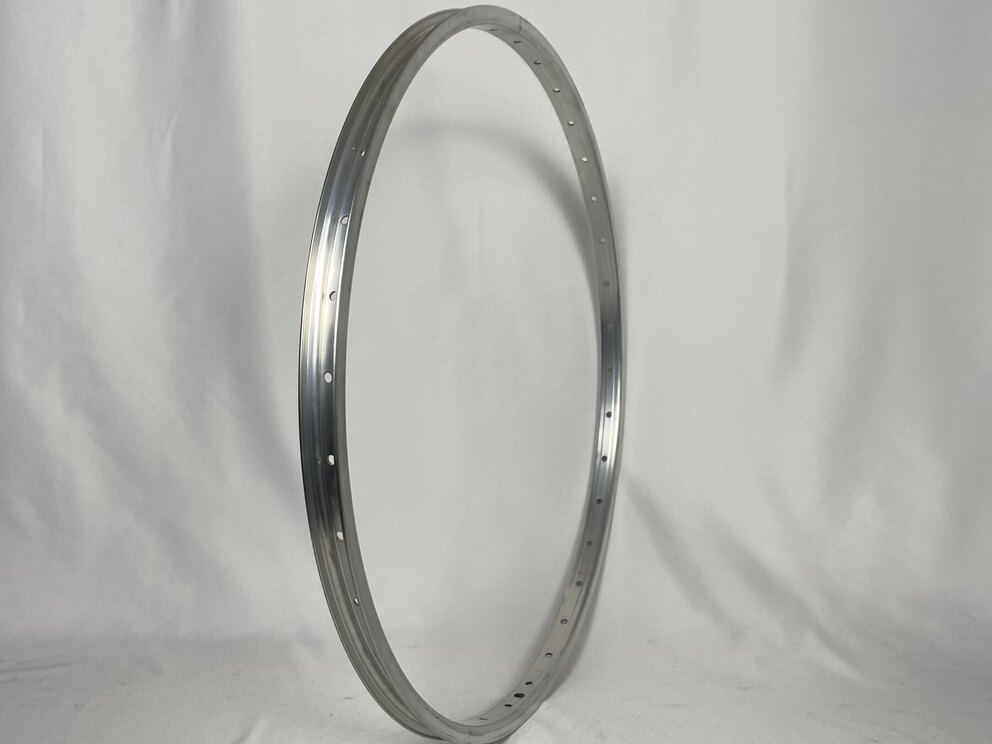

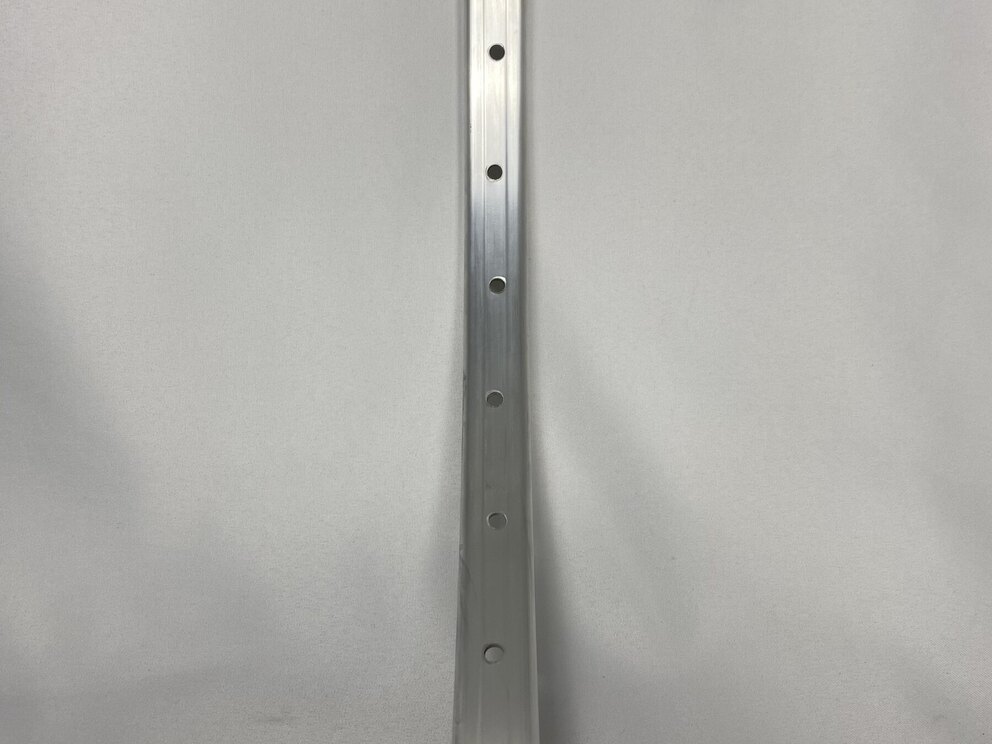

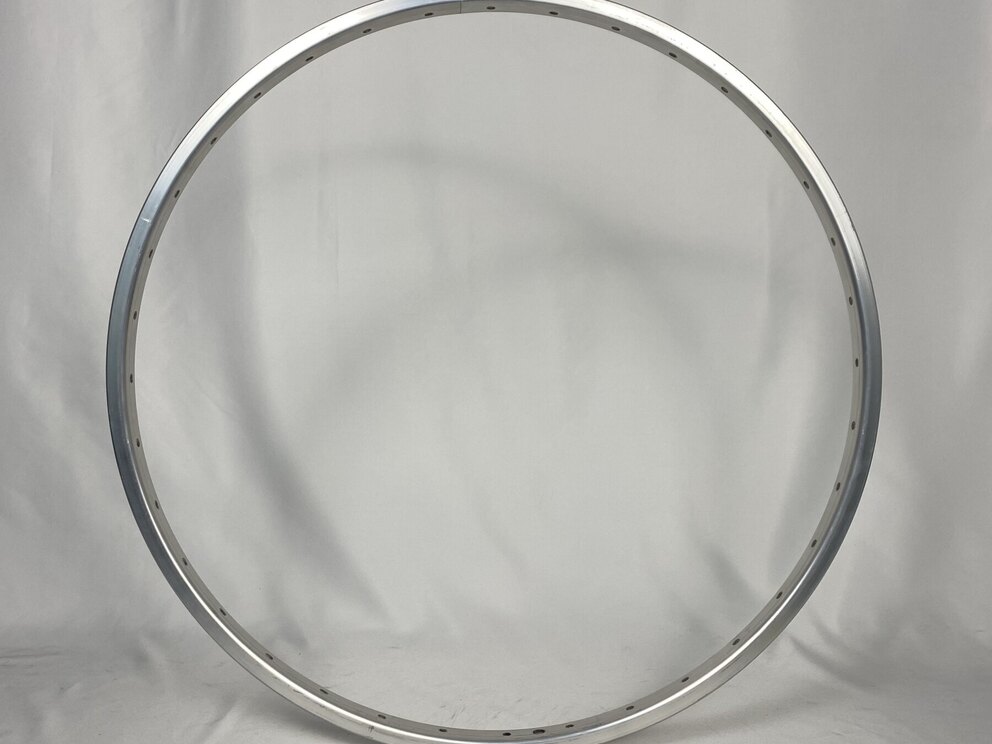

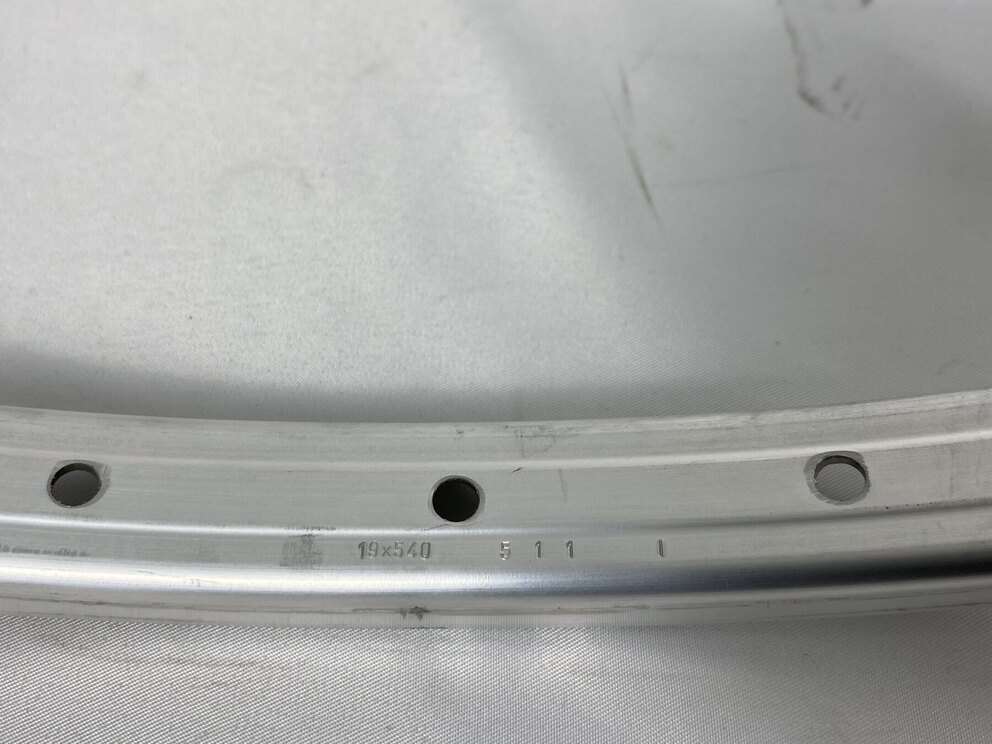

Felge / 540X19C / 36GTS / Einwandig / Ohne Buchse / Rigida - Ryde / RM-19 / Silber

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	City
BSD maat	540
FIETS Inch maat	24 x1.3/8
Geschikt voor velgrem	Nee
Kleur	Zilver
Interne breedte van de velg	19C
Merk velg	Import
Type velg	Others
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Enkelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim specifications:
Brand: Others
Type: Others
Colour: Silver
Size (Inch/MM): 540X19C
External width (MM): 24
Internal width (MM): 19
Average weight (GR): 424
Material: Aluminium
Single-walled / Double-walled: Single-walled
Single-bolted / Double-bolted: Unbolted
Number of spoke holes: 36GTS
Spoke nipple size: 13G
Braking surface present: No

Data for using the Sapim spoke length calculation tool:
Internal rim diameter (MM *Not ERD*): 523
Rim thickness (MM): 1
Number of spokes in the wheel: 36
Number of sprocket side crossings: Optional

Number of left side crossings: Optional

Link to spoke length calculation: www.sapim.be/spoke-calculator
