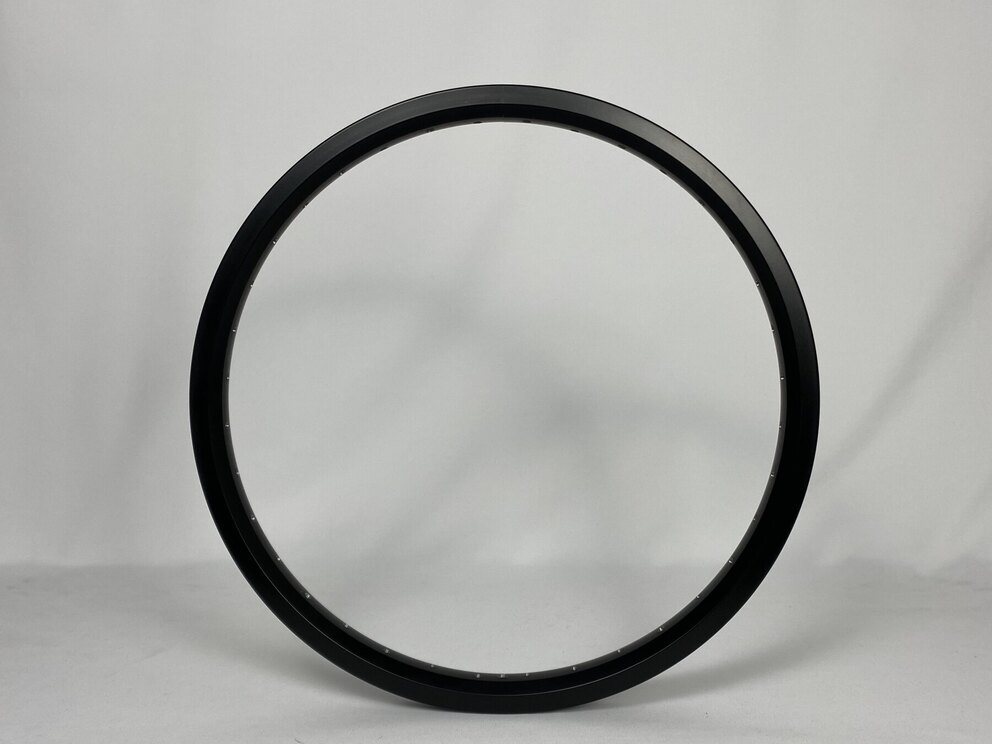

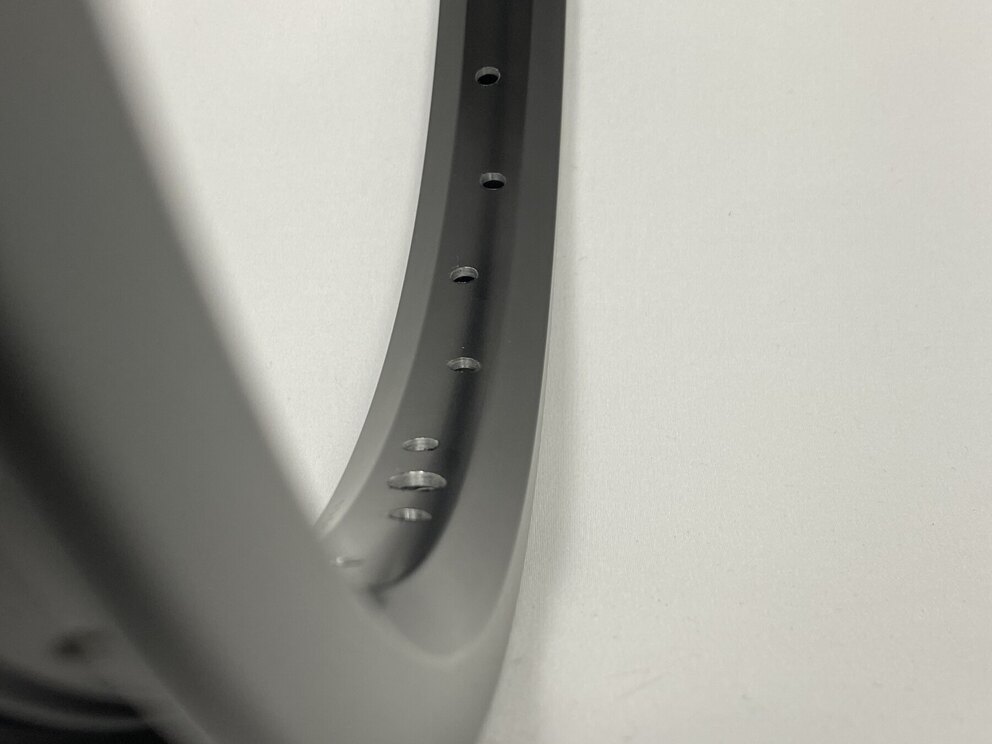

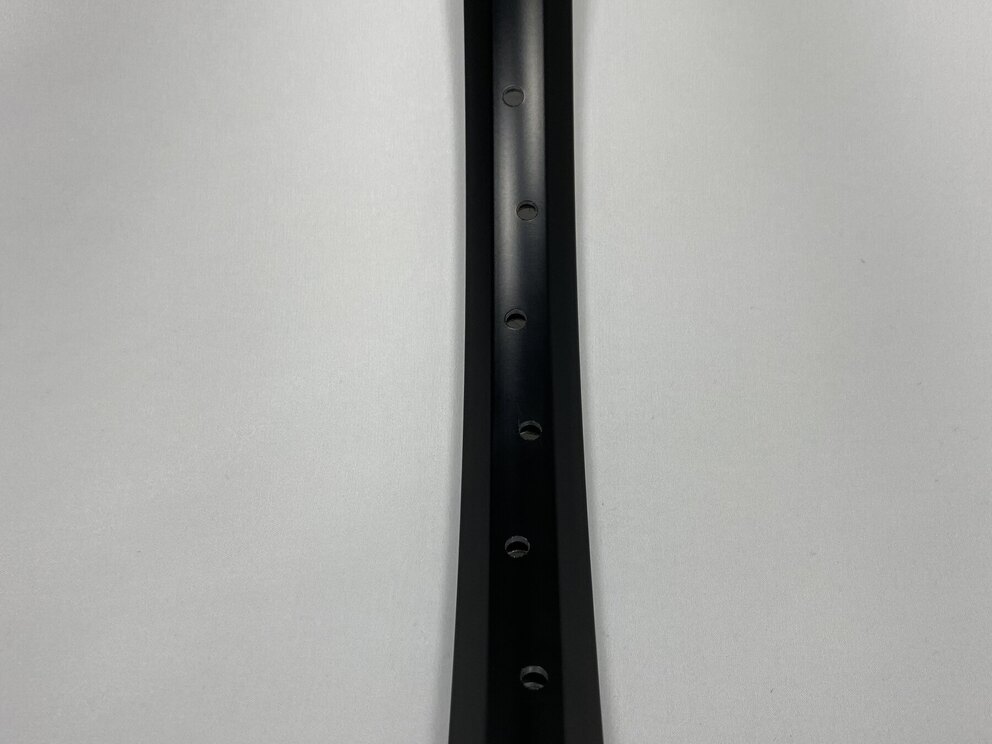

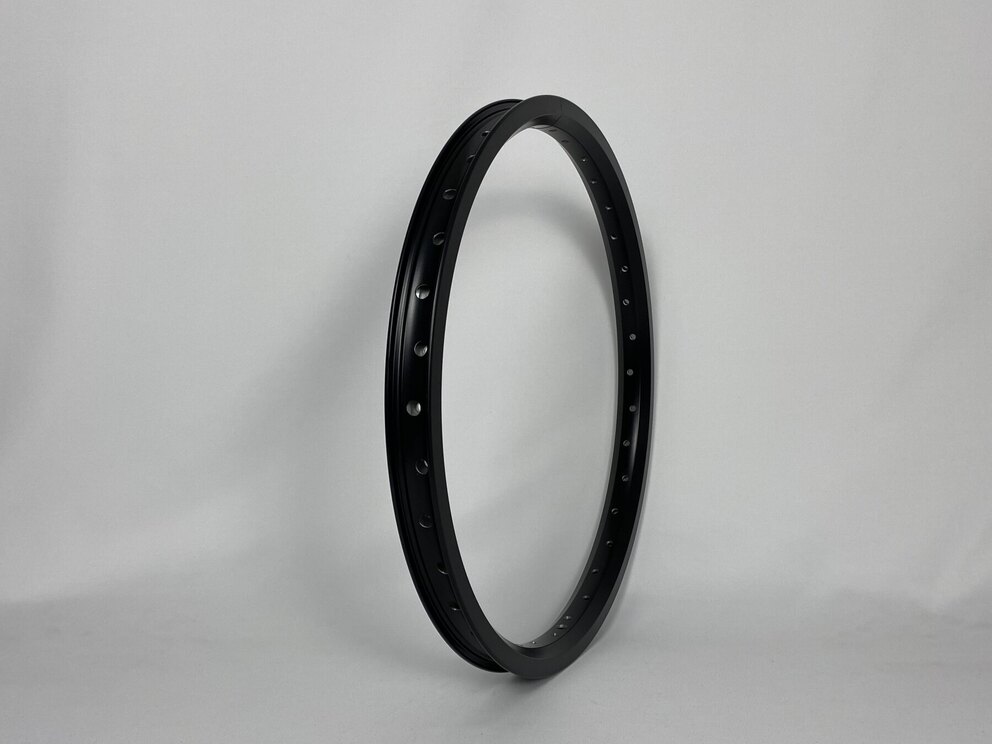

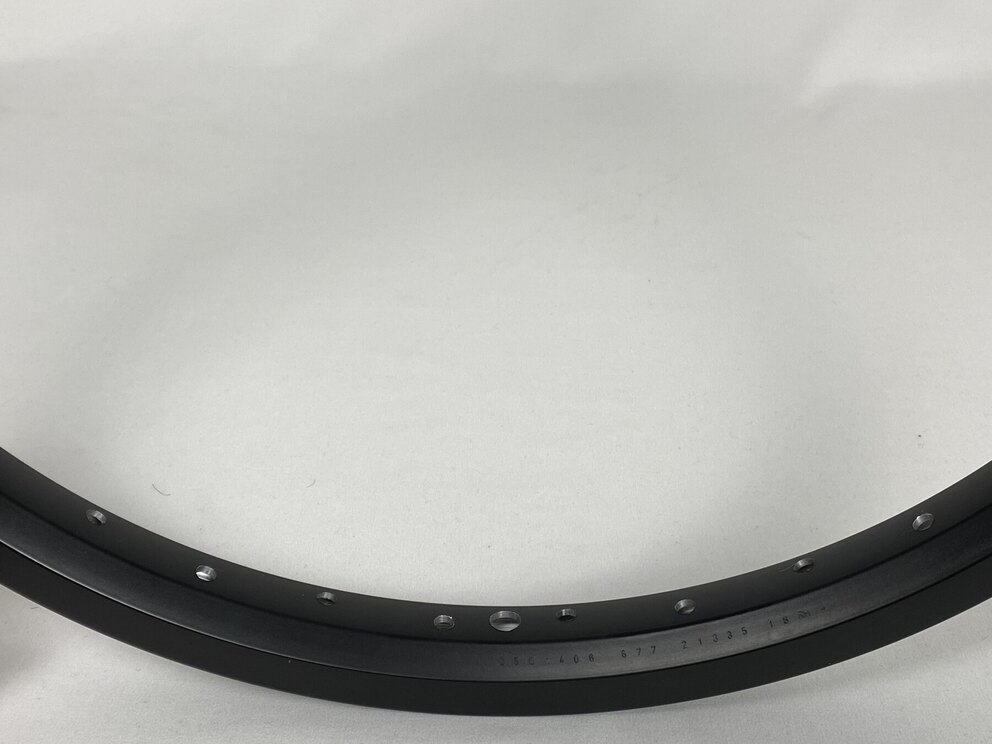

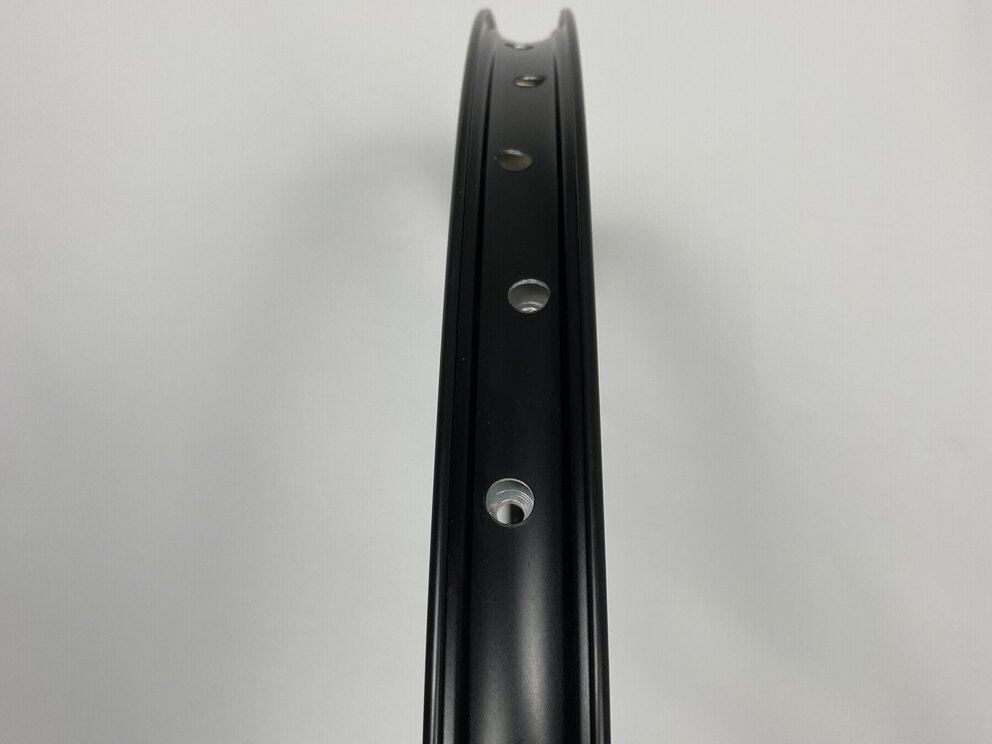

Rim / 406X25C / 36GTS / Double Wall / Unbushed / Rigida - Ryde / Big Bull / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	Tour / Hybride , City
BSD maat	406
FIETS Inch maat	20
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	25C
Merk velg	Ryde
Type velg	Big Bull
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim specifications:
Brand:    Rigida - Ryde
Type:    Big Bull
Colour:    Black
Size (Inch/MM):    406X25C

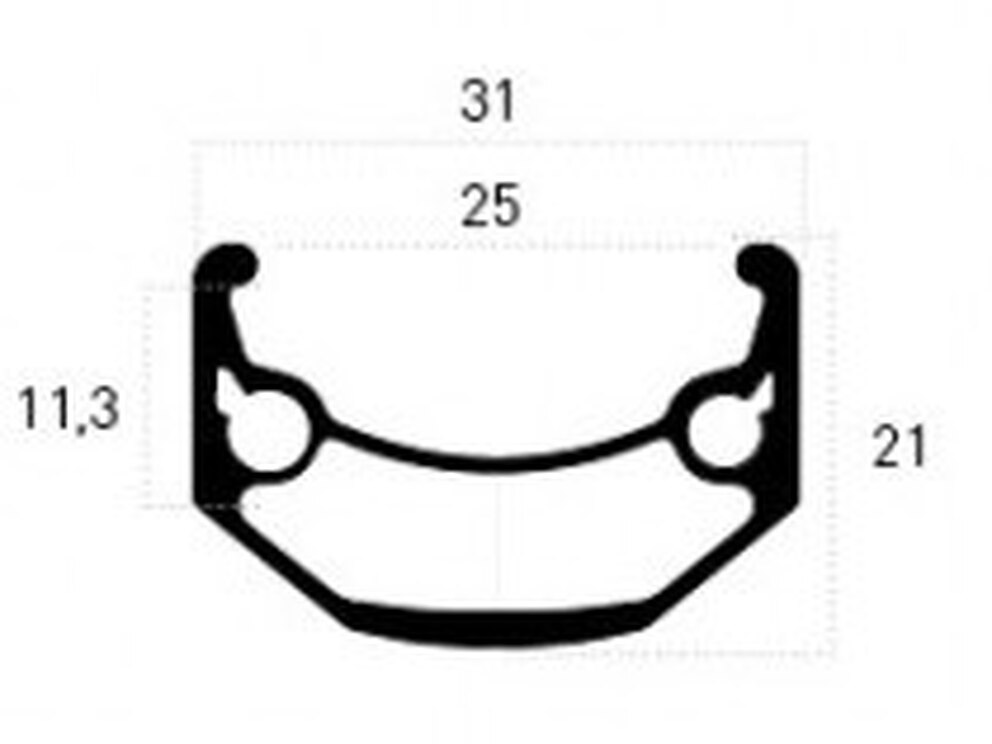

External width (MM):    31
Internal width (MM):    25
Average weight (GR):    492
Material:    Aluminum
Single-walled / Double-walled:    Double-walled
Single-butted / Double-butted:    Unbutted
Number of spoke holes:    36GTS
Spoke nipple size:    13G
Braking surface present:    No

Data for using the Sapim spoke length calculation tool:
Internal rim diameter (MM *Not ERD*):    375
Rim thickness (MM):    2
Number of spokes in the wheel:    36
Number of sprocket side crossings: To choice
Number of crossings left side: Optional

Link to spoke length calculation: https://www.sapim.be/spoke-calculator
