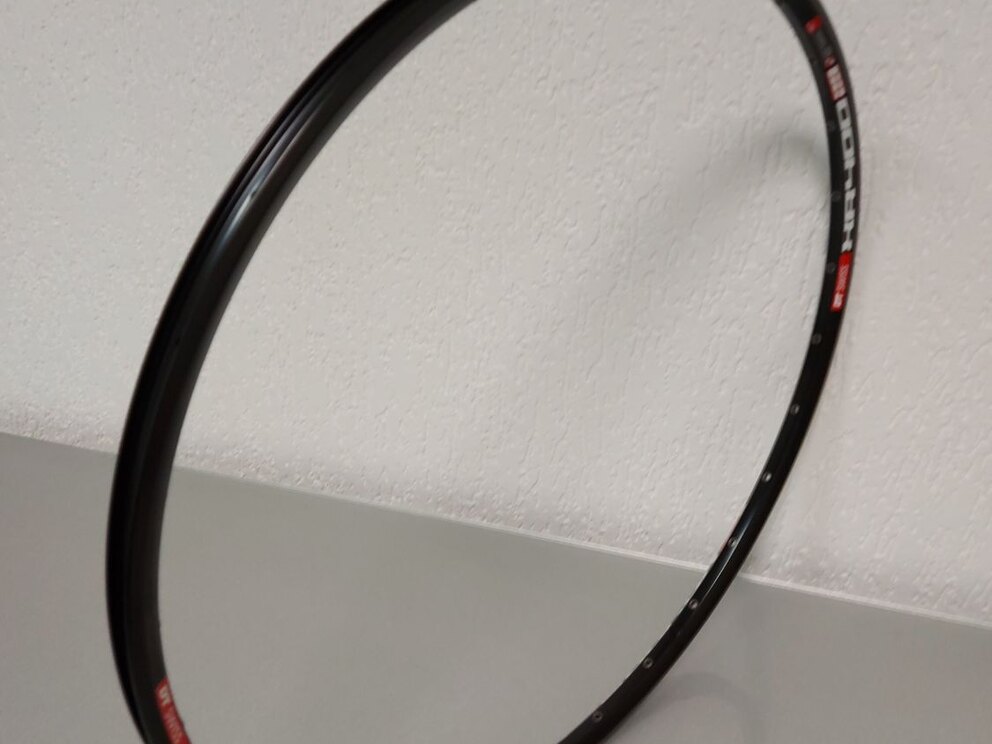

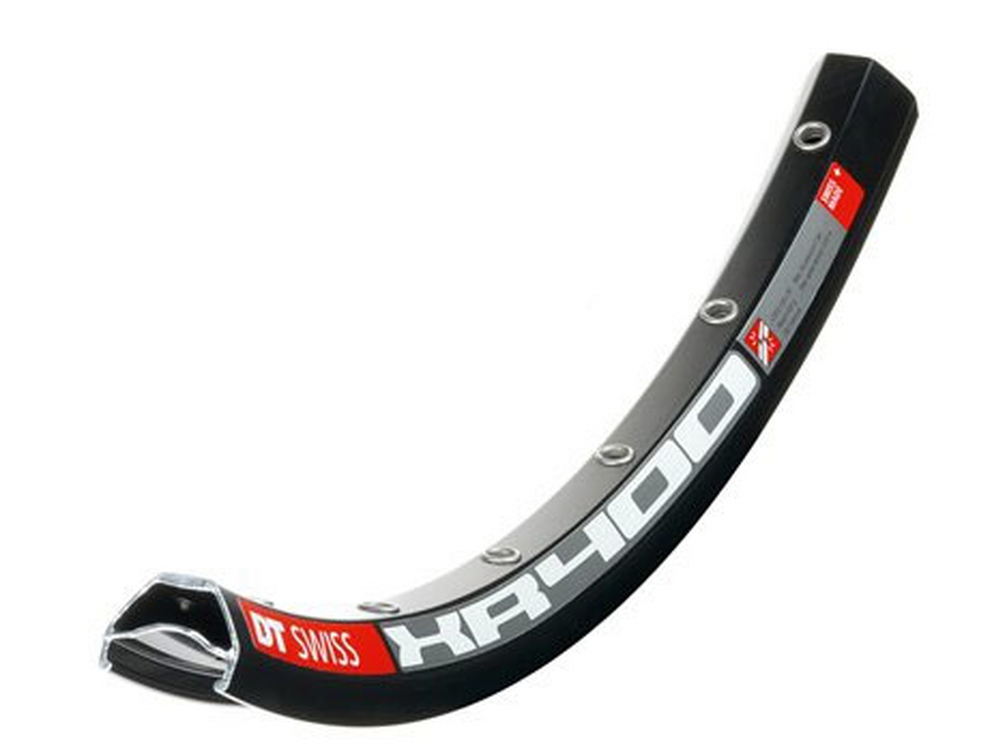

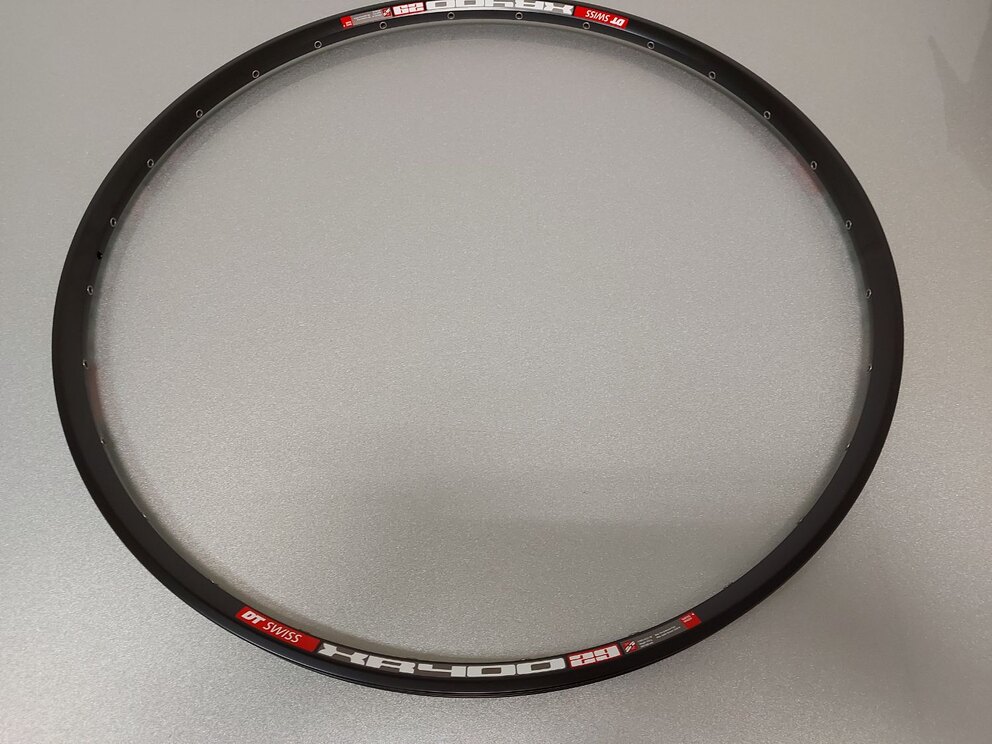

Rim / 622X18C / 28GTS / Double-walled / Single eyelets / DT Swiss / XR400 29 / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	MTB
BSD maat	622
FIETS Inch maat	28 , 29er
Aantal spaken/spaakgaten	28
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	18C
Merk velg	DT Swiss
Type velg	XR400 29
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Enkel gebust
Nieuw of gebruikt	Nieuw

Rim Specifications:
Brand: DT Swiss
Model: XR400 29
Color: Black
Size (Inch/MM): 28" / 622
External width (MM): 23,5
Internal width (MM): 18
Weight (GR): 456
Material: Aluminium
Single-walled / Double-walled: Double-walled

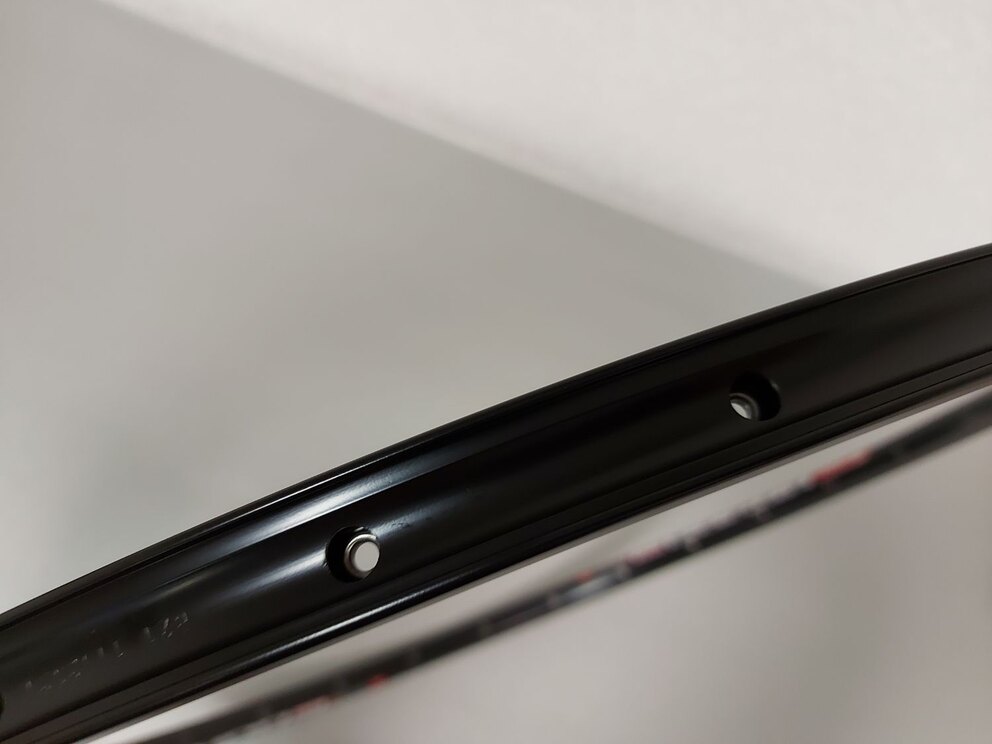

Single eyelets / Double eyelets: Single eyelets
Number of spoke holes: 28
Spoke nipple size: 14
Brake surface present: No

Data for spoke length calculations using the Sapim spoke size calculator:

Internal diameter of the rim (MM *Not ERD*): 596

Rim thickness (MM): 2

Number of spokes in the wheel: 28

Number of crossings gear side: of your choice

Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
