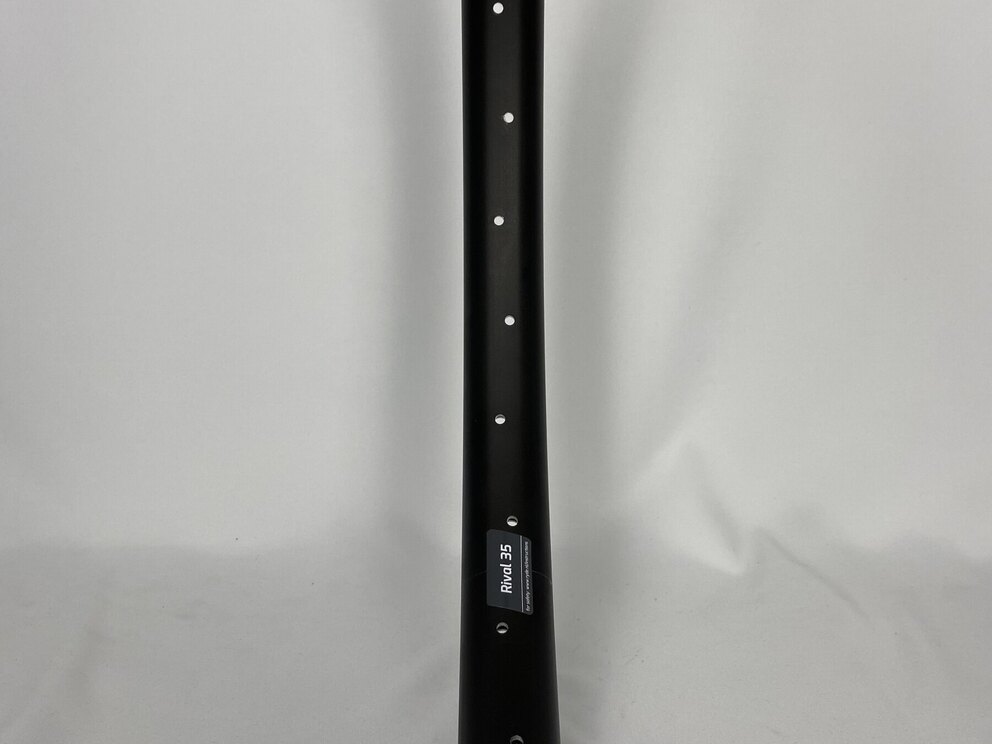

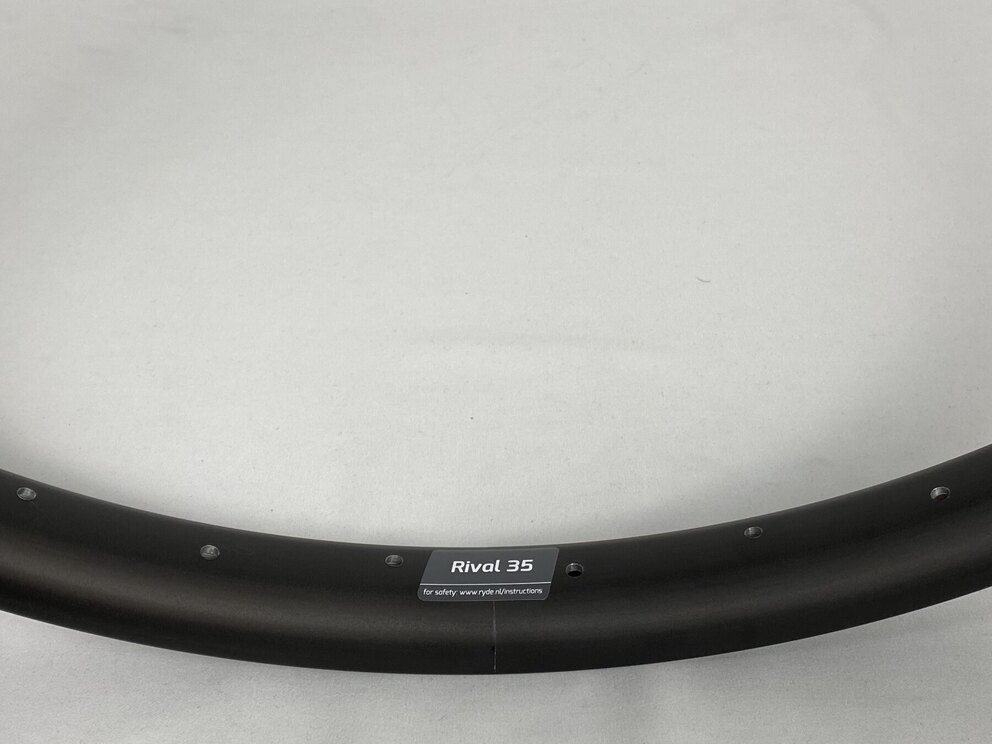

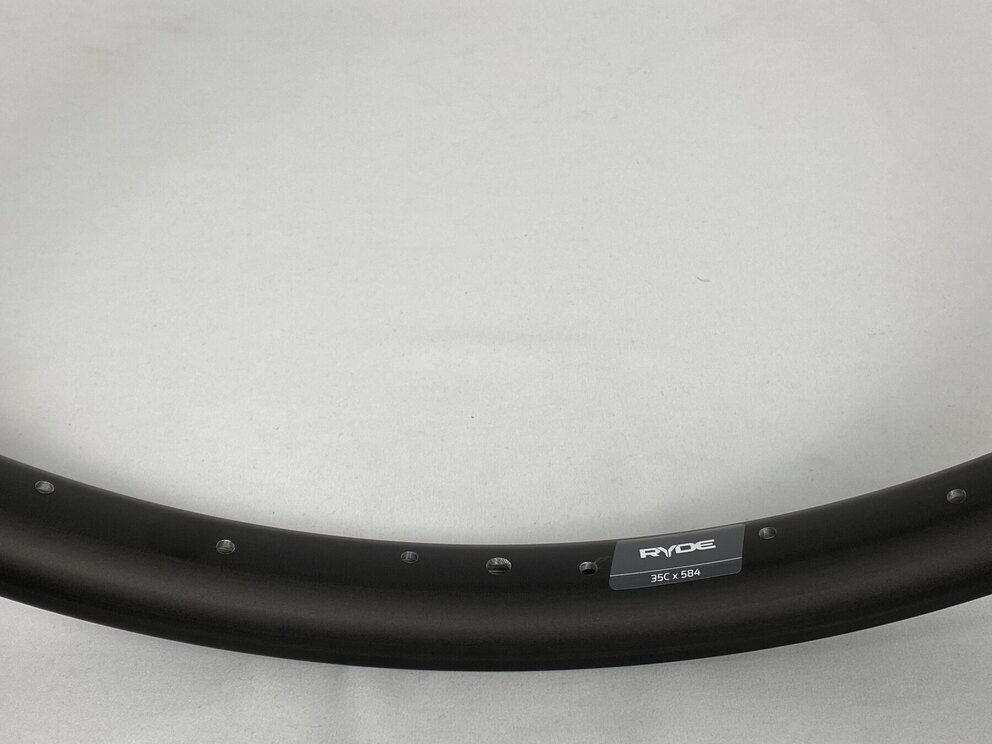

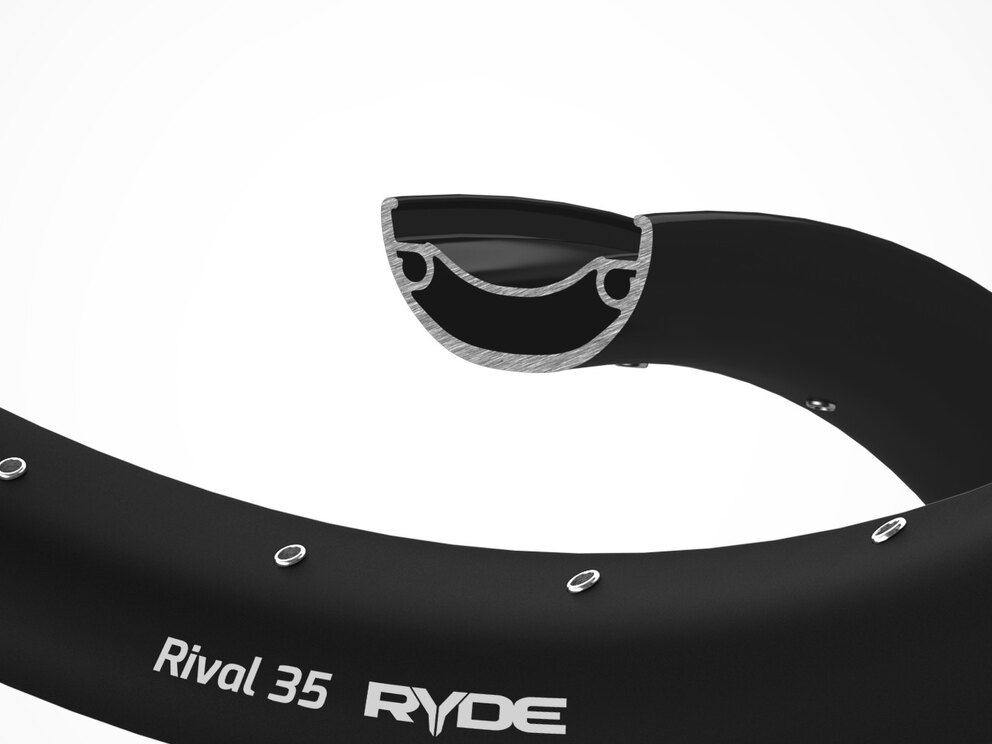

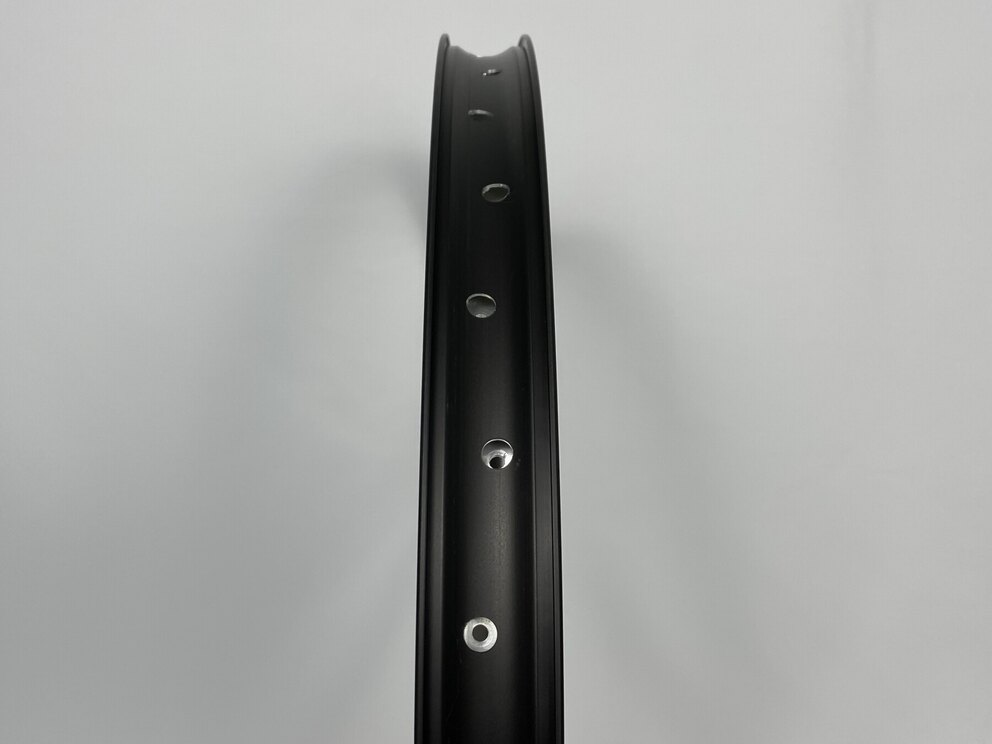

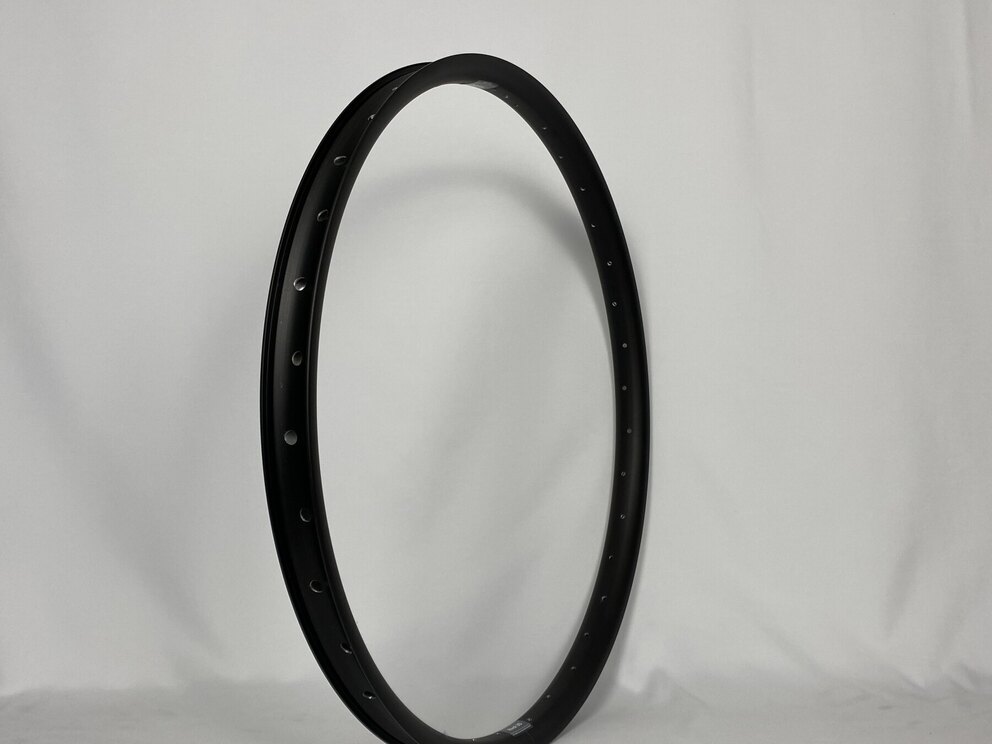

Rim / 584X35C / 36GTS / Double-walled / No eyelets / Rigida - Ryde / Rival 35 / Black

Use this rim for assembling a wheel

Choose this rim

Beoogd gebruik	MTB , Tour / Hybride
BSD maat	584
FIETS Inch maat	27,5
Aantal spaken/spaakgaten	36
Geschikt voor velgrem	Nee
Kleur	Zwart
Interne breedte van de velg	35C
Merk velg	Ryde
Type velg	Rival 35
Materiaal van de velg	Aluminium
Enkelwandig / Dubbelwandig	Dubbelwandig
Gebuste velg	Ongebust
Nieuw of gebruikt	Nieuw

Rim Specifications:
Brand: Rigida - Ryde
Model: Rival 35
Color: Black
Size (Inch/MM): 27,5" / 584 / 650 B

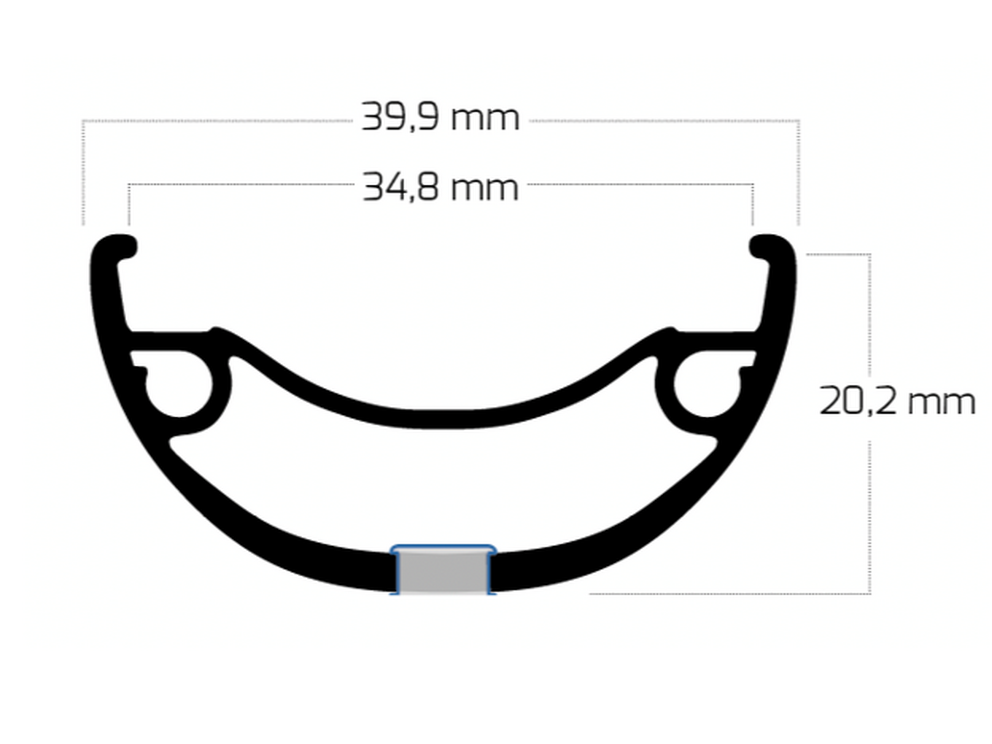

External width (MM): 39,5
Internal width (MM): 35
Weight (GR): 789
Material: Aluminium
Single-walled / Double-walled: Double-walled
Single eyelets / Double eyelets: No eyelets
Number of spoke holes: 36
Spoke nipple size: 14
Brake surface present: No

Data for spoke length calculations using the Sapim spoke size calculator:
Internal diameter of the rim (MM *Not ERD*): 553
Rim thickness (MM): 2
Number of spokes in the wheel: 36
Number of crossings gear side: of your choice
Number of crossing non-gear side: of your choice

Link to spoke calculator: www.sapim.be/spoke-calculator
