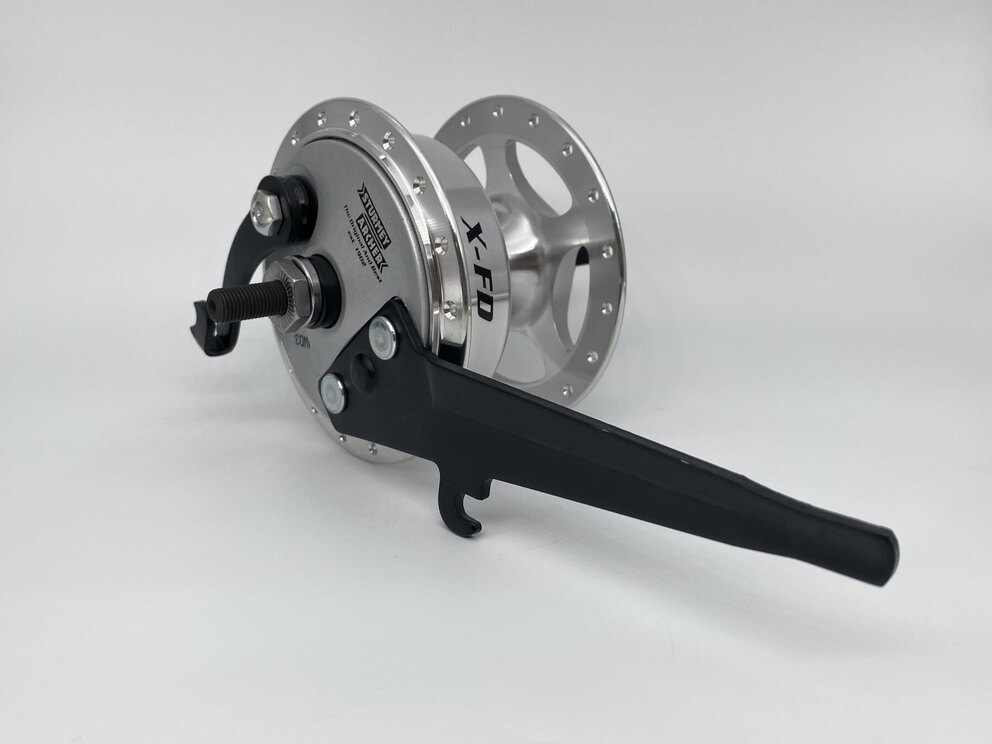

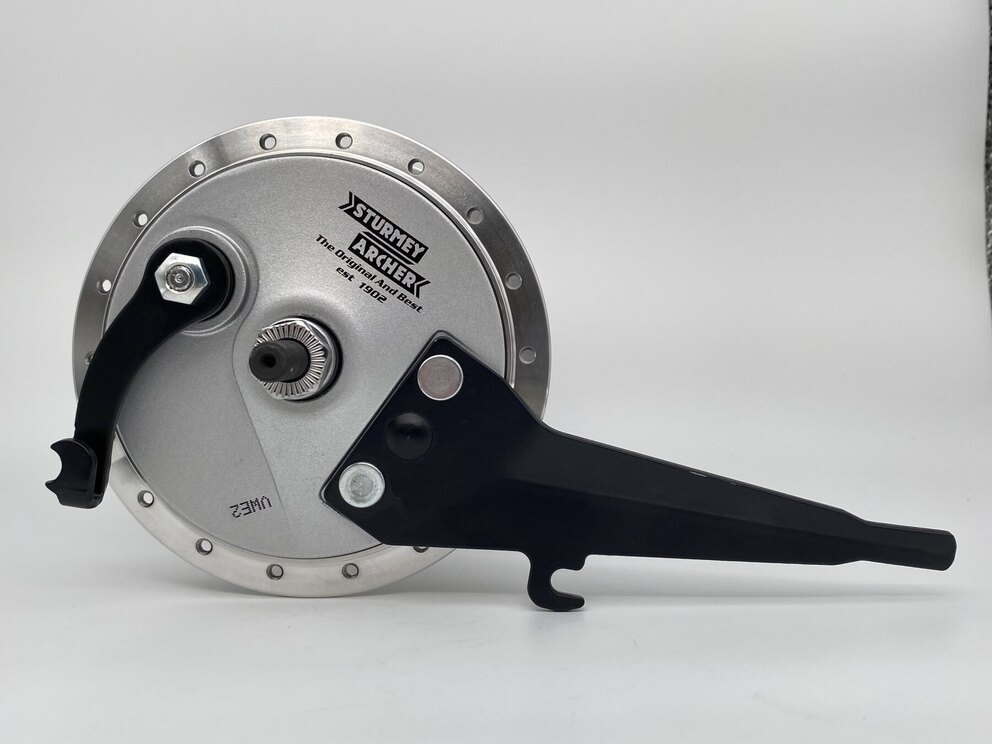

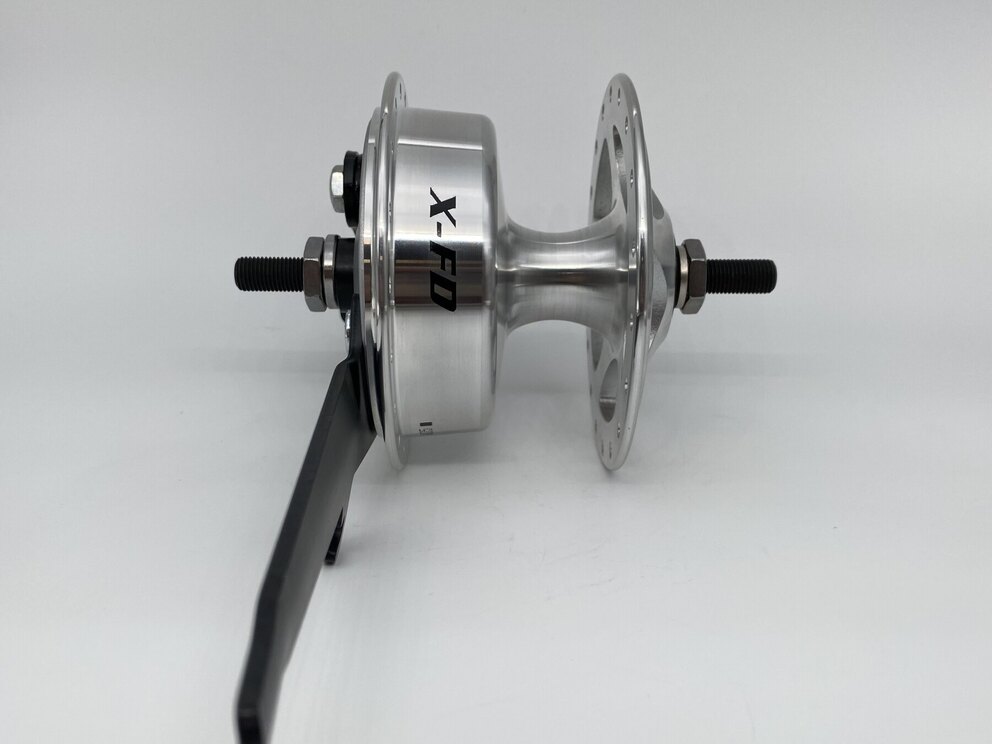

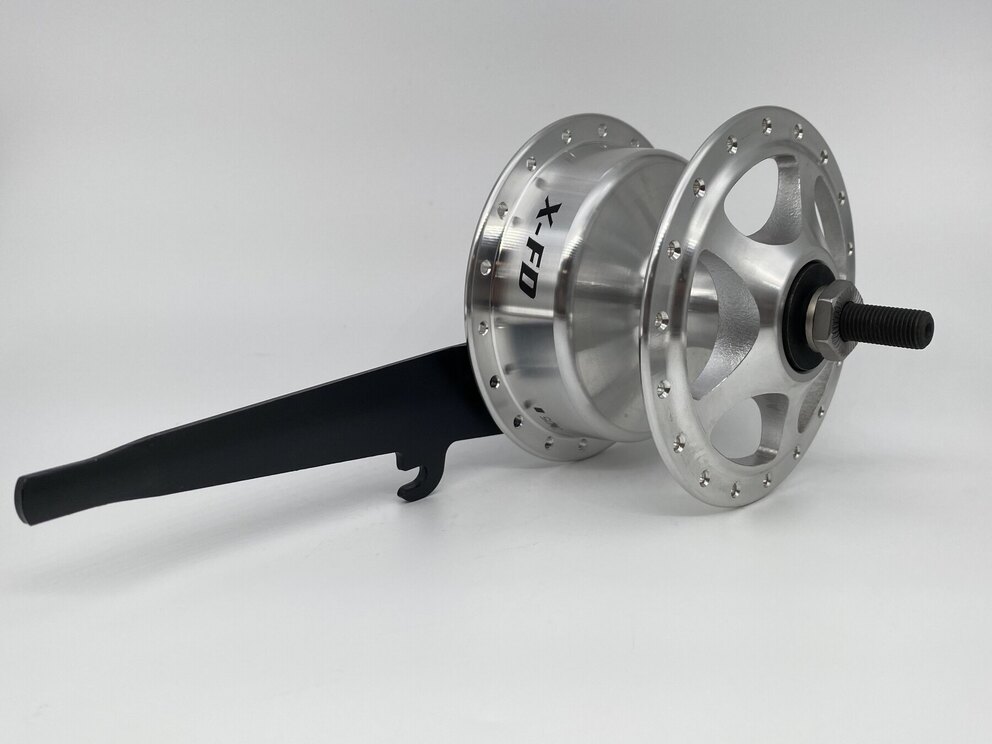

Front hub / dynamo/ 100 MM / Fixed axle 140 MM / Drum Brake 70 MM / 36GTS / Sturmey Archer / X-FD/ Silver / City

Front hub / dynamo/ 100 MM / Fixed axle 140 MM / Drum Brake 70 MM / 36GTS / Sturmey Archer / X-FD/ Silver / City

Item number: VN40062 EAN: 4710944228434

€ 69,95

3 In stock

Use this hub for assembling a wheel
Beoogd gebruik City
Voor of achter Voor
Type rem Trommelrem
Aantal spaken/spaakgaten 36
Inbouwbreedte 100 mm
Type as Vaste as (met schroefdraad)
Naafdynamo Nee
Merk naaf Sturmey Archer
Type naaf X-FD
Kleur Zilver
Nieuw of gebruikt Nieuw

Specifications of the front hub:

https://www.sturmey-archer.com/en/products/detail/x-fd

Brand: Sturmey Archer

Model: X-FD

Color: Silver

Number of spoke holes: 36

Type of brake: Drum Brake 70 MM

Type of axle: Fixed axle

Axle included: Yes, with nuts

Weight (GR): 770

Intended use: City


Data for spoke length calculations using the Sapim spoke size calculator:

Total length of the hub (MM): 100

Non-gear side (MM): 21

drum brake side (MM): 21

Hub diameter non-gear side (MM): 89

Hub diameter drum brake side (MM): 89

Link to spoke calculator: www.sapim.be/spoke-calculator
