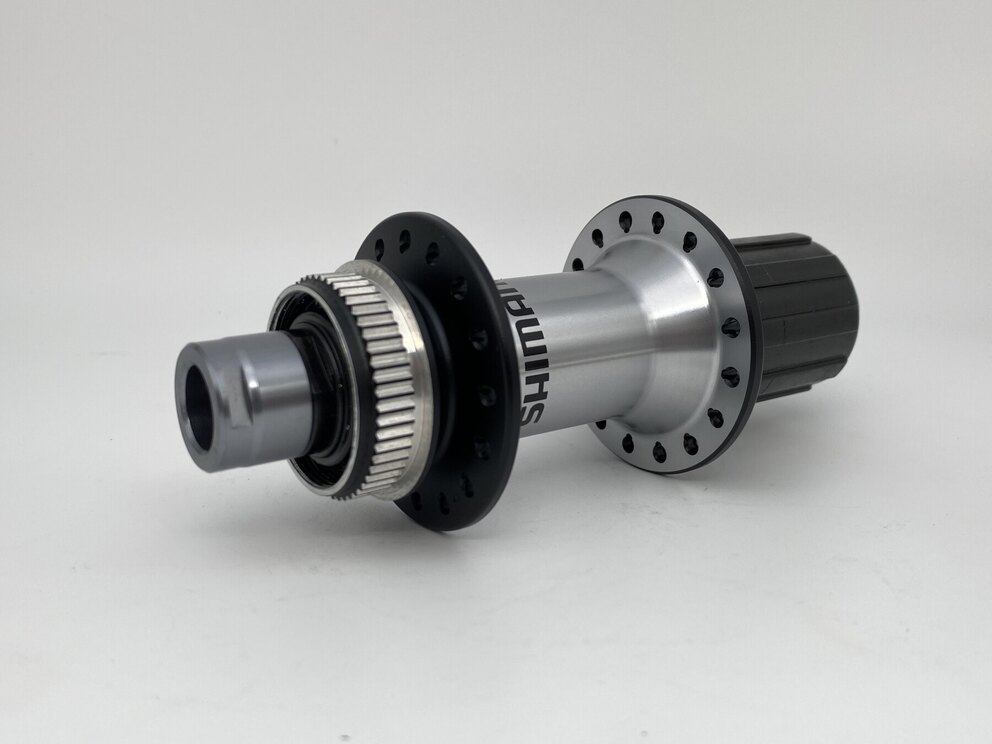

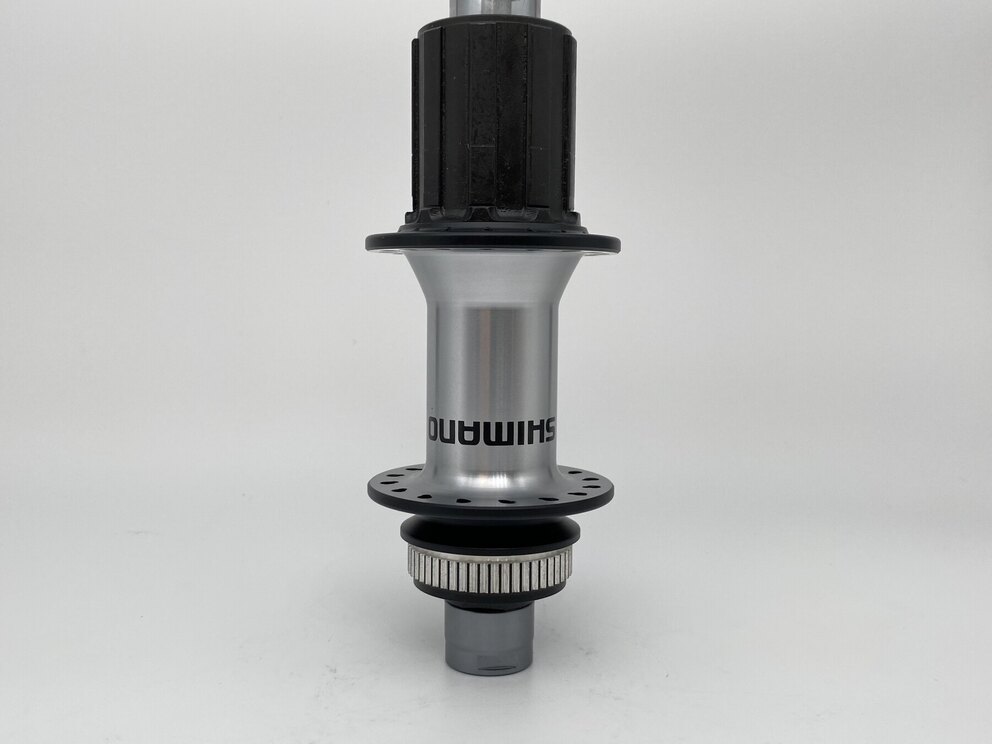

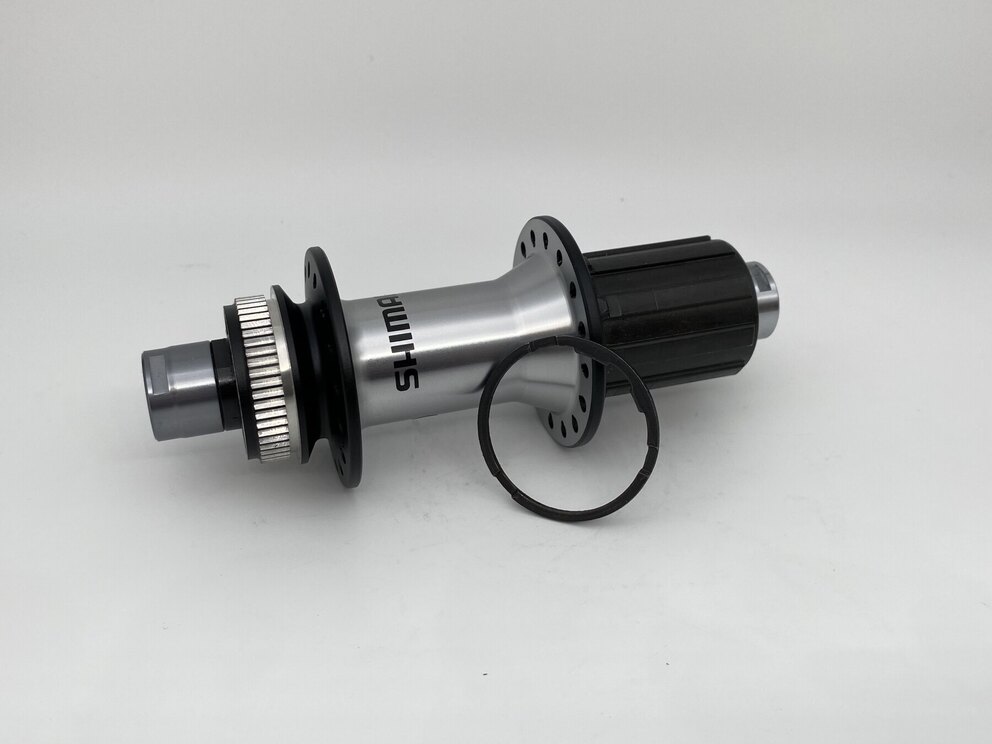

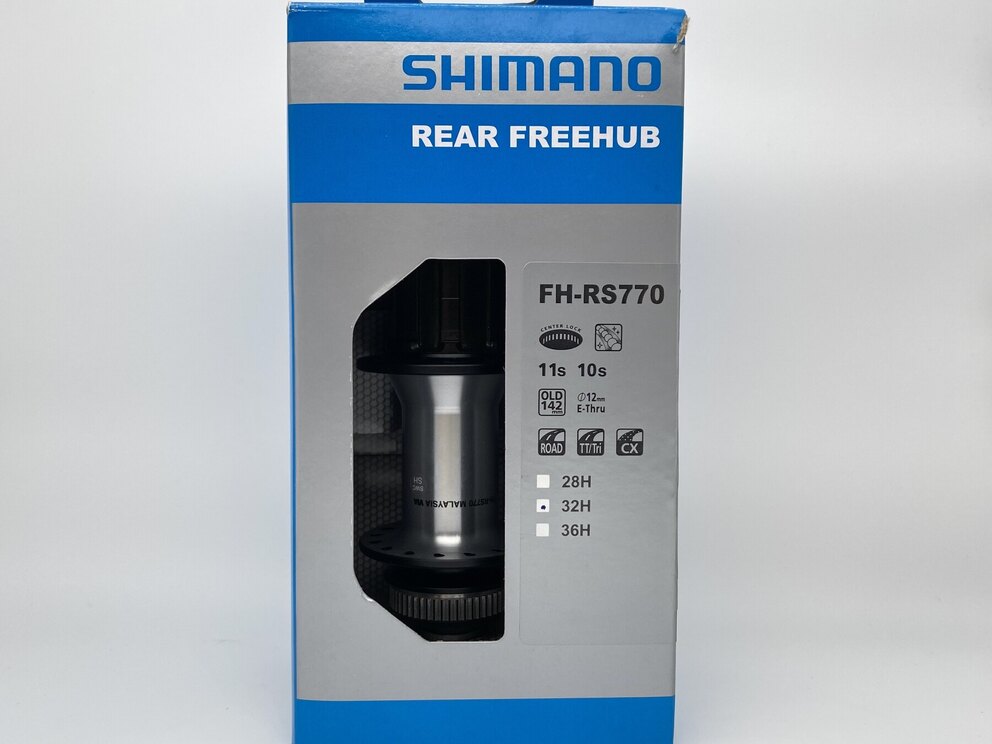

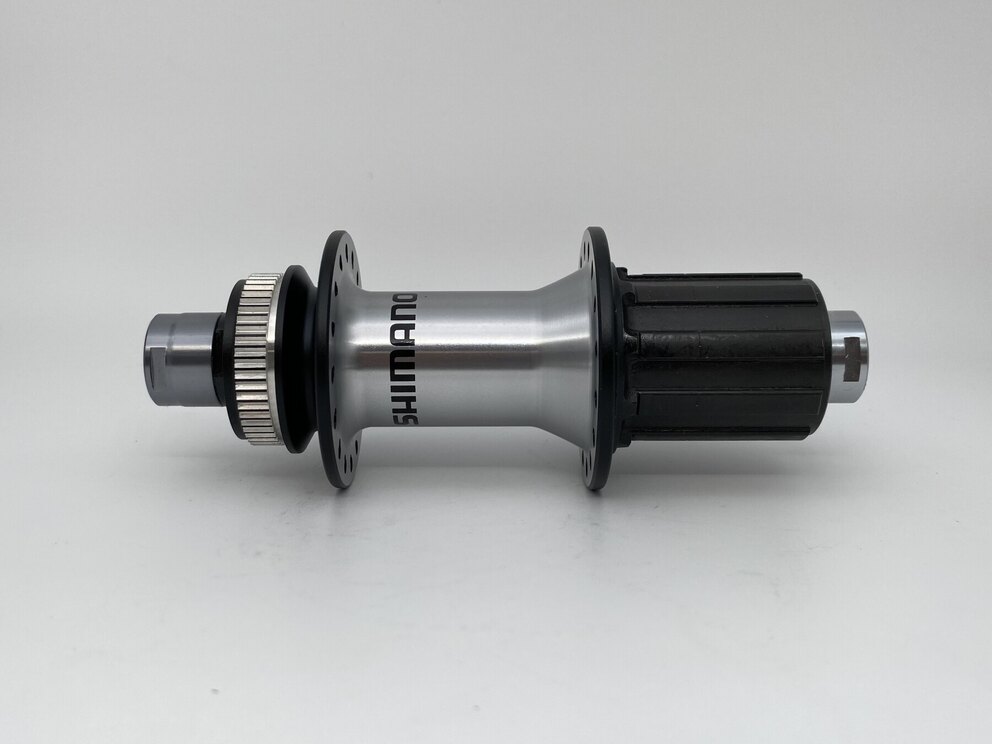

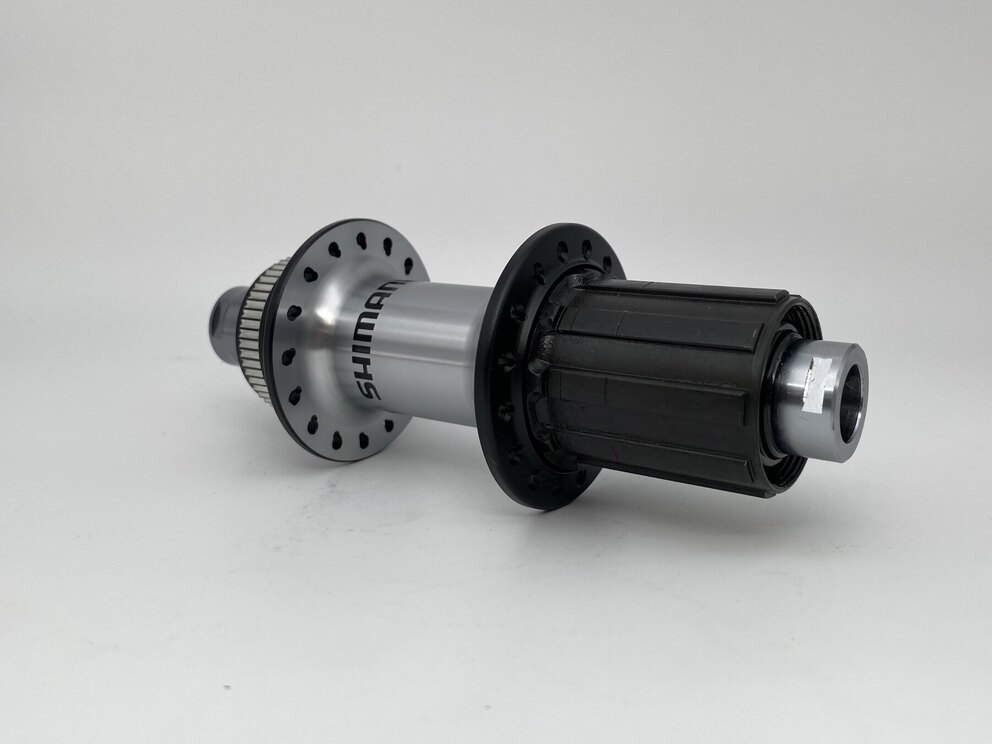

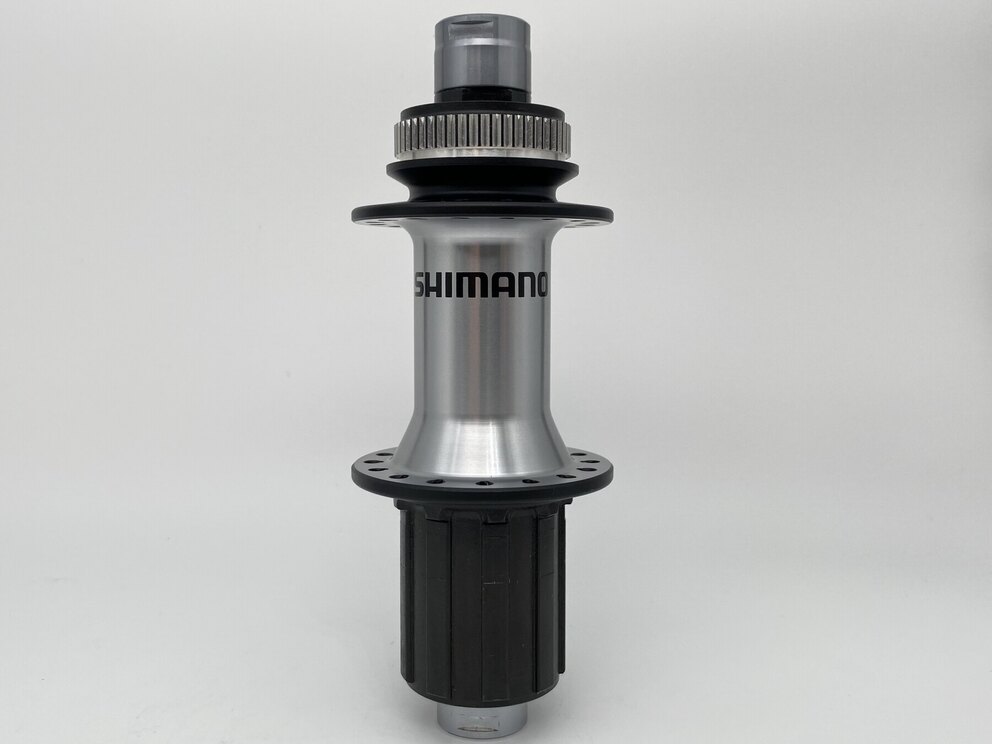

Rear hub / 142 MM / Thru axle Ø 12 MM / Disc (Centerlock) / 32GTS / Shimano / FH-RS770 Ultegra / HG Body 36,85 MM / Silver / Race

Use this hub for assembling a wheel

Choose this hub

Beoogd gebruik	Gravel , Race
Voor of achter	Achter
Type rem	Disc (Centerlock)
Cassette / Freewheel body	HG Body 36,85 MM
Aantal spaken/spaakgaten	32
Inbouwbreedte	142 mm
Type as	Steekas 142 x 12 mm
Naafdynamo	Nee
Merk naaf	Shimano
Type naaf	FH-RS770 Ultegra
Kleur	Zilver
Nieuw of gebruikt	Nieuw
Materiaal van de freewheel body	Staal

The special bore makes it suitable for the extra wide (max. 3.0 mm wide) aero spokes.

Specifications of the rear hub:
Brand: Shimano
Model: FH-RS770 Ultegra
Color: Silver
Number of spoke holes: 32GTS
Type of brake: Disc (Centerlock)
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Type of axle: Steekas Ø 12 MM
Axle included: No
Type of bearings: Ball bearings
Average weight (GR): 293
Intended use: Race

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 142
Non-gear side (MM): 36
Gear side (MM): 50
Hub diameter non-gear side (MM): 44
Hub diameter gear side (MM): 44

Link to spoke calculator: www.sapim.be/spoke-calculator
