Rear hub / 118 MM / Fixed axle 163 MM / Drum Brake 90 MM / 36GTS / Sturmey Archer / XL-RD3 / 3S / Silver / City - Cargo
Item number: AN20013 EAN: 4710944259445
€ 109,95
19 In stock
| Beoogd gebruik | City , Cargo |
|---|---|
| Voor of achter | Achter |
| Type rem | Trommelrem |
| Aantal INTERNE versnellingen | 3 |
| Aantal spaken/spaakgaten | 36 |
| Inbouwbreedte | 118 mm |
| Type as | Vaste as (met schroefdraad) |
| Naafdynamo | Nee |
| Merk naaf | Sturmey Archer |
| Type naaf | XL-RD3 |
| Kleur | Zilver |
| Nieuw of gebruikt | Nieuw |

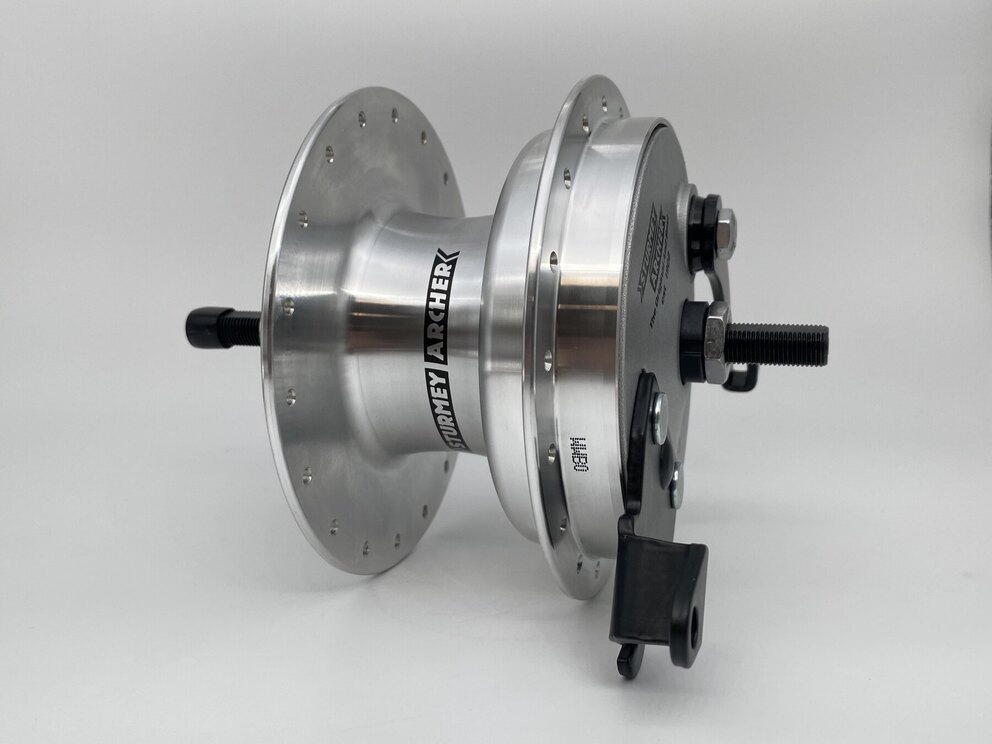

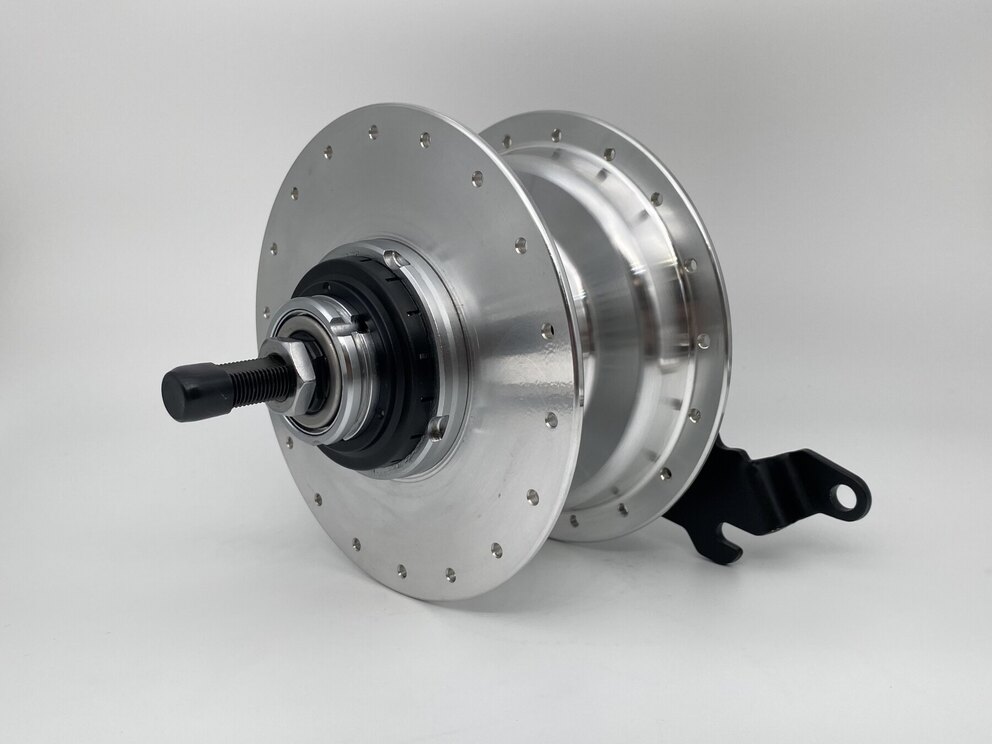

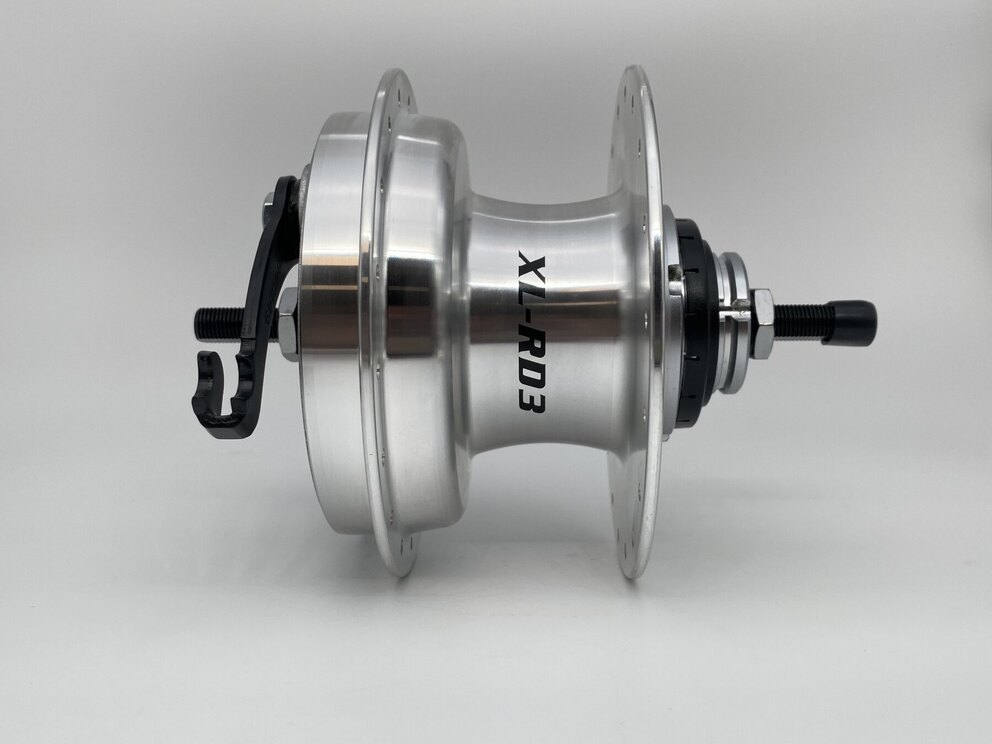

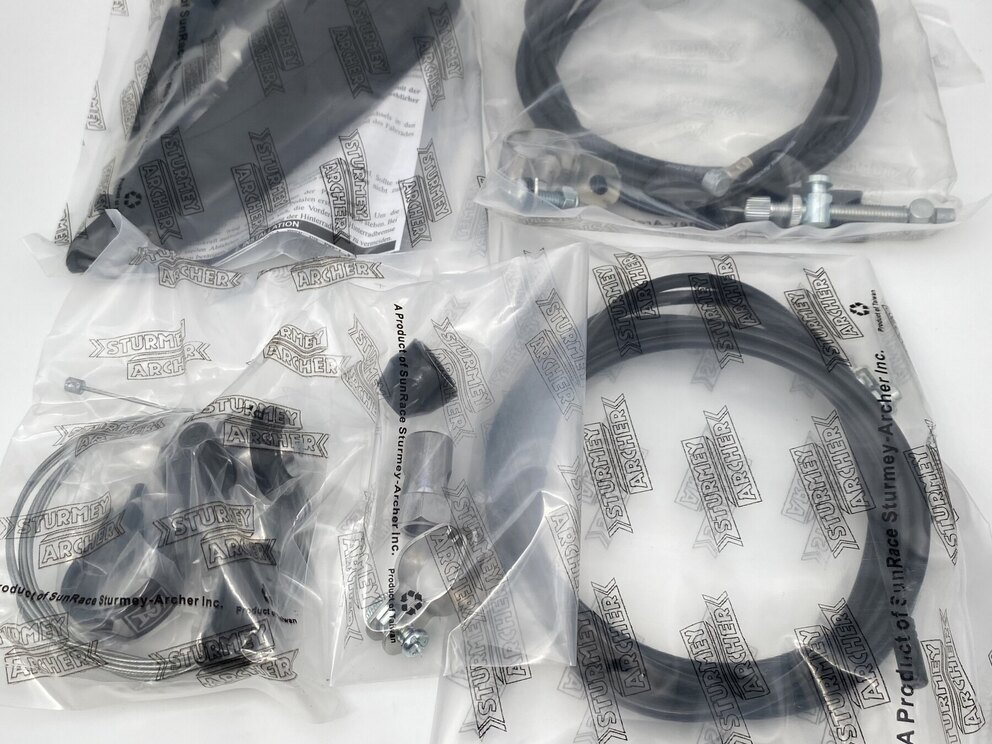

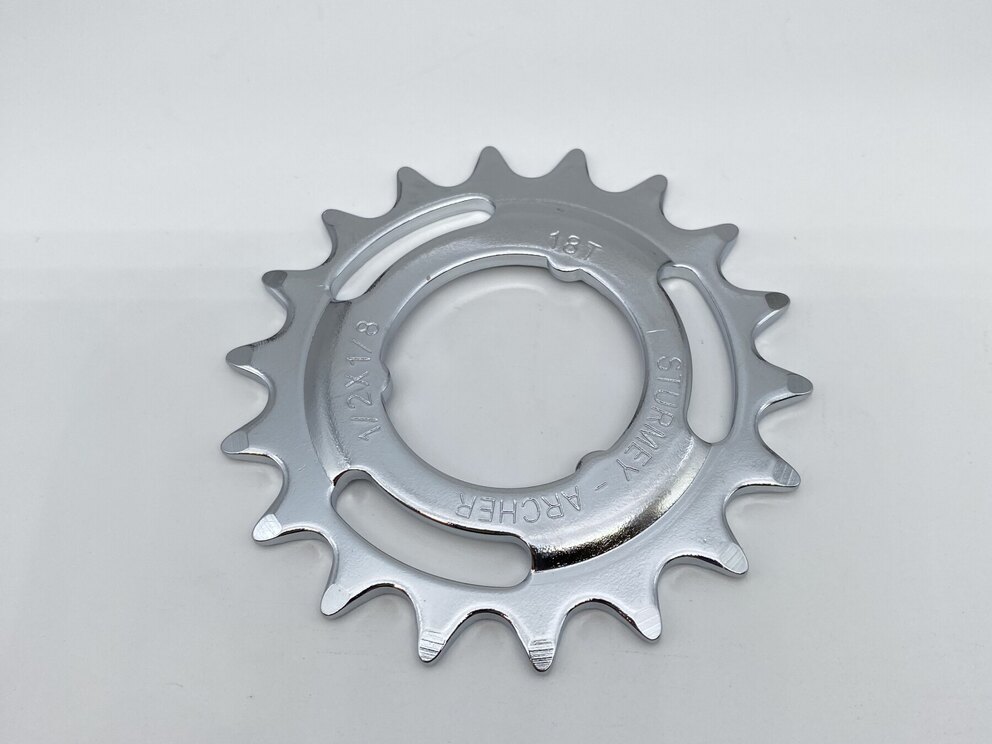

Hub is delivered very complete (photos), shifter, cables, sprocket, axle nuts, etc.
Specifications of the rear hub:
Brand: Sturmey Archer
Model: XL-RD3
Color: Silver
Number of spoke holes: 36GTS
Type of brake: Drum Brake 90 MM
Number of gears: 3S
Type of axle: Fixed axle 163 MM
Axle included: Yes, with nuts
Type of bearings: Ball bearings
Average weight (GR): 1576
Intended use: City - Cargo
Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 118
Non-gear side (MM): 31
Gear side (MM): 26
Hub diameter non-gear side (MM): 108
Hub diameter gear side (MM): 108
Link to spoke calculator: www.sapim.be/spoke-calculator
