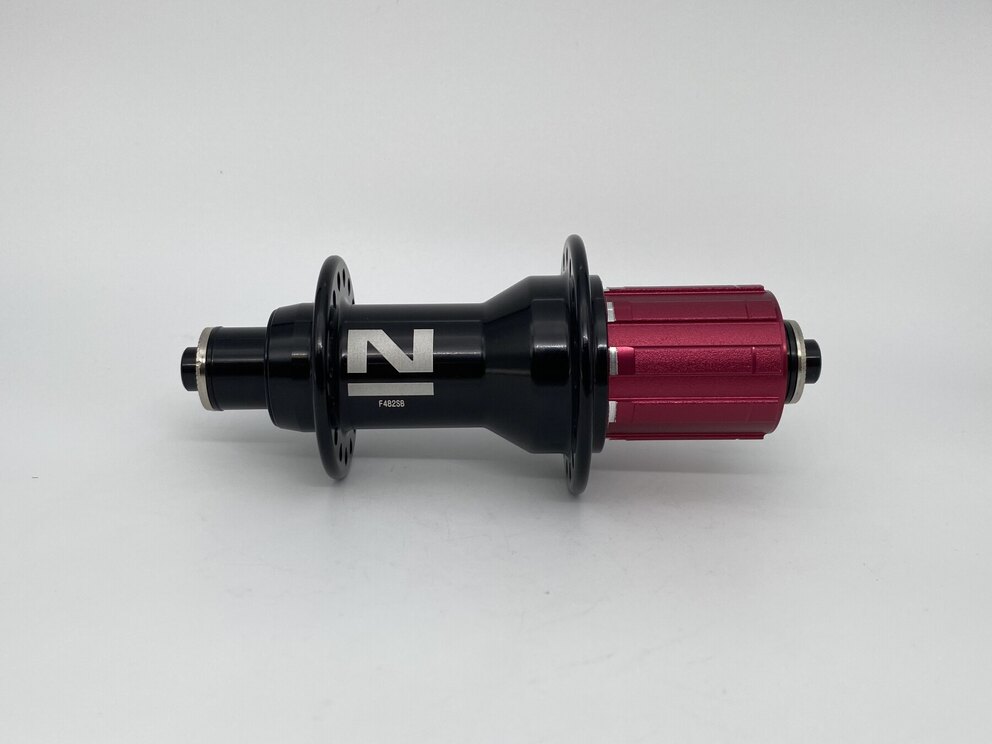

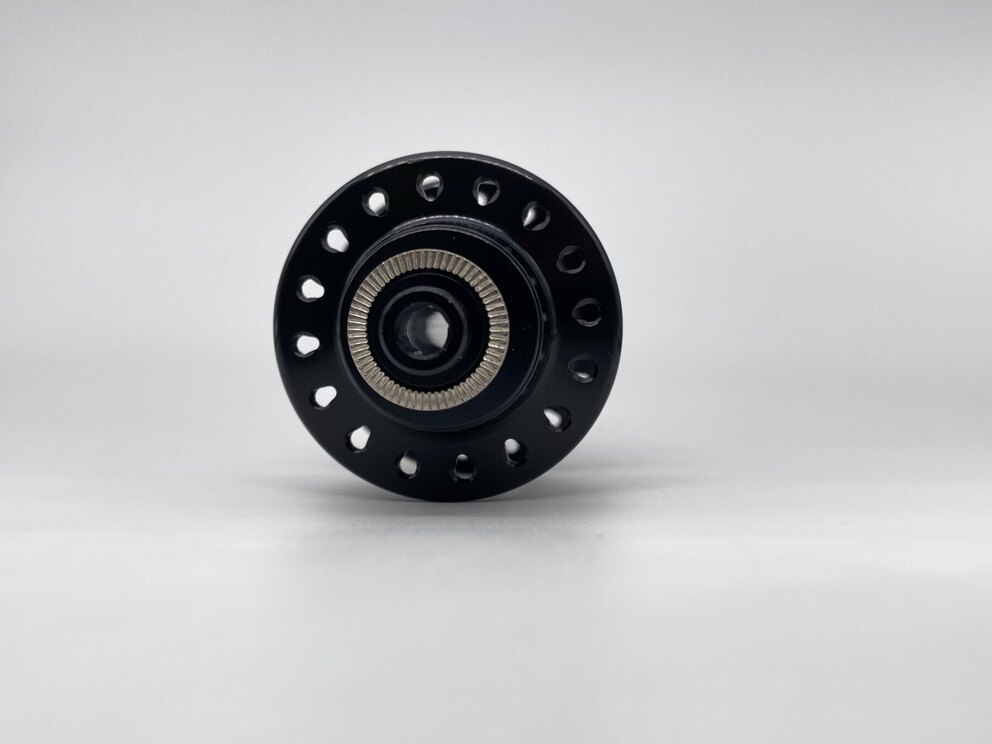

Rear hub / 130 MM / Drop axle / Rim brake / 32GTS / Novatec / F482SB-11S / HG Body 36,85 MM / Black / Race

Use this hub for assembling a wheel

Choose this hub

Beoogd gebruik	Race
Voor of achter	Achter
Type rem	Velgrem
Cassette / Freewheel body	HG Body 36,85 MM
Aantal spaken/spaakgaten	32
Inbouwbreedte	130 mm
Type as	Uitvalas / Quick Release
Naafdynamo	Nee
Merk naaf	Novatec
Type naaf	F482SB-11S
Kleur	Zwart
Nieuw of gebruikt	Nieuw
Materiaal van de freewheel body	Aluminium

The special bore makes it suitable for the extra wide (max. 3.0 mm wide) aero spokes.

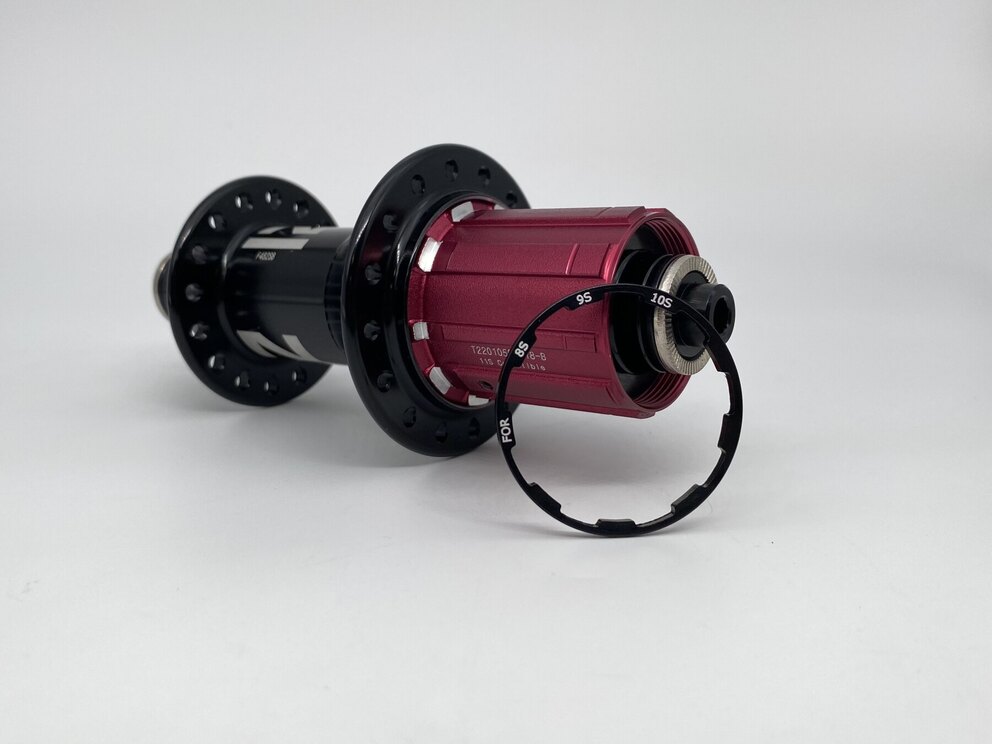

Hub is suitable for both Shimano splined Road and MTB cassettes, a spacer is included for this

Specifications of the rear hub:
Brand: Novatec
Model: F482SB-11S
Color: Black
Number of spoke holes: 32GTS
Type of brake: Rim brake
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Type of axle: Drop axle

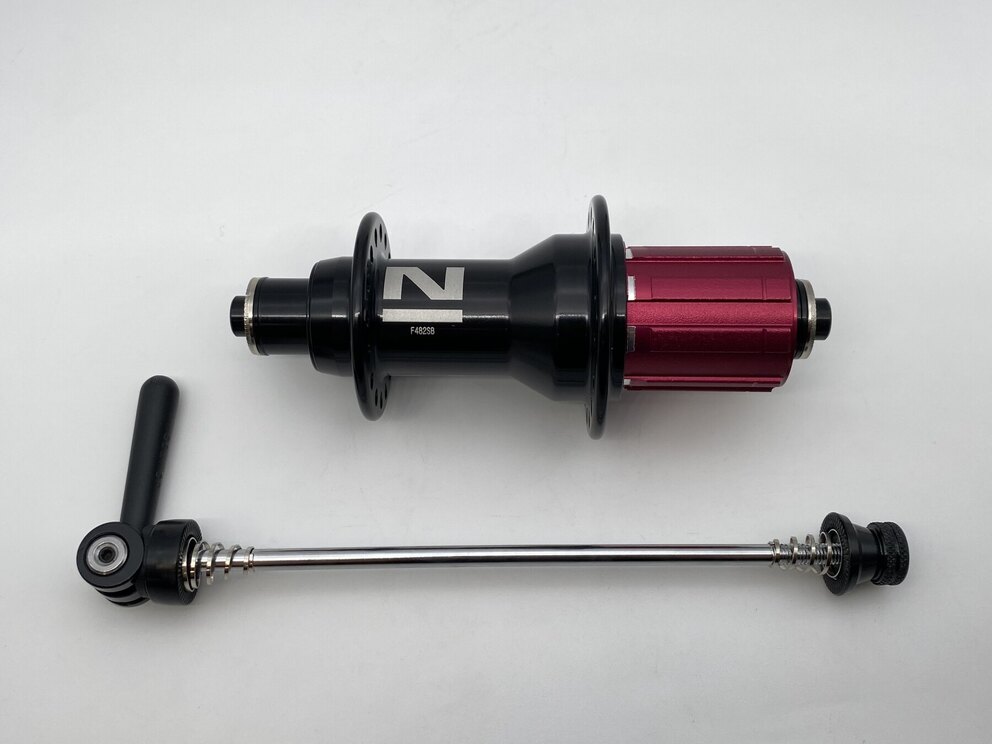

Axle included: Yes, quick release
Type of bearings: Industrial bearings
Average weight (GR): 239
Intended use: Race

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 130
Non-gear side (MM): 27
Gear side (MM): 46
Hub diameter non-gear side (MM): 40
Hub diameter gear side (MM): 48

Link to spoke calculator: www.sapim.be/spoke-calculator
