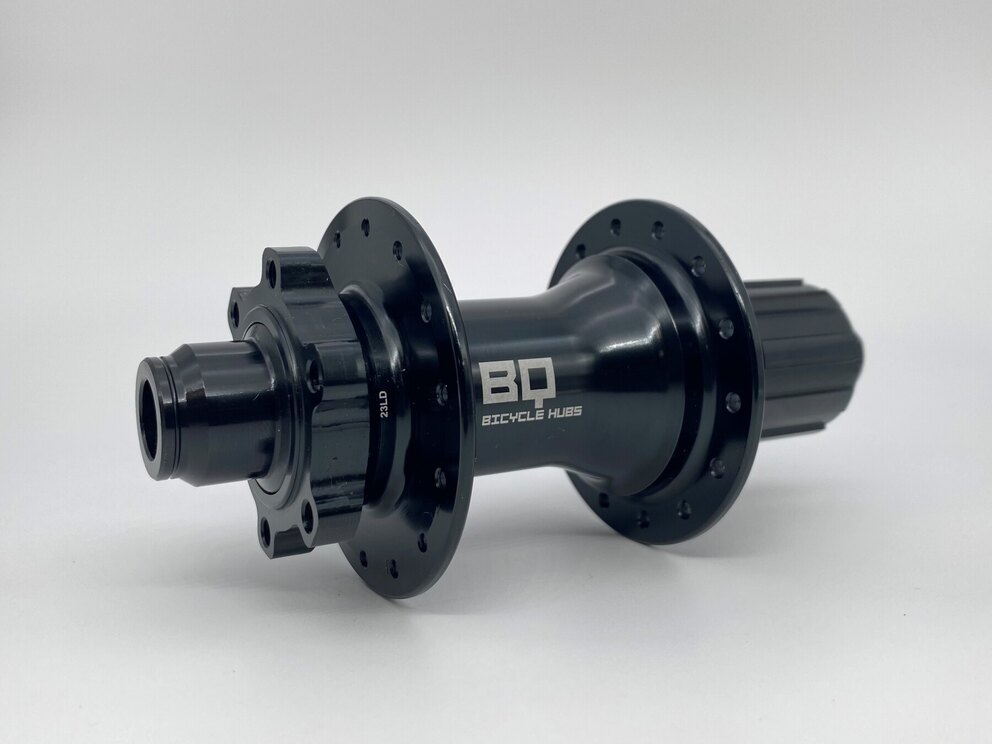

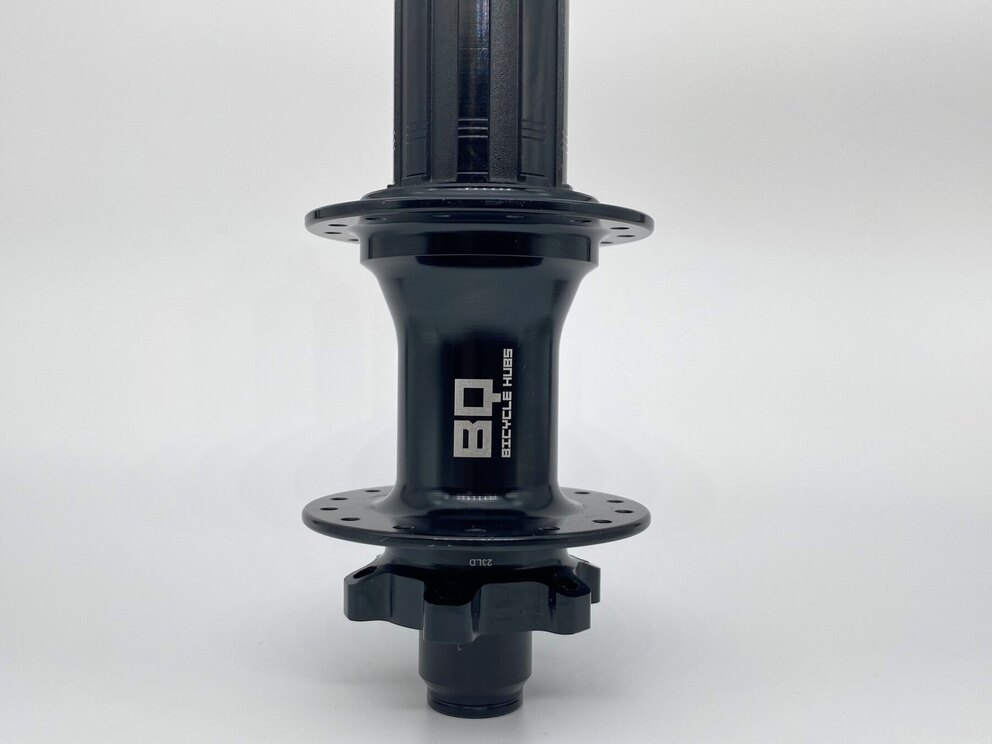

Rear hub / 148 MM / Thru axle Ø 12 MM / Disc (6 bolts) / 28GTS / BQ / BQ-RH30014 / HG Body 36,85 MM / Black / MTB

Use this hub for assembling a wheel

Choose this hub

Beoogd gebruik	MTB
Voor of achter	Achter
Type rem	Disc (6 bout)
Cassette / Freewheel body	HG Body 36,85 MM
Aantal spaken/spaakgaten	28
Inbouwbreedte	148 mm
Type as	Steekas 148 x 12 mm
Merk naaf	BQ Bicycle Hubs
Type naaf	BQ-RH30014
Kleur	Zwart
Nieuw of gebruikt	Nieuw
Materiaal van de freewheel body	Aluminium
Freewheel systeem	Pallen (6)
Aantal aangrijpingspunten	120

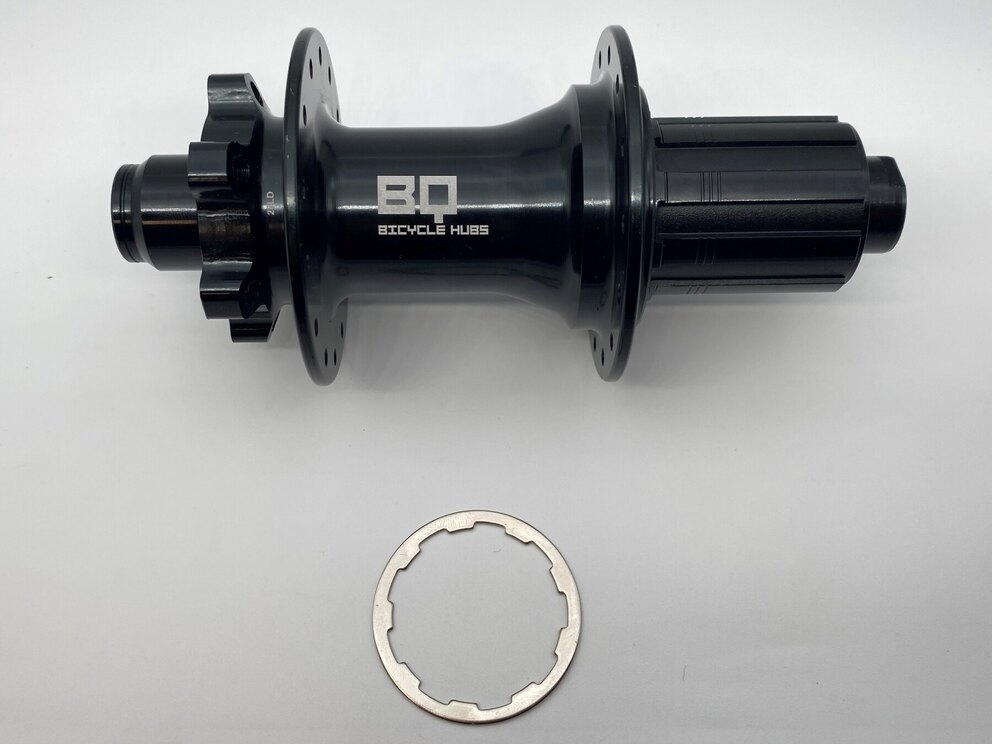

To mount an MTB cassette, an extra spacer is required, which is not supplied as standard. See related articles below.

Specifications of the rear hub:
Brand: BQ
Model: BQ-RH30014
Color: Black
Number of spoke holes: 28GTS
Type of brake: Disc (6 bolts)
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Freewheel system:    Pawls (6)
Points of engagement:    120
Type of axle: Thru axle Ø 12 MM
Axle included: No
Type of bearings: Sealed bearings
Average weight (GR): 341
Intended use: MTB

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 148
Non-gear side (MM): 35
Gear side (MM): 52
Hub diameter non-gear side (MM): 58
Hub diameter gear side (MM): 58

Link to spoke calculator: www.sapim.be/spoke-calculator
