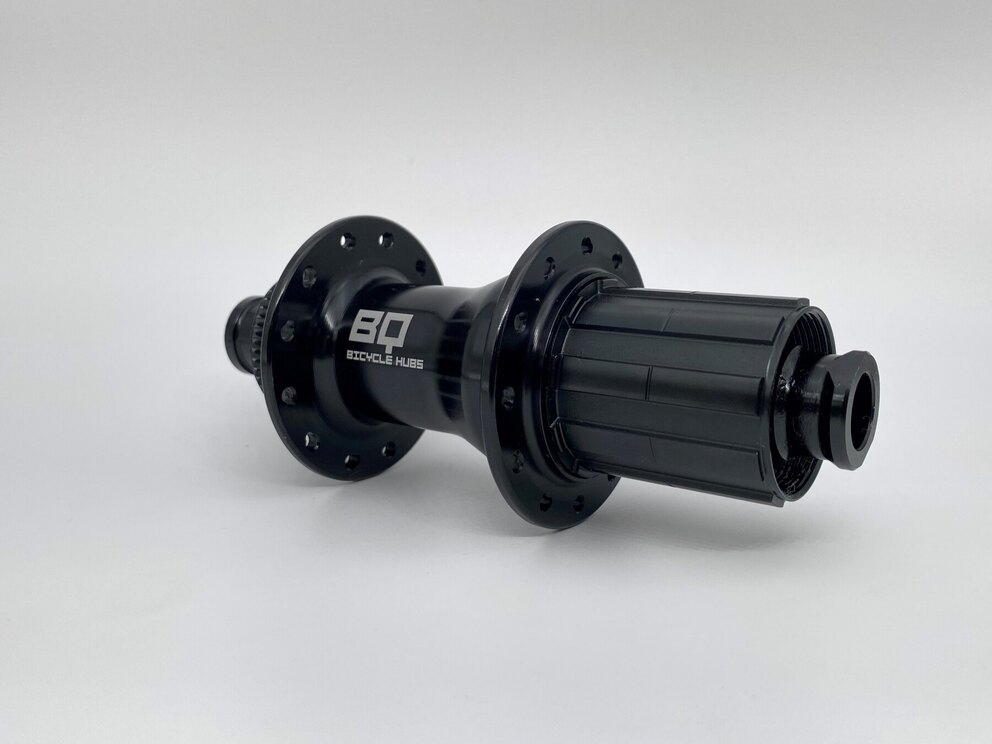

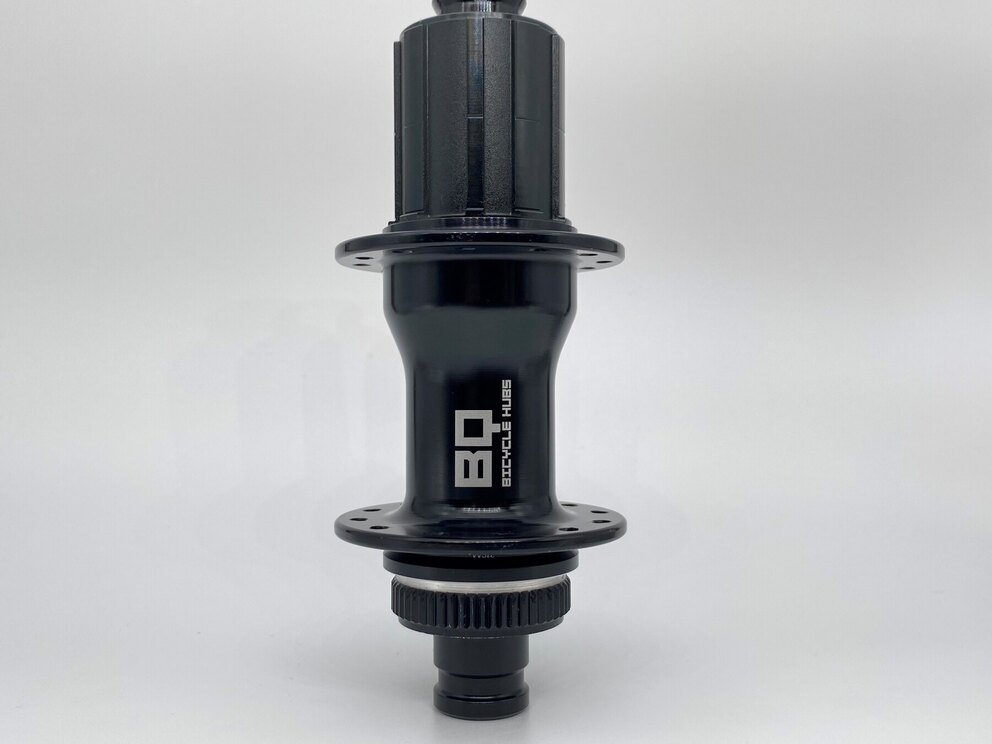

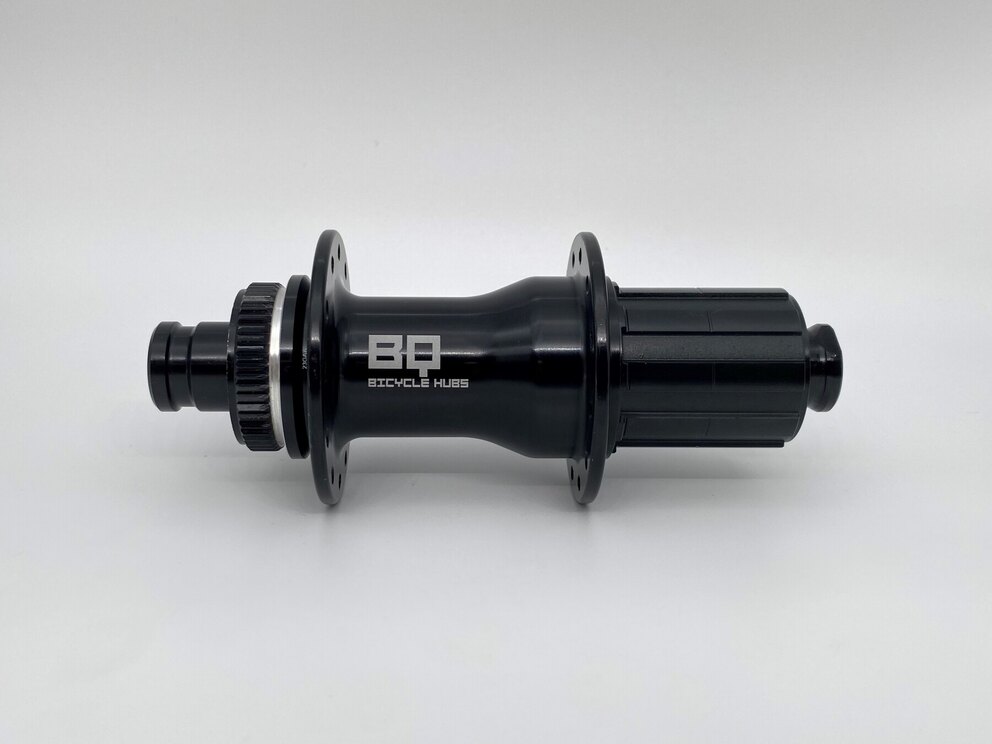

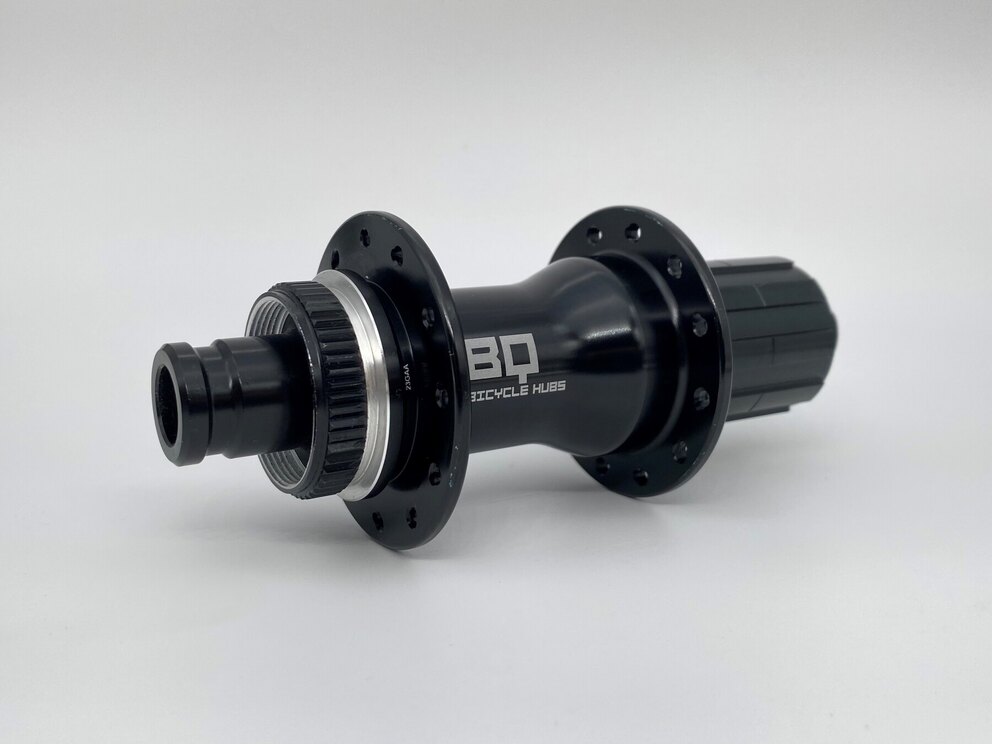

Rear hub / 142 MM / Thru axle Ø 12 MM / Disc (Centerlock) / 28GTS / BQ / BQ-RH30002 / HG Body 36,85 MM / Black / Race
Item number: AN30002 EAN: 8721021600018
€ 149,95
43 In stock
| Beoogd gebruik | Gravel , Race |
|---|---|
| Voor of achter | Achter |
| Type rem | Disc (Centerlock) |
| Cassette / Freewheel body | HG Body 36,85 MM |
| Aantal spaken/spaakgaten | 28 |
| Inbouwbreedte | 142 mm |
| Type as | Steekas 142 x 12 mm |
| Merk naaf | BQ Bicycle Hubs |
| Type naaf | BQ-RH30002 |
| Kleur | Zwart |
| Nieuw of gebruikt | Nieuw |
| Materiaal van de freewheel body | Aluminium |
| Freewheel systeem | Ratchet (36T) |
| Aantal aangrijpingspunten | 36 |
Specifications of the rear hub:
Brand: BQ
Model: BQ-RH30002
Color: Black
Number of spoke holes: 28GTS
Type of brake: Disc (Centerlock)
Number of gears: HG Body 36.85 MM (HG 11) = suitable for all cassettes (possibly with the use of spacer(s))
Material of the freewheel body: Aluminium
Freewheel system: Ratchet (36T)
Points of engagement: 36
Type of axle: Thru axle Ø 12 MM
Axle included: No
Type of bearings: Industrial bearings
Average weight (GR): 281
Intended use: Race
Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 142
Non-gear side (MM): 34
Gear side (MM): 50
Hub diameter non-gear side (MM): 50
Hub diameter gear side (MM): 50
Link to spoke calculator: www.sapim.be/spoke-calculator
