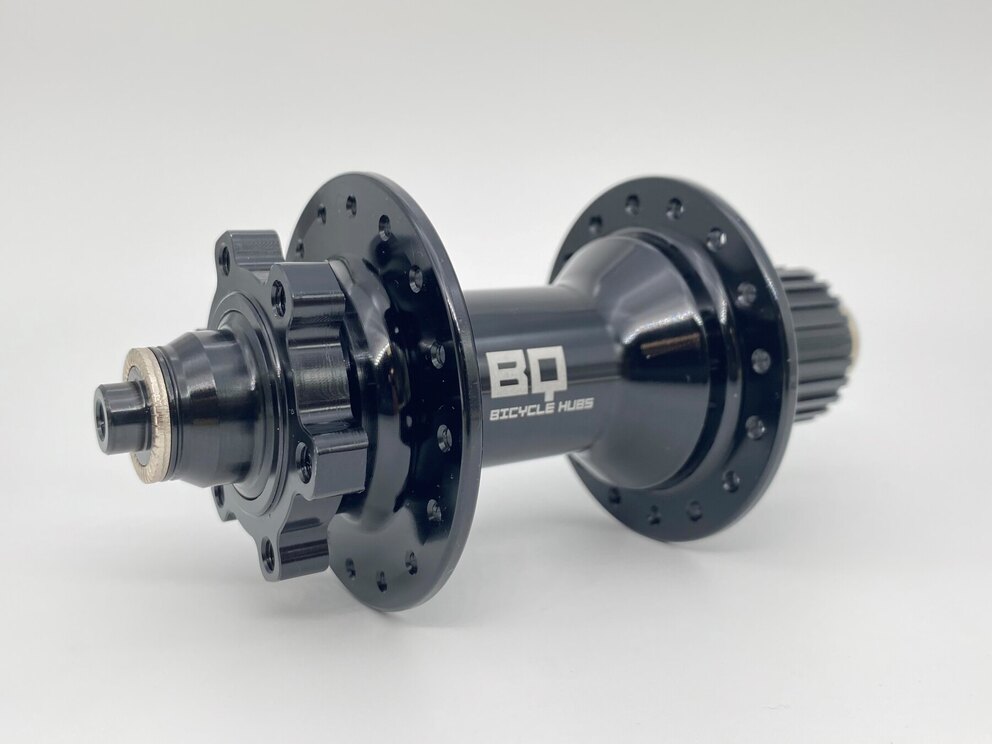

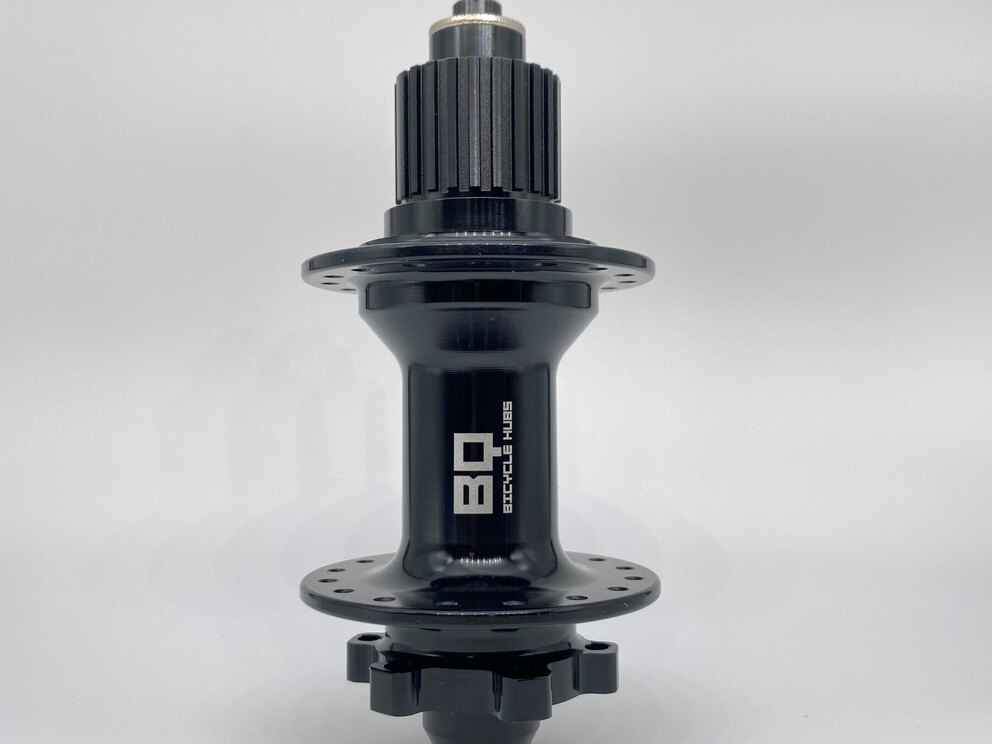

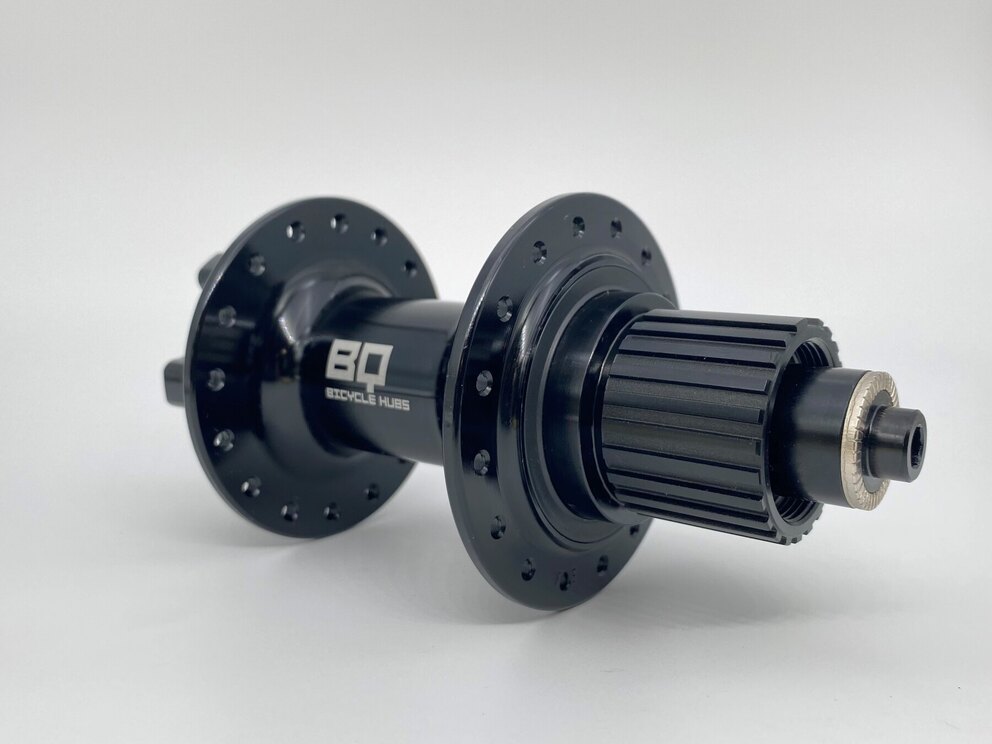

Rear hub / 141 MM / Drop axle / Disc (6 bolts) / 32GTS / BQ / BQ-RH30027 / Micro Spline 12S / Black / Trek X-Caliber

Use this hub for assembling a wheel

Choose this hub

Beoogd gebruik	MTB , Trek X-Caliber
Voor of achter	Achter
Type rem	Disc (6 bout)
Cassette / Freewheel body	Micro Spline 12S
Aantal spaken/spaakgaten	32
Inbouwbreedte	141 mm
Type as	Uitvalas / Quick Release
Naafdynamo	Nee
Merk naaf	BQ Bicycle Hubs
Type naaf	BQ-RH30027
Kleur	Zwart
Nieuw of gebruikt	Nieuw
Materiaal van de freewheel body	Aluminium
Freewheel systeem	Pallen (6)
Aantal aangrijpingspunten	120

Specially and only for Trek X-Caliber mountain bikes with 141mm installation width. This is the variant with Micro Spline body. For the variant with HG body see related articles below.

Specifications of the rear hub:
Brand: BQ
Model: BQ-RH30027
Color: Black
Number of spoke holes: 32GTS
Type of brake: Disc (6 bolts)
Number of gears: Micro Spline 12S
Material of the freewheel body: Aluminium
Freewheel system: Pawls (6)
Points of engagement: 120
Type of axle: Drop axle

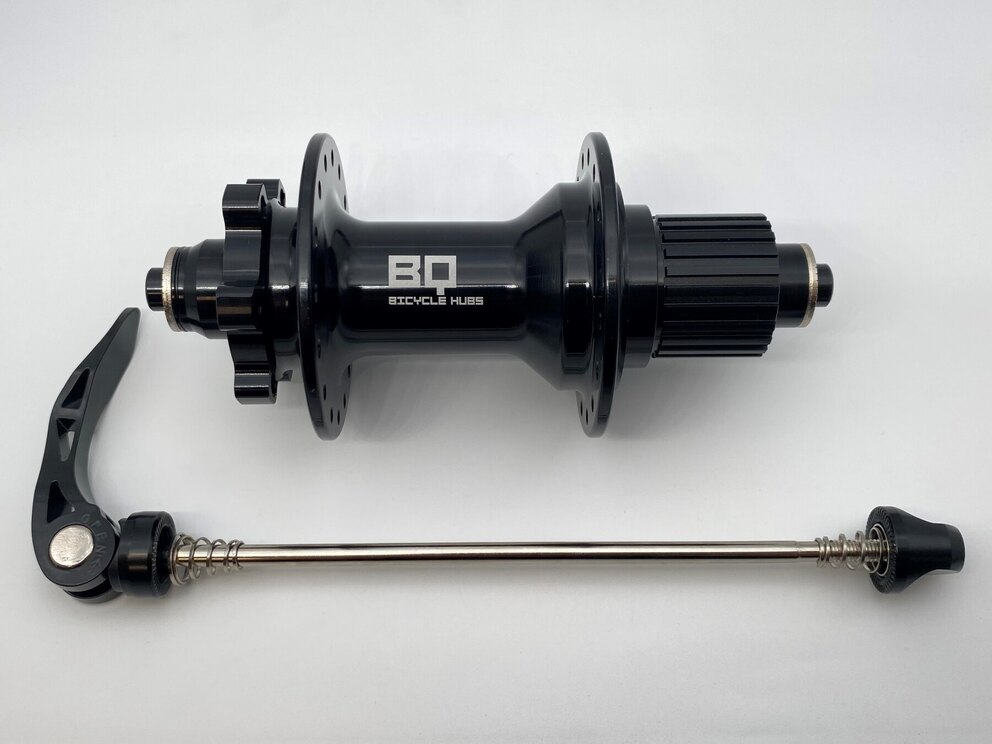

Axle included: Yes, quick release
Type of bearings: Sealed bearings
Average weight (GR): 337
Intended use: Trek X-Caliber

Data for spoke length calculations using the Sapim spoke size calculator:
Total length of the hub (MM): 141
Non-gear side (MM): 32
Gear side (MM): 45
Hub diameter non-gear side (MM): 59
Hub diameter gear side (MM): 59

Link to spoke calculator: www.sapim.be/spoke-calculator
